DESCRIPTION

This innovative system seamlessly combines a filling and capping machine with a bottle handling unit, streamlining your production process. The bottle handling unit utilizes a step-wise elevator structure to efficiently transport bottles. Vacuum suction cups gently grip each bottle and deliver it to the filling and capping machine. An integrated bottle orientation detection system ensures proper alignment before filling. The filling and capping machine employs a cam-driven starwheel for precise positioning at each station. Individual fixtures securely hold each bottle during the filling process. A three-stage peristaltic pump ensures accurate and rapid filling. Caps are delivered via a vibratory feeder and secured onto bottle openings using a vacuum suction head. The capping station utilizes a servo motor-driven three-jaw chuck for precise and secure capping. Finished products are then ejected through a base platform.

Parameter

Machine model: ZS-FAL180F3
Voltage: 110/220V 50-60Hz 4.2KW
Working air pressure: 0.6-0.8mpa
Working capacity: 40BPM
Cover size: Plastic cover φ21mm×15mm (Can be customized)
Bottle size: φ20.8mm×110mm & 24.5mm×52mm (Plastic bottle, can be customized)
Filling capacity: 20ml (Can be customized)
Filling pump: 5L/min peristaltic pump
Number of filling nozzles: 3
Filling accuracy: About ±0.2ml (each pump)
Machine size: About 3500×1650×1700(mm)(L×W×H)
Machine weight: About 1000kg

ZONESUN Monoblock Filling Capping Machine

Filling Machine For E-liquid

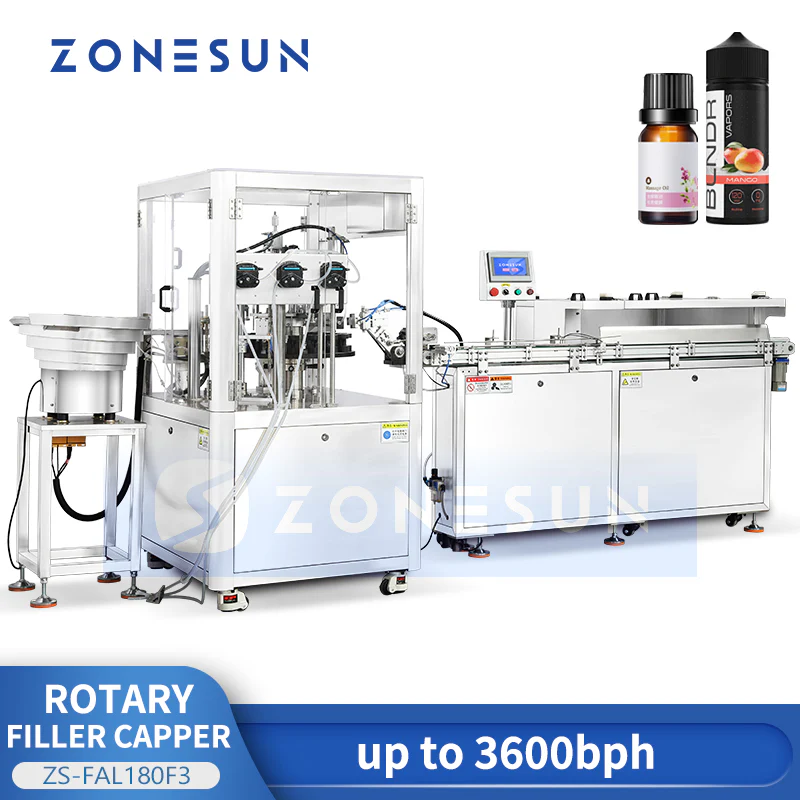

ZONESUN ZS-FAL180F3 Monoblock Rotary Filling Capping Machine
