DESCRIPTION

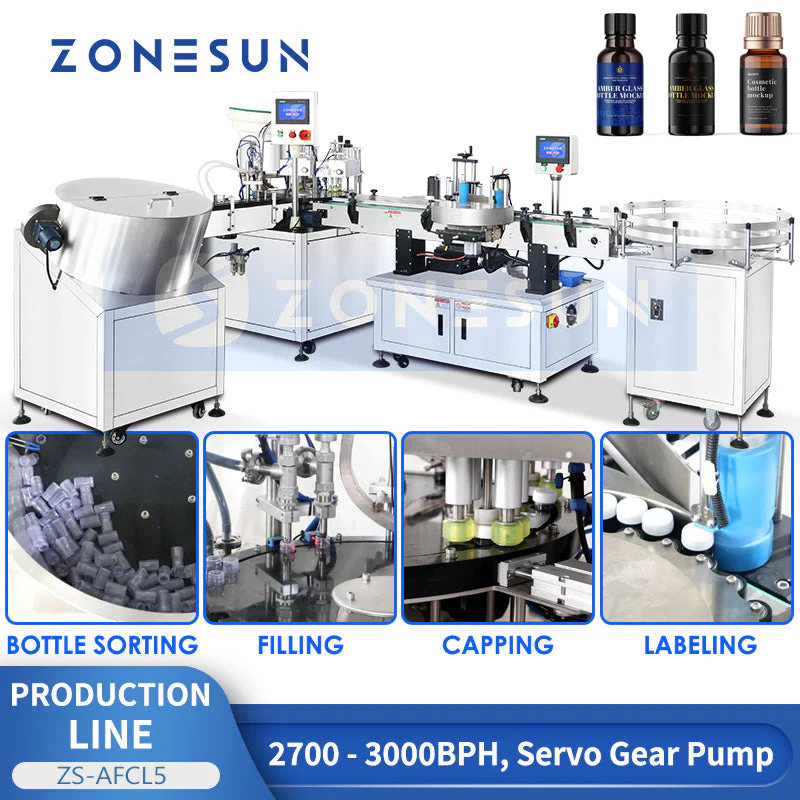

The ZONESUN ZS-AFCL5 automatic filling line is designed for packaging small bottles such as cosmetic serums, pigments, inks, massage oils, and solvents. This system integrates bottle sorting, liquid filling, capping, and labeling into one streamlined process. Equipped with a gear pump filling machine and servo control, it ensures accurate liquid dispensing with stable performance. The line also includes an automatic bottle sorting machine and labeling system for precise cap tightening and sticker labeling. Ideal for cosmetics, chemicals, and laboratory use, it offers efficient, reliable, and flexible production for various small-volume liquid products.

Parameter

Bottle Sorting Machine

Machine model: ZS-LP750
Machine voltage: 110/220V 50-60HZ
Machine power: < 500 W
Rotary plate diameter: 755 mm
Suitable bottle diameter: Customized according to your bottles
Working speed: 20-80 bottles/min
Machine size: About 570*685*1325 mm
Machine weight: About 177 kg
Package size: About 1110*1080*1490 mm
Package weight: About 208 kg

Gear Pump Filling Capping Machine

Machine model: ZS-AFC40
Machine voltage:110/220V 50-60HZ 4KW
Cover size: Customized
Bottle size: Customized
Filling capacity: 20 ml (based on syrup)
Filling pump: Double heads servo gear pump
Filling accuracy: About ±1%
Machine contact part material: SUS304 & food grade plastic
Production efficiency: 2700-3000 BPH(based on filling volume and filling material)
Working air pressure: 0.6-0.8 MPa

High Speed Labeling Machine

Machine model: ZS-TB700
Power supply: AC220V 50H-60HZ 2000 W
Labeling capacity: 60-100 bottles/min(depends on bottle size)
Labeling accuracy: ±1.0 mm
Suitable Bottle Diameter: Φ30-100 mm H 30-120 mm
Label size: (L)20-300 mm (H)15-130 mm(Can be customized)
Roll inside diameter: Φ76 mm
Roll outside diameter: Φ350 mm
Conveyor Size: 112*2000 mm(W) (Can be customized)
Machine size: About 2100*1230*1380 mm(L*W*H)
Machine weight: About 200 kg
Package size: About 2060*1070*1550 mm(L*W*H)
Package weight: About 304 kg

Bottle Turntable Machine

Machine model: ZS-SP800S
Bottle specifications: Square bottle / Round bottle
Conveying speed: 0-20 revolutions per minute(adjustable)
Voltage: 220V 50Hz (110V can be customized)
Power supply: 200W
Turntable diameter: 800 mm Available
Dimensions: About 550*550*990 mm
Package size: About 1050*1000*1130 mm
Net weight/Gross weight: About 93 kg / 120 kg

ZONESUN ZS-AFCL5 Automatic Small Bottle Filling Capping Labeling Line for Cosmetics & Chemicals

Gear Pump Filling Machine

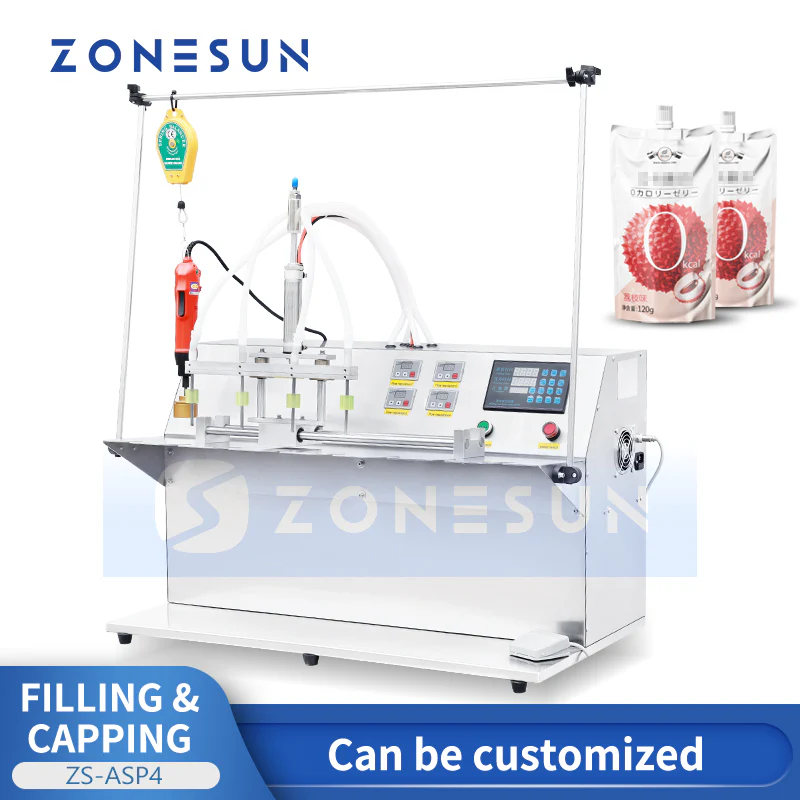

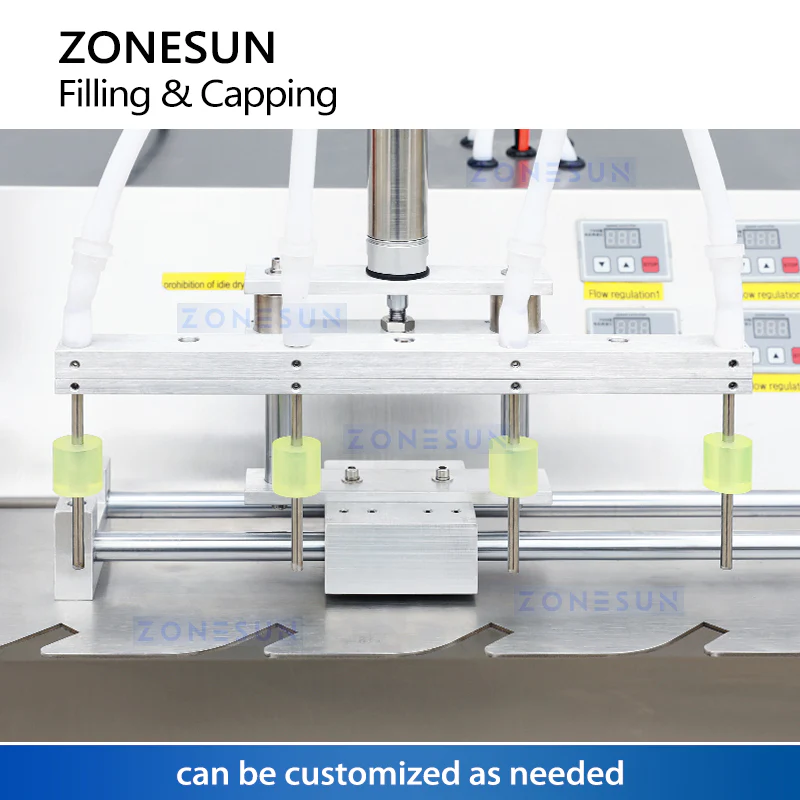

ZONESUN ZS-ASP4 Spout Pouch Liquid Filling Capping Machine
