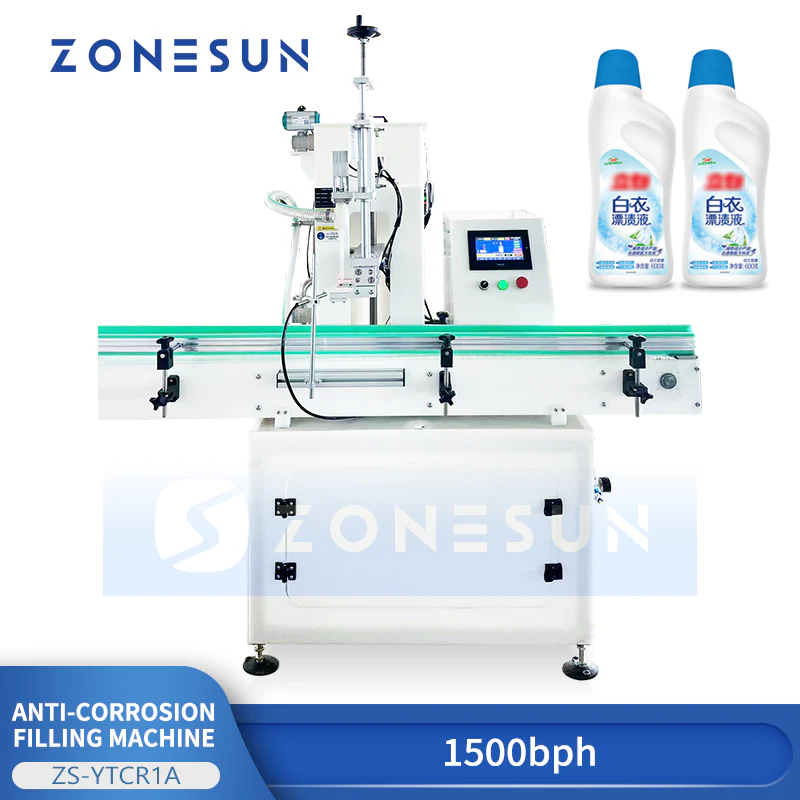

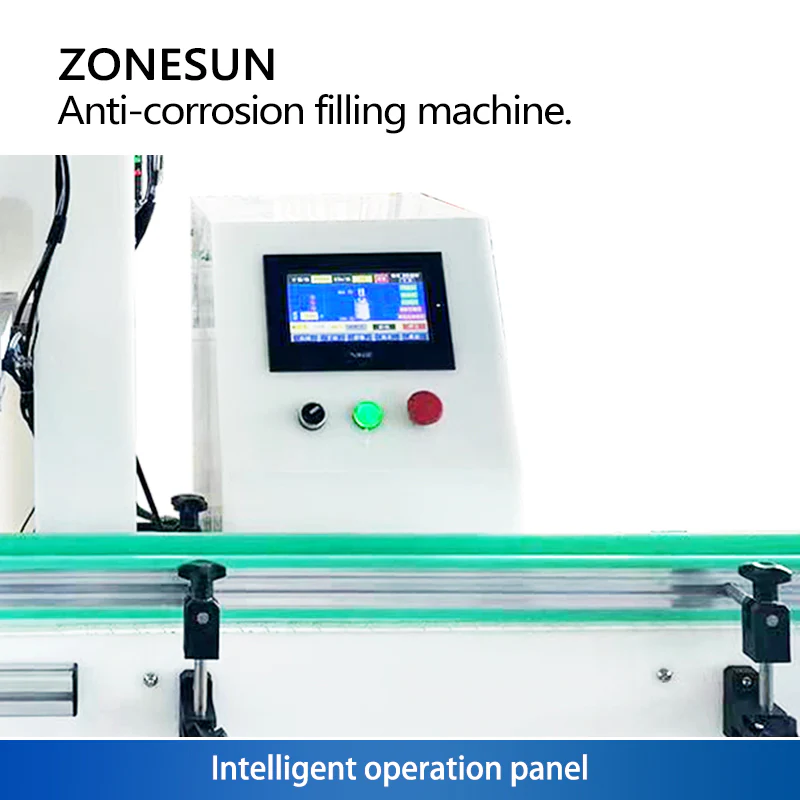

The ZONESUN ZS-YTCR1A is a single-head automatic filling machine specifically designed for corrosive chemical liquids. Constructed from high-grade PP material, it offers excellent resistance to chemical wear and ensures long-term durability. The machine operates via a conveyor system with pneumatic clamping and filling mechanisms, delivering precise, hands-free filling for bottles ranging from 10ml to 5L. With a production capacity of up to 1500 bottles per hour and ±0.3% filling accuracy, it’s ideal for chemical plants, industrial cleaning product manufacturers, and other hazardous liquid applications. This system enhances safety, reduces labor, and ensures consistent output.

ZS-YTCR1A Automatic Filling Machine – Technical Specifications
Parameter Specification
Model ZS-YTCR1A
Power Supply AC 220V / 380V
Power Consumption 2.4 kW (50–60Hz)
Applicable Bottleneck ≥ Φ30mm
Bottle Types Supported 10ml–5L round, oblate, square, and oblate square bottles
Working Air Pressure 0.6–0.8 Mpa
Filling Accuracy ±0.3% (based on 500ml volume)
Production Capacity 1500 bottles/hour (based on 500ml)
Machine Dimensions 2000 × 1100 × 1800 mm (customizable based on actual packaging size)
Equipment Weight Approx. 300 kg

ZONESUN ZS-YTCR1A Chemical Corrosive Liquid Filling Machine

Liquid Filling Machine

ZONESUN ZS-YTCR1A Corrosive Liquid Filling Machine for Chemical Bottling Operations
