Description

This machine is an automatic device that applies the label film on the tape backing paper to the cable. This machine has a wide range of applications. The electronics industry, wire and cable industry, food and other industries have good labeling effects, easy operation, and tape Easy to replace, suitable for labeling cables of various specifications. Greatly improved production efficiency, reduced costs, and brought benefits to the majority of enterprises.

Parameter

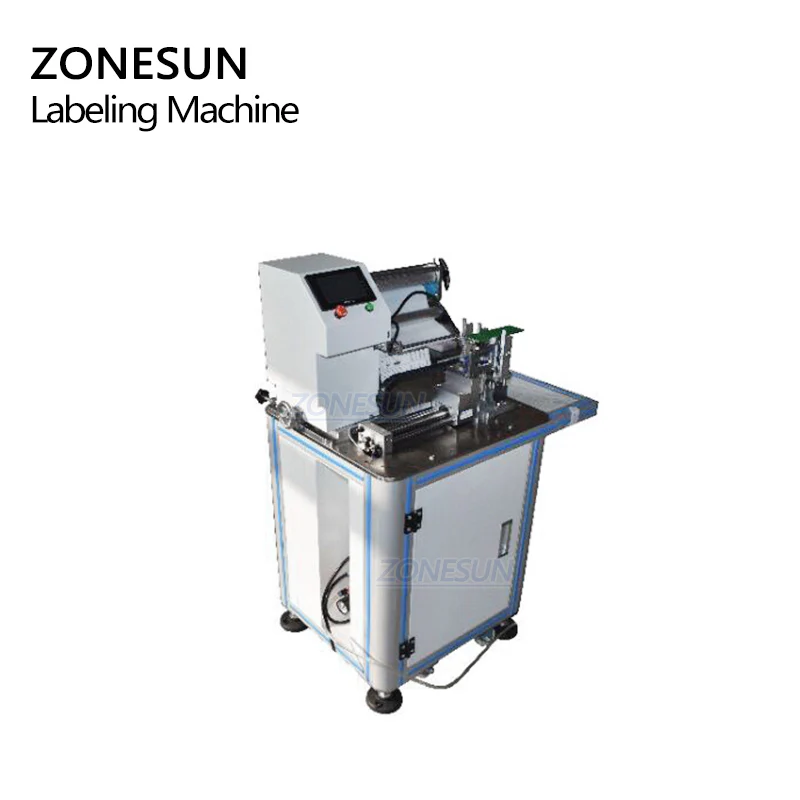

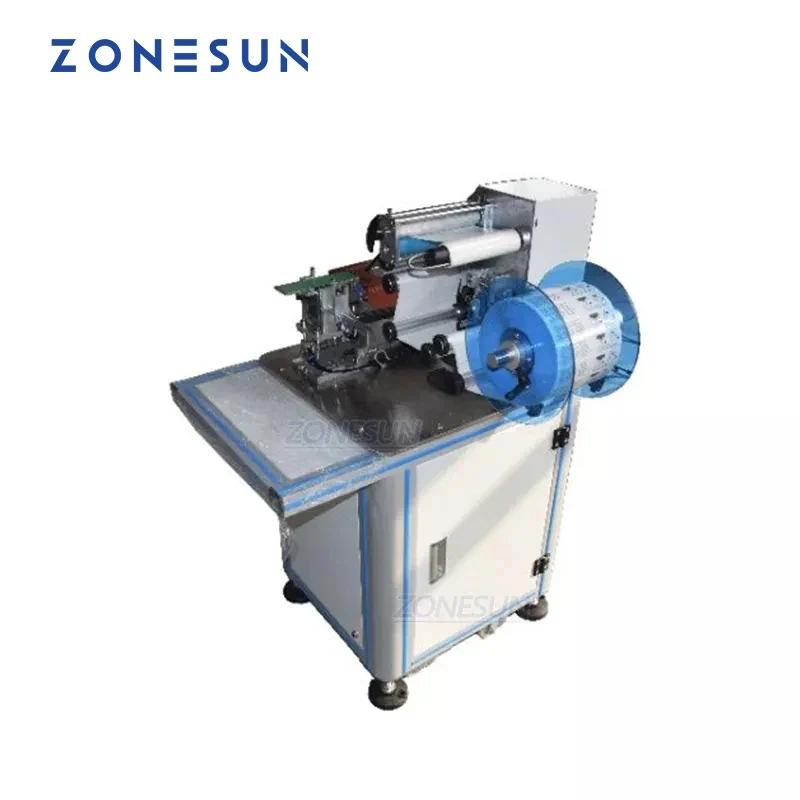

Machine model: ZS-TB901
Voltage: 220V, 50–60Hz
Power: 60W
Air pressure: 4–6 kgf
Applicable product diameter: 6–16mm
Labeling speed: 1000–1200 pcs/h (depends on product and label size)
Labeling accuracy: ±0.5mm
Minimum label size (L×W): 20×50mm
Maximum label size (L×W): 135×50mm
Label roll inner diameter: 76mm
Label roll outer diameter: Max 240mm
Label material: PVC, PET, Paper, Cloth, etc.
Machine size (L×W×H): Approx. 500×450×1008mm
Machine weight: 86kg
Package size (L×W×H): Approx. 790×630×1180mm
Package weight: 121kg

Features

1. The label electric eye quickly senses the label gap to complete the labeling and identification

2. Reasonable mechanical structure design ensures smooth and stable labeling

3.Easy to apply and can be adjusted in a wide range to achieve double-fold labeling on products of different specifications

4. Effectively reduce product costs, improve the aesthetics of product logos, and increase product competitiveness

5. Reasonable structural design, easy and quick replacement of wearing parts

6.Avoid manual labeling with low efficiency, skew, blistering, wrinkle, and irregular attachment position

Scope of application

1.Applicable industries: electronics, wire, electrical appliances, electromechanical, used for headphone cable, USB cable, power cable, air pipe, water pipe, etc .;

2.Applicable labels: self-adhesive labels, self-adhesive films; electronic supervision codes, barcodes, etc 3.Application examples: earphone cable labeling, power cable labeling, fiber optic cable labeling, cable labeling, water pipe, air pipe labeling, warning labeling machine, etc.
