ZONESUN ZS-ACF6 Automatic Isobaric Vacuum Beer Carbonated drinks Filling Machine
DESCRIPTION

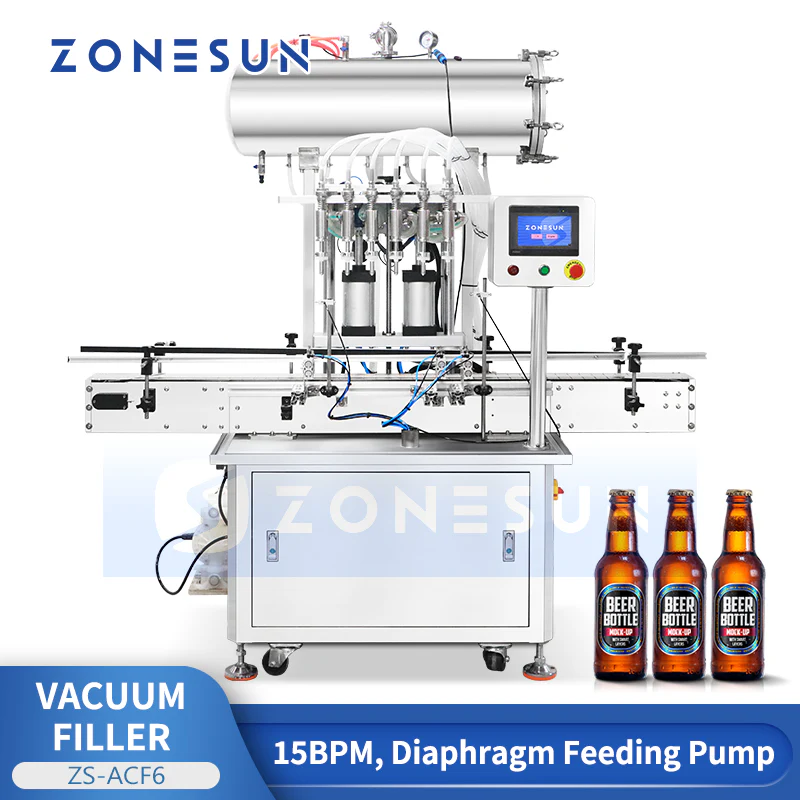

The ZONESUN ZS-ACF6 is an automatic isobaric filling machine designed for carbonated beverages such as beer, sparkling wine, soda water, and kombucha. It also supports still drinks, offering flexible production capabilities. During filling, excess liquid flows back to the storage tank to ensure consistent volume and reduce waste. Engineered for integration with mixing, capping, and labeling systems, the ZS-ACF6 delivers hygienic, efficient, and reliable performance—ideal for beverage manufacturers seeking high-speed bottling with stable quality.
Parameters
- Model: ZS-ACF6
- Voltage: 110V / 220V, 50–60Hz, 800W
- Filling Range: 100–750 ml
- Applicable Bottle Diameter: Φ30–110 mm
- Applicable Bottle Height: 100–310 mm
- Bottle Opening Size: 25–40 mm
- Working Capacity: Approx. 15 BPM (bottles per minute)
- Filling Accuracy: ±2 ml
- Machine Dimensions: Approx. 2000 × 1050 × 2060 mm
- Package Dimensions: Approx. 2080 × 1100 × 2250 mm
- Package Weight: Approx. 522 kg
