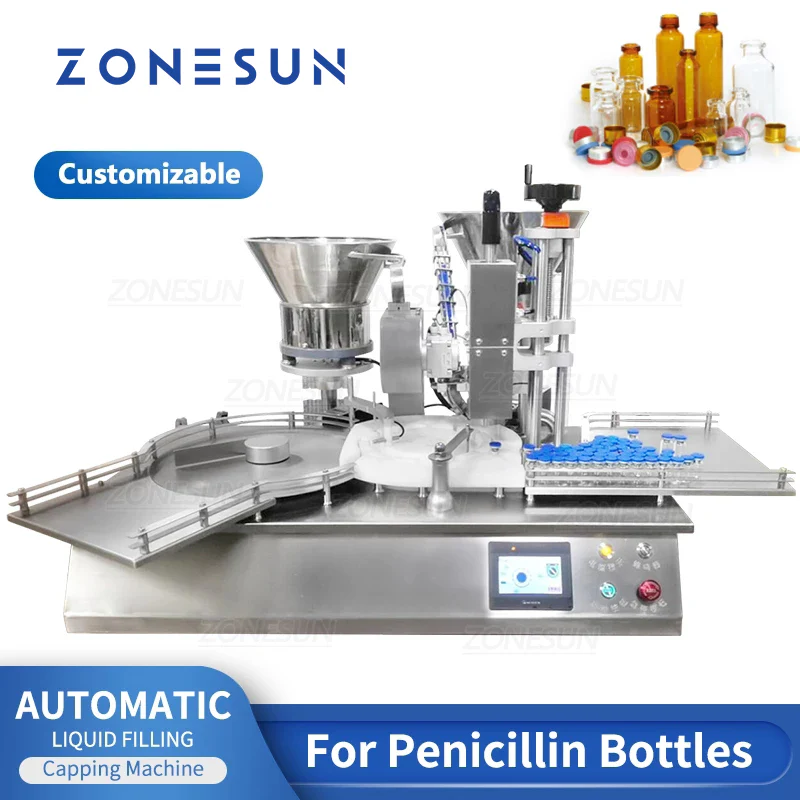

ZONESUN ZS‑AFC7‑2 Penicillin Bottle Filling & Capping Machine

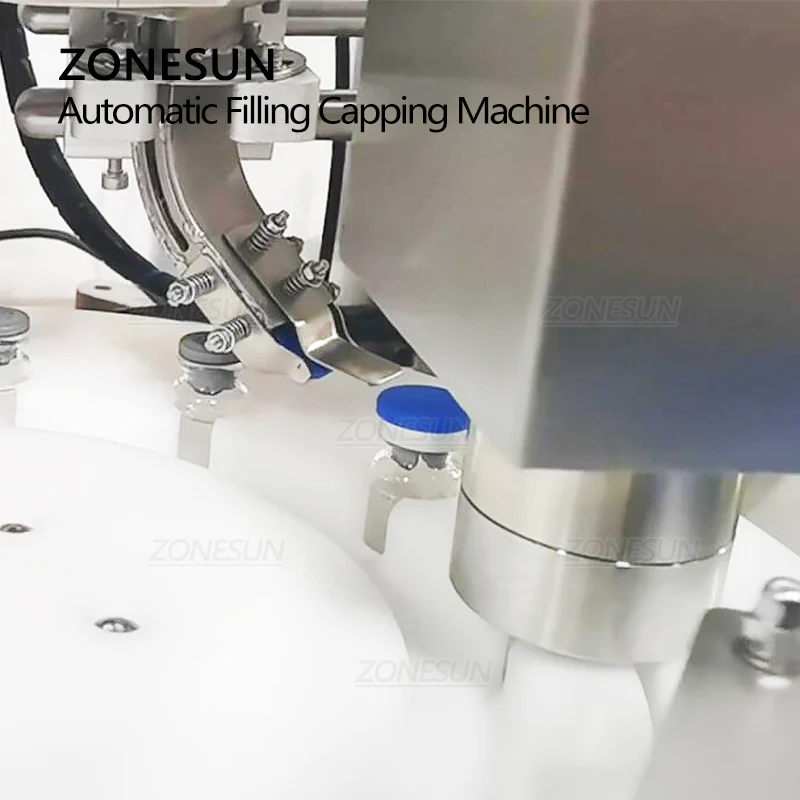

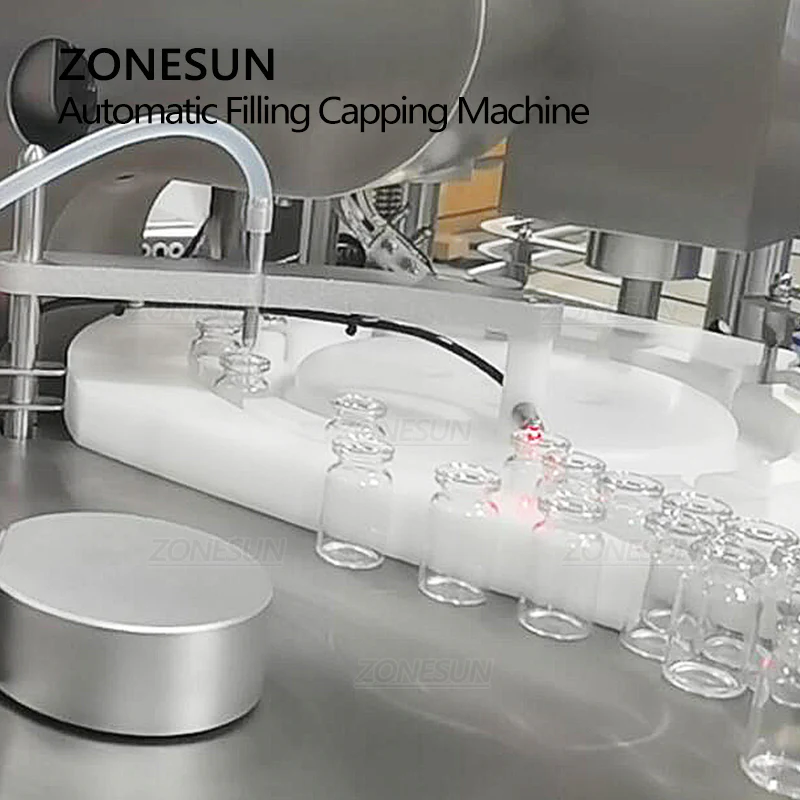

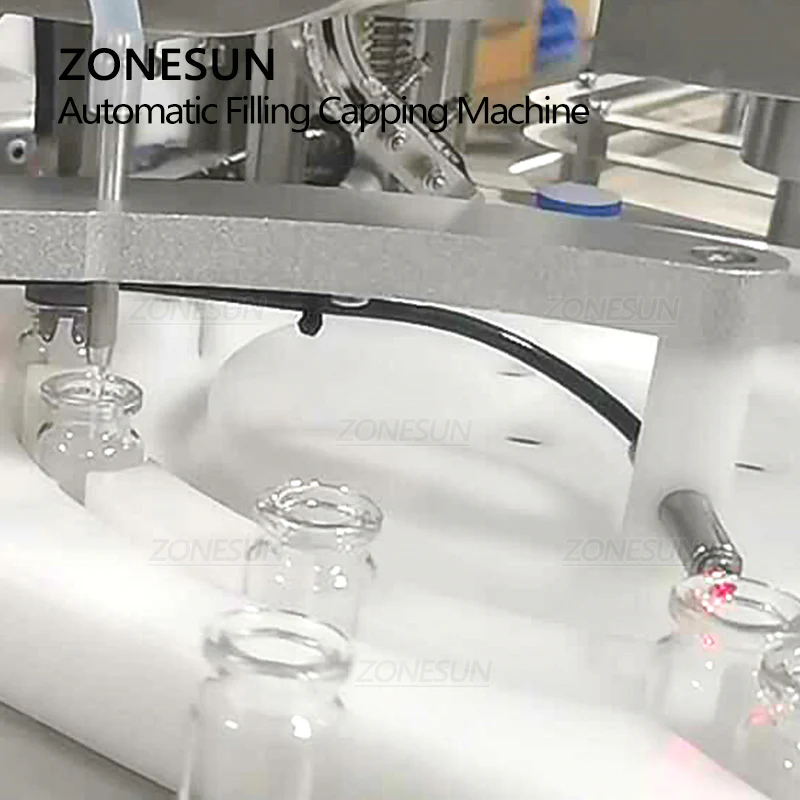

The ZONESUN ZS‑AFC7‑2 Automatic Penicillin Bottle Peristaltic Pump Liquid Filling and Capping Machine is engineered for efficient, space‑saving pharmaceutical and laboratory production. It automatically feeds inner plugs and caps, fills low‑viscosity liquids with ±1 % accuracy, and presses bottle caps for a complete packaging cycle. Designed for penicillin bottles, this machine can be customized to specific requirements.
Notice: An external air compressor is required and sold separately. Please contact us if needed.
Filling Machine — Specifications
Parameter Details
Voltage 220 V / 110 V, 50‑60 Hz
Power 2.5 kW
Machine Pump Peristaltic pump
Filling Range 5 – 30 ml (customizable)
Filling Speed Approx. 1200 bottles/h (depends on bottle size & liquid)
Filling Accuracy ± 1 %
Air Pressure 0.5 – 0.8 MPa
Machine Size Approx. 1230 × 780 × 600 mm
Machine Weight Approx. 120 kg
Package Size Approx. 1500 × 1500 × 1500 mm
Package Weight Approx. 200 kg
The ZONESUN ZS‑AFC7‑2 Automatic Penicillin Bottle Peristaltic Pump Liquid Filling and Capping Machine is engineered for efficient, space‑saving pharmaceutical and laboratory production. It automatically feeds inner plugs and caps, fills low‑viscosity liquids with ±1 % accuracy, and presses bottle caps for a complete packaging cycle. Designed for penicillin bottles, this machine can be customized to specific requirements.
Notice: An external air compressor is required and sold separately. Please contact us if needed.
Filling Machine — Specifications
Parameter Details
Voltage 220 V / 110 V, 50‑60 Hz
Power 2.5 kW
Machine Pump Peristaltic pump
Filling Range 5 – 30 ml (customizable)
Filling Speed Approx. 1200 bottles/h (depends on bottle size & liquid)
Filling Accuracy ± 1 %
Air Pressure 0.5 – 0.8 MPa
Machine Size Approx. 1230 × 780 × 600 mm
Machine Weight Approx. 120 kg
Package Size Approx. 1500 × 1500 × 1500 mm
Package Weight Approx. 200 kg
Original: $14,662.80
-70%$14,662.80
$4,398.84Description
The ZONESUN ZS‑AFC7‑2 Automatic Penicillin Bottle Peristaltic Pump Liquid Filling and Capping Machine is engineered for efficient, space‑saving pharmaceutical and laboratory production. It automatically feeds inner plugs and caps, fills low‑viscosity liquids with ±1 % accuracy, and presses bottle caps for a complete packaging cycle. Designed for penicillin bottles, this machine can be customized to specific requirements.
Notice: An external air compressor is required and sold separately. Please contact us if needed.
Filling Machine — Specifications
Parameter Details
Voltage 220 V / 110 V, 50‑60 Hz
Power 2.5 kW
Machine Pump Peristaltic pump
Filling Range 5 – 30 ml (customizable)
Filling Speed Approx. 1200 bottles/h (depends on bottle size & liquid)
Filling Accuracy ± 1 %
Air Pressure 0.5 – 0.8 MPa
Machine Size Approx. 1230 × 780 × 600 mm
Machine Weight Approx. 120 kg
Package Size Approx. 1500 × 1500 × 1500 mm
Package Weight Approx. 200 kg
