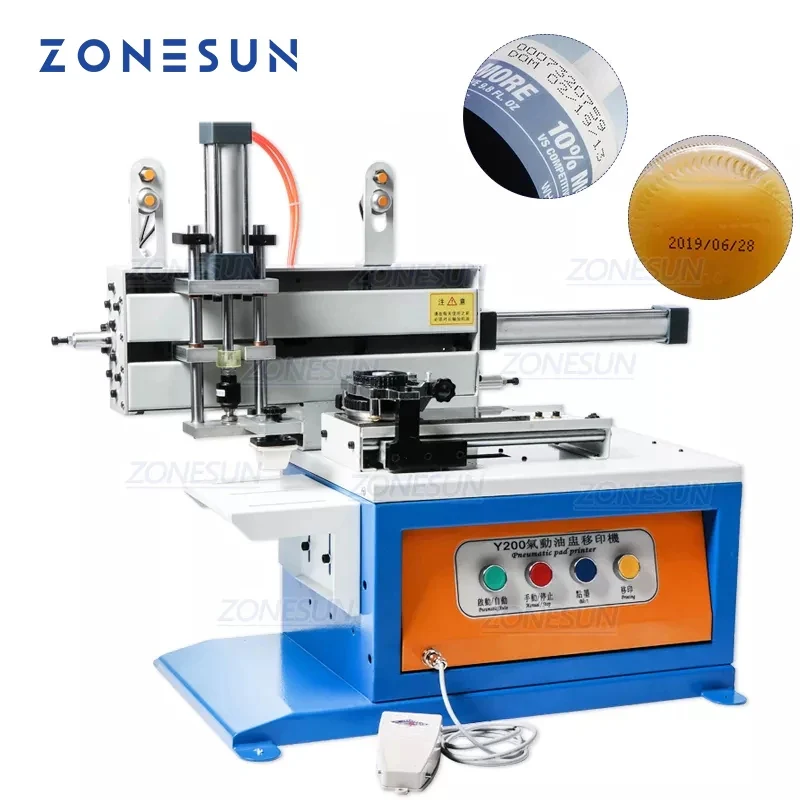

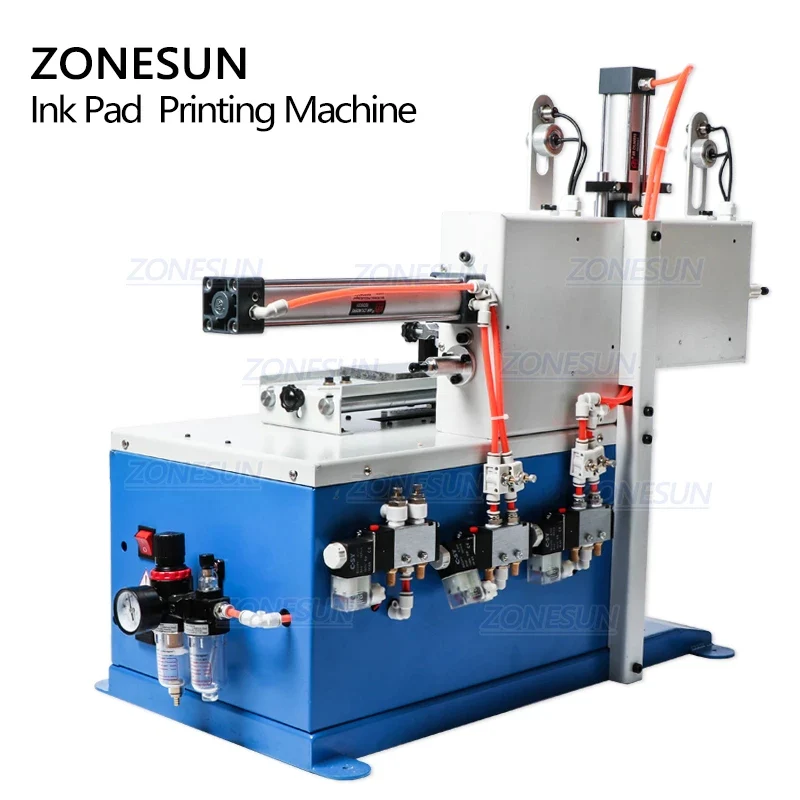

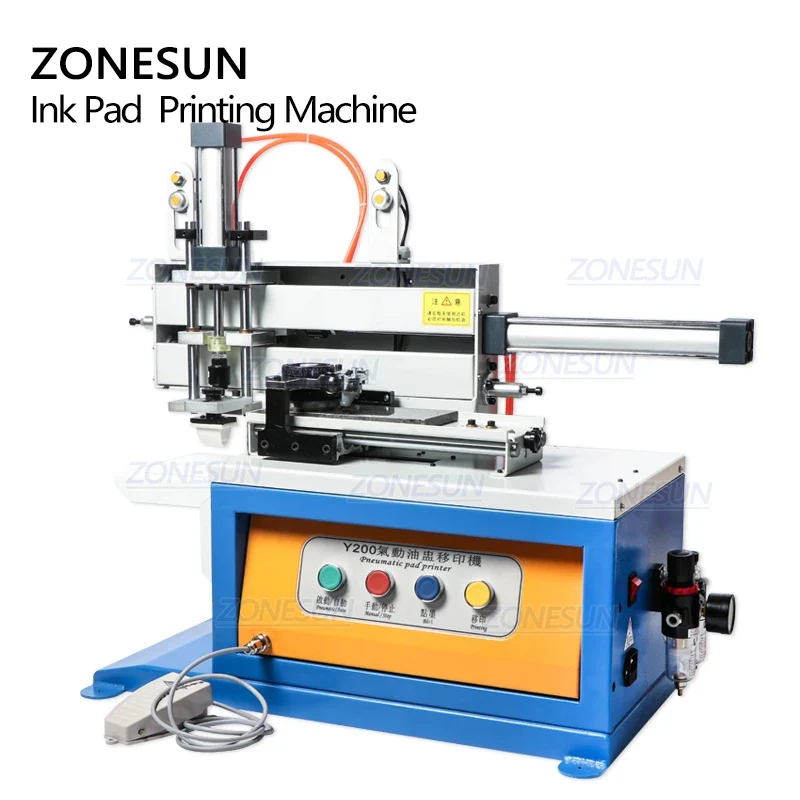

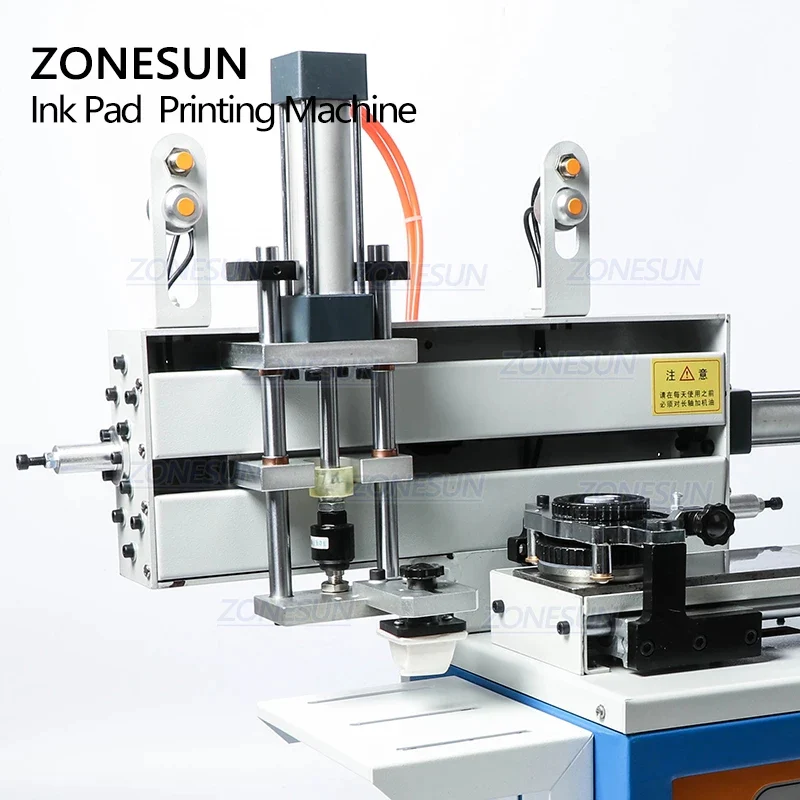

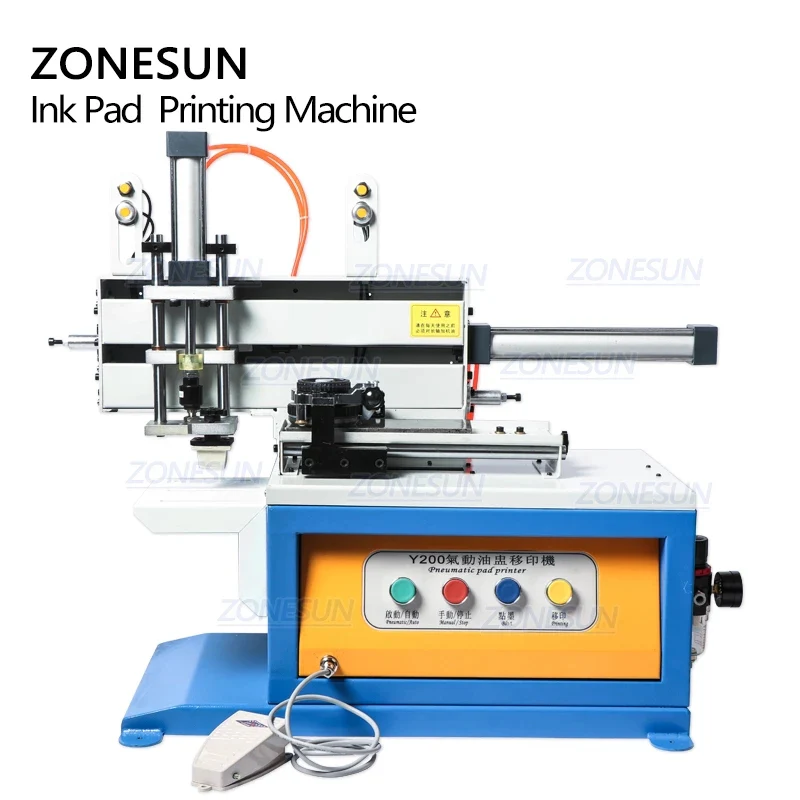

ZONESUN Y200 Pneumatic Pad Printing Machine | Flat & Curved Surface Marker
The ZONESUN Y200 is a pneumatic ink pad printing machine designed for high-speed, precision marking on flat and curved surfaces. With a maximum output of 2000 prints per hour and a generous 60×80 mm printing area, it’s ideal for labeling bottles, milk cartons, boxes, cans, and more. The upgraded ink cup ensures stable performance and long-term durability, while the vertical printing method delivers crisp, accurate results. Compatible with various materials including metal, plastic, glass, film, and even eggs, this machine is widely used in food, cosmetics, electronics, and pharmaceutical industries. Easy to operate and customizable, it’s a reliable solution for industrial marking tasks.
Note: Air compressor required (sold separately). Ink not included due to shipping restrictions.
Parameter Specification
Power Supply AC 220V / 50Hz
Air Pressure 0.3–0.5 Mpa
Printing Method Vertical printing
Max. Printing Area 60 × 80 mm
Pad Printing Speed 1800–2000 pcs/h
Max. Print Height 280 mm
Max. Distance from Print Edge 110 mm
Compatible Template Size 85 × 200 × 10 mm
Oil Cup Diameter 70 mm
Max. Load on Work Table 1 kg
Machine Dimensions (L × W × H) 855 × 480 × 640 mm
Net Weight 34 kg
The ZONESUN Y200 is a pneumatic ink pad printing machine designed for high-speed, precision marking on flat and curved surfaces. With a maximum output of 2000 prints per hour and a generous 60×80 mm printing area, it’s ideal for labeling bottles, milk cartons, boxes, cans, and more. The upgraded ink cup ensures stable performance and long-term durability, while the vertical printing method delivers crisp, accurate results. Compatible with various materials including metal, plastic, glass, film, and even eggs, this machine is widely used in food, cosmetics, electronics, and pharmaceutical industries. Easy to operate and customizable, it’s a reliable solution for industrial marking tasks.
Note: Air compressor required (sold separately). Ink not included due to shipping restrictions.
Parameter Specification
Power Supply AC 220V / 50Hz
Air Pressure 0.3–0.5 Mpa
Printing Method Vertical printing
Max. Printing Area 60 × 80 mm
Pad Printing Speed 1800–2000 pcs/h
Max. Print Height 280 mm
Max. Distance from Print Edge 110 mm
Compatible Template Size 85 × 200 × 10 mm
Oil Cup Diameter 70 mm
Max. Load on Work Table 1 kg
Machine Dimensions (L × W × H) 855 × 480 × 640 mm
Net Weight 34 kg
Original: $621.00
-70%$621.00
$186.30Description
The ZONESUN Y200 is a pneumatic ink pad printing machine designed for high-speed, precision marking on flat and curved surfaces. With a maximum output of 2000 prints per hour and a generous 60×80 mm printing area, it’s ideal for labeling bottles, milk cartons, boxes, cans, and more. The upgraded ink cup ensures stable performance and long-term durability, while the vertical printing method delivers crisp, accurate results. Compatible with various materials including metal, plastic, glass, film, and even eggs, this machine is widely used in food, cosmetics, electronics, and pharmaceutical industries. Easy to operate and customizable, it’s a reliable solution for industrial marking tasks.
Note: Air compressor required (sold separately). Ink not included due to shipping restrictions.
Parameter Specification
Power Supply AC 220V / 50Hz
Air Pressure 0.3–0.5 Mpa
Printing Method Vertical printing
Max. Printing Area 60 × 80 mm
Pad Printing Speed 1800–2000 pcs/h
Max. Print Height 280 mm
Max. Distance from Print Edge 110 mm
Compatible Template Size 85 × 200 × 10 mm
Oil Cup Diameter 70 mm
Max. Load on Work Table 1 kg
Machine Dimensions (L × W × H) 855 × 480 × 640 mm
Net Weight 34 kg
