ZONESUN ZS-FAL180C10 Automatic Filling Capping Labeling Machine 4 Nozzles

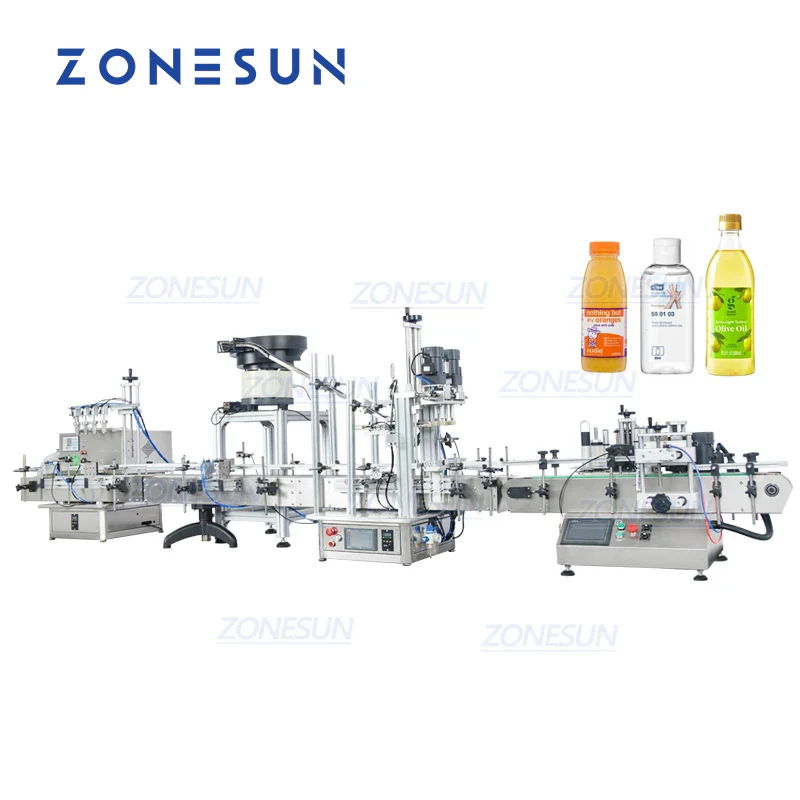

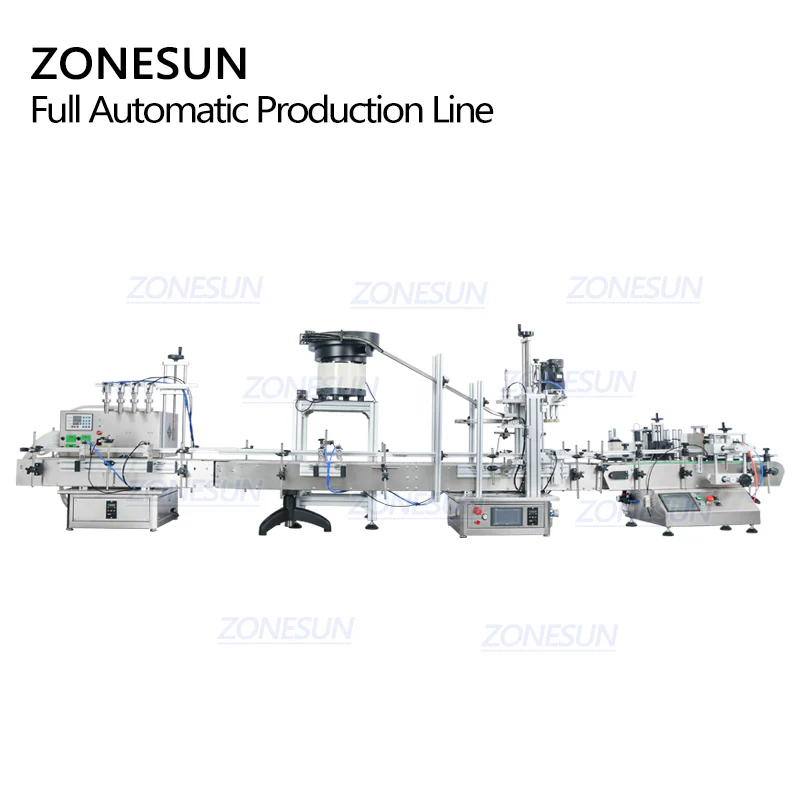

The ZONESUN ZS-FAL180C10 is a fully automatic packaging solution that integrates liquid filling, capping, and round bottle labeling into one streamlined system. Equipped with 4 high-precision nozzles, it handles low-viscosity liquids like essential oils, perfumes, juices, and inks with filling accuracy up to ±1%. The machine supports single or double-sided labeling and includes a cap feeder for efficient bottle sealing. Ideal for cosmetic, pharmaceutical, and beverage industries, this compact system boosts productivity while saving space. Customization options are available to meet specific production needs.
ZS-DTPP4E Liquid & Gel Filling Machine Specifications
Specification Details
Machine Model ZS-DTPP4E
Voltage AC110V/220V 50Hz~60Hz
Power 60W (Each Pump)
Recommended Filling Volume 10–1000ml (Gel is better ≤100ml)
Max Flow Rate 4000ml/min per nozzle (based on water)
Filling Nozzles 4 (Customizable based on user requirements)
Working Speed 30–50 bottles/min (varies by bottle and liquid type)
Air Pressure Requirement 0.3–0.4 MPa
Filling Accuracy ≤±1% (for water)
Delay Range 0.1s – 999.9s
Conveyor Belt Length 1.0 m
Air Connector Size OD 8 mm
Suitable Bottle Height <220 mm (Customizable up to 300 mm)
Machine Dimensions Approx. 110 × 58 × 107 cm
Conveyor Dimensions Approx. 110 × 11.5 cm
Capping Machine Specifications
Specification Details
Bottle Height 60–270 mm
Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle & cap type)
Working Voltage AC220V/110V 50–60Hz
Air Pressure Requirement 0.4–0.6 MPa
Machine Dimensions Approx. 2130 × 1090 × 1040 mm
Conveyor Length 1117 mm
Net Weight 97.5 kg
Package Dimensions Approx. 1160 × 610 × 1140 mm
Air Connector Size OD 8 mm
Labeling Machine Specifications
Specification Details
Voltage 110V–60Hz / 220V–50Hz
Working Speed Approx. 20–50 bottles/min
Suitable Label Size 15–140 mm (W) × 25–300 mm (L)
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ350 mm
Suitable Bottle Diameter ≤100 mm
Package Dimensions Approx. 1290 × 860 × 900 mm
Package Weight Approx. 130 kg
Designed with high quality pneumatic filling nozzle,this kind of filling nozzle is with antidripping function,it can prevent from dripping liquid after filling,ensures the production quality and accuracy.
Equipped with 4L/min peristaltic pump each pump can be controlled separately The filling hose can be changed easily this kind of filling machine is good for filling liquid with different kinds of fragrance like essential oils,perfume.

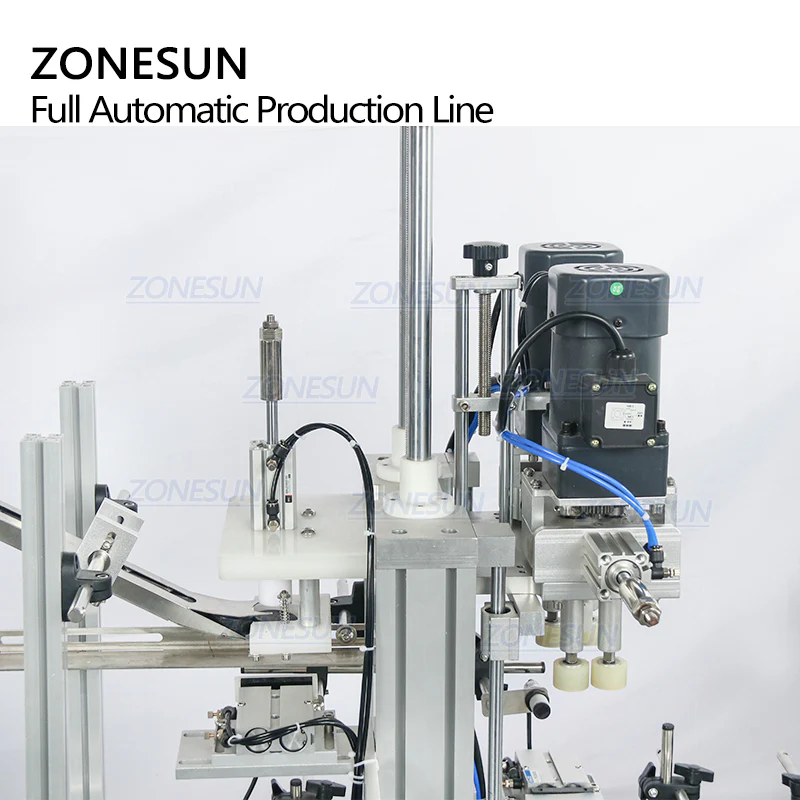

The machine will be customized according to bottle cap size,makes sure the cap can be transported in order.This machine can feed bottle caps in time. which can help you reduce labor cost.
Designed for various shapes of bottle caps,like dropper bottles,spray bottles beverage bottle caps.It will press the bottle caps and tight it automatically. Improve working efficiency greatly.
