ZONESUN ZS‑FAL180X9 Automatic Paste Filling & Labeling Line

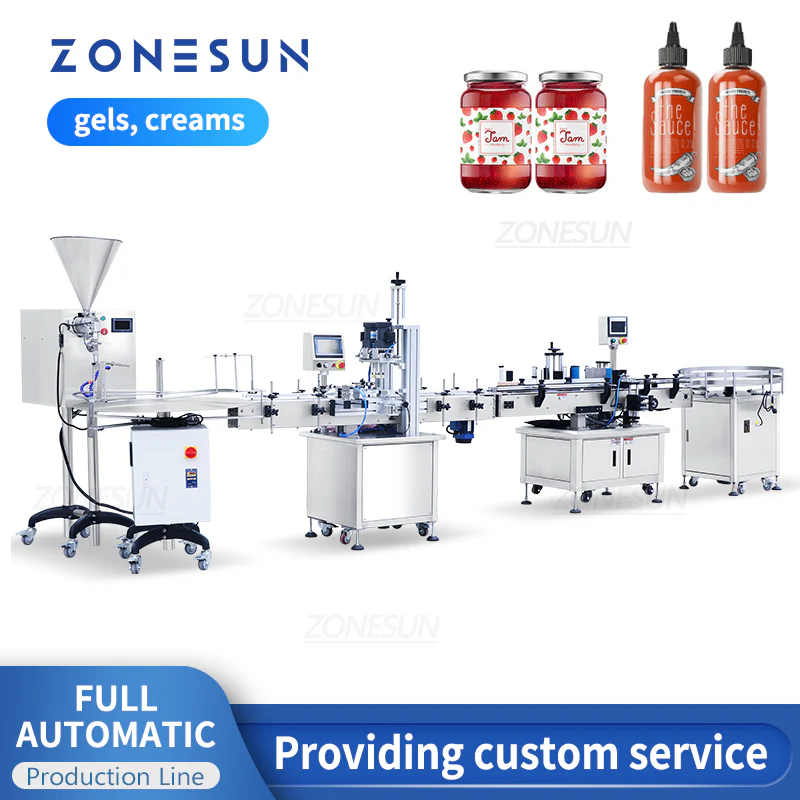

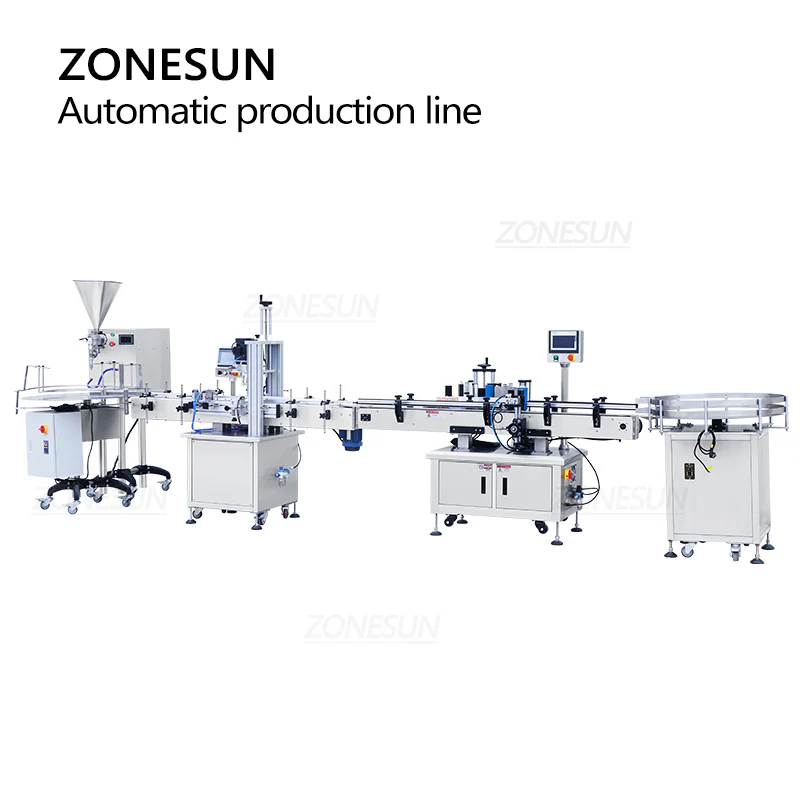

The ZONESUN ZS‑FAL180X9 Full Automatic Paste Filling, Screw Capping & Round Bottle Labeling Production Line is designed for efficient, high‑volume packaging of viscous gels, creams, and similar products. Featuring an integrated bottle unscrambler, precision lobe‑rotor pump filling system, pneumatic capping unit, and high‑accuracy labeling machine, it streamlines the complete bottling process to boost productivity and reduce labor costs. With adjustable filling ranges, adaptable bottle and cap sizes, and labeling precision of ±1 mm, this line is ideal for food, daily chemical, and cosmetic industries requiring reliable, consistent output.
ZS‑VTRP1A — Specifications
Parameter Details
Model ZS‑VTRP1A
Machine Voltage 110 V / 220 V, 50‑60 Hz, 1 kW
Filling Pump Lobe rotor pump
Filling Range Approx. 5 – 5000 ml
Suitable Bottle Size Diameter: 50 – 100 mm<br>Height: 50 – 250 mm
Hopper Size 25 L
Working Speed 20 – 35 bottles/min (depends on filling material and volume)
Working Height Approx. 850 ± 25 mm
Machine Size Approx. 1688 × 1204 × 1800 mm
Machine Weight Approx. 200 kg
ZS‑XG16 — Specifications
Parameter Details
Model ZS‑XG16 Capping Machine
Machine Voltage AC 220 V, 50 Hz / 60 Hz, 1000 W
Working Pressure 0.4 – 0.6 MPa
Working Speed 20 – 60 bottles/min (varies by bottle/cap size and shape)
Bottle Height 30 – 300 mm
Cap Diameter 18 – 70 mm
Bottle Diameter 20 – 160 mm
Air Compressor Connector Outer diameter 8 mm
Machine Size Approx. 1930 × 740 × 1600 mm
Machine Weight Approx. 113 kg
Packing Size Approx. 2000 × 820 × 1760 mm
Package Weight Approx. 192.5 kg
ZS‑TB260R — Specifications
Parameter Details
Model ZS‑TB260R Labeling Machine
Power Supply AC 220 V, 50 Hz / 60 Hz, 1000 W
Working Speed 25 – 50 bottles/min (varies by bottle size)
Labeling Accuracy ± 1.0 mm
Applicable Bottle Diameter Φ12 – 100 mm
Applicable Label Size Length: 20 – 300 mm<br>Height: 15 – 150 mm
Label Roll Core Diameter Φ76 mm
Label Roll Outer Diameter Φ350 mm
Conveyor Size (W×L) 112 × 2000 mm
Machine Size (L×W×H) Approx. 2100 × 820 × 1380 mm
Package Size (L×W×H) Approx. 2120 × 850 × 1450 mm
Net Weight / Gross Weight Approx. 180 kg / 250 kg
