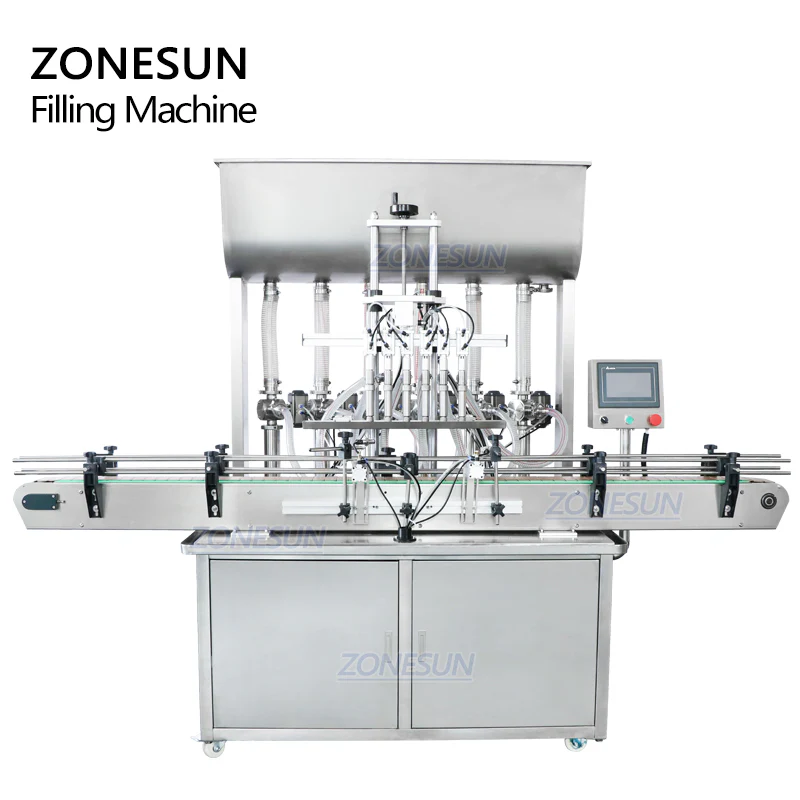

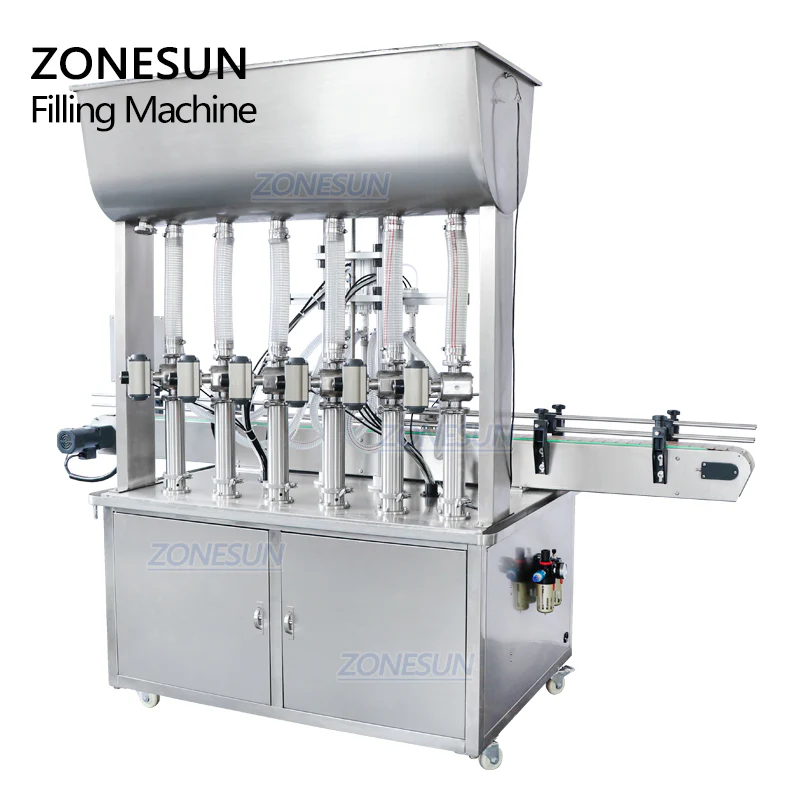

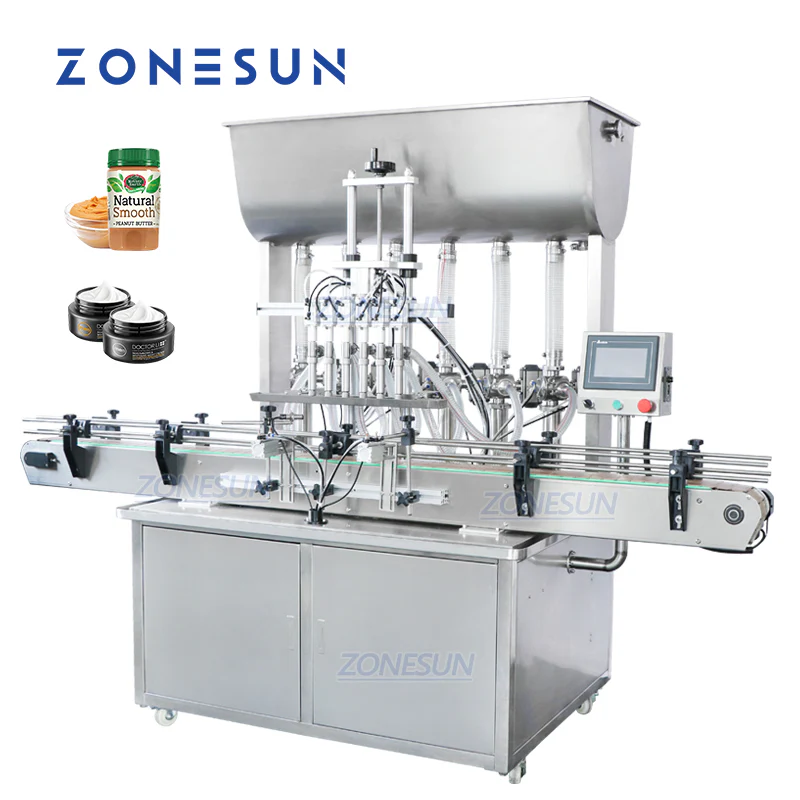

ZONESUN ZS-YT6T-6P Pneumatic Piston Filling Machine for Paste & Liquid
The ZONESUN ZS-YT6T-6P is a high-precision pneumatic filling machine designed for viscous liquids and pastes. Featuring a powerful piston pump and six filling nozzles, it ensures accurate and efficient dispensing of products like honey, glue, syrup, and ketchup. With a customizable nozzle configuration and wide filling range from 5ml to 5000ml, this machine is ideal for food, cosmetics, and daily chemical industries. Its robust stainless steel frame, fast working speed, and ±1% filling accuracy make it a reliable choice for medium to large-scale production.
Parameter Details
Model ZS-YT6T-6P
Voltage 110/220V, 50–60Hz
Filling Range 5–100ml / 0–100ml / 50–100ml / 500–3000ml / 500–5000ml
Working Speed (based on water) 30–70 bottles/min
Filling Accuracy ≤ ±1%
Machine Dimension 1990 × 950 × 1970 mm
Conveyor Size 1990 × 100 mm (L × W)
Filling Nozzle Size Ø10 mm
Air Compressor Connector Size Ø10 mm
Machine Weight 800 kg
Overall Machine Dimensions 250 × 130 × 230 cm
PRODUCT DETAILS

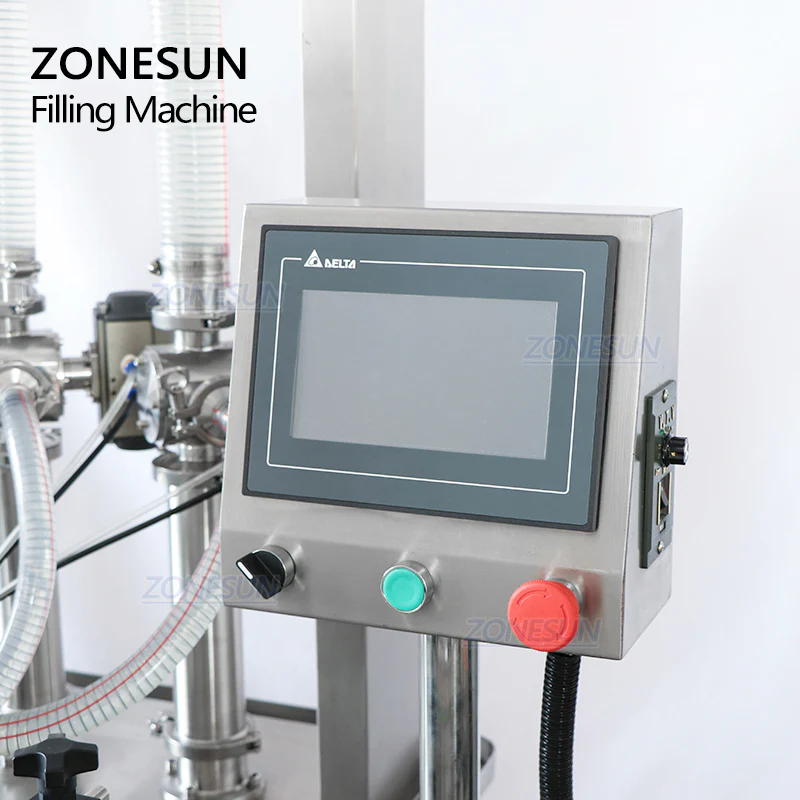

This machine is installed with touch screen control panelit is more intuitive and no need to train for operators.We can Customize different languages of control panel according to your needs.Please contact us if you need this.

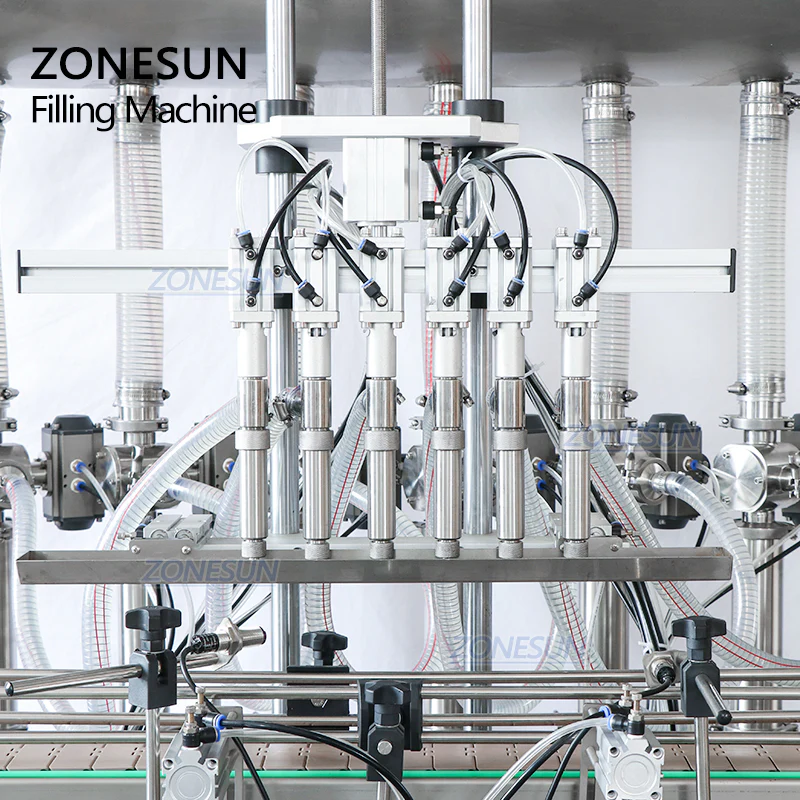

The number of flling nozzle can be customized according to production needs.Each nozzle is with anti-dripping design,ensure the cleanliness of the machine and products.Each nozzle can be controlled separately,different kinds of filling materials can be flled at the same time.
This machine is installed with high quality electric eyes,ensure passing by bottles can be clamped and released precisely,improve filling accuracy.
1
The high quality conveyor belt ensure products can be transferred smoothly,we can customize the material and length of the conveyor belt.The working speed can be controlled by rotating the knob on the right side of the control panel.
The high quality motor can ensure the smooth running, fuel efficiency performance of the whole machine mproves usage experience.
1
The level sensor can be used to detect the liquid level and work with feeding pump to control the machine to pump filling material automatically,help you save labor and time,improves your working efficiency.
The ZONESUN ZS-YT6T-6P is a high-precision pneumatic filling machine designed for viscous liquids and pastes. Featuring a powerful piston pump and six filling nozzles, it ensures accurate and efficient dispensing of products like honey, glue, syrup, and ketchup. With a customizable nozzle configuration and wide filling range from 5ml to 5000ml, this machine is ideal for food, cosmetics, and daily chemical industries. Its robust stainless steel frame, fast working speed, and ±1% filling accuracy make it a reliable choice for medium to large-scale production.
Parameter Details
Model ZS-YT6T-6P
Voltage 110/220V, 50–60Hz
Filling Range 5–100ml / 0–100ml / 50–100ml / 500–3000ml / 500–5000ml
Working Speed (based on water) 30–70 bottles/min
Filling Accuracy ≤ ±1%
Machine Dimension 1990 × 950 × 1970 mm
Conveyor Size 1990 × 100 mm (L × W)
Filling Nozzle Size Ø10 mm
Air Compressor Connector Size Ø10 mm
Machine Weight 800 kg
Overall Machine Dimensions 250 × 130 × 230 cm
PRODUCT DETAILS
This machine is installed with touch screen control panelit is more intuitive and no need to train for operators.We can Customize different languages of control panel according to your needs.Please contact us if you need this.
The number of flling nozzle can be customized according to production needs.Each nozzle is with anti-dripping design,ensure the cleanliness of the machine and products.Each nozzle can be controlled separately,different kinds of filling materials can be flled at the same time.
This machine is installed with high quality electric eyes,ensure passing by bottles can be clamped and released precisely,improve filling accuracy.
1
The high quality conveyor belt ensure products can be transferred smoothly,we can customize the material and length of the conveyor belt.The working speed can be controlled by rotating the knob on the right side of the control panel.
The high quality motor can ensure the smooth running, fuel efficiency performance of the whole machine mproves usage experience.
1
The level sensor can be used to detect the liquid level and work with feeding pump to control the machine to pump filling material automatically,help you save labor and time,improves your working efficiency.
Select Size
Select Filling range
Select Voltage
From $1,859.70
Original: $6,199.00
-70%ZONESUN ZS-YT6T-6P Pneumatic Piston Filling Machine for Paste & Liquid—
$6,199.00
$1,859.70Description
The ZONESUN ZS-YT6T-6P is a high-precision pneumatic filling machine designed for viscous liquids and pastes. Featuring a powerful piston pump and six filling nozzles, it ensures accurate and efficient dispensing of products like honey, glue, syrup, and ketchup. With a customizable nozzle configuration and wide filling range from 5ml to 5000ml, this machine is ideal for food, cosmetics, and daily chemical industries. Its robust stainless steel frame, fast working speed, and ±1% filling accuracy make it a reliable choice for medium to large-scale production.
Parameter Details
Model ZS-YT6T-6P
Voltage 110/220V, 50–60Hz
Filling Range 5–100ml / 0–100ml / 50–100ml / 500–3000ml / 500–5000ml
Working Speed (based on water) 30–70 bottles/min
Filling Accuracy ≤ ±1%
Machine Dimension 1990 × 950 × 1970 mm
Conveyor Size 1990 × 100 mm (L × W)
Filling Nozzle Size Ø10 mm
Air Compressor Connector Size Ø10 mm
Machine Weight 800 kg
Overall Machine Dimensions 250 × 130 × 230 cm
PRODUCT DETAILS
This machine is installed with touch screen control panelit is more intuitive and no need to train for operators.We can Customize different languages of control panel according to your needs.Please contact us if you need this.
The number of flling nozzle can be customized according to production needs.Each nozzle is with anti-dripping design,ensure the cleanliness of the machine and products.Each nozzle can be controlled separately,different kinds of filling materials can be flled at the same time.
This machine is installed with high quality electric eyes,ensure passing by bottles can be clamped and released precisely,improve filling accuracy.
1
The high quality conveyor belt ensure products can be transferred smoothly,we can customize the material and length of the conveyor belt.The working speed can be controlled by rotating the knob on the right side of the control panel.
The high quality motor can ensure the smooth running, fuel efficiency performance of the whole machine mproves usage experience.
1
The level sensor can be used to detect the liquid level and work with feeding pump to control the machine to pump filling material automatically,help you save labor and time,improves your working efficiency.
