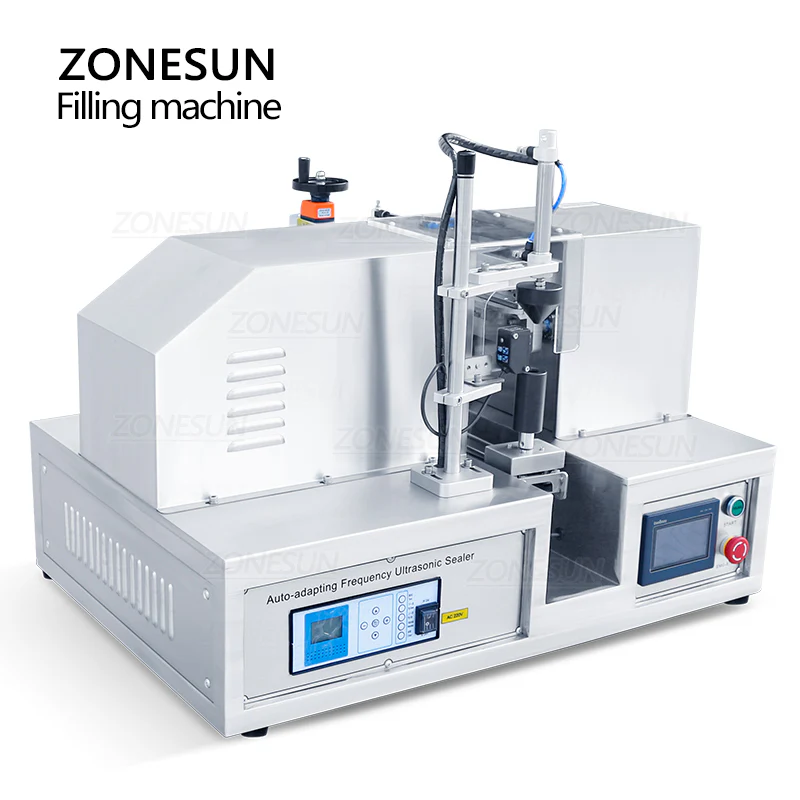

ZONESUN QDFM‑125P Ultrasonic Tube Sealing Machine with Date Coder

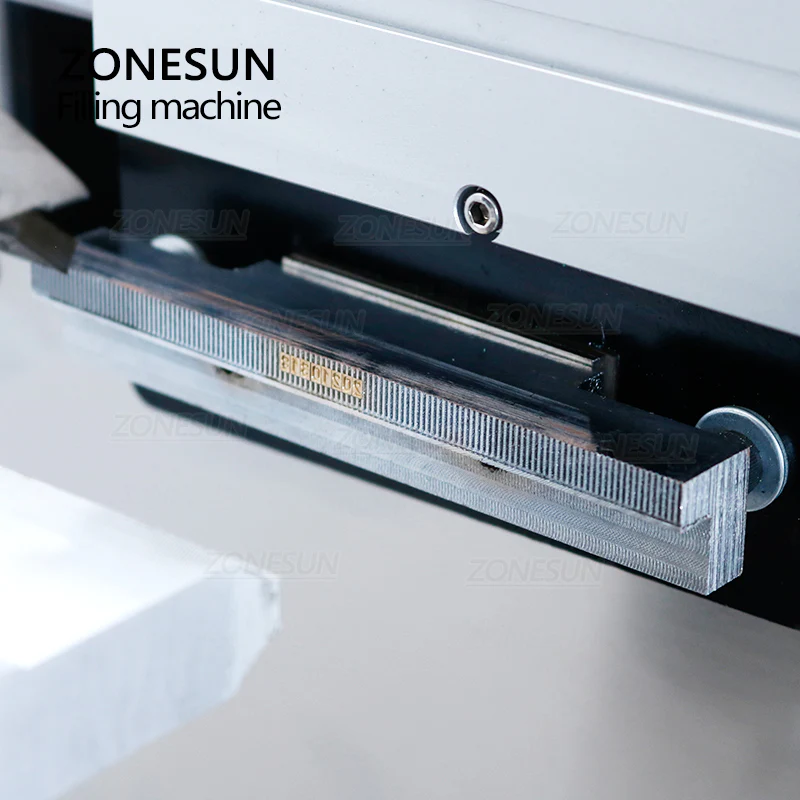

The ZONESUN QDFM‑125P is a professional ultrasonic tube sealing machine designed for sealing plastic, aluminum‑plastic, and soft composite tubes with precision and reliability. It features the ability to stamp an 8‑digit date directly onto the seal using interchangeable number dies, making it ideal for traceable production. With a sealing height range of 50 – 220 mm and customizable sealing widths up to 60 mm, it operates at speeds of 10 – 13 pcs/min. Constructed from durable 304 stainless steel and powered by a 2.6 kW system, it ensures hygienic, strong, and consistent seals for applications in the daily chemical, food, and cosmetics industries.
PARAMETER
|
Machine Model |
QDFM-125P |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
2.6kW |
|
Sealing Height |
50-220mm |
|
Sealing Width |
15-50mm (Max 60mm can be customized) |
|
Sealing Speed |
10-13pcs/min |
|
Sealing Way |
Ultrasonic Sealing |
|
Air Pressure |
0.5MPa |
|
Frequency |
20KHz |
|
Application |
Plastic Tube/Aluminum-plastic |
|
Machine Body |
304 Stainless Steel |
|
Machine Weight |
About 86.5kg |
|
Machine Size |
About 855*600*500mm(L*W*H) |
|
Package Weight |
About 110KG |
|
Package Size |
About 960*720*830mm(L*W*H) |
