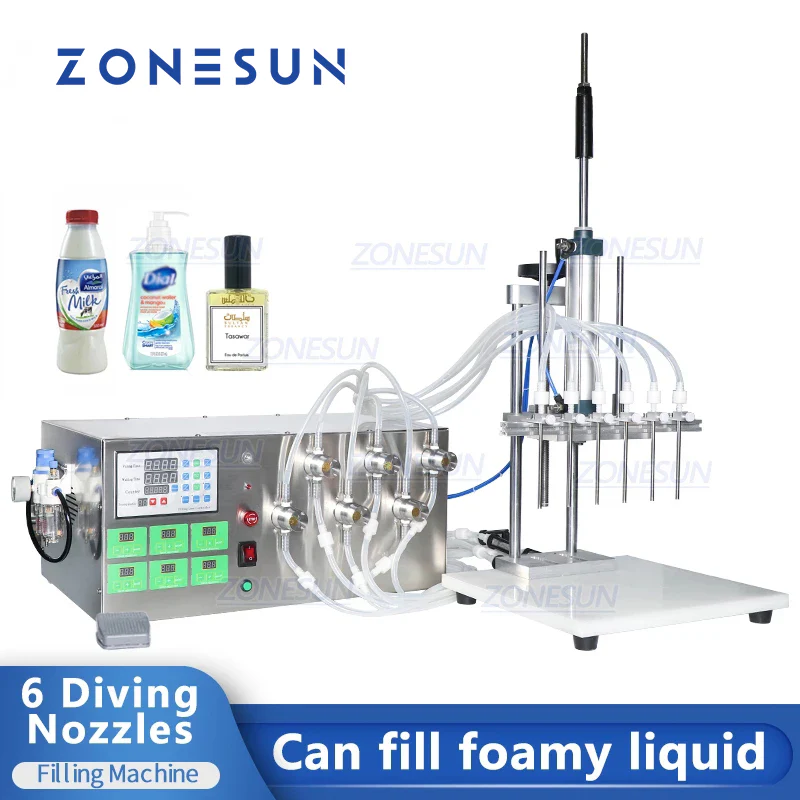

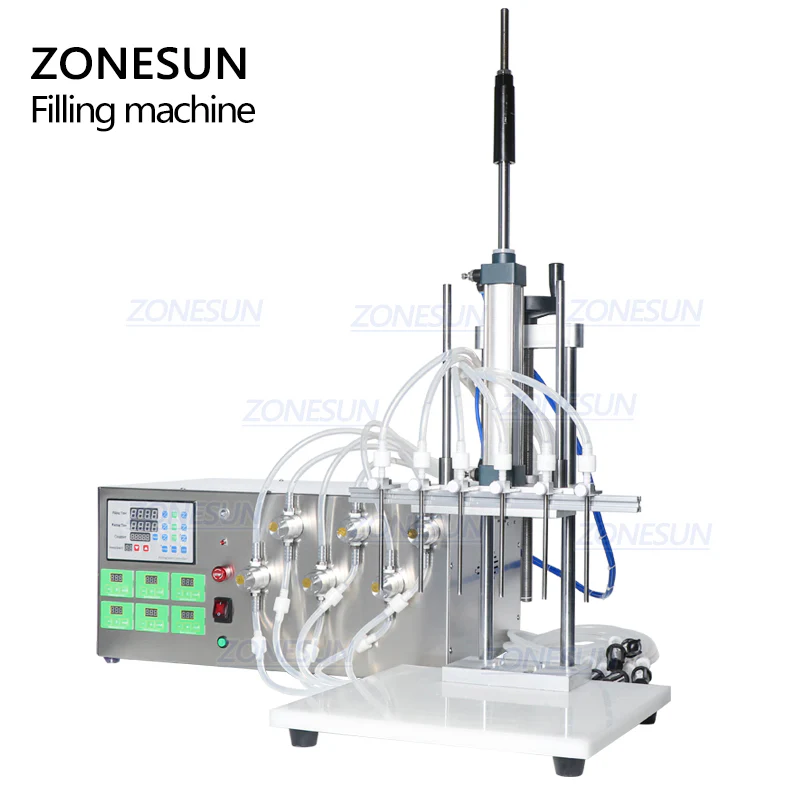

ZONESUN ZS-MP5500D 6-Nozzle Magnetic Pump Liquid Filling Machine

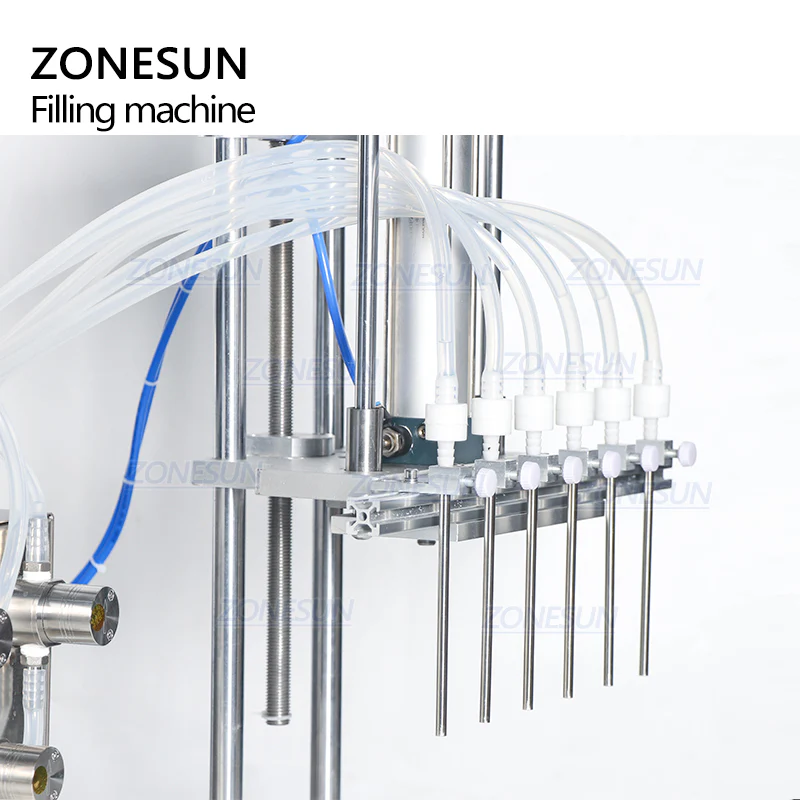

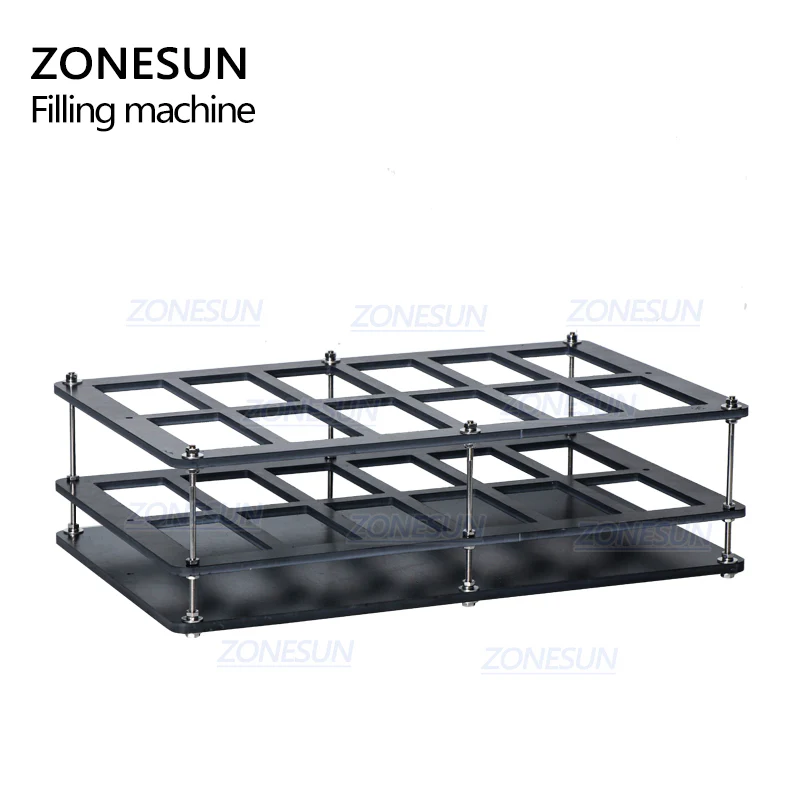

The ZONESUN ZS-MP5500D is a high-efficiency liquid filling machine equipped with six diving nozzles and 304 stainless steel magnetic pumps for precise, hygienic dispensing. Designed for low-viscosity liquids such as juice, soy sauce, and essential oils, it features dual operation modes (automatic and pedal control), anti-drip and memory functions, and a digital control panel for customizable filling parameters. Its lifting nozzle system makes it ideal for foamy liquids, while the compact structure suits small-scale production in cosmetic, beverage, and daily chemical industries. Bottle holders are customizable to fit your container size.
Multi-head Liquid Filling Machine Specifications – Model ZS-MP5500D
Specification Details
Model ZS-MP5500D
Voltage / Power AC 220V / 110V, 100W
Pump Material 304 Stainless Steel
Max Flow Rate 5.5 L/min × 6 heads
Max Suction Distance 2 meters
Anti-dripping Function Available
Memory Function Available
Filling Nozzle Size (OD) 6 mm and 8 mm
Machine Weight Approx. 35 kg
Package Weight Approx. 60 kg (33 kg + 27 kg)
Machine Size (L×W×H) 620 × 380 × 290 mm + 430 × 380 × 970 mm
Package Size (L×W×H) 750 × 495 × 350 mm + 430 × 450 × 775 mm
The ZONESUN ZS-MP5500D is a high-efficiency liquid filling machine equipped with six diving nozzles and 304 stainless steel magnetic pumps for precise, hygienic dispensing. Designed for low-viscosity liquids such as juice, soy sauce, and essential oils, it features dual operation modes (automatic and pedal control), anti-drip and memory functions, and a digital control panel for customizable filling parameters. Its lifting nozzle system makes it ideal for foamy liquids, while the compact structure suits small-scale production in cosmetic, beverage, and daily chemical industries. Bottle holders are customizable to fit your container size.
Multi-head Liquid Filling Machine Specifications – Model ZS-MP5500D
Specification Details
Model ZS-MP5500D
Voltage / Power AC 220V / 110V, 100W
Pump Material 304 Stainless Steel
Max Flow Rate 5.5 L/min × 6 heads
Max Suction Distance 2 meters
Anti-dripping Function Available
Memory Function Available
Filling Nozzle Size (OD) 6 mm and 8 mm
Machine Weight Approx. 35 kg
Package Weight Approx. 60 kg (33 kg + 27 kg)
Machine Size (L×W×H) 620 × 380 × 290 mm + 430 × 380 × 970 mm
Package Size (L×W×H) 750 × 495 × 350 mm + 430 × 450 × 775 mm
Original: $2,199.00
-70%$2,199.00
$659.70Description
The ZONESUN ZS-MP5500D is a high-efficiency liquid filling machine equipped with six diving nozzles and 304 stainless steel magnetic pumps for precise, hygienic dispensing. Designed for low-viscosity liquids such as juice, soy sauce, and essential oils, it features dual operation modes (automatic and pedal control), anti-drip and memory functions, and a digital control panel for customizable filling parameters. Its lifting nozzle system makes it ideal for foamy liquids, while the compact structure suits small-scale production in cosmetic, beverage, and daily chemical industries. Bottle holders are customizable to fit your container size.
Multi-head Liquid Filling Machine Specifications – Model ZS-MP5500D
Specification Details
Model ZS-MP5500D
Voltage / Power AC 220V / 110V, 100W
Pump Material 304 Stainless Steel
Max Flow Rate 5.5 L/min × 6 heads
Max Suction Distance 2 meters
Anti-dripping Function Available
Memory Function Available
Filling Nozzle Size (OD) 6 mm and 8 mm
Machine Weight Approx. 35 kg
Package Weight Approx. 60 kg (33 kg + 27 kg)
Machine Size (L×W×H) 620 × 380 × 290 mm + 430 × 380 × 970 mm
Package Size (L×W×H) 750 × 495 × 350 mm + 430 × 450 × 775 mm
