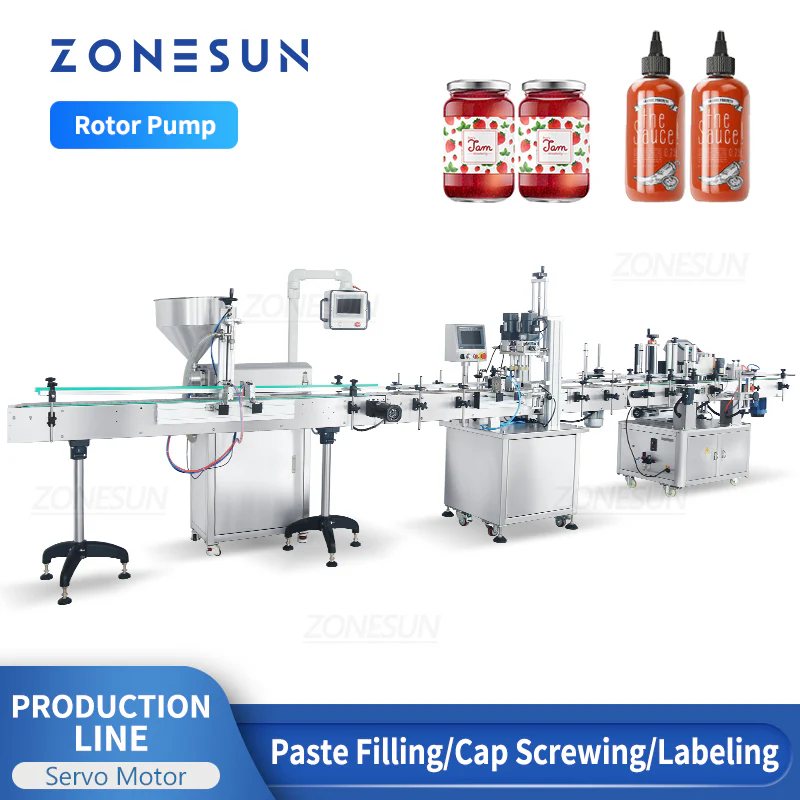

ZONESUN ZS-RPCL1 Automatic Filling, Capping & Labeling Line for Paste & Liquid
This automated packaging line is designed for filling, capping, and labeling viscous or liquid products such as honey, cream, peanut butter, and sauces. The ZS-VTRP1A filling machine uses a servo motor and rotor pump for precise volume control and hygienic dispensing. The ZS-XG16 capping machine handles a wide range of bottle and cap sizes with adjustable pressure and speed. The ZS-TB260 labeling machine supports single or double-sided labeling with high accuracy. Ideal for food, cosmetic, and pharmaceutical industries, this line ensures consistent performance and efficient production.

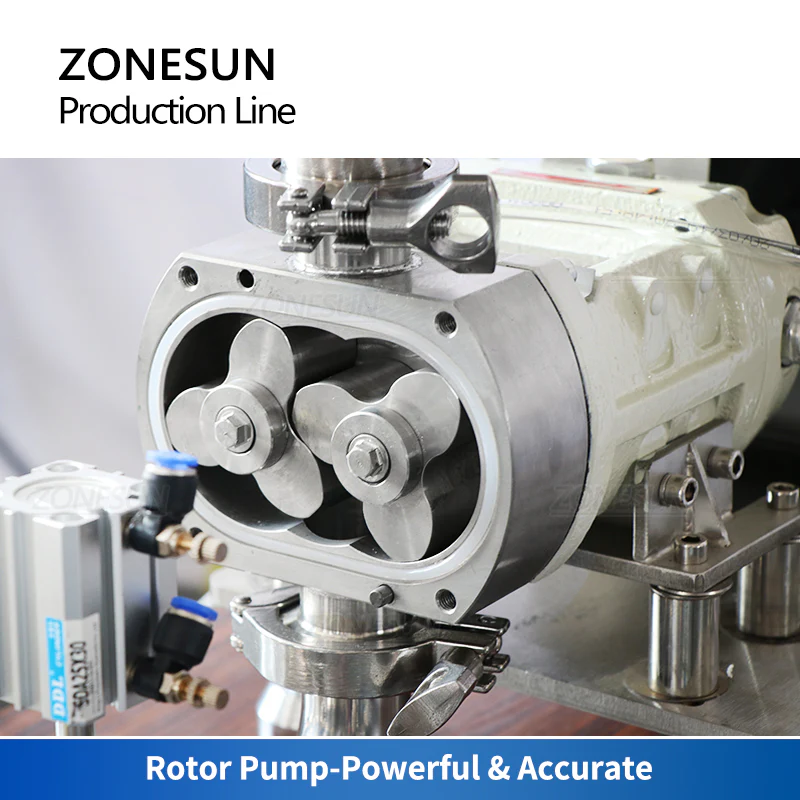

Machine Specifications: ZS-VTRP1A Rotor Pump Liquid Filling Machine
Parameter Specification
Model ZS-VTRP1A
Voltage 220V / 110V, 50–60Hz
Power Approx. 230W
Pump Type Rotor Pump
Filling Range 50–1500ml
Filling Speed Approx. 25 bottles/min (based on 500ml water; varies by liquid and bottle size)
Filling Accuracy ≤ ±1%
Filling Nozzle Diameter Outer Diameter: 25mm
Suitable Bottle Height 30–235mm
Suitable Bottle Diameter 30–110mm
Hopper Capacity Approx. 30L
Machine Dimensions Approx. 1880 × 760 × 1510mm
Machine Weight Approx. 95kg

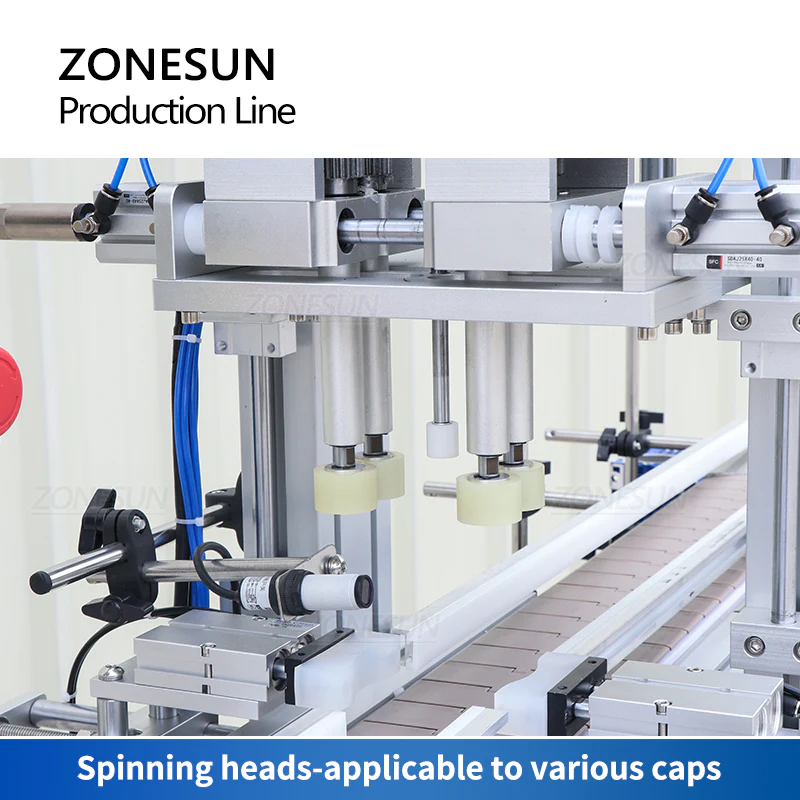

Machine Specifications: ZS-XG16 Automatic Capping Machine
Parameter Specification
Model ZS-XG16
Voltage & Power AC220V, 50/60Hz, 1000W
Working Pressure 0.4–0.6 MPa
Working Speed 20–60 bottles/min (varies by bottle and cap size/shape)
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Air Compressor Connector Outer Diameter: 8mm
Machine Dimensions Approx. 1930 × 740 × 1600mm
Machine Weight Approx. 113kg
Packing Dimensions Approx. 2000 × 820 × 1760mm
Package Weight Approx. 192.5kg

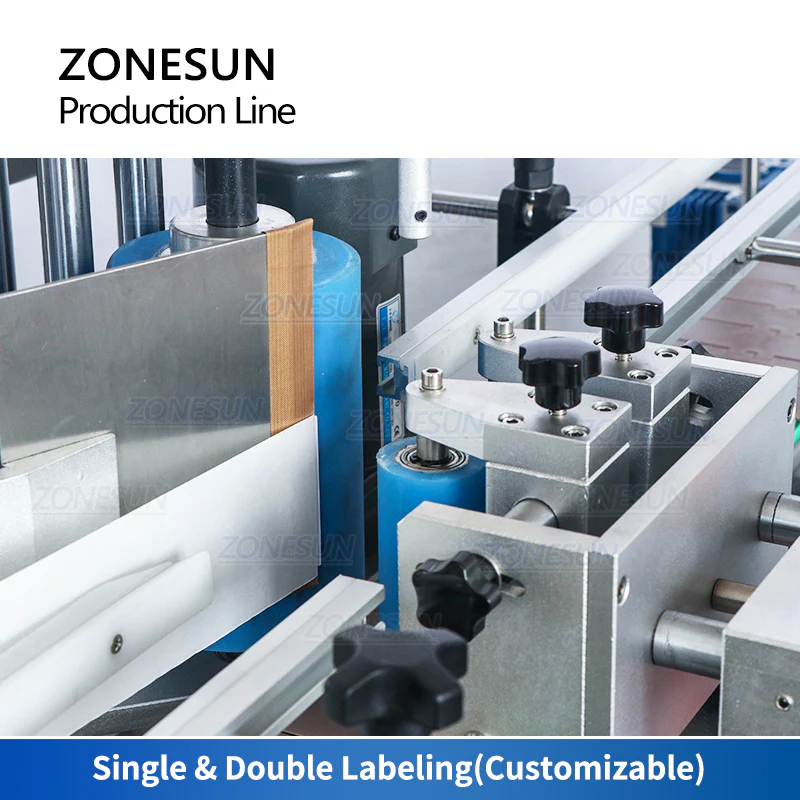

Machine Specifications: ZS-TB260 Automatic Labeling Machine
Parameter Specification
Model ZS-TB260
Power Supply AC220V, 50/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1mm
Suitable Bottle Diameter Φ30–100mm
Label Size Length: 15–200mm<br>Height: 15–150mm
Roll Inner Diameter Φ76mm
Roll Outer Diameter Φ350mm
Conveyor Size 1950(L) × 100mm(W)
Machine Dimensions Approx. 2000 × 1400 × 1300mm
Packing Dimensions Approx. 2120 × 940 × 1420mm
Net/Gross Weight Approx. 226kg / 290kg
This automated packaging line is designed for filling, capping, and labeling viscous or liquid products such as honey, cream, peanut butter, and sauces. The ZS-VTRP1A filling machine uses a servo motor and rotor pump for precise volume control and hygienic dispensing. The ZS-XG16 capping machine handles a wide range of bottle and cap sizes with adjustable pressure and speed. The ZS-TB260 labeling machine supports single or double-sided labeling with high accuracy. Ideal for food, cosmetic, and pharmaceutical industries, this line ensures consistent performance and efficient production.
Machine Specifications: ZS-VTRP1A Rotor Pump Liquid Filling Machine
Parameter Specification
Model ZS-VTRP1A
Voltage 220V / 110V, 50–60Hz
Power Approx. 230W
Pump Type Rotor Pump
Filling Range 50–1500ml
Filling Speed Approx. 25 bottles/min (based on 500ml water; varies by liquid and bottle size)
Filling Accuracy ≤ ±1%
Filling Nozzle Diameter Outer Diameter: 25mm
Suitable Bottle Height 30–235mm
Suitable Bottle Diameter 30–110mm
Hopper Capacity Approx. 30L
Machine Dimensions Approx. 1880 × 760 × 1510mm
Machine Weight Approx. 95kg
Machine Specifications: ZS-XG16 Automatic Capping Machine
Parameter Specification
Model ZS-XG16
Voltage & Power AC220V, 50/60Hz, 1000W
Working Pressure 0.4–0.6 MPa
Working Speed 20–60 bottles/min (varies by bottle and cap size/shape)
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Air Compressor Connector Outer Diameter: 8mm
Machine Dimensions Approx. 1930 × 740 × 1600mm
Machine Weight Approx. 113kg
Packing Dimensions Approx. 2000 × 820 × 1760mm
Package Weight Approx. 192.5kg
Machine Specifications: ZS-TB260 Automatic Labeling Machine
Parameter Specification
Model ZS-TB260
Power Supply AC220V, 50/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1mm
Suitable Bottle Diameter Φ30–100mm
Label Size Length: 15–200mm<br>Height: 15–150mm
Roll Inner Diameter Φ76mm
Roll Outer Diameter Φ350mm
Conveyor Size 1950(L) × 100mm(W)
Machine Dimensions Approx. 2000 × 1400 × 1300mm
Packing Dimensions Approx. 2120 × 940 × 1420mm
Net/Gross Weight Approx. 226kg / 290kg
Original: $13,537.99
-70%$13,537.99
$4,061.40Description
This automated packaging line is designed for filling, capping, and labeling viscous or liquid products such as honey, cream, peanut butter, and sauces. The ZS-VTRP1A filling machine uses a servo motor and rotor pump for precise volume control and hygienic dispensing. The ZS-XG16 capping machine handles a wide range of bottle and cap sizes with adjustable pressure and speed. The ZS-TB260 labeling machine supports single or double-sided labeling with high accuracy. Ideal for food, cosmetic, and pharmaceutical industries, this line ensures consistent performance and efficient production.
Machine Specifications: ZS-VTRP1A Rotor Pump Liquid Filling Machine
Parameter Specification
Model ZS-VTRP1A
Voltage 220V / 110V, 50–60Hz
Power Approx. 230W
Pump Type Rotor Pump
Filling Range 50–1500ml
Filling Speed Approx. 25 bottles/min (based on 500ml water; varies by liquid and bottle size)
Filling Accuracy ≤ ±1%
Filling Nozzle Diameter Outer Diameter: 25mm
Suitable Bottle Height 30–235mm
Suitable Bottle Diameter 30–110mm
Hopper Capacity Approx. 30L
Machine Dimensions Approx. 1880 × 760 × 1510mm
Machine Weight Approx. 95kg
Machine Specifications: ZS-XG16 Automatic Capping Machine
Parameter Specification
Model ZS-XG16
Voltage & Power AC220V, 50/60Hz, 1000W
Working Pressure 0.4–0.6 MPa
Working Speed 20–60 bottles/min (varies by bottle and cap size/shape)
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Air Compressor Connector Outer Diameter: 8mm
Machine Dimensions Approx. 1930 × 740 × 1600mm
Machine Weight Approx. 113kg
Packing Dimensions Approx. 2000 × 820 × 1760mm
Package Weight Approx. 192.5kg
Machine Specifications: ZS-TB260 Automatic Labeling Machine
Parameter Specification
Model ZS-TB260
Power Supply AC220V, 50/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1mm
Suitable Bottle Diameter Φ30–100mm
Label Size Length: 15–200mm<br>Height: 15–150mm
Roll Inner Diameter Φ76mm
Roll Outer Diameter Φ350mm
Conveyor Size 1950(L) × 100mm(W)
Machine Dimensions Approx. 2000 × 1400 × 1300mm
Packing Dimensions Approx. 2120 × 940 × 1420mm
Net/Gross Weight Approx. 226kg / 290kg
