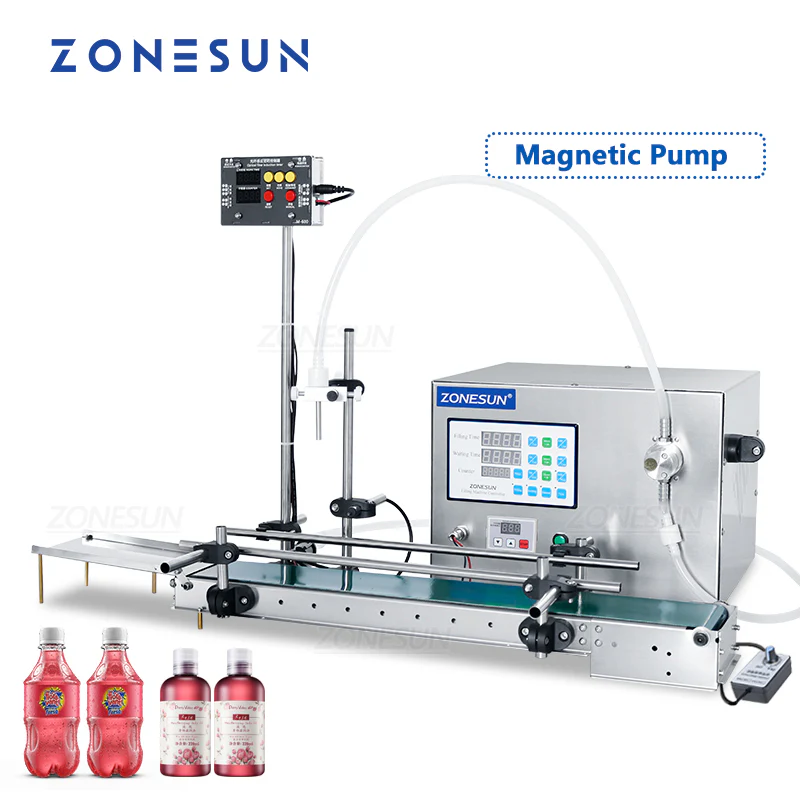

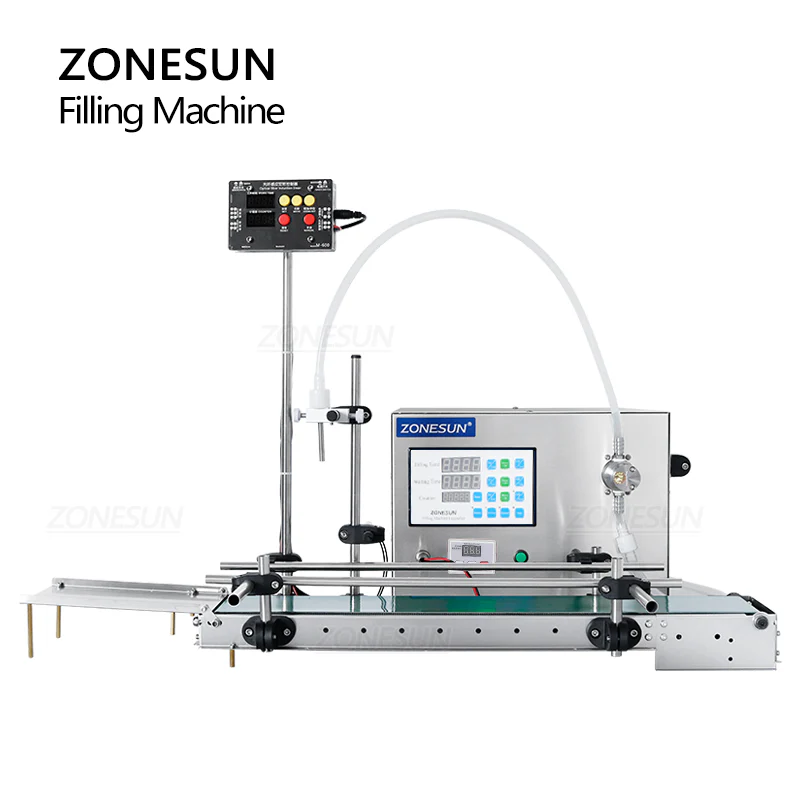

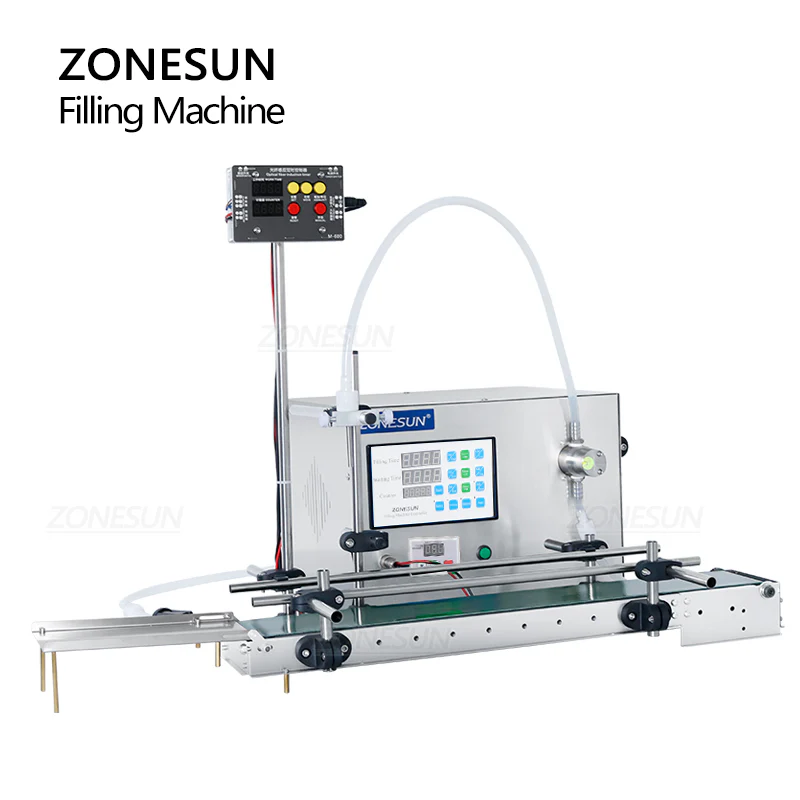

The ZONESUN ZS-DTMP1S is a compact, desktop liquid filling machine equipped with a 316 stainless steel magnetic pump for precise dosing. Designed for low-viscosity liquids like essential oils, perfumes, and juices, it features adjustable filling speed, anti-drip functionality, and an intelligent electric eye for automatic bottle detection. The waterproof conveyor belt ensures clean and efficient production, making it ideal for cosmetic, chemical, and beverage industries.

Technical Specifications
Parameter Details
Machine Model ZS-YTMP1S
Voltage 220V / 110V, 50–60Hz
Power 50W
Filling Range 10ml–500ml
Max Flow Rate 6L/min (based on water)

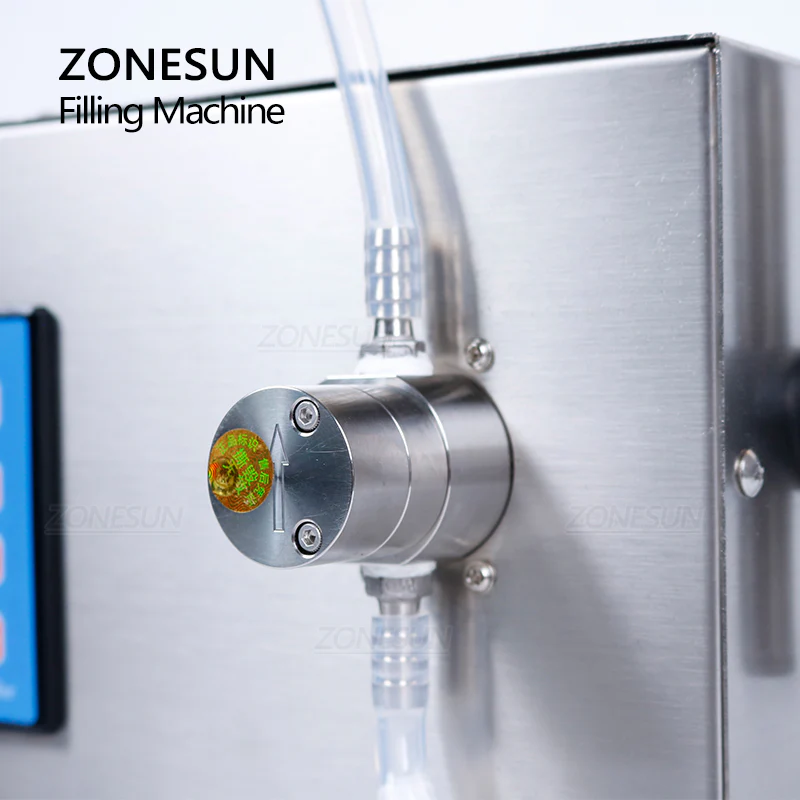

Pump Type 316 Stainless Steel Magnetic Pump
Filling Accuracy ≤0.5% repetitive error
Max Suction Distance 2 meters
Anti-Dripping Function Available
Power-Off Memory Function Available
Filling Nozzle Diameter (OD) 4mm & 6mm
Machine Dimensions Approx. 350 × 300 × 260mm
Package Dimensions Approx. 400 × 400 × 280mm
Net Weight / Gross Weight Approx. 6.6kg / 7.7kg
