ZONESUN ZS-DPYT8P Digital Control 8 Nozzles Diaphragm Pump Liquid Filling Machine

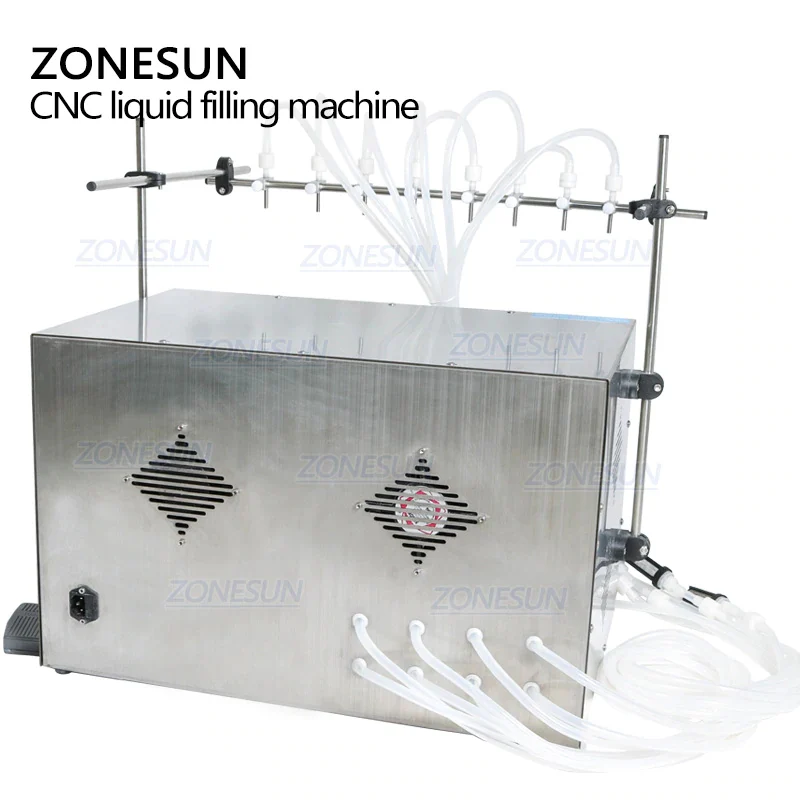

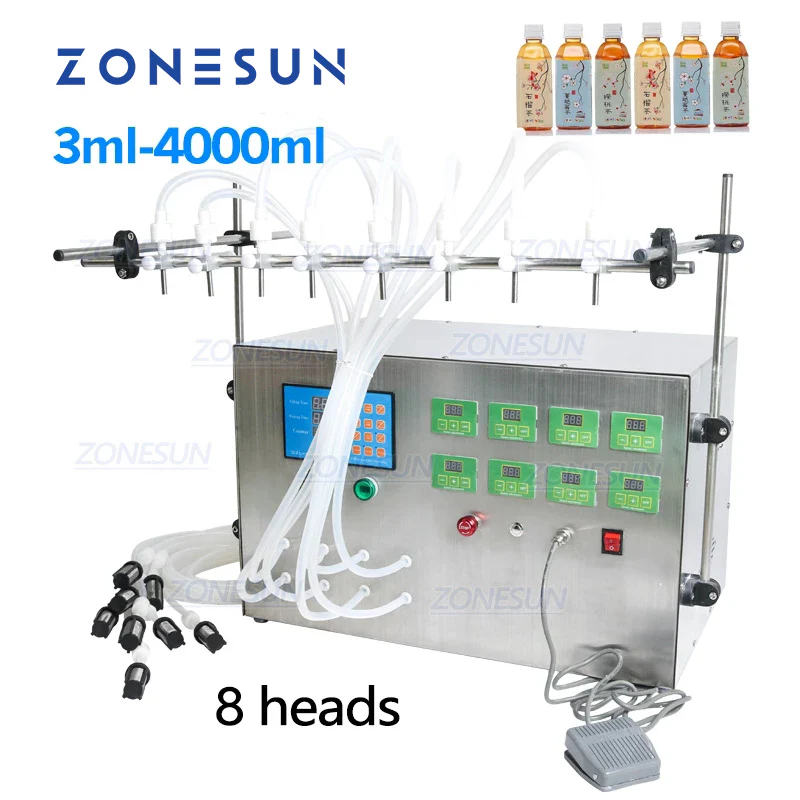

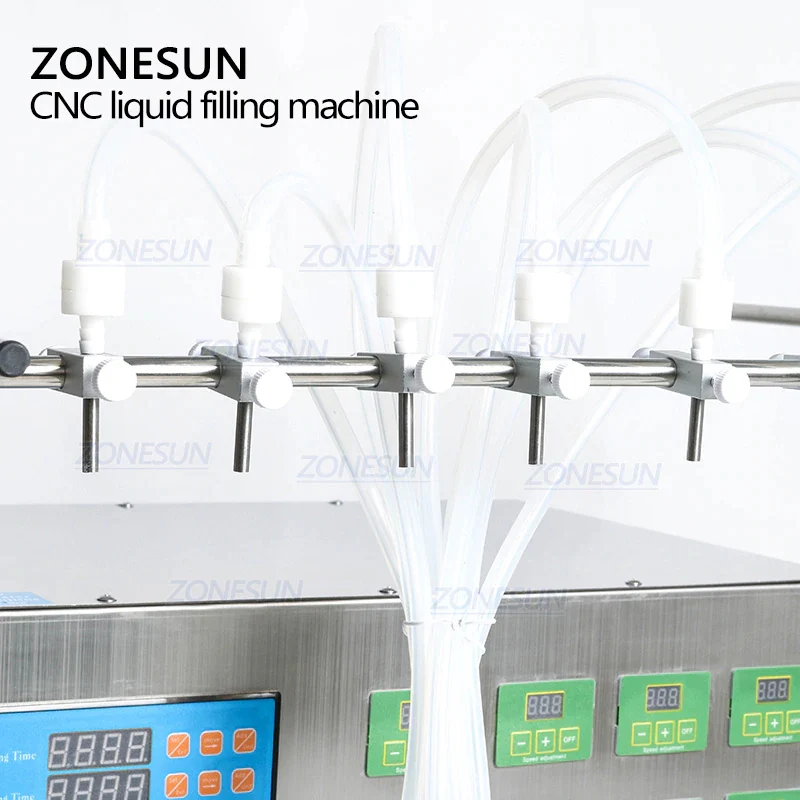

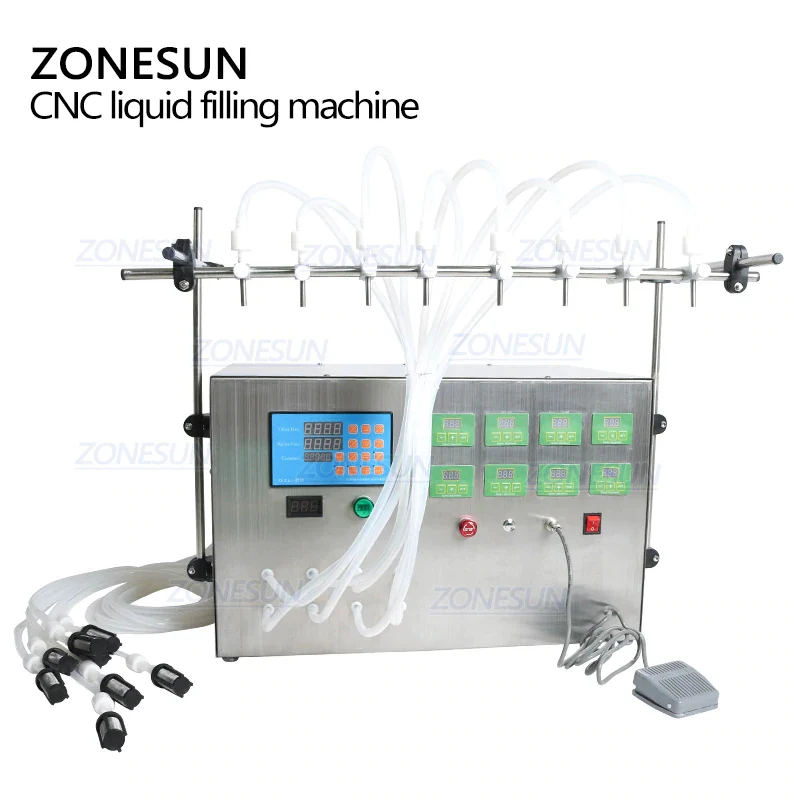

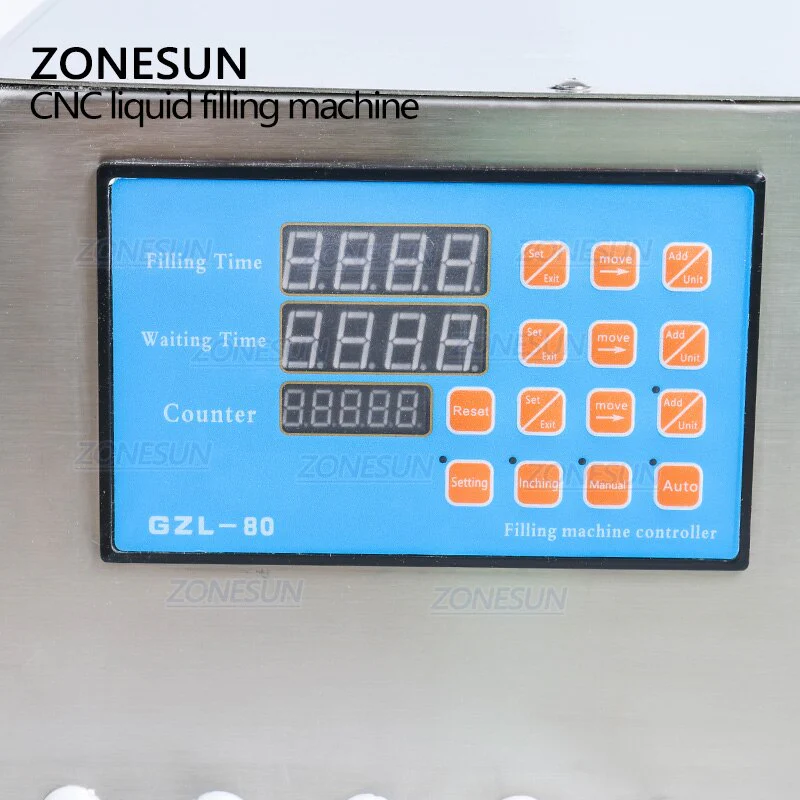

This multi-head liquid filling machine is designed to enhance operational efficiency with dual working modes—automatic and pedal switch. Each of the 8 nozzles operates independently, allowing simultaneous filling of different liquids. With a wide filling range of 0.5ml to 4000ml per head and a maximum flow rate of 4L/min, it’s ideal for water, beverages, milk, toner, perfume, and more. Anti-drip and memory functions ensure clean, consistent performance. Compact and lightweight, it’s perfect for small-scale production or lab use.
Parameter
Power Supply: AC220V
Power: 45W × 8
Maximum Range: 0.5ml–4000ml per head
Maximum Suction: 1.6m
Maximum Flow: 4L/min per head
Machine Weight: 12.5kg
Anti-Drip Function for Discharging: Yes
Power and Memory Function: Yes
Filling Accuracy: ≤±0.5%
(Reference: water; higher viscosity may increase error)
Package Weight: 31kg
Package Size: 76 × 52 × 38cm
This multi-head liquid filling machine is designed to enhance operational efficiency with dual working modes—automatic and pedal switch. Each of the 8 nozzles operates independently, allowing simultaneous filling of different liquids. With a wide filling range of 0.5ml to 4000ml per head and a maximum flow rate of 4L/min, it’s ideal for water, beverages, milk, toner, perfume, and more. Anti-drip and memory functions ensure clean, consistent performance. Compact and lightweight, it’s perfect for small-scale production or lab use.
Parameter
Power Supply: AC220V
Power: 45W × 8
Maximum Range: 0.5ml–4000ml per head
Maximum Suction: 1.6m
Maximum Flow: 4L/min per head
Machine Weight: 12.5kg
Anti-Drip Function for Discharging: Yes
Power and Memory Function: Yes
Filling Accuracy: ≤±0.5%
(Reference: water; higher viscosity may increase error)
Package Weight: 31kg
Package Size: 76 × 52 × 38cm
Original: $800.10
-70%$800.10
$240.03Description
This multi-head liquid filling machine is designed to enhance operational efficiency with dual working modes—automatic and pedal switch. Each of the 8 nozzles operates independently, allowing simultaneous filling of different liquids. With a wide filling range of 0.5ml to 4000ml per head and a maximum flow rate of 4L/min, it’s ideal for water, beverages, milk, toner, perfume, and more. Anti-drip and memory functions ensure clean, consistent performance. Compact and lightweight, it’s perfect for small-scale production or lab use.
Parameter
Power Supply: AC220V
Power: 45W × 8
Maximum Range: 0.5ml–4000ml per head
Maximum Suction: 1.6m
Maximum Flow: 4L/min per head
Machine Weight: 12.5kg
Anti-Drip Function for Discharging: Yes
Power and Memory Function: Yes
Filling Accuracy: ≤±0.5%
(Reference: water; higher viscosity may increase error)
Package Weight: 31kg
Package Size: 76 × 52 × 38cm
