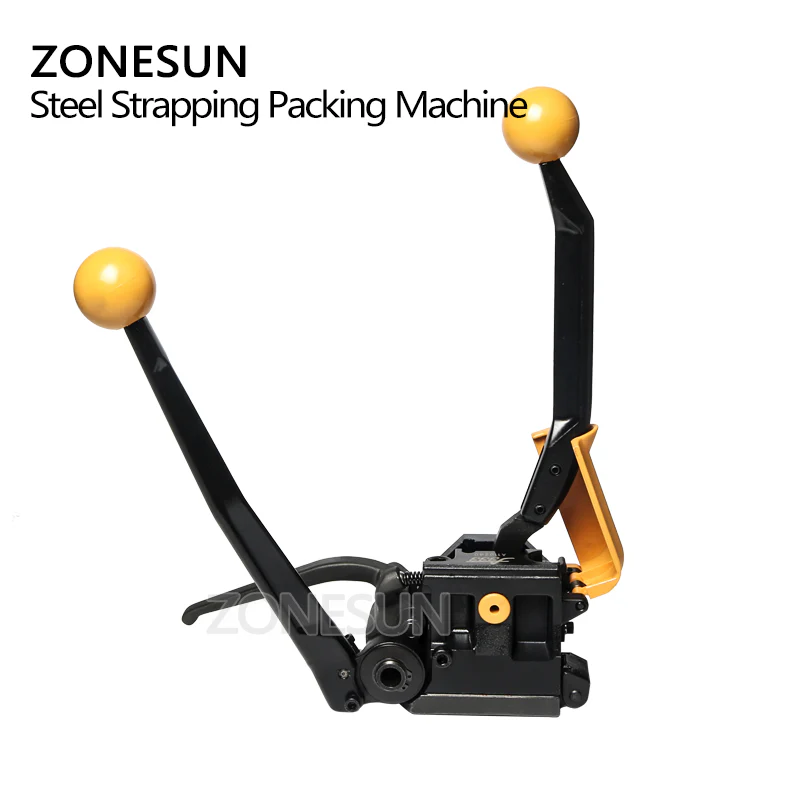

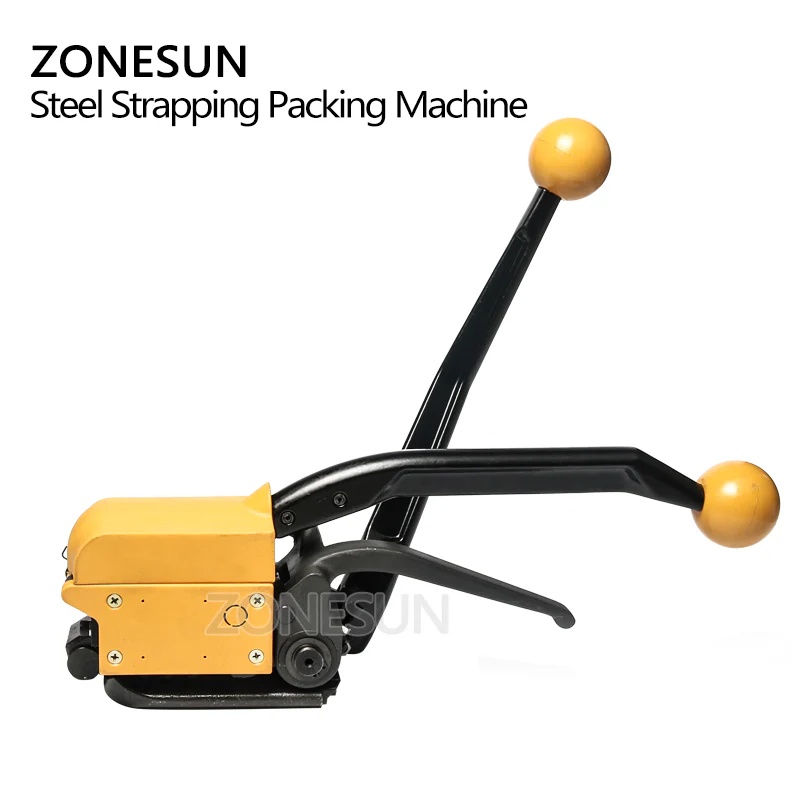

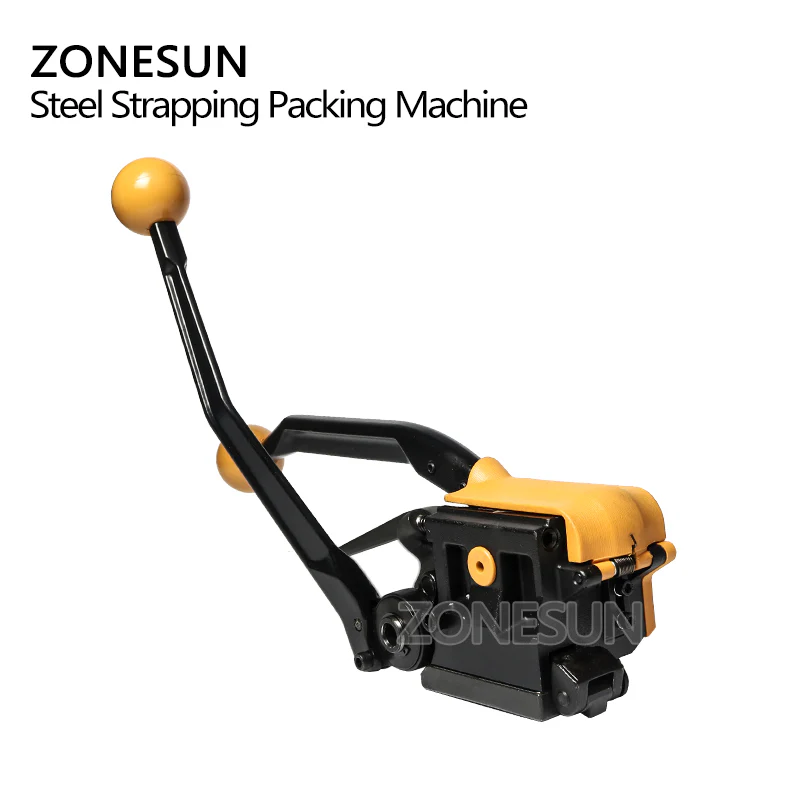

ZONESUN A333 13-19mm Steel Strip Manual Sealless Strapping Machine
Description
This light weight sealless combination tool is designed of strong construction for durability, non buckle design for saving cost, double power structure for high connection reliability to cut and seal strapping trap flat packages like pallets, bales, crates, cases and other packages
Parameter
| Width of steel strip | 13-19mm |
| Steel strip thickness | 0.38-0.58mm / 0.015" to 0.023" |
| Advantage range | 700-850N /Square millimetre |
| Packaging capacity | 100pcs/hour |
| Packaging type | Boxes, Pipes, Barrels, Cans |
| Maximum encapsulation force | 3000（N） |
| Overall size | 387 x 162 x 308mm |
| Packaging weight | 4kg |
Steps of Using
1. The rocker is raised with the right hand. The left hand inserts the two straps lying precisely upon another into the tool until they hit strap stops .The lower strap end must slightly protrude the end of the base plate. Be certain that the strapping is held by the strap guide.
2. The tool is held tightly with left hand being placed on the sealing lever.The tensioning handle is now moved forward and backward with the right hand until the desired tension is attained.
3. The seading lever is moved forward using the left hand until it hits the stop.The lever
is then moved back to its initial position.When sealing ,the right hand absorbs the sealing force by holding the tensioning handle.
4. Hold the cut off strap end with the left hand, lift the rocker with the right hand and push the tool from the applied strap to the right
Description
This light weight sealless combination tool is designed of strong construction for durability, non buckle design for saving cost, double power structure for high connection reliability to cut and seal strapping trap flat packages like pallets, bales, crates, cases and other packages
Parameter
| Width of steel strip | 13-19mm |
| Steel strip thickness | 0.38-0.58mm / 0.015" to 0.023" |
| Advantage range | 700-850N /Square millimetre |
| Packaging capacity | 100pcs/hour |
| Packaging type | Boxes, Pipes, Barrels, Cans |
| Maximum encapsulation force | 3000（N） |
| Overall size | 387 x 162 x 308mm |
| Packaging weight | 4kg |
Steps of Using
1. The rocker is raised with the right hand. The left hand inserts the two straps lying precisely upon another into the tool until they hit strap stops .The lower strap end must slightly protrude the end of the base plate. Be certain that the strapping is held by the strap guide.
2. The tool is held tightly with left hand being placed on the sealing lever.The tensioning handle is now moved forward and backward with the right hand until the desired tension is attained.
3. The seading lever is moved forward using the left hand until it hits the stop.The lever
is then moved back to its initial position.When sealing ,the right hand absorbs the sealing force by holding the tensioning handle.
4. Hold the cut off strap end with the left hand, lift the rocker with the right hand and push the tool from the applied strap to the right
