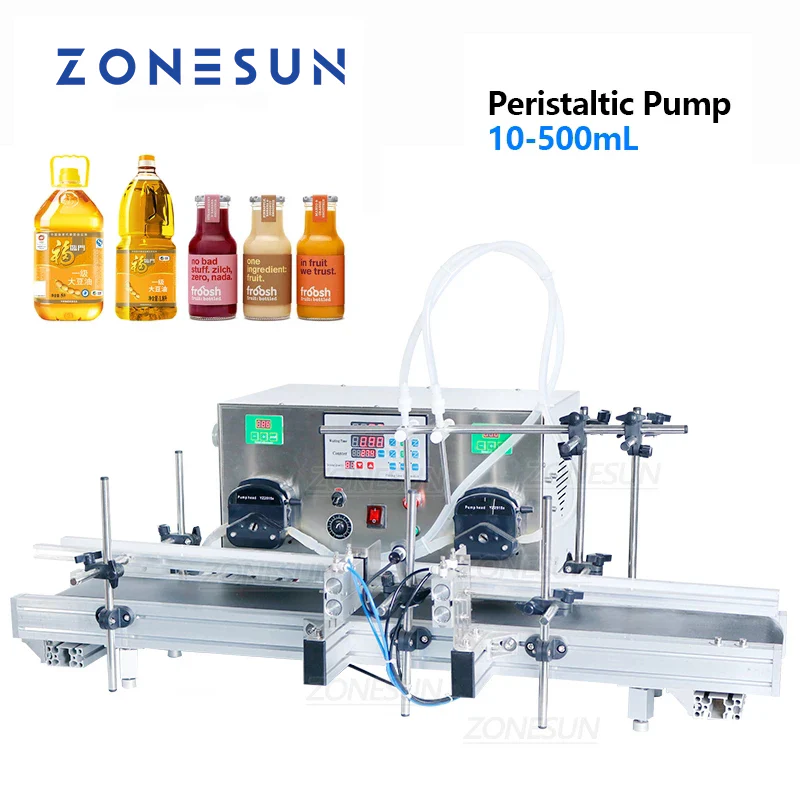

ZONESUN ZS-DTPP-2 Dual-Head Liquid Filling Machine for Juice, Oil & Cosmetics
The ZONESUN ZS-DTPP-2 is a high-precision automatic liquid filling machine equipped with dual peristaltic pumps and customizable filling heads. Designed for non-viscous liquids such as juice, essential oils, and perfumes, it offers excellent filling accuracy (≤±1%) and adjustable volume ranges for both 110V and 220V configurations. With a speed of up to 30 bottles per minute, it integrates seamlessly with capping and labeling machines to support full automation. Ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries.
Parameter
Machine Model ZS-DTPP-2
Voltage AC 220V / 110V, 50–60Hz
Power 60W (Each Pump)
Filling Heads 2 Heads (Customizable)
Recommended Filling Volume 10–500mL (110V) / 10–1000mL (220V)
Max Flow Velocity 2.4L/min × 2 (based on water)
Filling Accuracy ≤ ±1% (for water)
Filling Speed 20–30 bottles/min (depends on bottle & liquid)
Air Pressure 0.3–0.4MPa
Conveyor Size 140mm (W) × 1030mm (L)
Filling Nozzle Diameter OD 8mm
Air Compressor Connector Size OD 8mm
Whole Machine Size 1030mm × 740mm × 390mm
Package Size 1120mm × 670mm × 420mm
Net Weight Approx. 38kg
Gross Weight Approx. 51kg
The ZONESUN ZS-DTPP-2 is a high-precision automatic liquid filling machine equipped with dual peristaltic pumps and customizable filling heads. Designed for non-viscous liquids such as juice, essential oils, and perfumes, it offers excellent filling accuracy (≤±1%) and adjustable volume ranges for both 110V and 220V configurations. With a speed of up to 30 bottles per minute, it integrates seamlessly with capping and labeling machines to support full automation. Ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries.
Parameter
Machine Model ZS-DTPP-2
Voltage AC 220V / 110V, 50–60Hz
Power 60W (Each Pump)
Filling Heads 2 Heads (Customizable)
Recommended Filling Volume 10–500mL (110V) / 10–1000mL (220V)
Max Flow Velocity 2.4L/min × 2 (based on water)
Filling Accuracy ≤ ±1% (for water)
Filling Speed 20–30 bottles/min (depends on bottle & liquid)
Air Pressure 0.3–0.4MPa
Conveyor Size 140mm (W) × 1030mm (L)
Filling Nozzle Diameter OD 8mm
Air Compressor Connector Size OD 8mm
Whole Machine Size 1030mm × 740mm × 390mm
Package Size 1120mm × 670mm × 420mm
Net Weight Approx. 38kg
Gross Weight Approx. 51kg
Original: $1,450.00
-70%$1,450.00
$435.00Description
The ZONESUN ZS-DTPP-2 is a high-precision automatic liquid filling machine equipped with dual peristaltic pumps and customizable filling heads. Designed for non-viscous liquids such as juice, essential oils, and perfumes, it offers excellent filling accuracy (≤±1%) and adjustable volume ranges for both 110V and 220V configurations. With a speed of up to 30 bottles per minute, it integrates seamlessly with capping and labeling machines to support full automation. Ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries.
Parameter
Machine Model ZS-DTPP-2
Voltage AC 220V / 110V, 50–60Hz
Power 60W (Each Pump)
Filling Heads 2 Heads (Customizable)
Recommended Filling Volume 10–500mL (110V) / 10–1000mL (220V)
Max Flow Velocity 2.4L/min × 2 (based on water)
Filling Accuracy ≤ ±1% (for water)
Filling Speed 20–30 bottles/min (depends on bottle & liquid)
Air Pressure 0.3–0.4MPa
Conveyor Size 140mm (W) × 1030mm (L)
Filling Nozzle Diameter OD 8mm
Air Compressor Connector Size OD 8mm
Whole Machine Size 1030mm × 740mm × 390mm
Package Size 1120mm × 670mm × 420mm
Net Weight Approx. 38kg
Gross Weight Approx. 51kg
