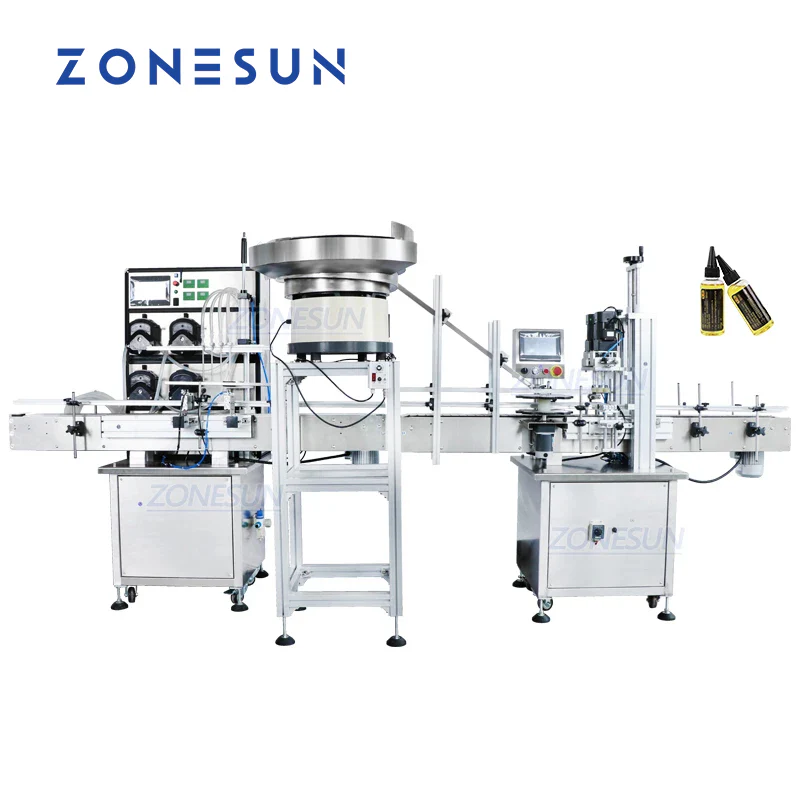

ZONESUN ZS-FAL180A6 Automatic Liquid Filling and Capping Machine Line

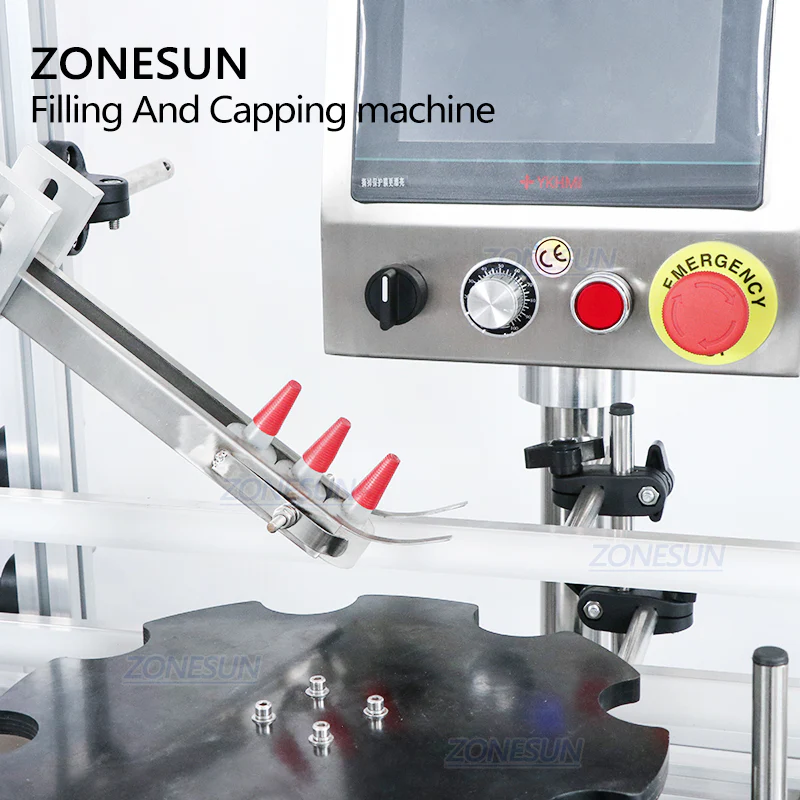

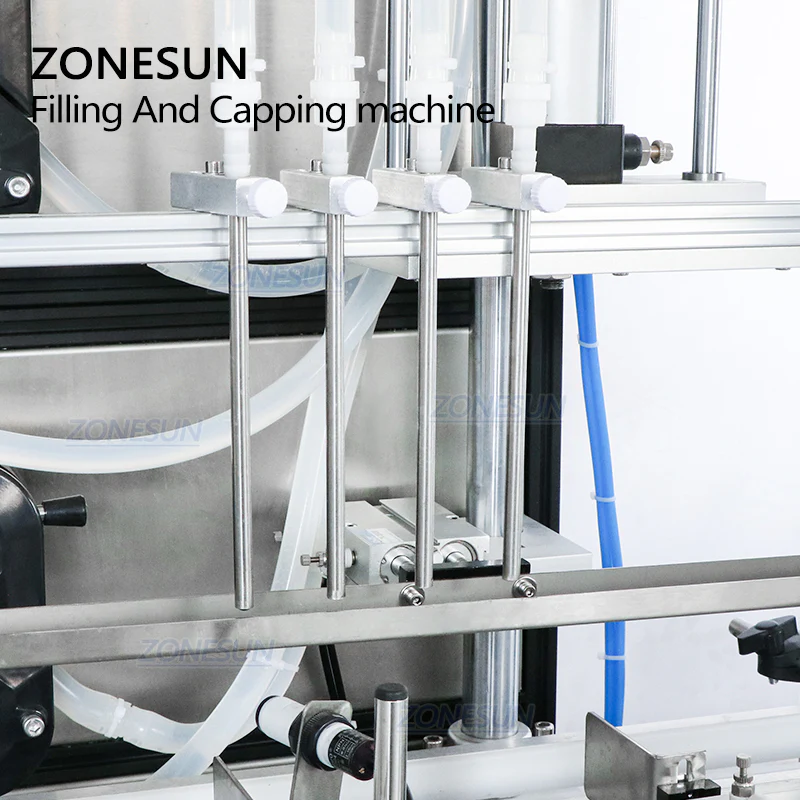

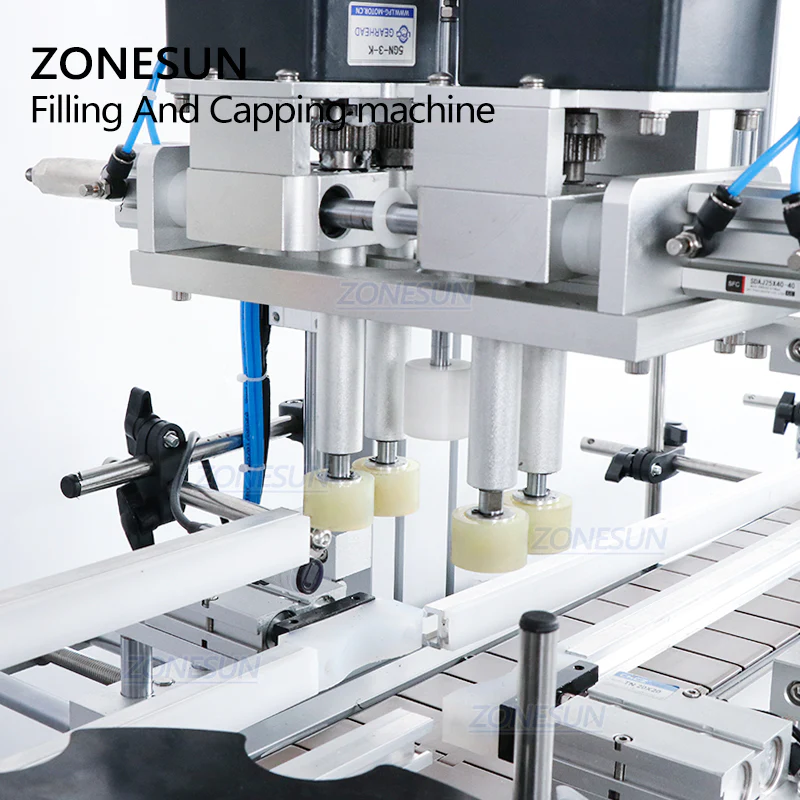

The ZONESUN ZS-FAL180A6 is a fully automatic liquid filling and capping production line designed to streamline bottling operations. Equipped with four independently controlled filling nozzles, it ensures high-speed, precise filling across a wide range of container sizes. The integrated cap feeder and capping unit accommodate various cap shapes, delivering secure and consistent sealing. Ideal for industries such as cosmetics, pharmaceuticals, beverages, and daily chemicals, this system significantly reduces labor costs while boosting productivity. Optional integration with labeling machines enables complete automation.
Product Specifications: Liquid Filling Machine
Parameter Specification
Container Size φ20–160mm, Height 30–300mm
Filling Range 10–12000ml (Optional: 3–2500ml / 3–4000ml)
Max Flow Rate 12000ml/min per nozzle (based on water)
Filling Accuracy ≤±1% (for water)
Filling Speed 30–50 pcs/min (depends on bottle and liquid type)
Power Supply 220V–50Hz / 110V–60Hz
Pump Power 60W per nozzle
Net Weight Approx. 128kg
Packing Weight Approx. 150kg
Packing Dimensions Approx. 2000 × 820 × 1570mm
Product Specifications: ZS-XG16V Capping Machine
Parameter Specification
Machine Model ZS-XG16V
Bottle Height 30–300mm
Bottle Diameter 18–70mm
Cap Diameter 20–160mm
Working Speed 20–60 bottles/min (depends on bottle & cap shape)
Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions Approx. 1930 × 740 × 1600mm
Packing Dimensions Approx. 2000 × 820 × 1760mm
Machine Weight Approx. 150kg
The ZONESUN ZS-FAL180A6 is a fully automatic liquid filling and capping production line designed to streamline bottling operations. Equipped with four independently controlled filling nozzles, it ensures high-speed, precise filling across a wide range of container sizes. The integrated cap feeder and capping unit accommodate various cap shapes, delivering secure and consistent sealing. Ideal for industries such as cosmetics, pharmaceuticals, beverages, and daily chemicals, this system significantly reduces labor costs while boosting productivity. Optional integration with labeling machines enables complete automation.
Product Specifications: Liquid Filling Machine
Parameter Specification
Container Size φ20–160mm, Height 30–300mm
Filling Range 10–12000ml (Optional: 3–2500ml / 3–4000ml)
Max Flow Rate 12000ml/min per nozzle (based on water)
Filling Accuracy ≤±1% (for water)
Filling Speed 30–50 pcs/min (depends on bottle and liquid type)
Power Supply 220V–50Hz / 110V–60Hz
Pump Power 60W per nozzle
Net Weight Approx. 128kg
Packing Weight Approx. 150kg
Packing Dimensions Approx. 2000 × 820 × 1570mm
Product Specifications: ZS-XG16V Capping Machine
Parameter Specification
Machine Model ZS-XG16V
Bottle Height 30–300mm
Bottle Diameter 18–70mm
Cap Diameter 20–160mm
Working Speed 20–60 bottles/min (depends on bottle & cap shape)
Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions Approx. 1930 × 740 × 1600mm
Packing Dimensions Approx. 2000 × 820 × 1760mm
Machine Weight Approx. 150kg
Original: $11,967.99
-70%$11,967.99
$3,590.40Description
The ZONESUN ZS-FAL180A6 is a fully automatic liquid filling and capping production line designed to streamline bottling operations. Equipped with four independently controlled filling nozzles, it ensures high-speed, precise filling across a wide range of container sizes. The integrated cap feeder and capping unit accommodate various cap shapes, delivering secure and consistent sealing. Ideal for industries such as cosmetics, pharmaceuticals, beverages, and daily chemicals, this system significantly reduces labor costs while boosting productivity. Optional integration with labeling machines enables complete automation.
Product Specifications: Liquid Filling Machine
Parameter Specification
Container Size φ20–160mm, Height 30–300mm
Filling Range 10–12000ml (Optional: 3–2500ml / 3–4000ml)
Max Flow Rate 12000ml/min per nozzle (based on water)
Filling Accuracy ≤±1% (for water)
Filling Speed 30–50 pcs/min (depends on bottle and liquid type)
Power Supply 220V–50Hz / 110V–60Hz
Pump Power 60W per nozzle
Net Weight Approx. 128kg
Packing Weight Approx. 150kg
Packing Dimensions Approx. 2000 × 820 × 1570mm
Product Specifications: ZS-XG16V Capping Machine
Parameter Specification
Machine Model ZS-XG16V
Bottle Height 30–300mm
Bottle Diameter 18–70mm
Cap Diameter 20–160mm
Working Speed 20–60 bottles/min (depends on bottle & cap shape)
Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions Approx. 1930 × 740 × 1600mm
Packing Dimensions Approx. 2000 × 820 × 1760mm
Machine Weight Approx. 150kg
