ZONESUN ZS-TB600 Double-Sided Square Bottle Labeling Machine
The ZONESUN ZS-TB600 is a high-performance automatic labeling machine designed for double-sided labeling of square and flat bottles. Constructed from premium stainless steel and aluminum alloy, it features a high-speed servo motor for precise label placement and a PLC-controlled interface for intuitive operation. With a labeling speed of up to 350 bottles per minute and compatibility with label sizes from 25–300mm in length and 15–200mm in height, this machine is ideal for food, cosmetic, and chemical packaging lines. Equipped with imported photoelectric sensors and control systems from Germany, Japan, and Taiwan, it ensures stable, accurate, and efficient labeling. Note: Due to its weight, please contact us for optimized shipping rates. Customization available upon request.
Parameter：
Power supply: AC220V,50/60Hz, 1500W
Labeling capacity(Pcs/min):60-350Pcs/min(depend on bottle size)
Labeling material thickness:20-120mm
Labeling material height:30-350mm
label size:(L)25-300mm,(H)15-200mm
Roll inside:Φ76mm
Roll outside diameter：Φ350mm
Machine size：2800×1650×1500（mm）
Packing size：2120×940×1500mm
Net Machine weight：450kg
Gross Weight：650kg
Touch screens eliminate the need for bulky buttons and switches, which can help to save space and simplify the overall design of a control panel.The customizable interface makes the machine is easier to navigate and use.
The bottle guiding structure can prevent bottles from falling down during transporting, it will be adjusted according to bottle width, this ensures labeling work can be processed stably.
The electric eye is used to detect passing by bottles and control the machine to attach labels to bottles automatically.With this , the machine can work automatically and precisely

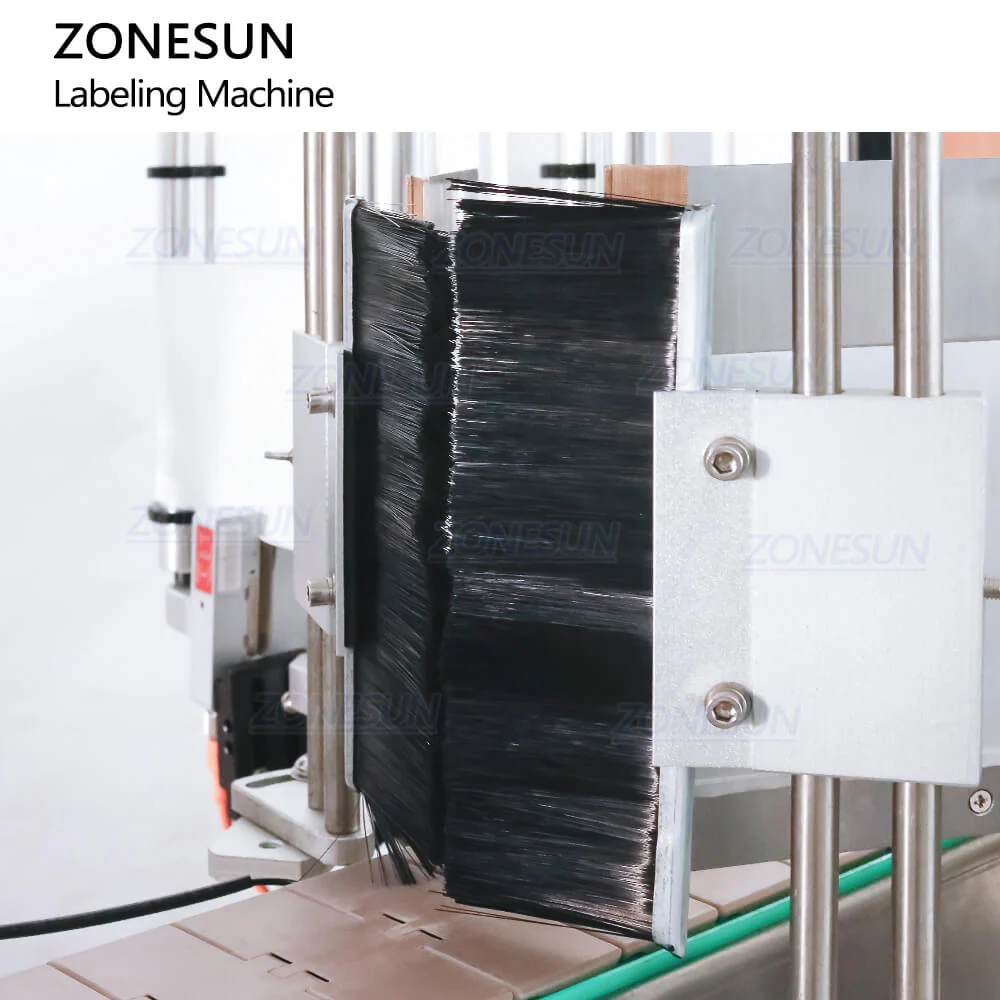

There are two brush which is designed to press labels and ensure there are no bubbles under stickers, it improves the labeling quality greatly.
The label sensor can detect the gap between label and label, this will help to control the label outputting length.The sensitivity of label sensor can be adjusted according to the label material, improves labeling accuracy.
The ZONESUN ZS-TB600 is a high-performance automatic labeling machine designed for double-sided labeling of square and flat bottles. Constructed from premium stainless steel and aluminum alloy, it features a high-speed servo motor for precise label placement and a PLC-controlled interface for intuitive operation. With a labeling speed of up to 350 bottles per minute and compatibility with label sizes from 25–300mm in length and 15–200mm in height, this machine is ideal for food, cosmetic, and chemical packaging lines. Equipped with imported photoelectric sensors and control systems from Germany, Japan, and Taiwan, it ensures stable, accurate, and efficient labeling. Note: Due to its weight, please contact us for optimized shipping rates. Customization available upon request.
Parameter：
Power supply: AC220V,50/60Hz, 1500W
Labeling capacity(Pcs/min):60-350Pcs/min(depend on bottle size)
Labeling material thickness:20-120mm
Labeling material height:30-350mm
label size:(L)25-300mm,(H)15-200mm
Roll inside:Φ76mm
Roll outside diameter：Φ350mm
Machine size：2800×1650×1500（mm）
Packing size：2120×940×1500mm
Net Machine weight：450kg
Gross Weight：650kg
Touch screens eliminate the need for bulky buttons and switches, which can help to save space and simplify the overall design of a control panel.The customizable interface makes the machine is easier to navigate and use.
The bottle guiding structure can prevent bottles from falling down during transporting, it will be adjusted according to bottle width, this ensures labeling work can be processed stably.
The electric eye is used to detect passing by bottles and control the machine to attach labels to bottles automatically.With this , the machine can work automatically and precisely
There are two brush which is designed to press labels and ensure there are no bubbles under stickers, it improves the labeling quality greatly.
The label sensor can detect the gap between label and label, this will help to control the label outputting length.The sensitivity of label sensor can be adjusted according to the label material, improves labeling accuracy.
Original: $9,999.00
-70%$9,999.00
$2,999.70Description
The ZONESUN ZS-TB600 is a high-performance automatic labeling machine designed for double-sided labeling of square and flat bottles. Constructed from premium stainless steel and aluminum alloy, it features a high-speed servo motor for precise label placement and a PLC-controlled interface for intuitive operation. With a labeling speed of up to 350 bottles per minute and compatibility with label sizes from 25–300mm in length and 15–200mm in height, this machine is ideal for food, cosmetic, and chemical packaging lines. Equipped with imported photoelectric sensors and control systems from Germany, Japan, and Taiwan, it ensures stable, accurate, and efficient labeling. Note: Due to its weight, please contact us for optimized shipping rates. Customization available upon request.
Parameter：
Power supply: AC220V,50/60Hz, 1500W
Labeling capacity(Pcs/min):60-350Pcs/min(depend on bottle size)
Labeling material thickness:20-120mm
Labeling material height:30-350mm
label size:(L)25-300mm,(H)15-200mm
Roll inside:Φ76mm
Roll outside diameter：Φ350mm
Machine size：2800×1650×1500（mm）
Packing size：2120×940×1500mm
Net Machine weight：450kg
Gross Weight：650kg
Touch screens eliminate the need for bulky buttons and switches, which can help to save space and simplify the overall design of a control panel.The customizable interface makes the machine is easier to navigate and use.
The bottle guiding structure can prevent bottles from falling down during transporting, it will be adjusted according to bottle width, this ensures labeling work can be processed stably.
The electric eye is used to detect passing by bottles and control the machine to attach labels to bottles automatically.With this , the machine can work automatically and precisely
There are two brush which is designed to press labels and ensure there are no bubbles under stickers, it improves the labeling quality greatly.
The label sensor can detect the gap between label and label, this will help to control the label outputting length.The sensitivity of label sensor can be adjusted according to the label material, improves labeling accuracy.
