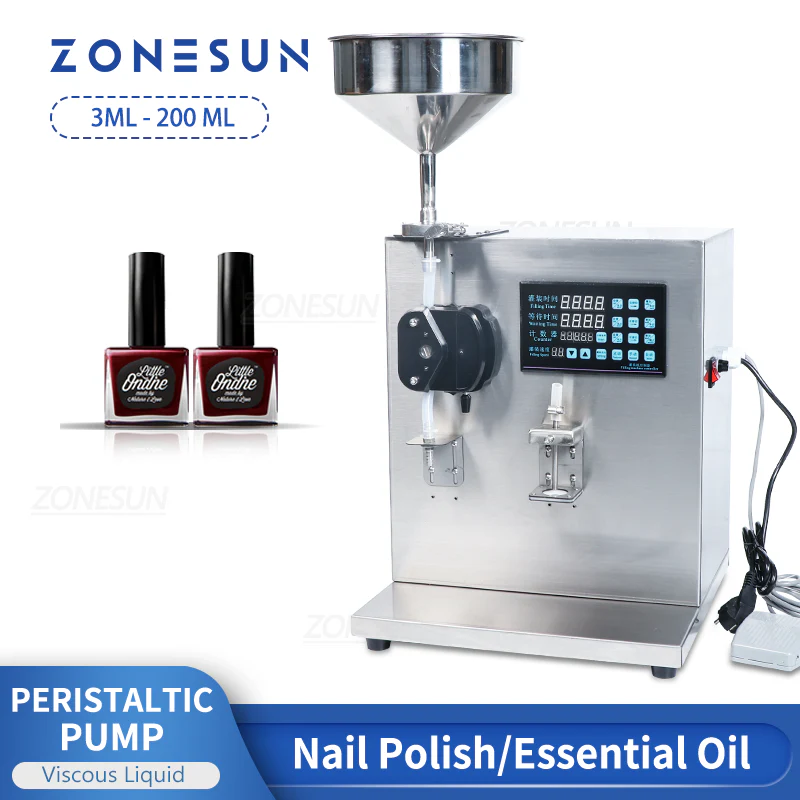

ZONESUN ZS-NP1 Semi-Automatic Peristaltic Pump Liquid Filler
DESCRIPTION

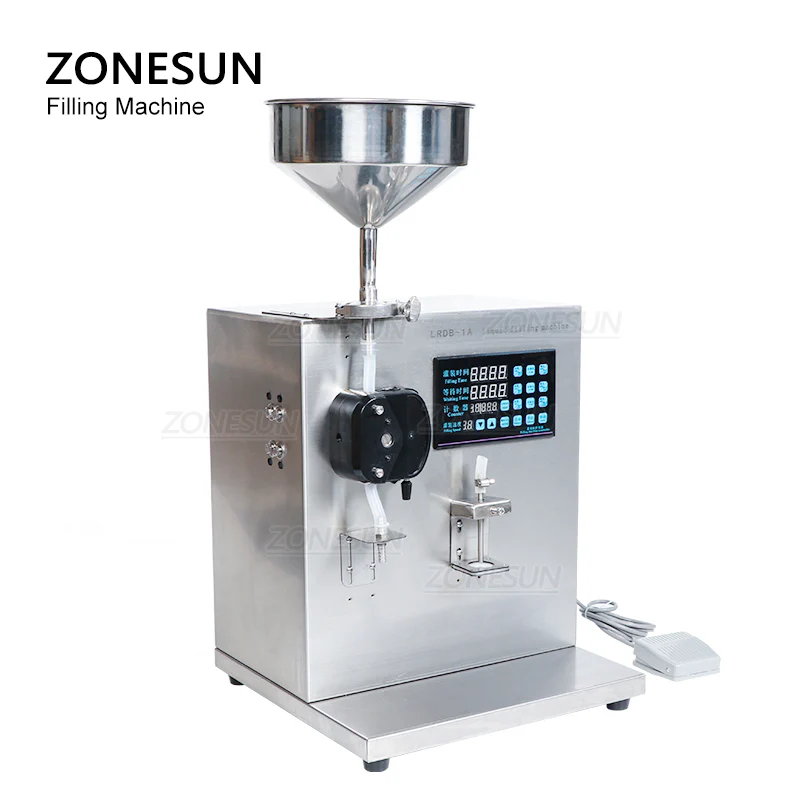

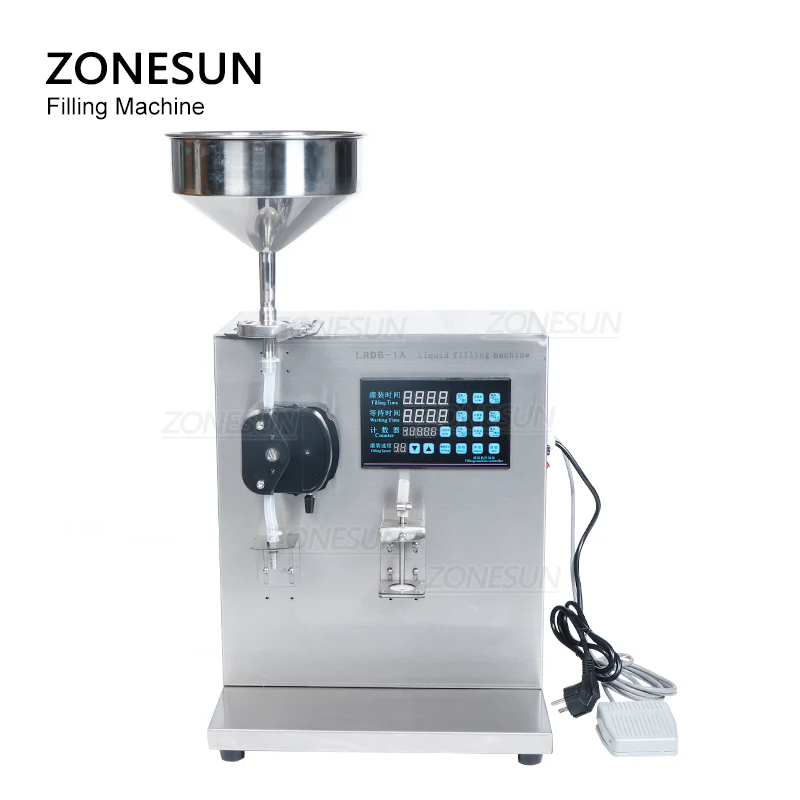

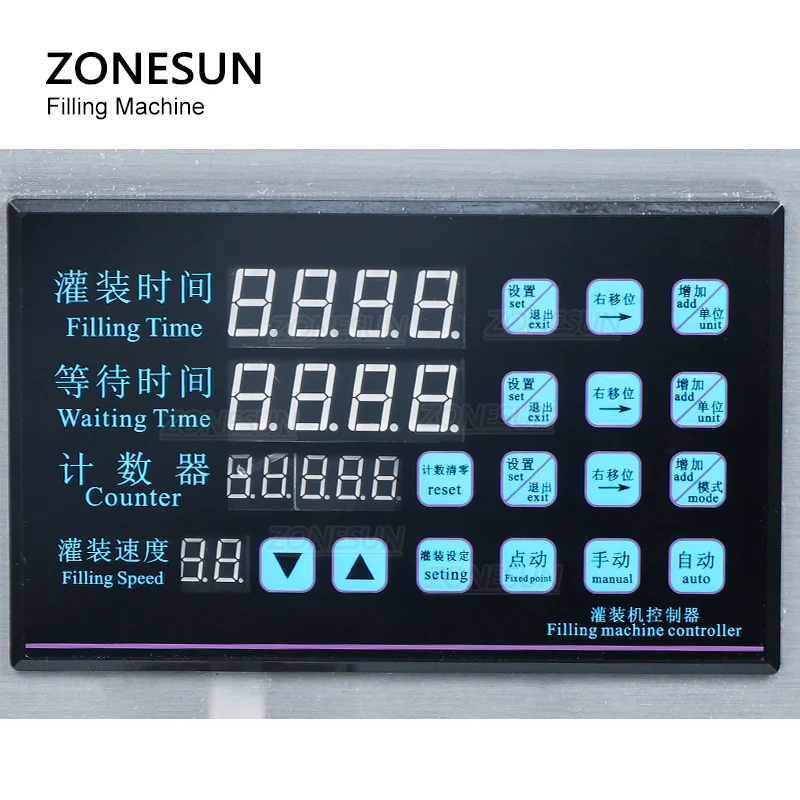

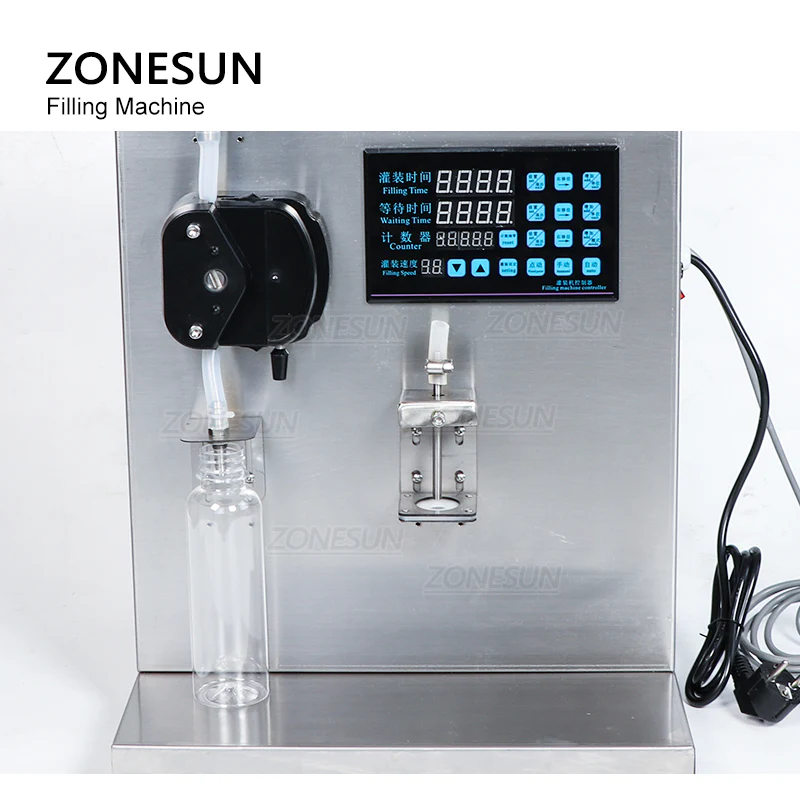

The ZS-NP1 is a compact semi-automatic filling machine equipped with a peristaltic pump to ensure hygienic, contact-free liquid handling. It features anti-drip nozzles, dual operation modes (manual and automatic), and a user-friendly control panel for precise filling time and speed settings. Ideal for cosmetics, food, and pharmaceutical products such as nail polish, honey, sanitizer, and perfume.
PARAMETER
- Machine Model：ZS-NP1
- Machine Power：AC 220V / 110V, 50–60Hz, 80W
- Machine Pump： Peristaltic Pump
- Max Flow Rate： 2L/min (based on water)
- Filling Range： 3–20ml (Viscous Liquid), 3–200ml (Fluid Liquid)
- Filling Speed： 5–400 bottles/min (depends on bottle & liquid)
- Filling Accurac： ±1%
- Suitable Bottle Height： ≤100mm
- Suitable Bottle Diameter： 50mm
- Height of Hopper： 230mm
- Filling Nozzle Diameter： Φ6mm (Left Ordinary Nozzle) Φ5mm (Right Hang Bottle Nozzle)
- Delay Range： 0.01s – 999.9s
- Count Range： 1 – 59999 times
- Machine Size： (L×W×H) 360×350×420mm
- Machine Weight： 9.63kg
- Package Size： (L×W×H) 460×460×520mm
- Package Weight： 12.5kg
