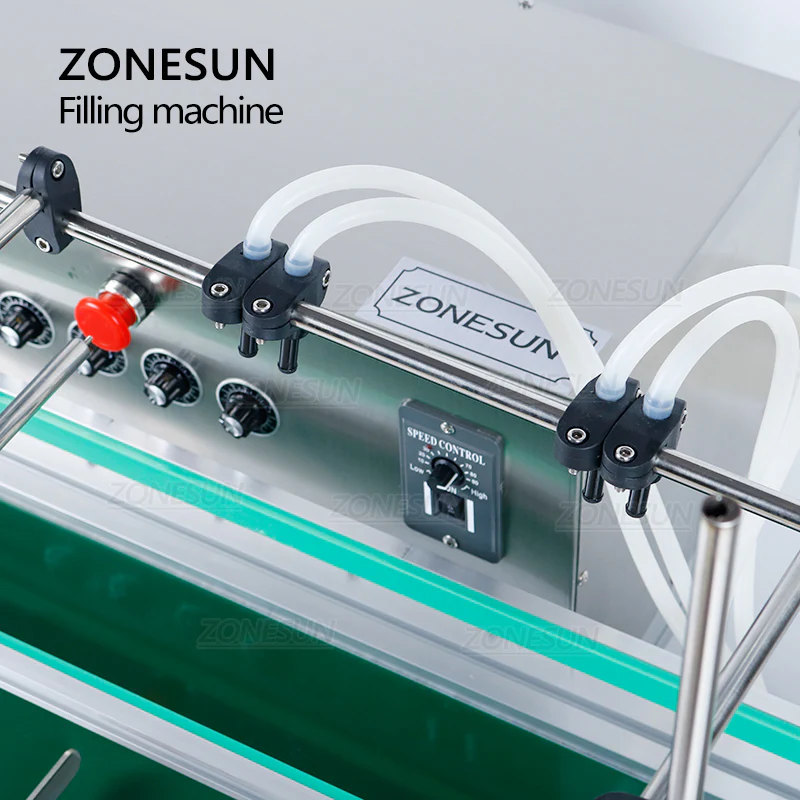

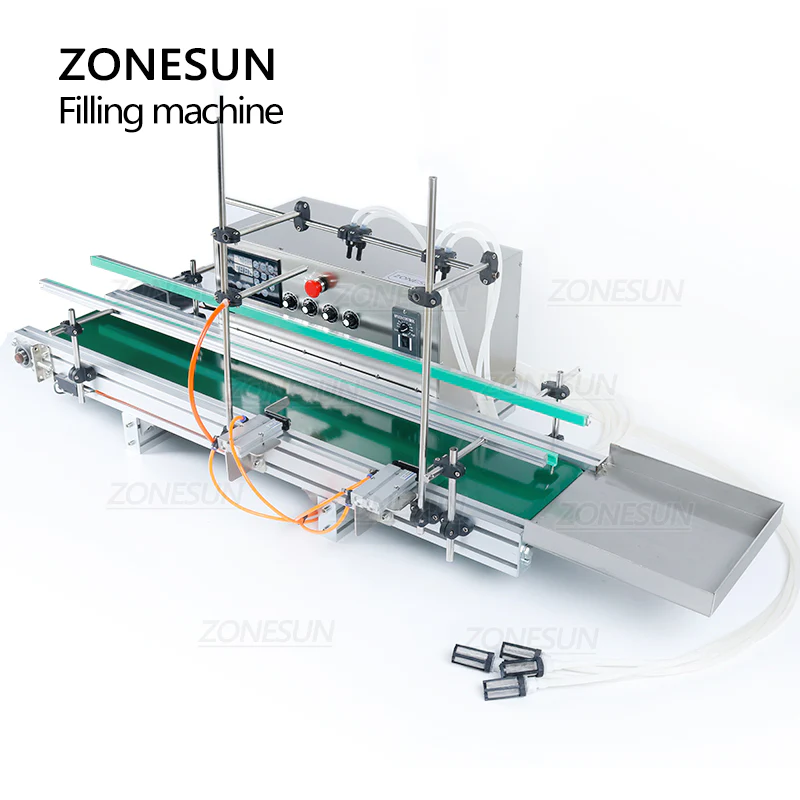

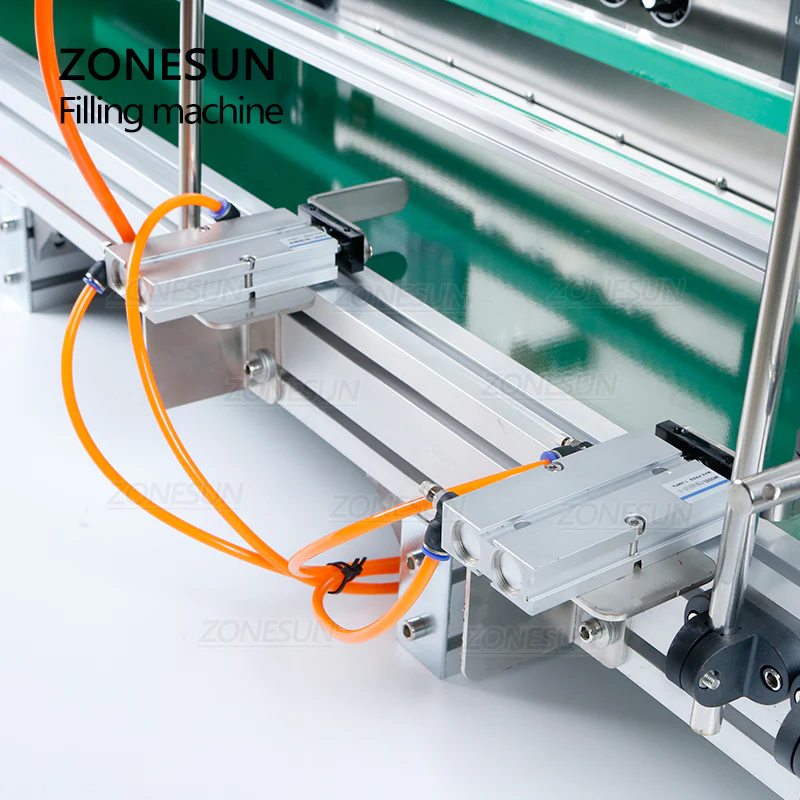

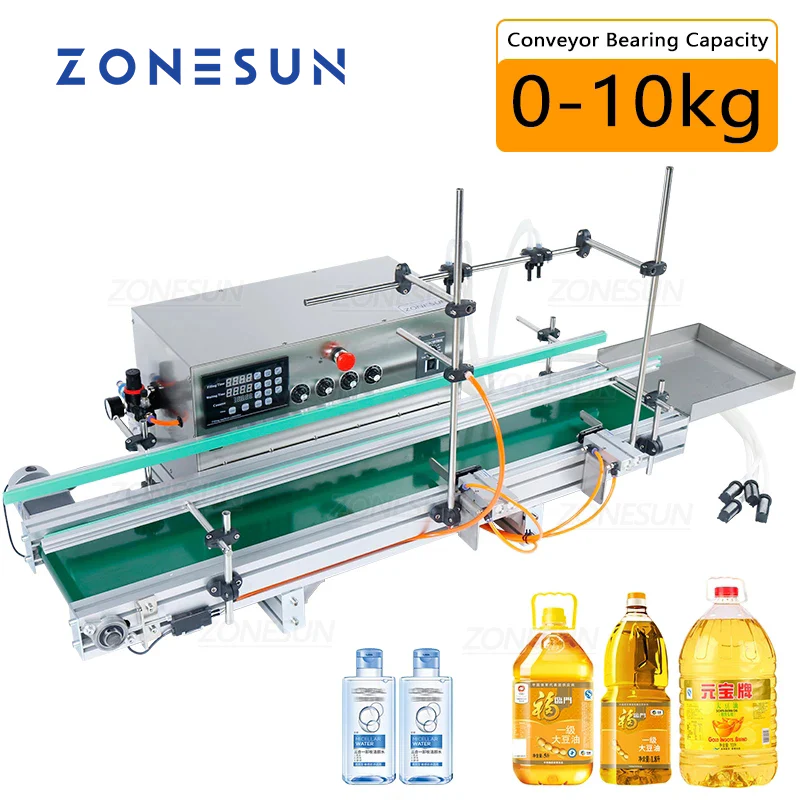

ZONESUN ZS‑DTDP5‑4 Heavy‑Duty Diaphragm Pump Liquid Filling Machine 5L
The ZONESUN ZS‑DTDP5‑4 liquid filling machine is engineered for high‑volume, heavy‑load applications. Featuring a durable conveyor, four independently controlled nozzles, and a powerful diaphragm pump, it ensures fast, accurate, and hygienic filling. With adjustable conveyor speed, dual operating modes, and an intelligent bottle detection system, this machine is ideal for industries such as beverages, edible oils, daily chemicals, and more.
Specification Details
Voltage 110V / 220V (optional)
Power 300 W

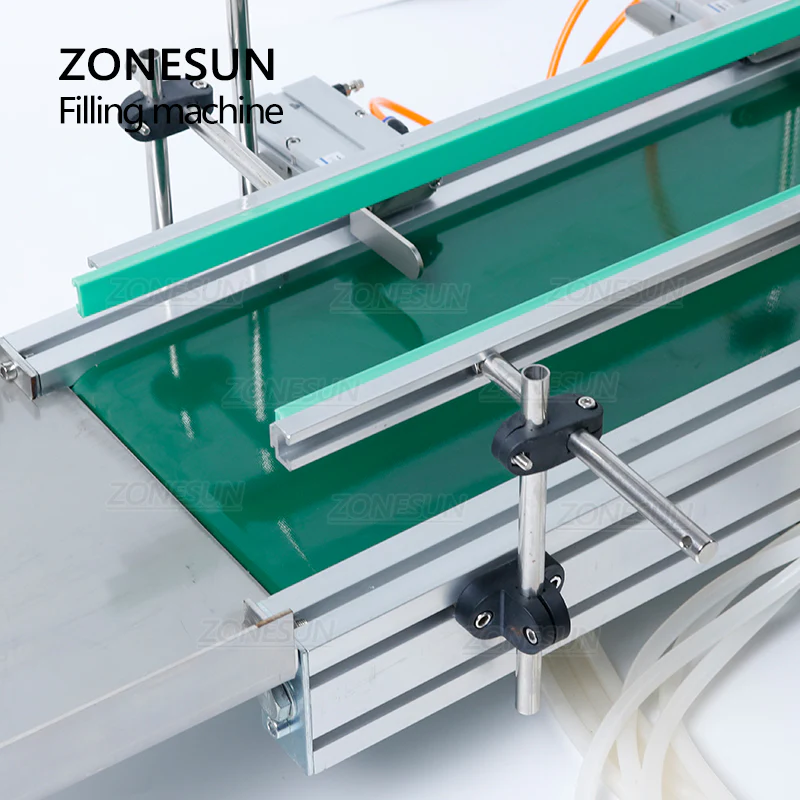

Conveyor Length 1200 mm
Conveyor Width 200 mm
Conveyor Loading Capacity Within 10 kg
Filling Speed 5 L/min (each nozzle)
Optimum Filling Range 20 – 5000 mL (single bottle)
Suitable Bottle Diameter Within 200 mm
Machine Weight 38 kg
The ZONESUN ZS‑DTDP5‑4 liquid filling machine is engineered for high‑volume, heavy‑load applications. Featuring a durable conveyor, four independently controlled nozzles, and a powerful diaphragm pump, it ensures fast, accurate, and hygienic filling. With adjustable conveyor speed, dual operating modes, and an intelligent bottle detection system, this machine is ideal for industries such as beverages, edible oils, daily chemicals, and more.
Specification Details
Voltage 110V / 220V (optional)
Power 300 W
Conveyor Length 1200 mm
Conveyor Width 200 mm
Conveyor Loading Capacity Within 10 kg
Filling Speed 5 L/min (each nozzle)
Optimum Filling Range 20 – 5000 mL (single bottle)
Suitable Bottle Diameter Within 200 mm
Machine Weight 38 kg
Original: $1,349.00
-70%$1,349.00
$404.70Description
The ZONESUN ZS‑DTDP5‑4 liquid filling machine is engineered for high‑volume, heavy‑load applications. Featuring a durable conveyor, four independently controlled nozzles, and a powerful diaphragm pump, it ensures fast, accurate, and hygienic filling. With adjustable conveyor speed, dual operating modes, and an intelligent bottle detection system, this machine is ideal for industries such as beverages, edible oils, daily chemicals, and more.
Specification Details
Voltage 110V / 220V (optional)
Power 300 W
Conveyor Length 1200 mm
Conveyor Width 200 mm
Conveyor Loading Capacity Within 10 kg
Filling Speed 5 L/min (each nozzle)
Optimum Filling Range 20 – 5000 mL (single bottle)
Suitable Bottle Diameter Within 200 mm
Machine Weight 38 kg
