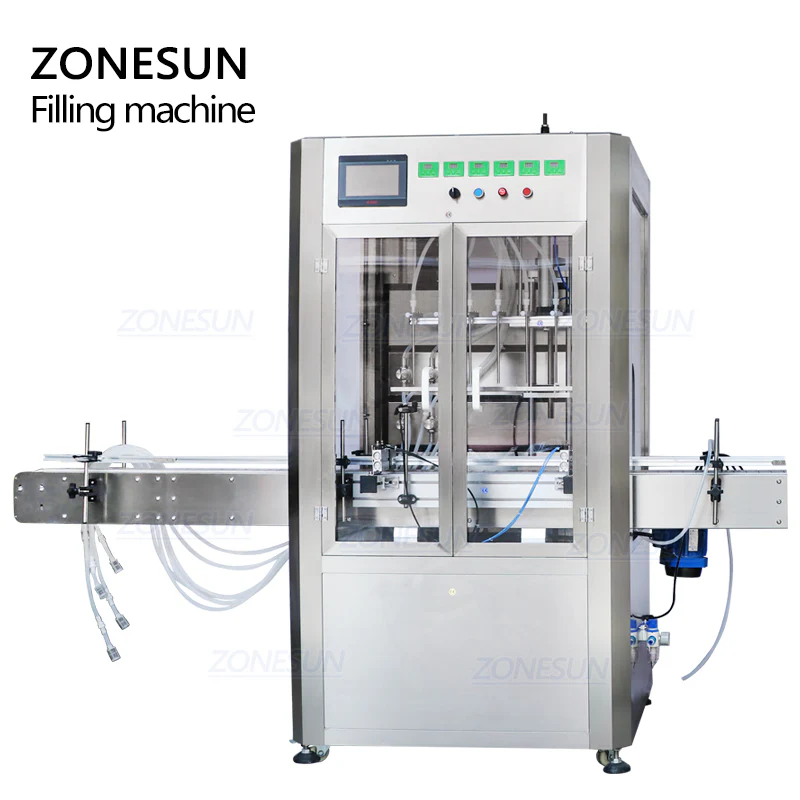

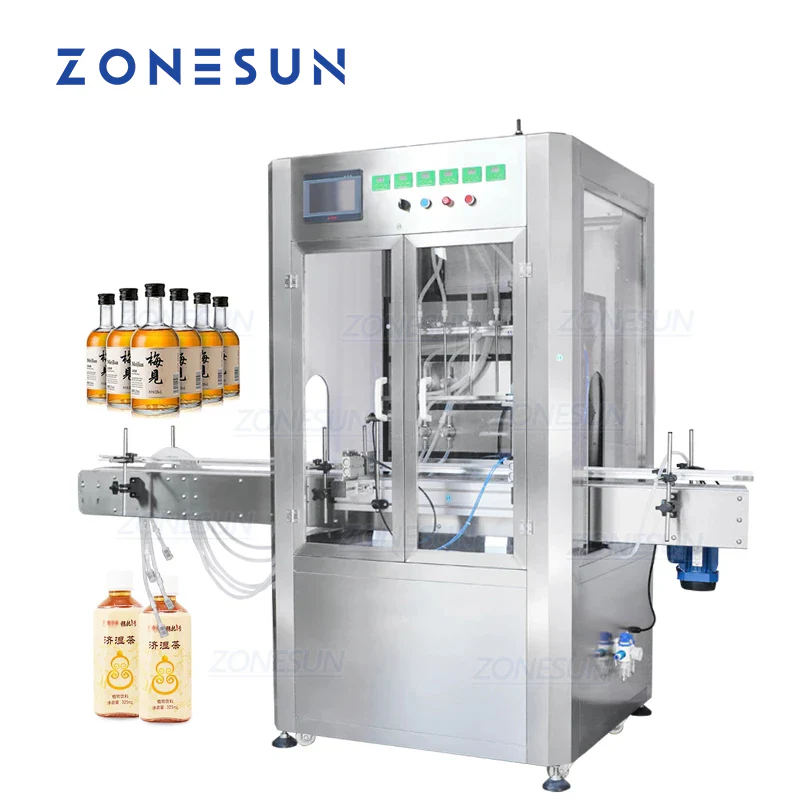

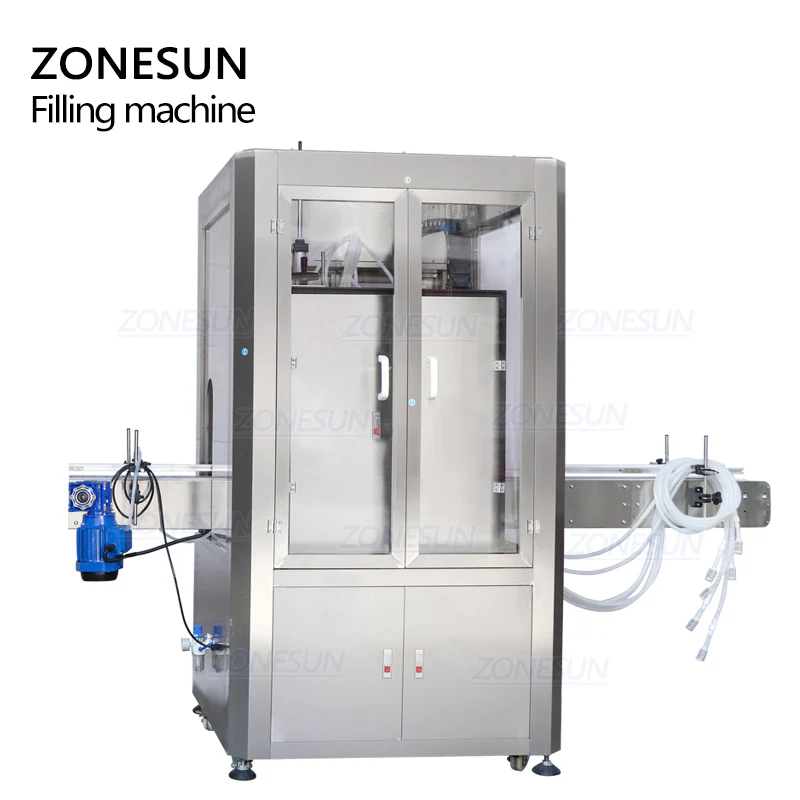

ZONESUN ZS-VTMP80D Magnetic Pump Liquid Filling Machine with Dust Cover
The ZONESUN ZS-VTMP80D is a high-precision magnetic pump liquid filling machine designed for clean and efficient production. Equipped with a protective dust cover, it minimizes contamination and ensures product quality. This model supports 1 to 6 customizable filling heads, offering flexible throughput for various container sizes and liquid volumes. Built with durable stainless steel pumps (304/316/316L), it delivers accurate filling from 20ml to 5000ml. Ideal for pharmaceutical, cosmetic, and beverage industries, it can be seamlessly integrated with automatic capping and labeling machines to create a fully automated production line.
Product Specifications: ZS-VTMP80D Liquid Filling Machine
Parameter Specification
Machine Model ZS-VTMP80D
Container Size φ20–100mm, Height 30–300mm
Max Flow Rate 5500ml/min (1 head)<br>7500ml/min (2 heads)<br>12L/min (based on water)
Pump Material 304 / 316 / 316L Stainless Steel
Filling Accuracy ≤±1ml (for ≤100ml)<br>>100ml: deviation ≤±1%
Filling Speed 20–50 pcs/min (depends on bottle size & filling volume)
Filling Volume 20–5000ml
Power Supply 220V-50Hz / 110V-60Hz
Total Machine Power 2000W
Air Compressor Connector OD 8mm
Machine Size Approx. 1000 × 900 × 1860mm
Machine Weight Approx. 285kg
Packing Size Approx. 1970 × 1020 × 2050mm
Packing Weight Approx. 390kg
The PLC control panel shows working parameter clearly,and you can adjust parameter more convenient.Filling speed of each nozzle can be controlled separately.We can customize the operation panel in different kinds of language,if you need this please contact us.

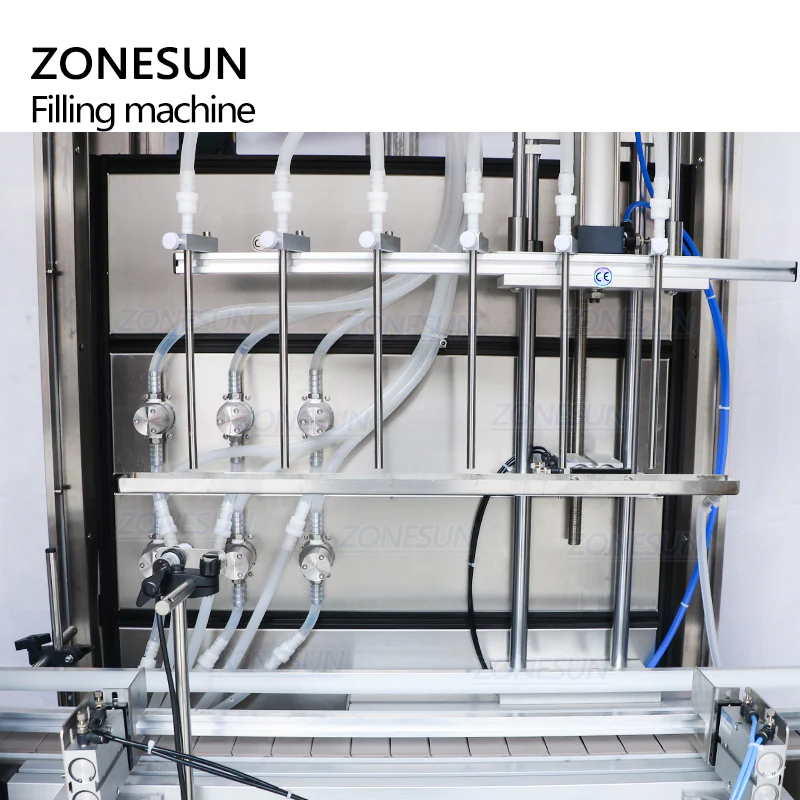

Designed with lifting filling nozzle,this is good for filling foamy liquid.It is also equipped with anti-dripping design,this can ensure the product quality and working environment.

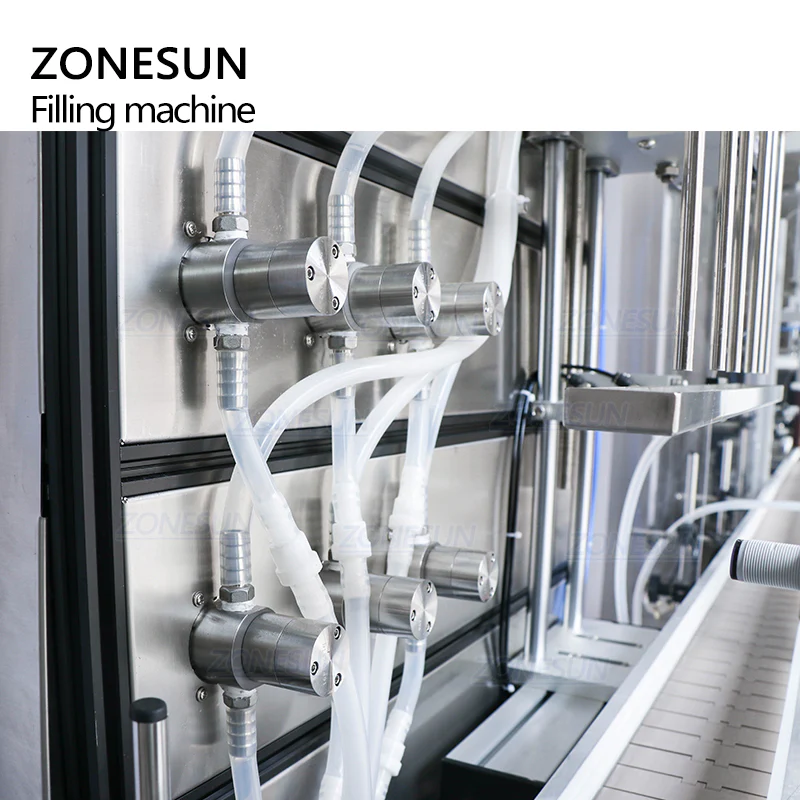

The 316 stainless steel magnetic pump is good for filling weakly acidic and alkaline like solvent.It fills liquid faster and precisely.
Electric eye can detect bottle when they pass through,and send the signal to the system,then the machine will start or stop to work.This can ensure the filling accuracy.
The chain conveyor belt is with large weight capacity,it can transport bottles smoothly,help you save production labor and reduce production process.
The ZONESUN ZS-VTMP80D is a high-precision magnetic pump liquid filling machine designed for clean and efficient production. Equipped with a protective dust cover, it minimizes contamination and ensures product quality. This model supports 1 to 6 customizable filling heads, offering flexible throughput for various container sizes and liquid volumes. Built with durable stainless steel pumps (304/316/316L), it delivers accurate filling from 20ml to 5000ml. Ideal for pharmaceutical, cosmetic, and beverage industries, it can be seamlessly integrated with automatic capping and labeling machines to create a fully automated production line.
Product Specifications: ZS-VTMP80D Liquid Filling Machine
Parameter Specification
Machine Model ZS-VTMP80D
Container Size φ20–100mm, Height 30–300mm
Max Flow Rate 5500ml/min (1 head)<br>7500ml/min (2 heads)<br>12L/min (based on water)
Pump Material 304 / 316 / 316L Stainless Steel
Filling Accuracy ≤±1ml (for ≤100ml)<br>>100ml: deviation ≤±1%
Filling Speed 20–50 pcs/min (depends on bottle size & filling volume)
Filling Volume 20–5000ml
Power Supply 220V-50Hz / 110V-60Hz
Total Machine Power 2000W
Air Compressor Connector OD 8mm
Machine Size Approx. 1000 × 900 × 1860mm
Machine Weight Approx. 285kg
Packing Size Approx. 1970 × 1020 × 2050mm
Packing Weight Approx. 390kg
The PLC control panel shows working parameter clearly,and you can adjust parameter more convenient.Filling speed of each nozzle can be controlled separately.We can customize the operation panel in different kinds of language,if you need this please contact us.
Designed with lifting filling nozzle,this is good for filling foamy liquid.It is also equipped with anti-dripping design,this can ensure the product quality and working environment.
The 316 stainless steel magnetic pump is good for filling weakly acidic and alkaline like solvent.It fills liquid faster and precisely.
Electric eye can detect bottle when they pass through,and send the signal to the system,then the machine will start or stop to work.This can ensure the filling accuracy.
The chain conveyor belt is with large weight capacity,it can transport bottles smoothly,help you save production labor and reduce production process.
