ZONESUNCustom Liquid Paste Filling Capping Line for Bottles

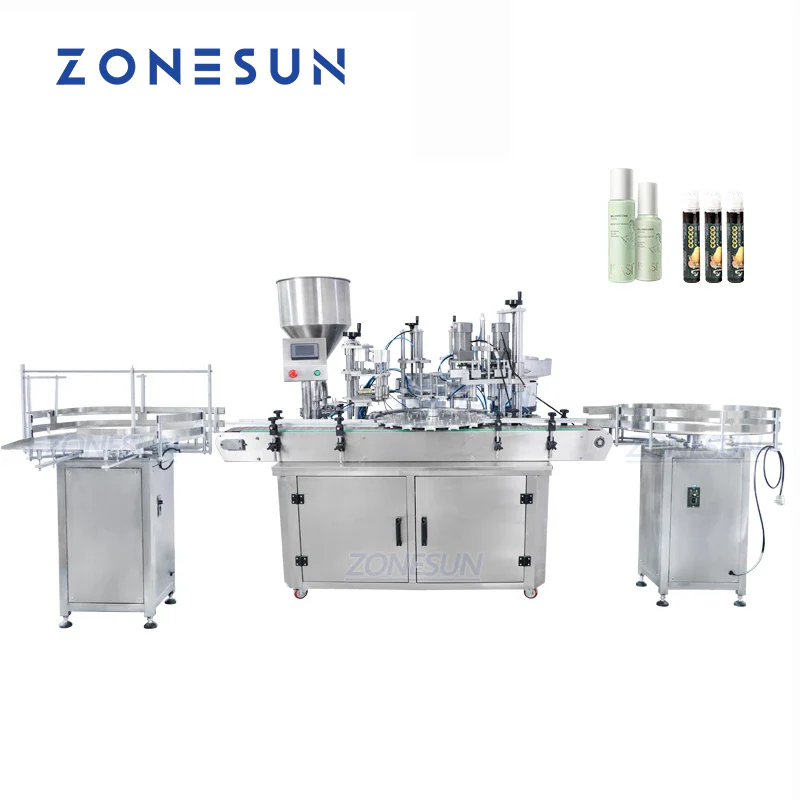

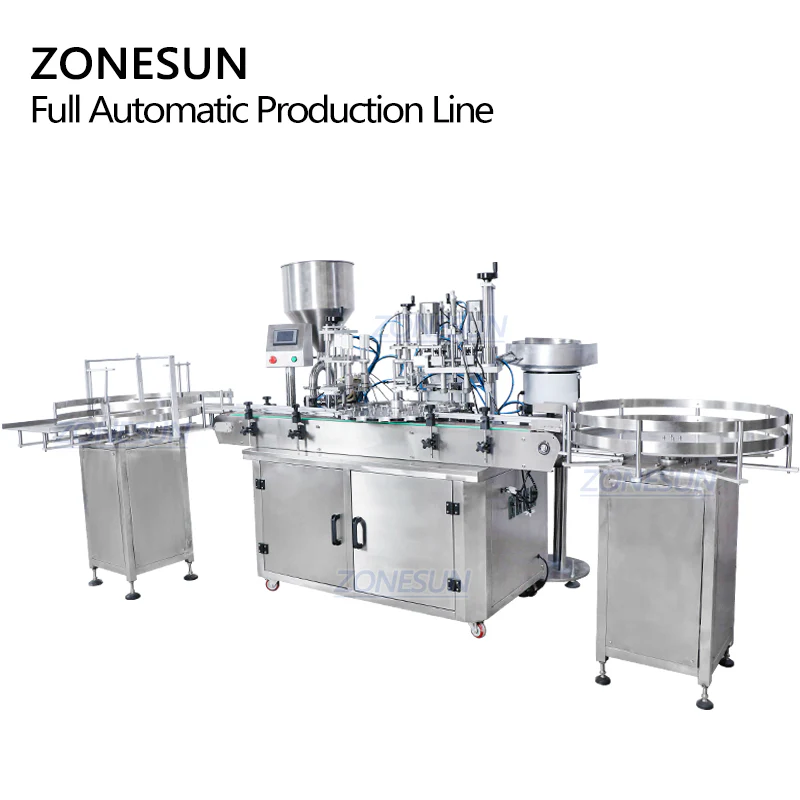

The ZONESUN Custom Liquid Paste Filling Capping Production Line is a fully automated system designed to streamline bottling operations. It integrates bottle unscrambling, dual-head liquid or paste filling, cap feeding, capping, and bottle sorting into one efficient workflow. With customizable filling ranges and bottle dimensions, it handles products like shampoo, essential oil, juice, and honey with precision. Ideal for cosmetics, pharmaceuticals, catering, and daily chemical industries, this production line reduces labor costs and boosts productivity. Optional turntable modules and conveyor systems ensure smooth bottle handling and flexible layout configurations.
Turntable Machine Comparison: ZS-LP800Z vs ZS-LP1000Z
| Specification | ZS-LP800Z | ZS-LP1000Z |
|---|---|---|
| Model | ZS-LP800Z | ZS-LP1000Z |
| Turntable Diameter | 80 cm | 100 cm |
| Suitable Bottle Diameter | 20–100 mm | 20–100 mm |
| Suitable Bottle Height | 30–120 mm | 30–120 mm |
| Working Speed | 40–60 bottles/min (varies by bottle size) | 40–60 bottles/min (varies by bottle size) |
| Power Supply | 220V / 110V, 50–60Hz, 50W | 220V / 110V, 50–60Hz, 50W |
| Package Size | Approx. 115 × 100 × 132 cm | Approx. 135 × 131.5 × 132.5 cm |
| Net/Gross Weight | Approx. 50 kg / 76 kg | Approx. 135 kg / 181.5 kg |
Specification Details
Machine Model ZS-AFC4
Voltage 220V / 110V, 50–60Hz, 1.2kW
Filling Material Liquid and paste
Filling Range Customizable
Conveyor Size 1920 × 100 mm (L × W)
Bottle Height Customizable
Bottle Diameter Customizable
Bottle Cap Diameter Customizable
Working Speed Approx. 20–30 bottles/min (depends on liquid & range)
Net/Gross Weight Approx. 455 kg / 576 kg
Specification Details
Bottle Type Square bottle / Round bottle
Conveying Speed 0–20 RPM (adjustable)
Voltage 200V, 50Hz (110V customizable)
Power Supply 50W
Turntable Diameter 800 mm
Package Size Approx. 855 × 855 × 1020 mm
Net/Gross Weight Approx. 63 kg / 88 kg
Notice
This product can be customized according to customers' need. If you need, please feel free to contact us. Thank you.
The ZONESUN Custom Liquid Paste Filling Capping Production Line is a fully automated system designed to streamline bottling operations. It integrates bottle unscrambling, dual-head liquid or paste filling, cap feeding, capping, and bottle sorting into one efficient workflow. With customizable filling ranges and bottle dimensions, it handles products like shampoo, essential oil, juice, and honey with precision. Ideal for cosmetics, pharmaceuticals, catering, and daily chemical industries, this production line reduces labor costs and boosts productivity. Optional turntable modules and conveyor systems ensure smooth bottle handling and flexible layout configurations.
Turntable Machine Comparison: ZS-LP800Z vs ZS-LP1000Z
| Specification | ZS-LP800Z | ZS-LP1000Z |
|---|---|---|
| Model | ZS-LP800Z | ZS-LP1000Z |
| Turntable Diameter | 80 cm | 100 cm |
| Suitable Bottle Diameter | 20–100 mm | 20–100 mm |
| Suitable Bottle Height | 30–120 mm | 30–120 mm |
| Working Speed | 40–60 bottles/min (varies by bottle size) | 40–60 bottles/min (varies by bottle size) |
| Power Supply | 220V / 110V, 50–60Hz, 50W | 220V / 110V, 50–60Hz, 50W |
| Package Size | Approx. 115 × 100 × 132 cm | Approx. 135 × 131.5 × 132.5 cm |
| Net/Gross Weight | Approx. 50 kg / 76 kg | Approx. 135 kg / 181.5 kg |
Specification Details
Machine Model ZS-AFC4
Voltage 220V / 110V, 50–60Hz, 1.2kW
Filling Material Liquid and paste
Filling Range Customizable
Conveyor Size 1920 × 100 mm (L × W)
Bottle Height Customizable
Bottle Diameter Customizable
Bottle Cap Diameter Customizable
Working Speed Approx. 20–30 bottles/min (depends on liquid & range)
Net/Gross Weight Approx. 455 kg / 576 kg
Specification Details
Bottle Type Square bottle / Round bottle
Conveying Speed 0–20 RPM (adjustable)
Voltage 200V, 50Hz (110V customizable)
Power Supply 50W
Turntable Diameter 800 mm
Package Size Approx. 855 × 855 × 1020 mm
Net/Gross Weight Approx. 63 kg / 88 kg
Notice
This product can be customized according to customers' need. If you need, please feel free to contact us. Thank you.
Original: $14,963.99
-70%$14,963.99
$4,489.20Description
The ZONESUN Custom Liquid Paste Filling Capping Production Line is a fully automated system designed to streamline bottling operations. It integrates bottle unscrambling, dual-head liquid or paste filling, cap feeding, capping, and bottle sorting into one efficient workflow. With customizable filling ranges and bottle dimensions, it handles products like shampoo, essential oil, juice, and honey with precision. Ideal for cosmetics, pharmaceuticals, catering, and daily chemical industries, this production line reduces labor costs and boosts productivity. Optional turntable modules and conveyor systems ensure smooth bottle handling and flexible layout configurations.
Turntable Machine Comparison: ZS-LP800Z vs ZS-LP1000Z
| Specification | ZS-LP800Z | ZS-LP1000Z |
|---|---|---|
| Model | ZS-LP800Z | ZS-LP1000Z |
| Turntable Diameter | 80 cm | 100 cm |
| Suitable Bottle Diameter | 20–100 mm | 20–100 mm |
| Suitable Bottle Height | 30–120 mm | 30–120 mm |
| Working Speed | 40–60 bottles/min (varies by bottle size) | 40–60 bottles/min (varies by bottle size) |
| Power Supply | 220V / 110V, 50–60Hz, 50W | 220V / 110V, 50–60Hz, 50W |
| Package Size | Approx. 115 × 100 × 132 cm | Approx. 135 × 131.5 × 132.5 cm |
| Net/Gross Weight | Approx. 50 kg / 76 kg | Approx. 135 kg / 181.5 kg |
Specification Details
Machine Model ZS-AFC4
Voltage 220V / 110V, 50–60Hz, 1.2kW
Filling Material Liquid and paste
Filling Range Customizable
Conveyor Size 1920 × 100 mm (L × W)
Bottle Height Customizable
Bottle Diameter Customizable
Bottle Cap Diameter Customizable
Working Speed Approx. 20–30 bottles/min (depends on liquid & range)
Net/Gross Weight Approx. 455 kg / 576 kg
Specification Details
Bottle Type Square bottle / Round bottle
Conveying Speed 0–20 RPM (adjustable)
Voltage 200V, 50Hz (110V customizable)
Power Supply 50W
Turntable Diameter 800 mm
Package Size Approx. 855 × 855 × 1020 mm
Net/Gross Weight Approx. 63 kg / 88 kg
Notice
This product can be customized according to customers' need. If you need, please feel free to contact us. Thank you.
