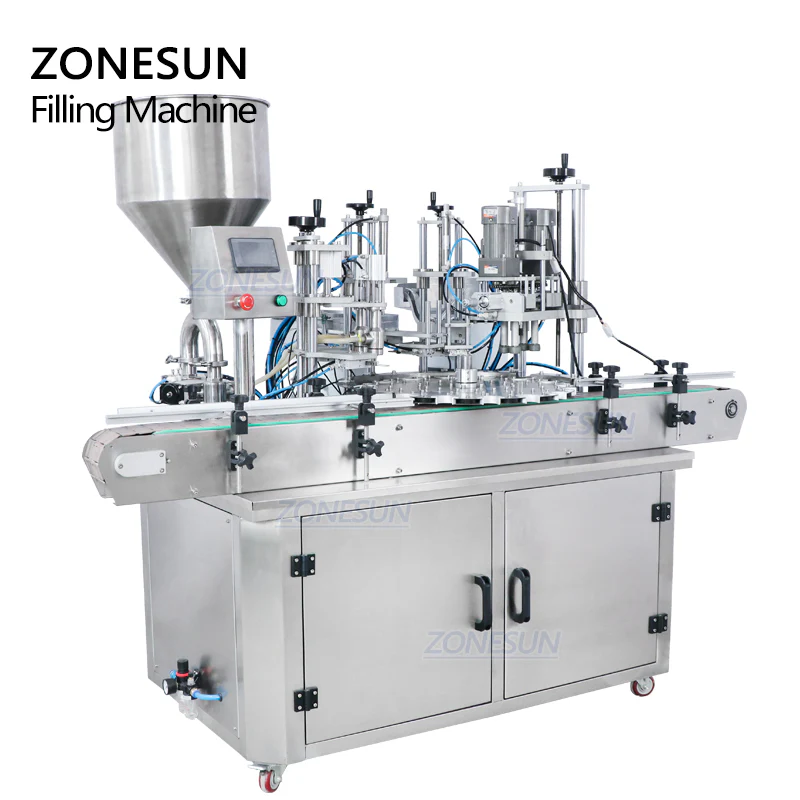

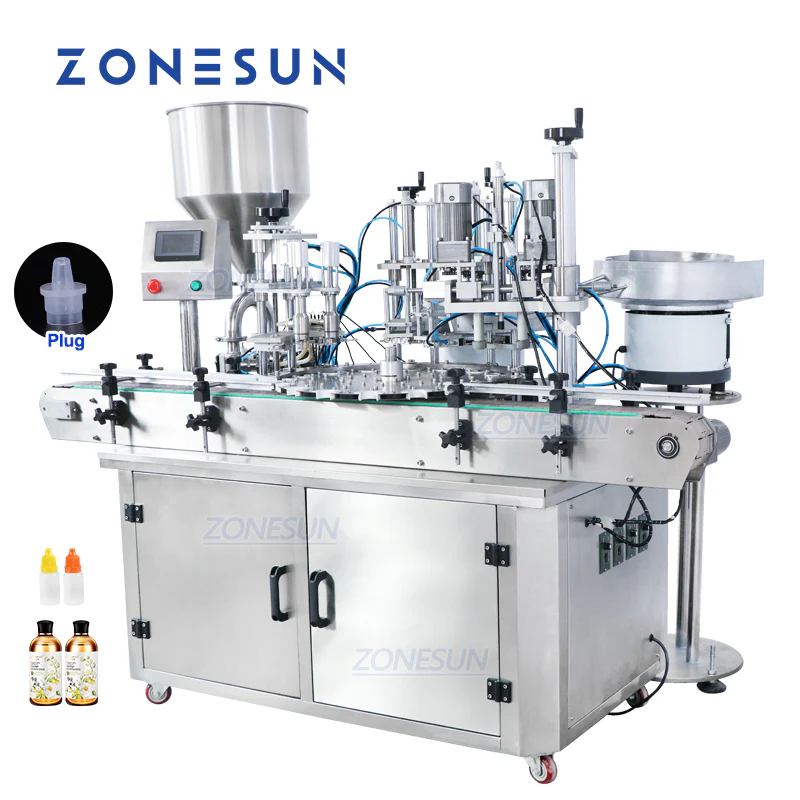

The ZONESUN ZS-AFC4 is a fully automatic filling and capping machine designed for liquid and paste products such as perfume, milk, honey, and chocolate. Featuring dual filling heads with independent control, it offers flexible operation and high efficiency. The system integrates plug feeding, cap placement, and bottle capping into one streamlined process. With customizable filling ranges and bottle dimensions, it’s ideal for cosmetics, pharmaceuticals, beverages, and daily chemical industries. This machine helps reduce labor costs and boosts productivity in modern packaging lines.

ZS-AFC4 Liquid & Paste Filling Machine – Product Information
Specification Details
Machine Model ZS-AFC4
Voltage 220V / 110V, 50–60Hz, 1.2kW
Filling Material Liquid and paste
Filling Range Customizable
Conveyor Size 1920 × 100 mm (L × W)
Bottle Height Customizable
Bottle Diameter Customizable
Bottle Cap Diameter Customizable
Working Speed Approx. 20–30 bottles/min (depends on liquid & range)
Machine Weight Approx. 455 kg
Package Weight Approx. 576 kg

Notice

This machine can be customized according to customers' need. If you need, please feel free to contact us. Thank you!
