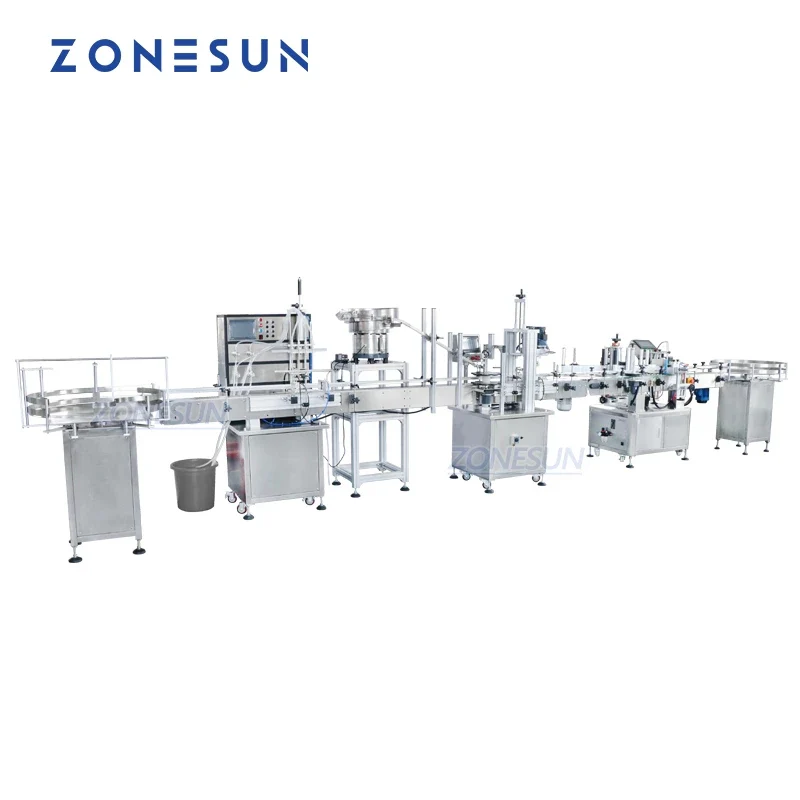

ZONESUN ZS-FAL180P3 Liquid Filling Capping Labeling Line with Cap Feeder

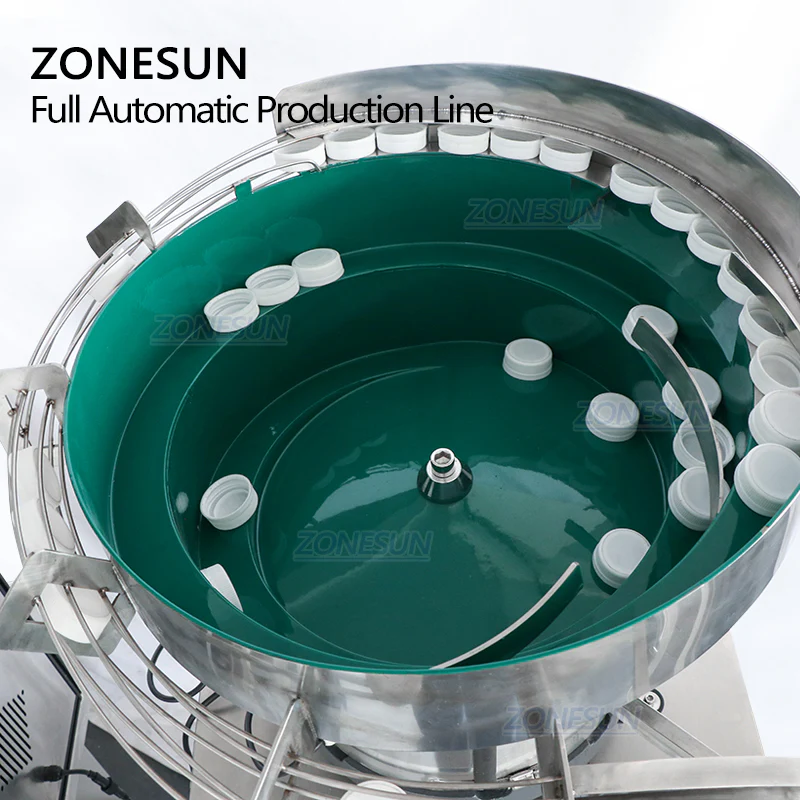

The ZONESUN ZS-FAL180P3 is a fully automatic liquid filling, capping, and labeling production line designed to streamline bottling operations. It includes a bottle unscrambler, magnetic pump filler, vibratory cap feeder, capping machine, and round bottle labeling machine. With customizable configurations and high-speed throughput, this system is ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries. Built for precision and efficiency, it supports various bottle sizes and shapes, significantly reducing labor costs while boosting productivity. Sea shipping is standard due to its size, but faster options are available upon request.
| Parameter | ZS-LPB00Z | ZS-LP1000Z |
|---|---|---|
| Turntable Diameter | 80 cm | 100 cm |
| Suitable Bottle Diameter | 20–100 mm | 20–100 mm |
| Suitable Bottle Height | 30–120 mm | 30–120 mm |
| Working Speed | 40–60 bottles/min (depends on size) | 40–60 bottles/min (depends on size) |
| Power Supply | 220V / 110V, 50–60Hz, 50W | 220V / 110V, 50–60Hz, 50W |
| Package Size | Approx. 115 × 100 × 132 cm | Approx. 135 × 151.5 × 123.5 cm |
| Net Weight / Gross Weight | About 50 kg / 65 kg | About 135 kg / 180 kg |
ZONESUN Filling Machine Specifications
Parameter Specification
Container Size Ø20–160 mm, Height 30–300 mm
Max Flow Rate 5500 ml/min (Pump 1) / 5500 ml/min (Pump 2) / 7500 ml/min (Pump 3)
Material of Pump 304 Stainless Steel
Filling Accuracy ≤100 ml: deviation ≤ ±1 ml<br>＞100 ml: deviation ≤ ±1% (based on water)
Filling Speed 20–50 pcs/min (depends on bottles and filling liquid)
Power Supply 220V–50Hz / 110V–60Hz
Whole Machine Power 2000 W
Packing Weight About 150 kg
Packing Size Approx. 2000 × 820 × 1580 mm
Air Compressor Connector Size Ø8 mm
ZONESUN Capping Machine Specifications
Parameter Specification
Machine Model ZS-XG16
Bottle Height 30–300 mm
Cap Diameter 18–70 mm
Bottle Diameter 20–160 mm
Working Speed 20–60 bottles/min (depending on bottle and cap size/shape)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Dimension About 1930 × 740 × 1600 mm
Packing Size About 2000 × 820 × 1760 mm
Machine Weight About 150 kg
ZONESUN Labeling Machine Specifications
Parameter Specification
Model ZS-TB260
Power Supply AC 220V, 50Hz / 60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1 mm
Suitable Bottle Diameter Ø30–100 mm
Suitable Bottle Size Length: 15–200 mm<br>Height: 15–150 mm
Roll Inside Diameter Ø76 mm
Roll Outside Diameter Ø350 mm
Conveyor Size 1950(L) × 100(W) mm
Machine Size Approx. 2000(L) × 1400(W) × 1300(H) mm
Packing Size Approx. 2120 × 940 × 1500 mm
The ZONESUN ZS-FAL180P3 is a fully automatic liquid filling, capping, and labeling production line designed to streamline bottling operations. It includes a bottle unscrambler, magnetic pump filler, vibratory cap feeder, capping machine, and round bottle labeling machine. With customizable configurations and high-speed throughput, this system is ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries. Built for precision and efficiency, it supports various bottle sizes and shapes, significantly reducing labor costs while boosting productivity. Sea shipping is standard due to its size, but faster options are available upon request.
| Parameter | ZS-LPB00Z | ZS-LP1000Z |
|---|---|---|
| Turntable Diameter | 80 cm | 100 cm |
| Suitable Bottle Diameter | 20–100 mm | 20–100 mm |
| Suitable Bottle Height | 30–120 mm | 30–120 mm |
| Working Speed | 40–60 bottles/min (depends on size) | 40–60 bottles/min (depends on size) |
| Power Supply | 220V / 110V, 50–60Hz, 50W | 220V / 110V, 50–60Hz, 50W |
| Package Size | Approx. 115 × 100 × 132 cm | Approx. 135 × 151.5 × 123.5 cm |
| Net Weight / Gross Weight | About 50 kg / 65 kg | About 135 kg / 180 kg |
ZONESUN Filling Machine Specifications
Parameter Specification
Container Size Ø20–160 mm, Height 30–300 mm
Max Flow Rate 5500 ml/min (Pump 1) / 5500 ml/min (Pump 2) / 7500 ml/min (Pump 3)
Material of Pump 304 Stainless Steel
Filling Accuracy ≤100 ml: deviation ≤ ±1 ml<br>＞100 ml: deviation ≤ ±1% (based on water)
Filling Speed 20–50 pcs/min (depends on bottles and filling liquid)
Power Supply 220V–50Hz / 110V–60Hz
Whole Machine Power 2000 W
Packing Weight About 150 kg
Packing Size Approx. 2000 × 820 × 1580 mm
Air Compressor Connector Size Ø8 mm
ZONESUN Capping Machine Specifications
Parameter Specification
Machine Model ZS-XG16
Bottle Height 30–300 mm
Cap Diameter 18–70 mm
Bottle Diameter 20–160 mm
Working Speed 20–60 bottles/min (depending on bottle and cap size/shape)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Dimension About 1930 × 740 × 1600 mm
Packing Size About 2000 × 820 × 1760 mm
Machine Weight About 150 kg
ZONESUN Labeling Machine Specifications
Parameter Specification
Model ZS-TB260
Power Supply AC 220V, 50Hz / 60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1 mm
Suitable Bottle Diameter Ø30–100 mm
Suitable Bottle Size Length: 15–200 mm<br>Height: 15–150 mm
Roll Inside Diameter Ø76 mm
Roll Outside Diameter Ø350 mm
Conveyor Size 1950(L) × 100(W) mm
Machine Size Approx. 2000(L) × 1400(W) × 1300(H) mm
Packing Size Approx. 2120 × 940 × 1500 mm
