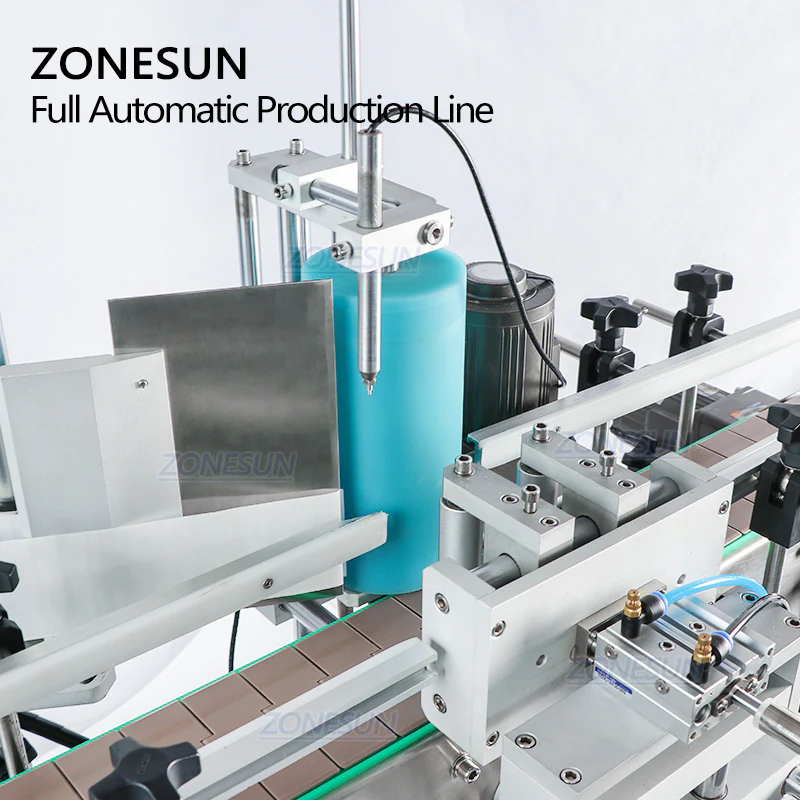

ZS-FAL180C2 is a compact desktop production line integrating a diaphragm pump liquid filling machine, automatic capping machine, and positioning labeling machine. Designed to save space and boost efficiency, it supports single-side or double-side labeling and is widely used in pharmaceutical, cosmetic, and daily chemical industries. Customization is available to meet specific bottle sizes and production needs.

Parameter
Machine model ZS-DTDP-4P Filling Machine
Voltage 110/220V 50-60HZ
Power 250W
Maximum flow velocity 4000ml/min (Each nozzle and base on water)
Working speed 1500-3000 bottles/hour (depends on bottle size and liquid)
Air pressure 0.3-0.4MPa
Filling accuracy ≤±1% (For water)
Bottle height < 220mm (Can be customized, max height 300mm)
Diameter of filling nozzle 6/8mm
Conveyor size 1030*115mm (L*W)
Size of air compressor connector OD 8mm
Machine size About 1114*650*765mm
Package size About 1145*605*795mm
Net weight/Gross weight About 52kg/78kg

Capping Machine
Bottle Height 60-270mm
Bottle Caps Diameter 18-70mm
Working Speed 20-40 bottles/minute (depending on bottle and caps)
Working Voltage AC220V/110V 50-60HZ
Working Pressure 0.4-0.6 MPa
Conveyor Length 1110mm
Net weight/Gross weight About 65.5kg/97.5kg
Machine Size About 1120*580*1110mm
Package Size About 1160*610*1140mm
Size of air compressor connector OD 8mm

Machine Model ZS-TB500A Labeling Machine
Voltage 110V-60HZ/220V-50HZ
Working Speed About 20-60 bottles/min
Suitable Labeling Size 15-140mm(W)*25-300mm(L)
Roll Inside Diameter(mm) φ75mm
Roll Outside Diameter(mm) φ250mm
Suitable Bottle Diameter About 30-100mm
Conveyor Size About 1310*100mm
Package Size About 1460*700*960mm
Package Weight About 125.5kg
