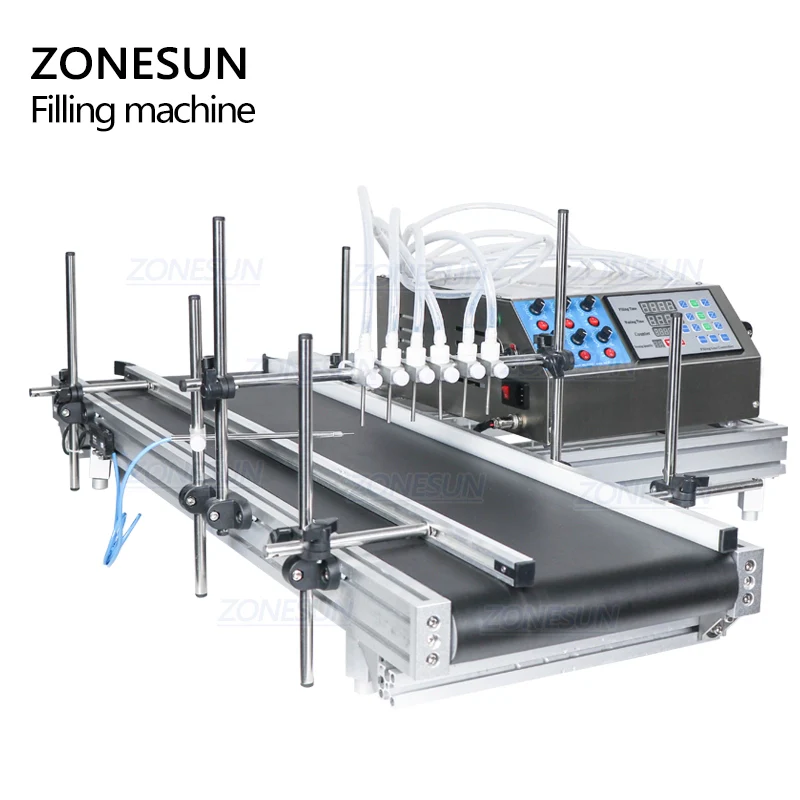

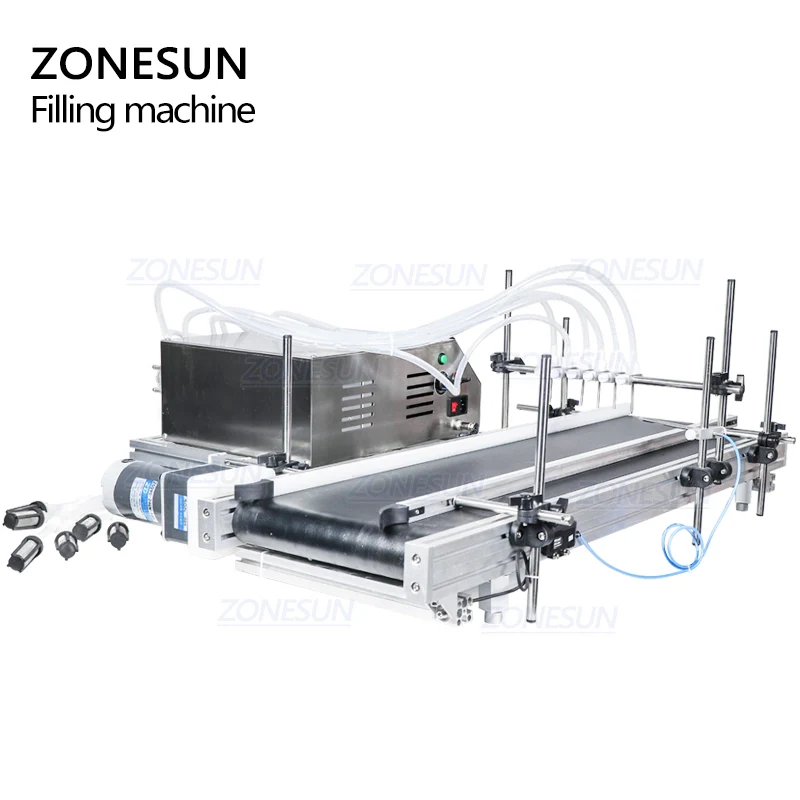

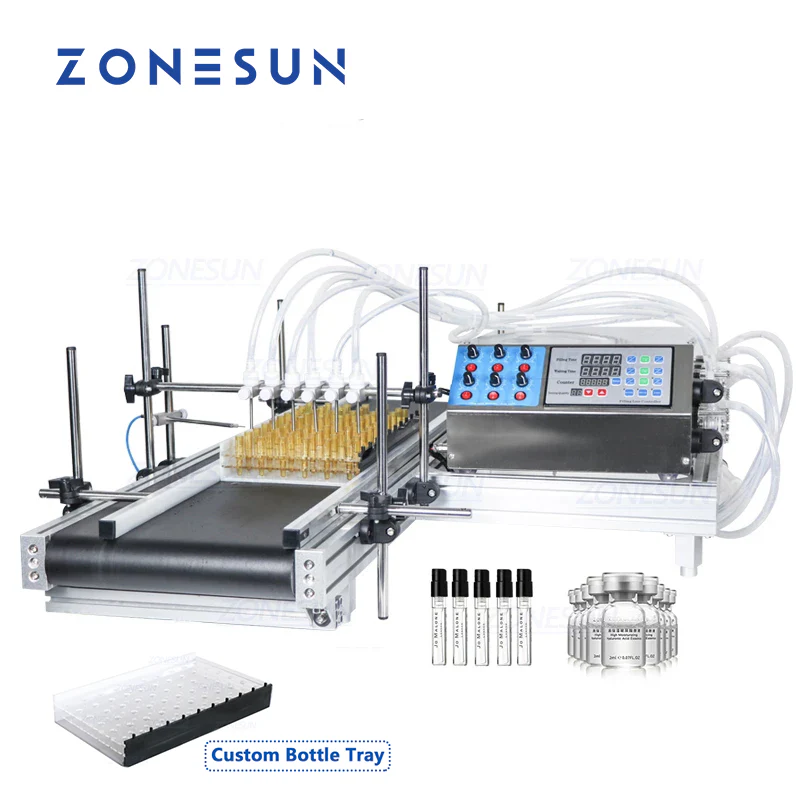

ZONESUN ZS-DTPP6B 6-Head Peristaltic Pump Liquid Filling Machine

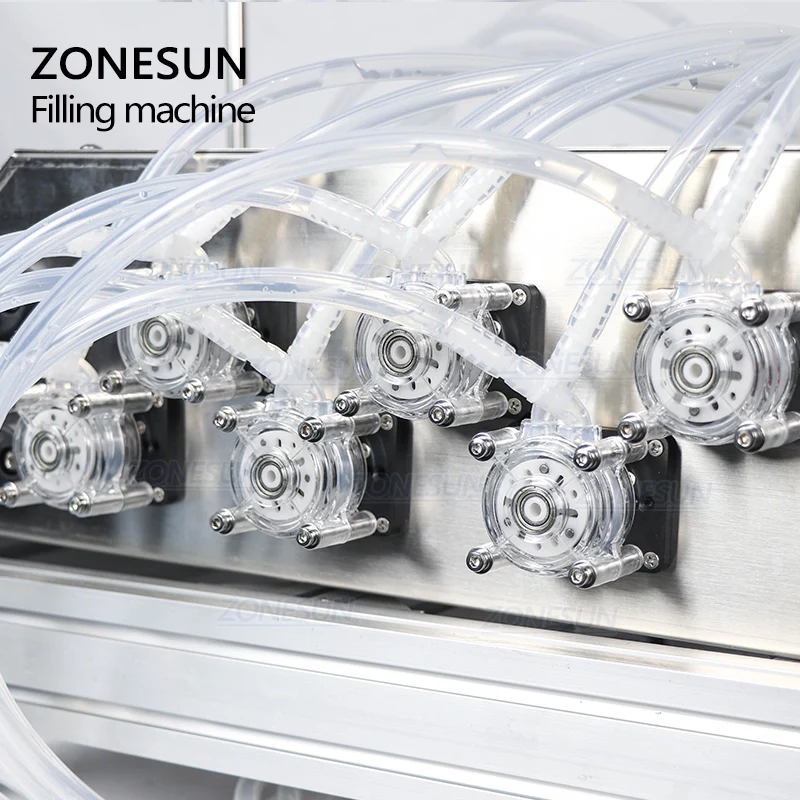

The ZONESUN ZS-DTPP6B is a compact desktop liquid filling machine equipped with six independently controlled peristaltic pump nozzles. Designed for small-volume liquids such as solvents, essential oils, and reagents, it ensures hygienic filling by preventing liquid contact with the pump interior. With a default filling range of 5–50ml (optional 0.3–5ml), this machine is ideal for pharmaceutical, cosmetic, catering, and daily chemical industries. It features a built-in conveyor and customizable bottle tray, offering flexible, efficient, and clean production for small-scale bottling operations.
Parameter Specification
Machine Model ZS-DTPP6B
Power Supply AC110V / 220V, 50Hz–60Hz, 60W × 6
Filling Range A: 5–50ml (default)<br>B: 0.3–5ml
Max Flow Rate 650ml/min per nozzle (based on water)
Filling Nozzles 6 (customizable based on user requirements)
Working Speed 40–50 bottles/min (based on 50ml water)
Filling Accuracy ≤±1% (for water)
Nozzle Diameter 4mm
Delay Range 0.01–999.9s
Conveyor Size 1080mm (L) × 350mm (W)
Machine Size Approx. 320 × 440 × 300mm (without conveyor)
Machine Weight Approx. 31kg
Attention

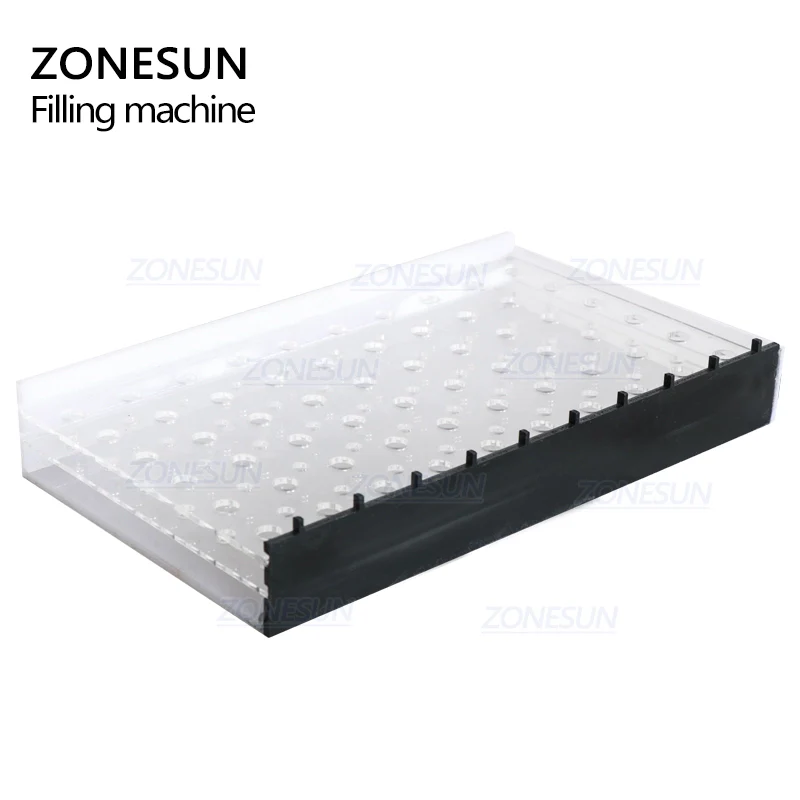

The bottle tray can be customized according to bottle's size. If you need, please contact us. Thank you!
