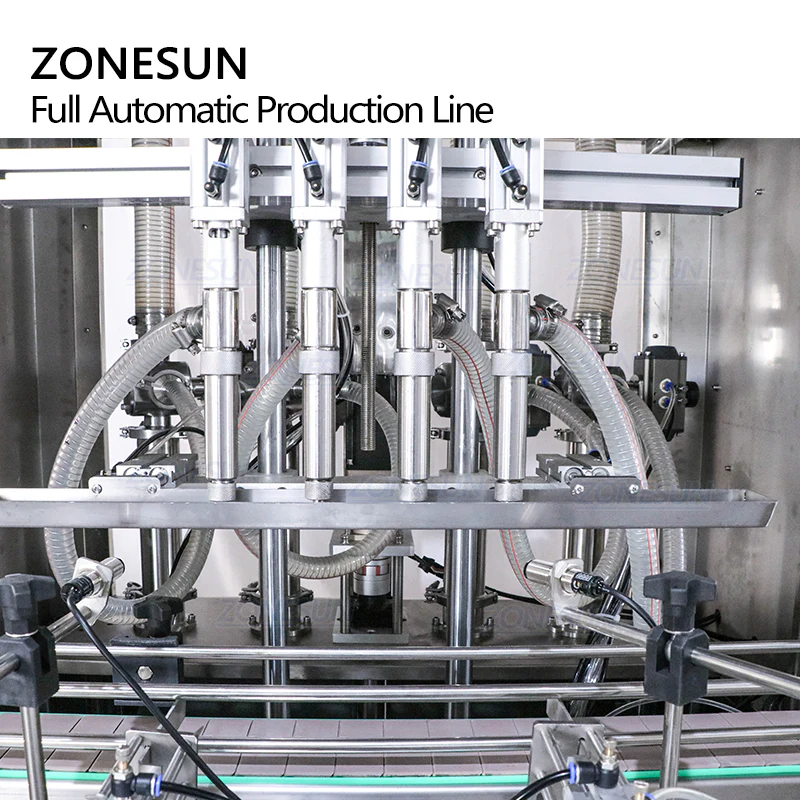

The ZONESUN fully automatic production line integrates a servo-driven liquid filling machine, capping machine, and round bottle labeling machine. Designed for high-efficiency bottling of liquids and pastes such as milk, oil, shampoo, and cream, it allows operators to set fill volumes directly—no need to configure fill time. This streamlined system reduces labor costs and boosts productivity. Customization and expedited shipping options are available upon request.

Item Details
Machine Model ZS-SV4G Filling Machine
Voltage 110-60HZ 220V-50HZ
Power 1500W
Air Consumption 0.4-0.6MPa
Filling Accuracy ±1%
Working Speed 20-50 bottles/min (based on material)
Size Of Filling Nozzle ϕ10mm
Size Of Air Compressor Connector ϕ10mm
Filling Range 10-100ML/30-300ML/50-500ML/100-1000ML/500-3000ML/1000-5000ML
Machine Size About 2500*1370*2070mm
Packaging Size About 2105*1450*2300mm
Net weight/Gross weight About 549.5kg/650.5kg

Item Details
Machine Model ZS-XG440B Capping Machine
Voltage 220V 60HZ
Capping Speed About 50-80 bottles/min
Bottle height 45-320mm
Bottle diameter 23-100mm
Cap diameter 19-55mm
Capping Torsion 4-9kgf/cm
Air pressure 0.4-0.6Mpa
Max power 300W

Item Details
Model ZS-TB260 Labeling Machine
Power supply AC220V 50Hz/60Hz 1500W
Labeling capacity 25-50PCS/min (depends on bottle size)
Labeling accuracy ±1.0mm
Suitable Bottle Diameter ϕ30-100mm
Label size (L)15-200mm (H)15-150mm
Roll inside diameter ϕ76mm
Roll outside diameter ϕ350mm
Conveyor Size 1950(L)*100mm(W)
Machine size About (L)2000*(W)1400*(H)1300(mm)
Packing Size About 2120*940*1500mm
