ZONESUN ZS-FAL180P10 Automatic Liquid Filling Capping Labeling Line

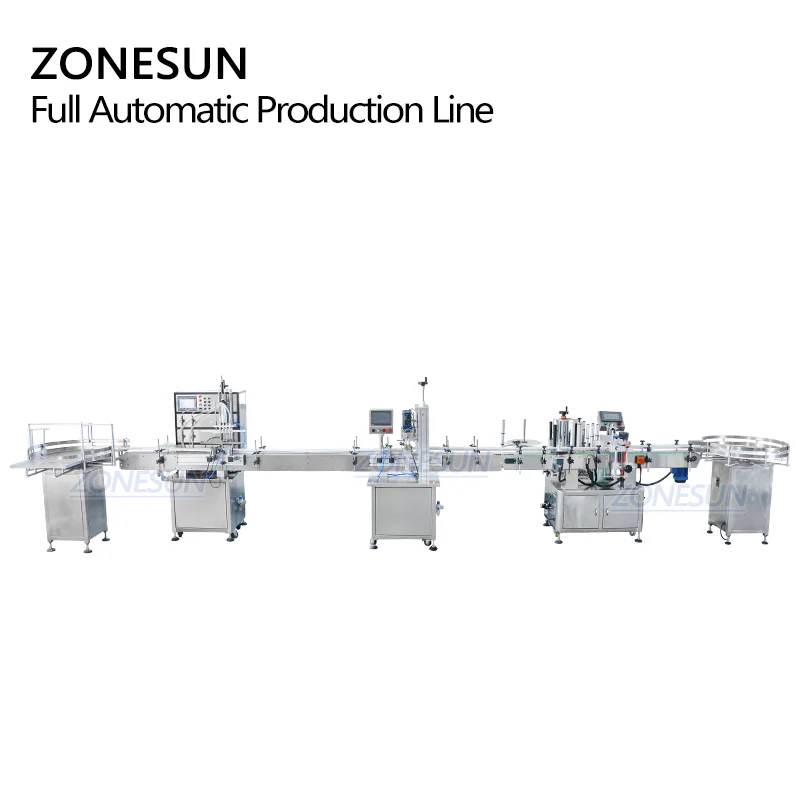

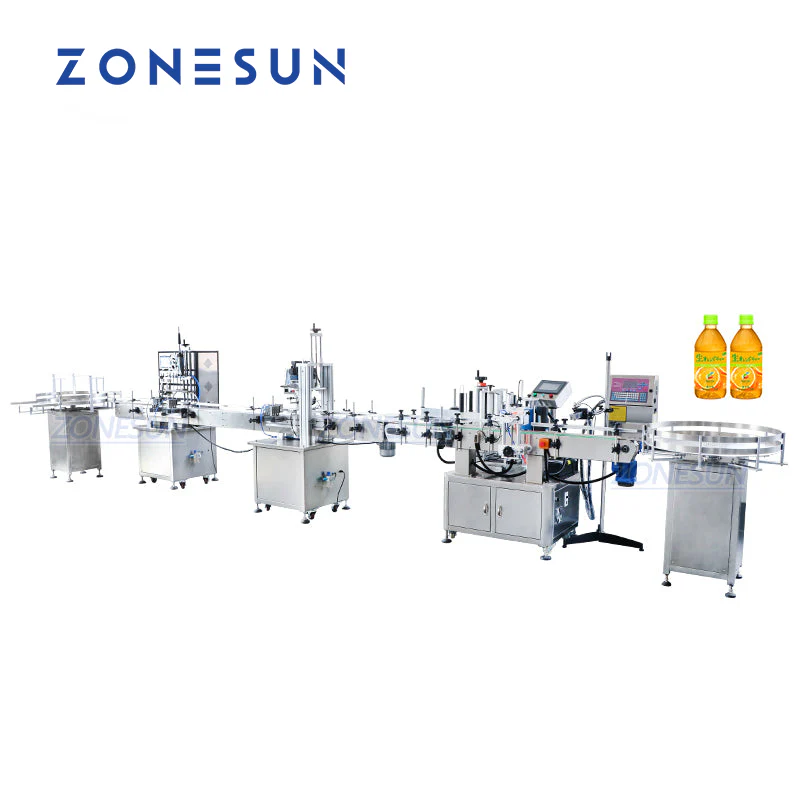

This fully automated production line integrates bottle unscrambling, liquid filling, capping, labeling, date coding, and bottle sorting—significantly reducing labor costs and boosting efficiency. Equipped with magnetic pumps for precise liquid dispensing, it supports single or double-sided labeling and includes an inkjet printer for batch or date marking directly on bottles. Ideal for industries such as pharmaceuticals, cosmetics, daily chemicals, and beverages.
Product Specification – Rotary Turntable Machines
| Item | ZS-LP800Z | ZS-LP1000Z |
|---|---|---|
| Turntable Diameter | 800 mm | 1000 mm |
| Suitable Bottle Diameter | 20–100 mm | 20–100 mm |
| Suitable Bottle Height | 30–120 mm | 30–120 mm |
| Working Speed | 40–60 bottles/min (depends on bottle size) | Same |
| Motor Power | 50W | 50W |
| Power Supply | 220V / 110V, 50–60Hz | 220V / 110V, 50–60Hz |
| Net Weight | About 50 kg | About 135 kg |
| Gross Weight | About 65 kg | About 180 kg |
| Package Size | About 1150 × 1100 × 1320 mm | About 1350 × 1315 × 1235 mm |

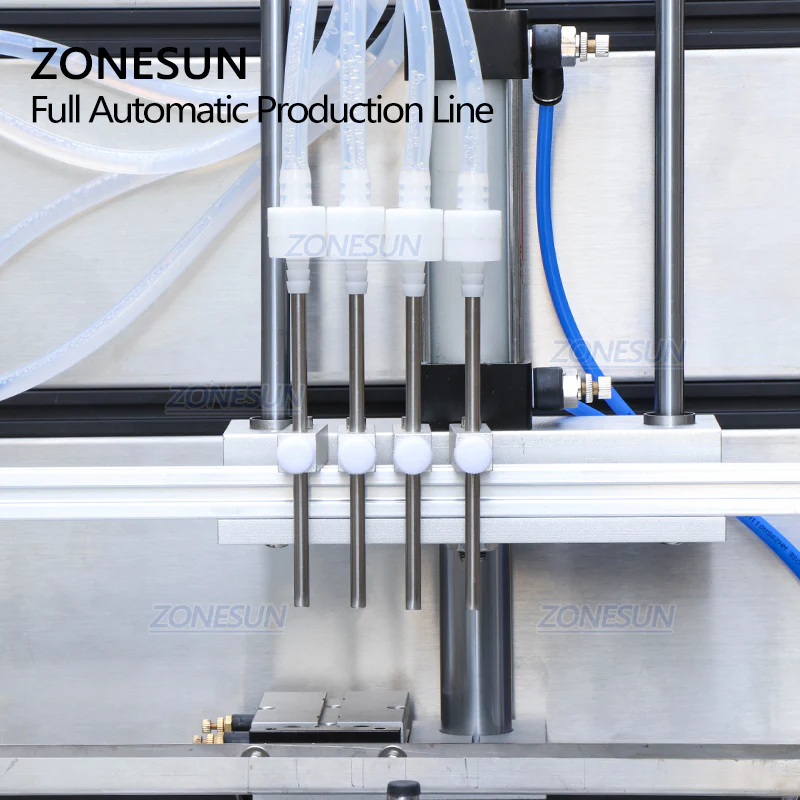

Filling Machine Specifications
| Item | Specification |
|---|---|
| Container Size | φ20–160 mm, H30–300 mm |
| Max Flow Rate | 5500 ml/min (316 stainless steel) <br> 7500 ml/min (316 stainless steel) <br> 12000 ml/min (316 stainless steel) |
| Material of Pump | 304 stainless steel |
| Filling Accuracy | ≤100 ml: deviation ≤±1 ml <br> >100 ml: deviation ≤±1% (based on water) |
| Filling Speed | 20–50 pcs/min <br> 20–25 pcs/min <br> 25–60 pcs/min <br> (depending on bottles and filling liquid) |
| Power Supply | 220V–50Hz / 110V–60Hz |
| Machine Power | 2000W |
| Packing Weight | About 150 kg |
| Packing Size | About 2000 × 820 × 1580 mm |
| Air Compressor Connector | OD 8 mm |

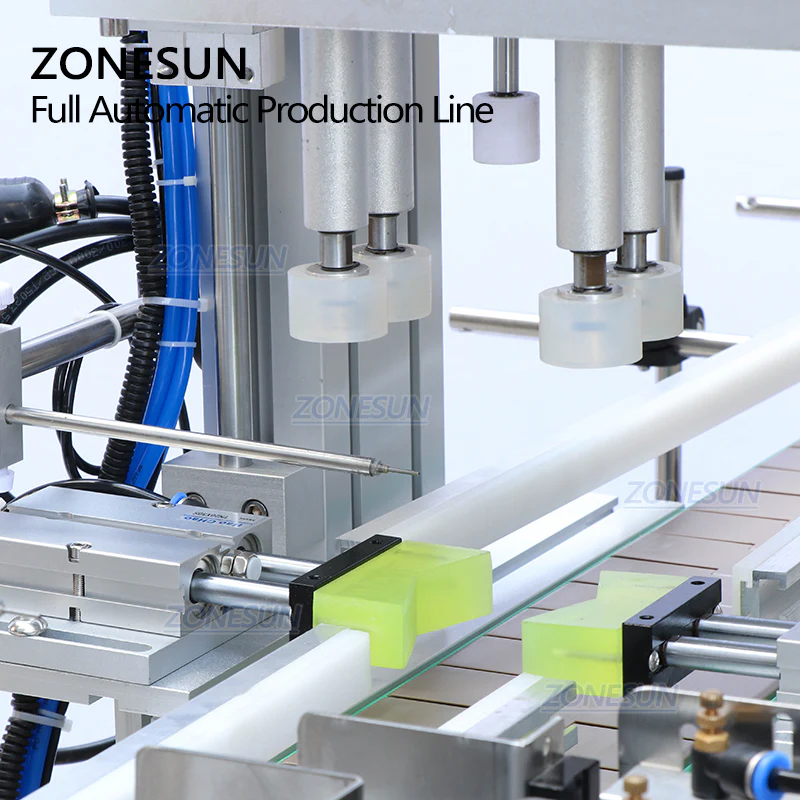

Capping Machine Specifications – Model ZS-XG16
Item Specification
Machine Model ZS-XG16
Bottle Height 30–300 mm
Cap Diameter 18–70 mm
Bottle Diameter 20–160 mm
Working Speed 20–60 bottles/min <br> (depending on bottle and cap size and shape)
Working Voltage AC 220V / 110V, 50–60 Hz
Working Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm
Dimension About 1930 × 740 × 1600 mm
Packing Size About 2000 × 820 × 1760 mm
Net Weight / Gross Weight About 113 kg / 192.5 kg

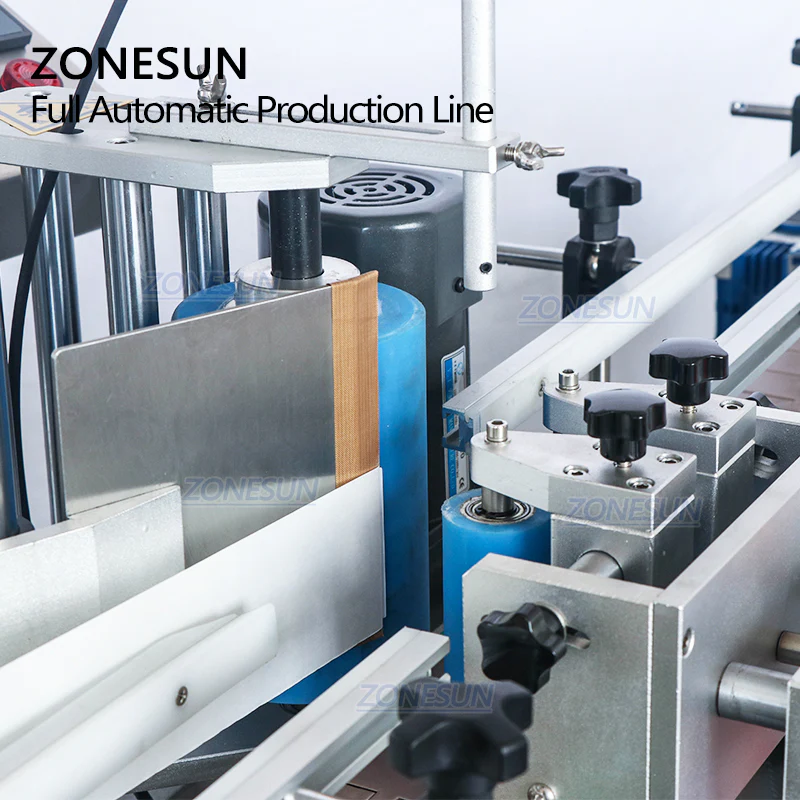

Labeling Machine Specifications – Model ZS-TB260
Item Specification
Model ZS-TB260 Labeling Machine
Power Supply AC 220V 50Hz / 110V 60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter φ30–100 mm
Label Size (L)15–200 mm × (H)15–150 mm
Roll Inside Diameter φ76 mm
Roll Outside Diameter φ350 mm
Conveyor Size 1950(L) × 100(W) mm
Machine Size About 2000 × 1400 × 1600 mm
Packing Size About 2120 × 950 × 1700 mm
This fully automated production line integrates bottle unscrambling, liquid filling, capping, labeling, date coding, and bottle sorting—significantly reducing labor costs and boosting efficiency. Equipped with magnetic pumps for precise liquid dispensing, it supports single or double-sided labeling and includes an inkjet printer for batch or date marking directly on bottles. Ideal for industries such as pharmaceuticals, cosmetics, daily chemicals, and beverages.
