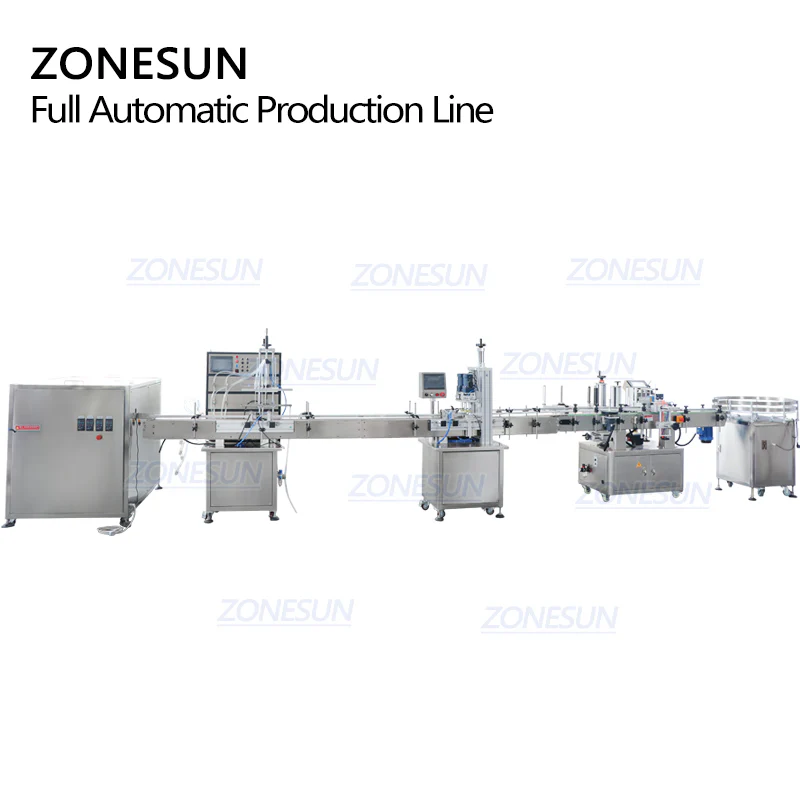

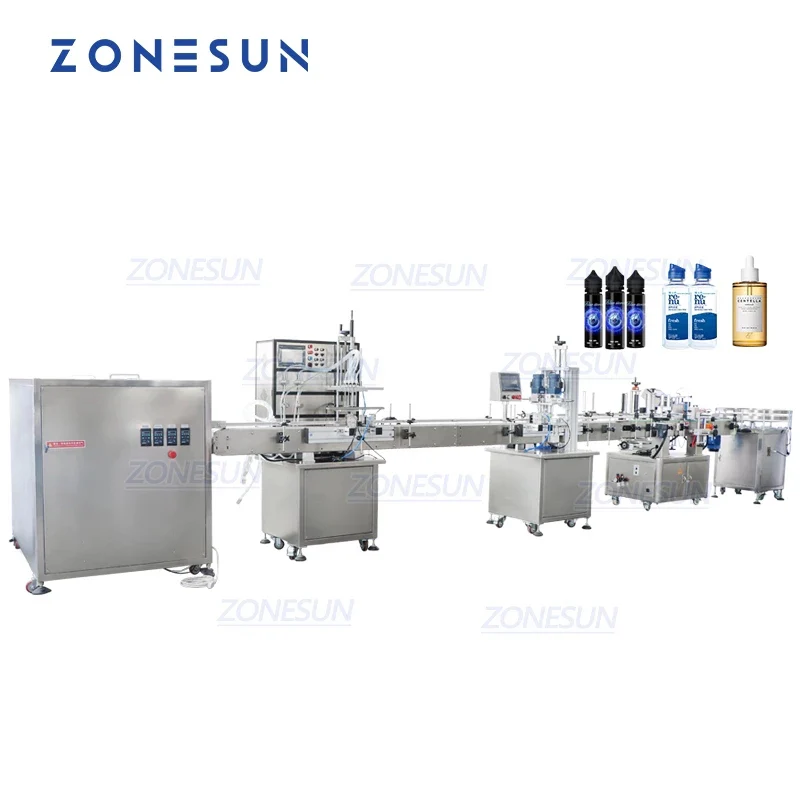

ZONESUN ZS-FAL180R8 Automatic Liquid Filling Capping Labeling Line
The ZONESUN ZS-FAL180R8 is a fully automatic liquid filling production line designed for round bottles. It integrates bottle unscrambling, magnetic pump filling, capping, labeling, and bottle sorting into one streamlined system. With four independently controlled filling heads, high-precision magnetic pumps, and intelligent electric eye detection, it ensures accurate and efficient operation. The labeling unit supports single or double-sided labeling with precise positioning. Ideal for low-viscosity liquids such as juice, water, essential oil, and foamy products, this customizable line is widely used in cosmetics, pharmaceuticals, and beverage industries to boost productivity and reduce labor costs.
Bottle Unscrambler Specifications – Model ZS-LP150
Specification Details
Model ZS-LP150
Voltage 220V, 50Hz
Power 750W
Working Speed 30–60 bottles/min
Machine Size (L×W×H) Approx. 1550 × 980 × 1190 mm
Machine Weight Approx. 235 kg
Package Size (L×W×H) Approx. 1660 × 1260 × 1410 mm
Package Weight Approx. 323 kg
Liquid Filling Machine Specifications
Specification Details
Container Size φ20–160 mm (Diameter), H30–300 mm (Height)
Max Flow Rate 5500 ml/min / 7500 ml/min / 12000 ml/min (316 stainless steel)
Pump Material 304 stainless steel / 316 stainless steel
Filling Accuracy ≤100 ml: ≤±1 ml<br>>100 ml: ≤±1% (based on water)
Filling Speed 20–50 pcs/min / 25–60 pcs/min (depends on bottle & liquid)
Power Supply 220V–50Hz / 110V–60Hz
Total Machine Power 2000W
Air Compressor Connector Size OD 8 mm
Packing Size (L×W×H) Approx. 2000 × 820 × 1580 mm
Packing Weight Approx. 150 kg
Automatic Capping Machine Specifications – Model ZS-XG16
Specification Details
Model ZS-XG16
Bottle Height 30–300 mm
Cap Diameter 18–70 mm
Bottle Diameter 20–160 mm
Working Speed 20–60 bottles/min (depends on bottle & cap size)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Air Compressor Connector OD 8 mm
Machine Size (L×W×H) Approx. 1930 × 770 × 1600 mm
Packing Size (L×W×H) Approx. 2000 × 830 × 1800 mm
Net Weight / Gross Weight Approx. 113 kg / 123 kg
Round Bottle Labeling Machine Specifications – Model ZS-TB260
Specification Details
Product Name ZS-TB260 Labeling Machine
Power Supply AC 220V, 50/60Hz, 500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter φ30–100 mm
Label Size Length: 15–200 mm<br>Height: 15–150 mm
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ350 mm
Conveyor Size (L×W×H) 1950 × 100 × 110 mm
Machine Size (L×W×H) Approx. 2000 × 1100 × 1300 mm
Package Size (L×W×H) Approx. 2120 × 950 × 1500 mm
