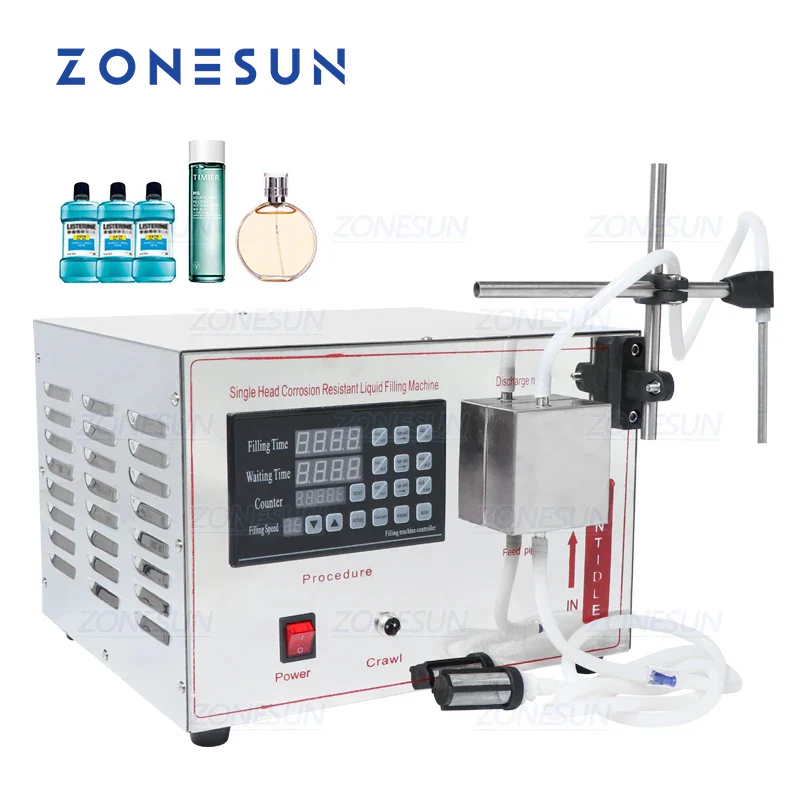

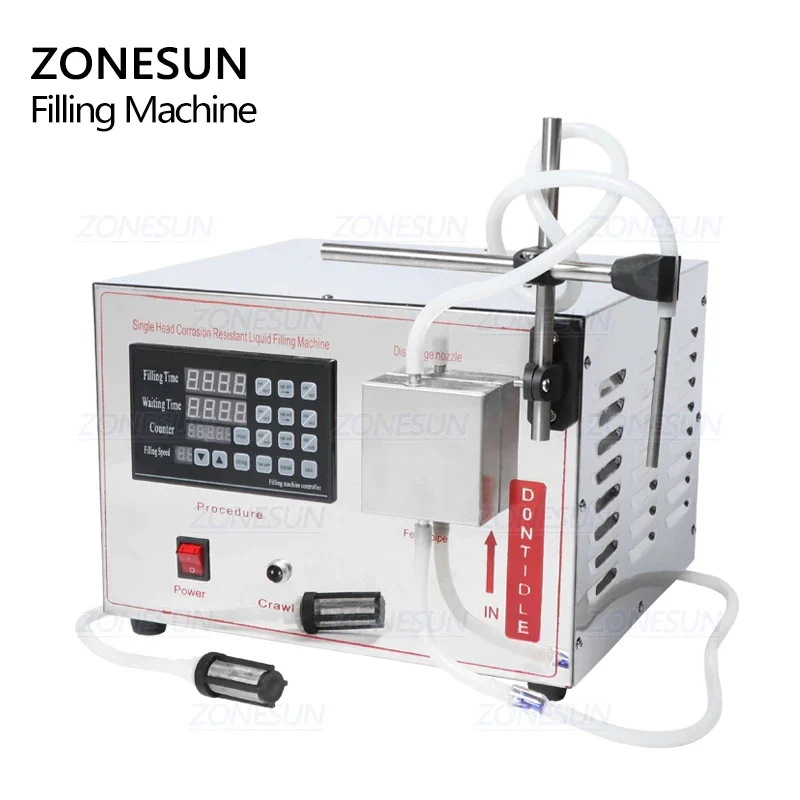

ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine

Product image 1
1 / 6
+1

ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine


Parameter

Model :GZ-YG1
Power :40W
Voltage :220V/110V
Filling Range :1ML-5000ML
Max Feeding Distance :2 Meter
Max Quantity of Flow :5.0L
Repetitive Error :<1.5%
 Machine Dimension :370*325*350MM
Machine Net Weight :14KG


Advantage

1. Adopt frequency converter, the machine is equipped with imported high-precision multi-turn potentiometer and lockable dial to make the flow regulation stable and accurate.
2.This machine is in small size and made of stainless steel which make the machine is durable and offer long-term service
3.It is easy to operate and multifunctional,it can work in manual mode or automatic mode,it can be used as one part of production line
4.The filling amount can be adjusted from 1ml to 5000ml, and the filling amount can be controlled by time,this is easy to operate
5.Controlled by monolithic system,the machine works stably
6.The nozzle is in anti-drip design,make the machine fills accurately
7.With automatic counting function, effectively control the number of filling.


Main Feature

1.The pump head is drive by magnetic power, the pump head is notconnected with the motor, So don't worry the motor will over load or  liquid leakage by the connecting shaft.
2.The pump head and motor are made in Japan, and the electric parts aremade in Taiwan, with high quality and longer use life.
3.The pump head is made by 316L stainless steel which is anti-erodeglove,and anti-corrosion
4.start or brake by frequency converter control which will control therotating speed with precision as 0.01s. So that make the filling deviationless than 2%.
5. Can be control the manual model, foot pedal switch, also can adjust the cycling time
6.Can be used for most liquid filling, specially for oil, Washing fluid,Acid-base fluid, corrosive liquid,etc.




NOTE:

1.We default ship machine with food grade rubber tube .if you are using for essential oils or high corrosive liuquid ,please contact us to change to fluoro rubber tube

2.Custom clearance tax / duty is the buyer responsibility to pay for it.  And  Turkey , Rumania , Iceland or Brazil  tax is very high and difficulty to do custom clearance , pls make sure you can do custom clearance and pay for the tax before make order online.

3.We will test all of the filling machine before send out , so it’s normal that the machine pump and tube with water inside when you receive it. !!!!!!



ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine
ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine
ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine

ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine
ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine
ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine

Parameter

Model :GZ-YG1
Power :40W
Voltage :220V/110V
Filling Range :1ML-5000ML
Max Feeding Distance :2 Meter
Max Quantity of Flow :5.0L
Repetitive Error :<1.5%
 Machine Dimension :370*325*350MM
Machine Net Weight :14KG


Advantage

1. Adopt frequency converter, the machine is equipped with imported high-precision multi-turn potentiometer and lockable dial to make the flow regulation stable and accurate.
2.This machine is in small size and made of stainless steel which make the machine is durable and offer long-term service
3.It is easy to operate and multifunctional,it can work in manual mode or automatic mode,it can be used as one part of production line
4.The filling amount can be adjusted from 1ml to 5000ml, and the filling amount can be controlled by time,this is easy to operate
5.Controlled by monolithic system,the machine works stably
6.The nozzle is in anti-drip design,make the machine fills accurately
7.With automatic counting function, effectively control the number of filling.


Main Feature

1.The pump head is drive by magnetic power, the pump head is notconnected with the motor, So don't worry the motor will over load or  liquid leakage by the connecting shaft.
2.The pump head and motor are made in Japan, and the electric parts aremade in Taiwan, with high quality and longer use life.
3.The pump head is made by 316L stainless steel which is anti-erodeglove,and anti-corrosion
4.start or brake by frequency converter control which will control therotating speed with precision as 0.01s. So that make the filling deviationless than 2%.
5. Can be control the manual model, foot pedal switch, also can adjust the cycling time
6.Can be used for most liquid filling, specially for oil, Washing fluid,Acid-base fluid, corrosive liquid,etc.




NOTE:

1.We default ship machine with food grade rubber tube .if you are using for essential oils or high corrosive liuquid ,please contact us to change to fluoro rubber tube

2.Custom clearance tax / duty is the buyer responsibility to pay for it.  And  Turkey , Rumania , Iceland or Brazil  tax is very high and difficulty to do custom clearance , pls make sure you can do custom clearance and pay for the tax before make order online.

3.We will test all of the filling machine before send out , so it’s normal that the machine pump and tube with water inside when you receive it. !!!!!!



ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine
ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine
ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine

ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine
ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine
ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine
Select Voltage
From $88.50

Original: $295.00

-70%
ZONESUN GZ-YG1 1-5000ml Semi Automatic Magnetic Pump Liquid Filling Machine—

$295.00

$88.50

Description


Parameter

Model :GZ-YG1
Power :40W
Voltage :220V/110V
Filling Range :1ML-5000ML
Max Feeding Distance :2 Meter
Max Quantity of Flow :5.0L
Repetitive Error :<1.5%
 Machine Dimension :370*325*350MM
Machine Net Weight :14KG


Advantage

1. Adopt frequency converter, the machine is equipped with imported high-precision multi-turn potentiometer and lockable dial to make the flow regulation stable and accurate.
2.This machine is in small size and made of stainless steel which make the machine is durable and offer long-term service
3.It is easy to operate and multifunctional,it can work in manual mode or automatic mode,it can be used as one part of production line
4.The filling amount can be adjusted from 1ml to 5000ml, and the filling amount can be controlled by time,this is easy to operate
5.Controlled by monolithic system,the machine works stably
6.The nozzle is in anti-drip design,make the machine fills accurately
7.With automatic counting function, effectively control the number of filling.


Main Feature

1.The pump head is drive by magnetic power, the pump head is notconnected with the motor, So don't worry the motor will over load or  liquid leakage by the connecting shaft.
2.The pump head and motor are made in Japan, and the electric parts aremade in Taiwan, with high quality and longer use life.
3.The pump head is made by 316L stainless steel which is anti-erodeglove,and anti-corrosion
4.start or brake by frequency converter control which will control therotating speed with precision as 0.01s. So that make the filling deviationless than 2%.
5. Can be control the manual model, foot pedal switch, also can adjust the cycling time
6.Can be used for most liquid filling, specially for oil, Washing fluid,Acid-base fluid, corrosive liquid,etc.




NOTE:

1.We default ship machine with food grade rubber tube .if you are using for essential oils or high corrosive liuquid ,please contact us to change to fluoro rubber tube

2.Custom clearance tax / duty is the buyer responsibility to pay for it.  And  Turkey , Rumania , Iceland or Brazil  tax is very high and difficulty to do custom clearance , pls make sure you can do custom clearance and pay for the tax before make order online.

3.We will test all of the filling machine before send out , so it’s normal that the machine pump and tube with water inside when you receive it. !!!!!!
