ZONESUN ZS-WCHJ1C Paste Filler | Heated Mixing & Water Circulation System

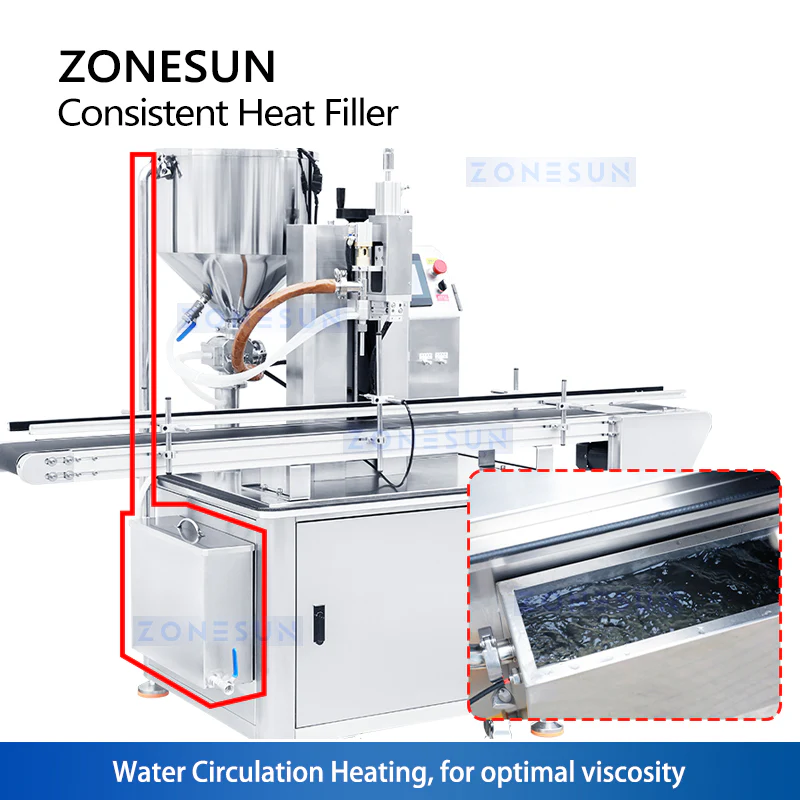

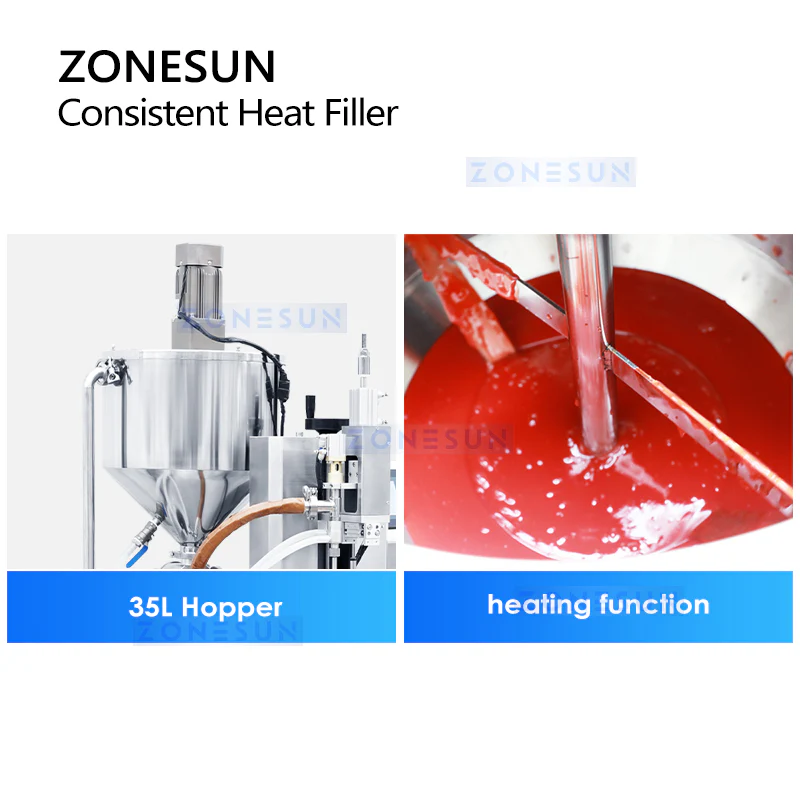

ZS-WCHJ1C is a high-efficiency paste filling machine designed for liquids and semi-liquids requiring consistent heating and mixing. Its advanced water circulation system ensures uniform temperature control, while the piston pump delivers precise filling with minimal error. Built with SUS304 stainless steel, it’s ideal for cosmetics, sauces, beverages, and daily chemical products. Compact, hygienic, and production-ready.
Machine Model ZS-WCHJ1C
Power Supply 220V/110V, 50–60Hz, 4kW
Filling Speed Approx. 20–30 bottles/min (depends on filling range and material viscosity)
Suitable Bottle Diameter 4–150 mm
Suitable Bottle Height 10–200 mm
Filling Range 5–150 ml (customizable)
Filling Error ≤0.5%

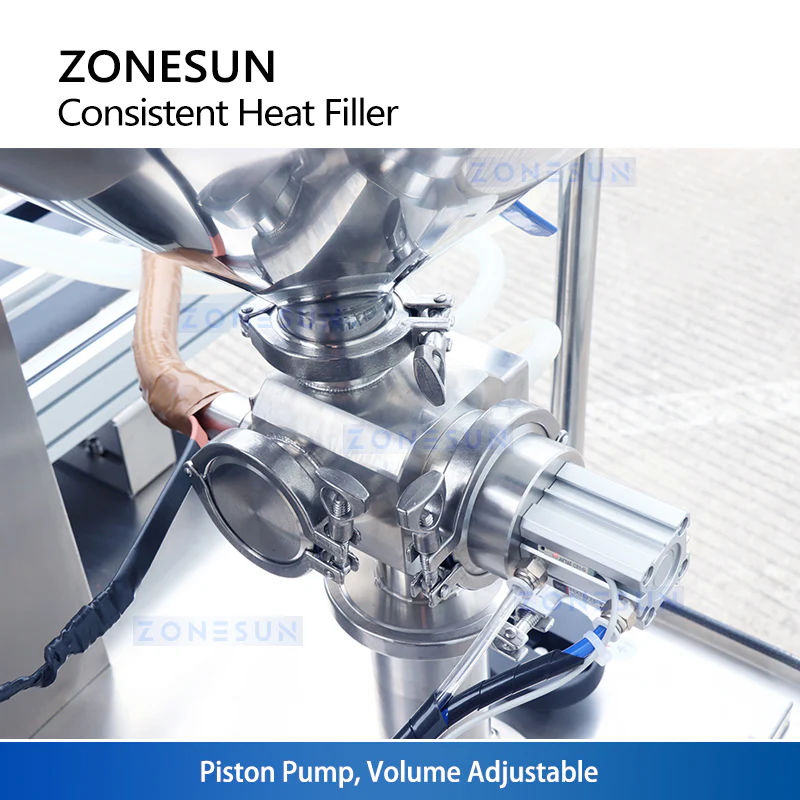

Filling Pump Type Piston Pump
Air Pressure 5–8 kg/cm²
Material Contact Part SUS304 Stainless Steel
Machine Size Approx. 1800 × 800 × 1600 mm
Package Size Approx. 1900 × 880 × 1500 mm
Package Weight Approx. 232 kg
