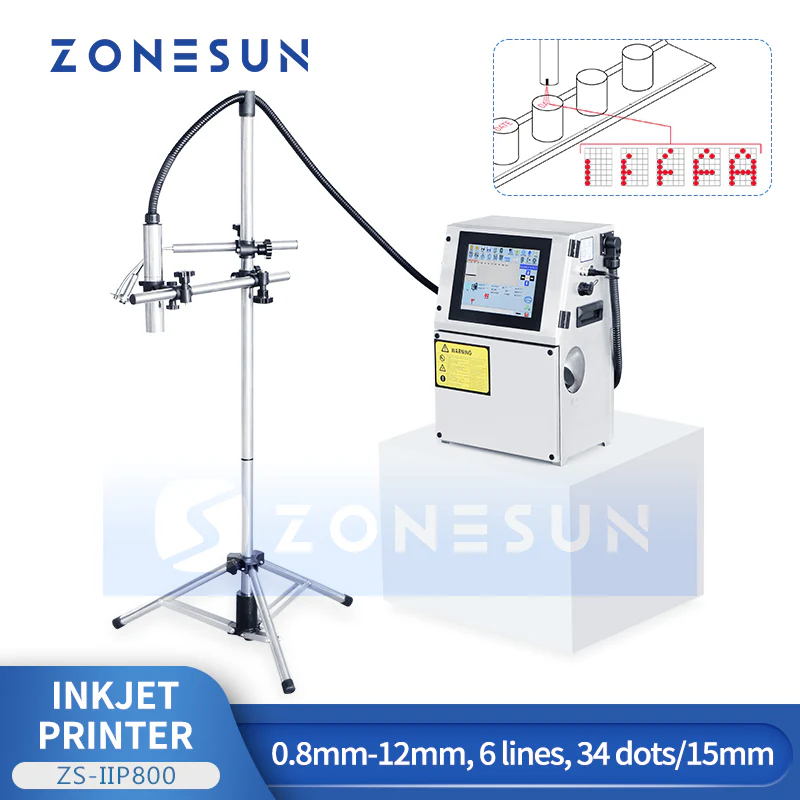

The ZS-IIP800 is a high-performance industrial inkjet printer engineered for continuous operation on production lines. With a 60μm nozzle and adjustable print height from 0.8mm to 12mm, it supports up to six lines of text, graphics, QR codes, barcodes, and batch time stamps. Its 10.1-inch touchscreen interface offers intuitive control in both Chinese and English, while the customizable 2.5m conduit ensures flexible installation. Designed for packaging environments, it delivers reliable, high-speed printing with low power consumption. Ideal for industries such as food, cosmetics, pharmaceuticals, and electronics.

Technical Specification

• Model：ZS-IIP800

• Print Head Nozzles：60μm

• Print Height：0.8mm–12mm (Max 6 lines, up to 34 dots / 15mm)

• Supported Code：Formats Text, Graphics, Monochrome .bmp (32px height), Batch
• Time, QR Code, Barcode

• Main Unit Size：252mm × 360mm × 543mm

• Main Unit Weight：31kg

• Conduit Length：2.5m (customizable)

• Power Supply：90–264V AC, 50Hz, 135W

• Power Consumption：80W

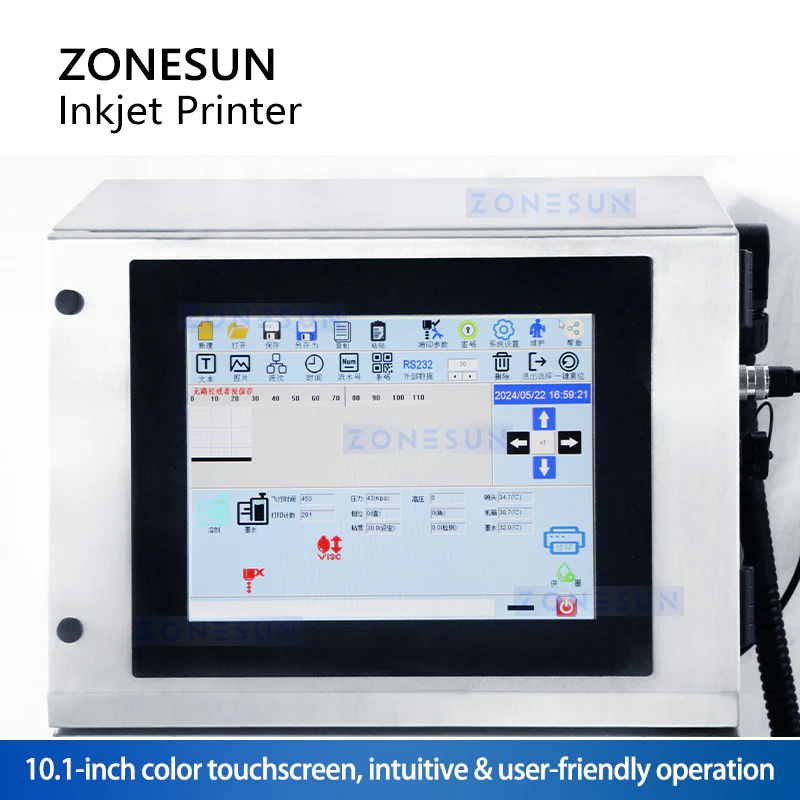

• User Interface：10.1-inch Touchscreen

• Language Support：Chinese & English

• Ports Sensor ×1, Encoder ×1, USB ×1

• Operating Environment Temperature: 5–45°C; Humidity: 30–90% RH

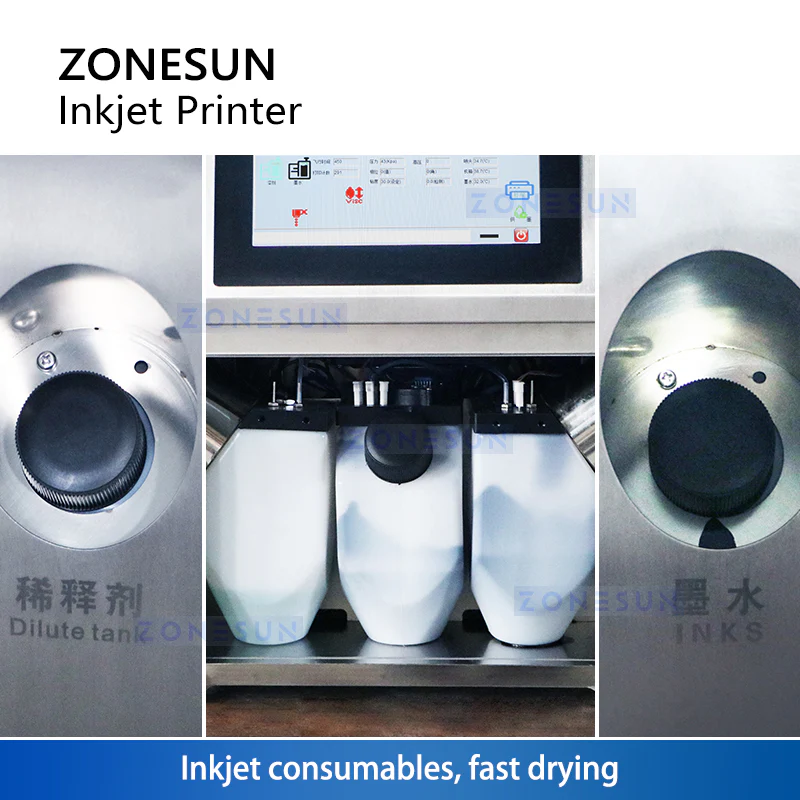

• Consumables Ink Cartridge: 500ml; Thinner Cartridge: 500ml
