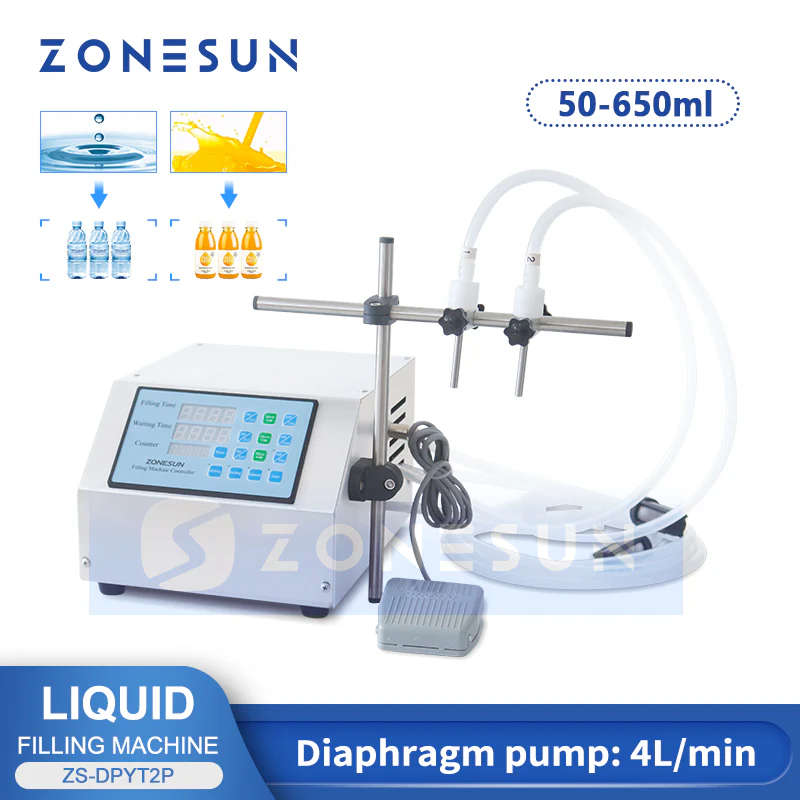

ZONESUN ZS-DPYT2P Semi-Auto Liquid Filling Machine with Diaphragm Pump

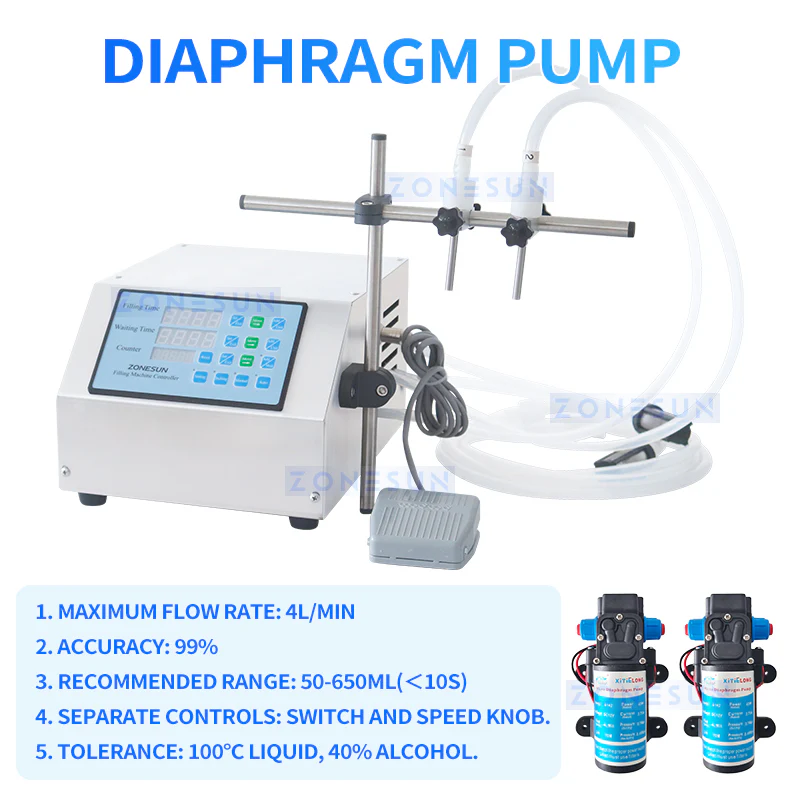

The ZONESUN ZS-DPYT2P is a compact semi-automatic liquid filling machine equipped with a diaphragm pump and dual nozzles. Designed for filling non-foamy liquids such as beverages, purified water, perfume, and other low-viscosity fluids, it offers a wide filling range from 50ml to 4000ml. With a maximum flow rate of 4L/min and a suction distance of up to 1.5m, this machine is ideal for small-scale production in pharmaceutical, food, cosmetic, and daily chemical industries. Please note: foamy liquids are not recommended. All units are tested before shipment, so traces of liquid in the pump or tubing are normal.
Parameter
Machine Model ZS-DPYT2P
Voltage AC220V / 110V, 50–60Hz
Power 40W ±2
Filling Range 50–4000ml
Maximum Suction Distance 1.5m
Maximum Flow Rate 4L/min
Repetitive Error ≤0.5% (depending on product density)
Outer Diameter of Filling Nozzle OD 6mm
Machine Weight 5kg
The ZONESUN ZS-DPYT2P is a compact semi-automatic liquid filling machine equipped with a diaphragm pump and dual nozzles. Designed for filling non-foamy liquids such as beverages, purified water, perfume, and other low-viscosity fluids, it offers a wide filling range from 50ml to 4000ml. With a maximum flow rate of 4L/min and a suction distance of up to 1.5m, this machine is ideal for small-scale production in pharmaceutical, food, cosmetic, and daily chemical industries. Please note: foamy liquids are not recommended. All units are tested before shipment, so traces of liquid in the pump or tubing are normal.
Parameter
Machine Model ZS-DPYT2P
Voltage AC220V / 110V, 50–60Hz
Power 40W ±2
Filling Range 50–4000ml
Maximum Suction Distance 1.5m
Maximum Flow Rate 4L/min
Repetitive Error ≤0.5% (depending on product density)
Outer Diameter of Filling Nozzle OD 6mm
Machine Weight 5kg
Original: $150.00
-70%$150.00
$45.00Description
The ZONESUN ZS-DPYT2P is a compact semi-automatic liquid filling machine equipped with a diaphragm pump and dual nozzles. Designed for filling non-foamy liquids such as beverages, purified water, perfume, and other low-viscosity fluids, it offers a wide filling range from 50ml to 4000ml. With a maximum flow rate of 4L/min and a suction distance of up to 1.5m, this machine is ideal for small-scale production in pharmaceutical, food, cosmetic, and daily chemical industries. Please note: foamy liquids are not recommended. All units are tested before shipment, so traces of liquid in the pump or tubing are normal.
Parameter
Machine Model ZS-DPYT2P
Voltage AC220V / 110V, 50–60Hz
Power 40W ±2
Filling Range 50–4000ml
Maximum Suction Distance 1.5m
Maximum Flow Rate 4L/min
Repetitive Error ≤0.5% (depending on product density)
Outer Diameter of Filling Nozzle OD 6mm
Machine Weight 5kg
