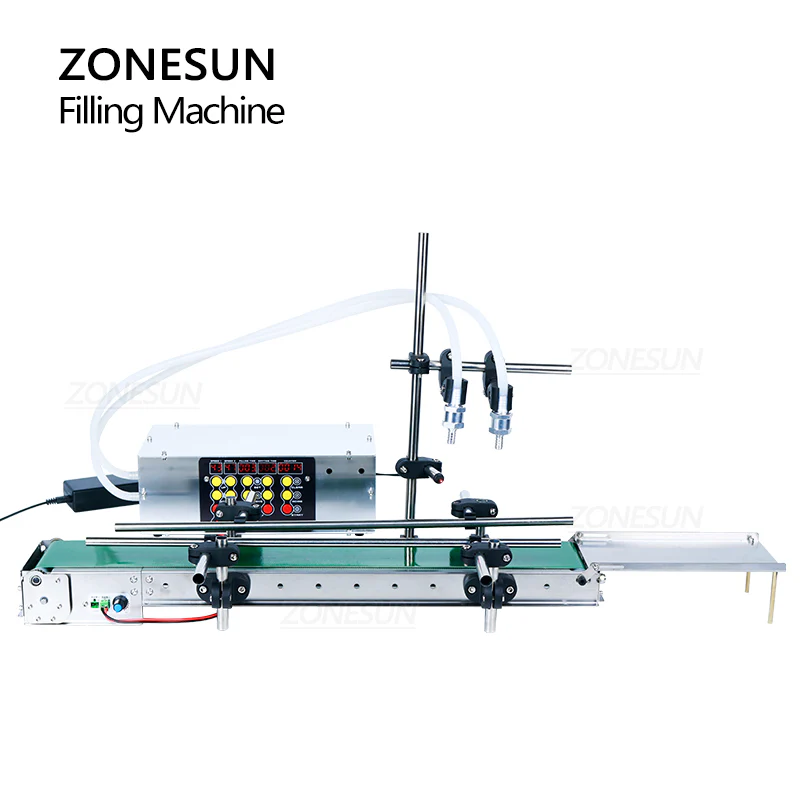

ZONESUN ZS-DPYT200 Dual Nozzle Diaphragm Pump Liquid Filling Machine
This compact liquid filling machine features two independently controlled nozzles for flexible operation. Equipped with a waterproof conveyor belt and intelligent electric eye, it enables automated bottle detection and filling, reducing labor costs. The digital control panel simplifies setup, while the collecting tray improves post-filling efficiency. Ideal for small workshops, it handles non-particle liquids like juice, essential oil, and perfume with precision and ease.
Item Details
Machine Model ZS-DPYT200
Voltage 110V / 220V, 50–60Hz
Filling Range 5–5000 ml × 2
Max Flow Rate 3 L/min (based on water)
Filling Speed 1–99 g (adjustable)
Filling Time 0.1–999 s
Applicable Bottle Size Diameter: 0–100 mm / Height: 0–300 mm
Filling Nozzle Diameter OD 9 mm (can be customized)
Hose Length 0.8 m (inlet) / 1.2 m (outlet)
Hose Diameter 10 mm (inlet) / 10 mm (outlet)
Conveyor Size 600 mm (L) × 115 mm (W)
Liquid Temperature Max 100°C
Machine Cover Waterproof
Memory Function Available
Machine Size About 295 mm × 155 mm × 105 mm
Net Weight 5.2 kg
Package Size 670 mm × 150 mm × 100 mm (conveyor belt)
350 mm × 250 mm × 160 mm (machine host)
Gross Weight 6.5 kg
