ZONESUN Small Automatic Bottle Filling Capping and Labeling Line

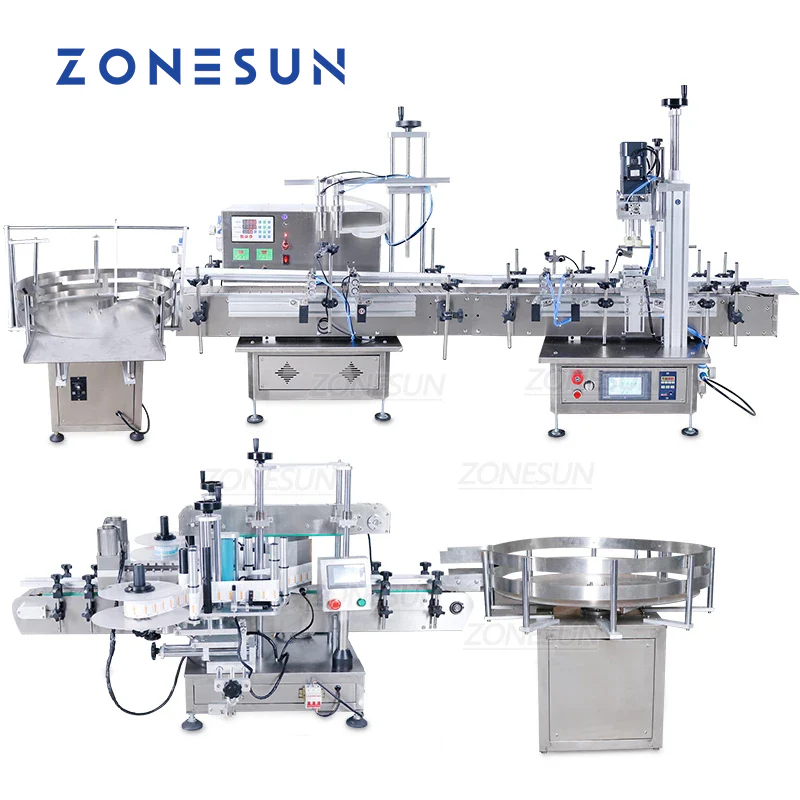

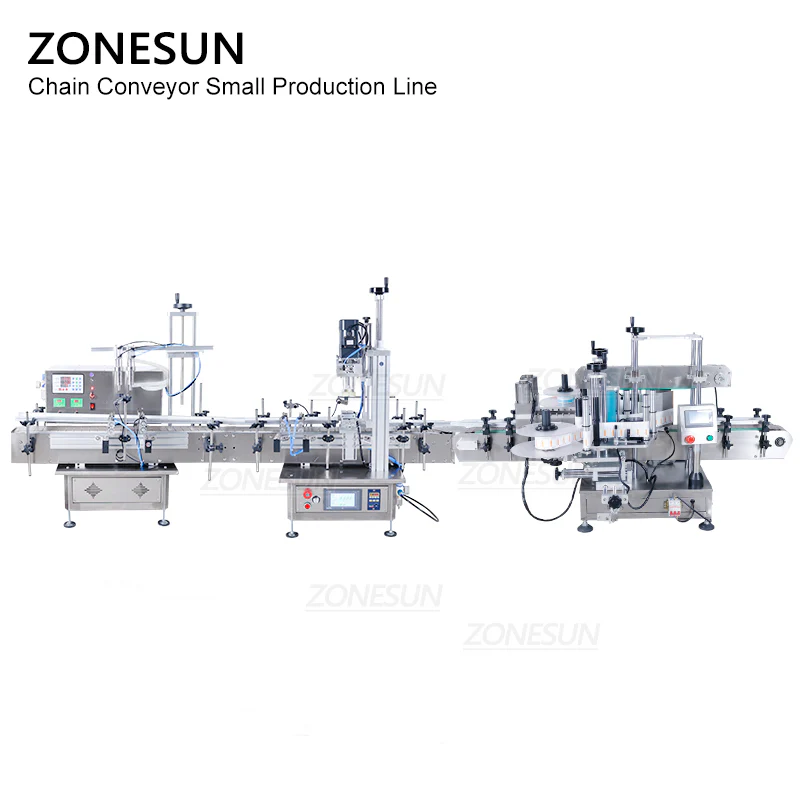

This compact production line integrates bottle unscrambling, filling, capping, labeling, and sorting into one streamlined system. Equipped with a chain conveyor for stable transport of heavy products, it ensures smooth operation and high efficiency. The pneumatic filling unit handles both thin and thick liquids, including gels, making it ideal for pharmaceutical, cosmetic, and beverage industries. Designed for versatility, it can be customized to meet specific production needs.
Parameter Specification
Model ZS-LP600Z
Power Supply 220V / 50–60Hz
Turntable Diameter 600mm
Suitable Bottle Diameter 30–80mm
Suitable Bottle Height ≤2500mm
Working Speed 40–60 bottles/min (depending on bottle size)
Motor Power 40W
Net Weight Approx. 27.5kg
Gross Weight Approx. 45kg
Package Size (L×W×H) Approx. 790×690×670mm

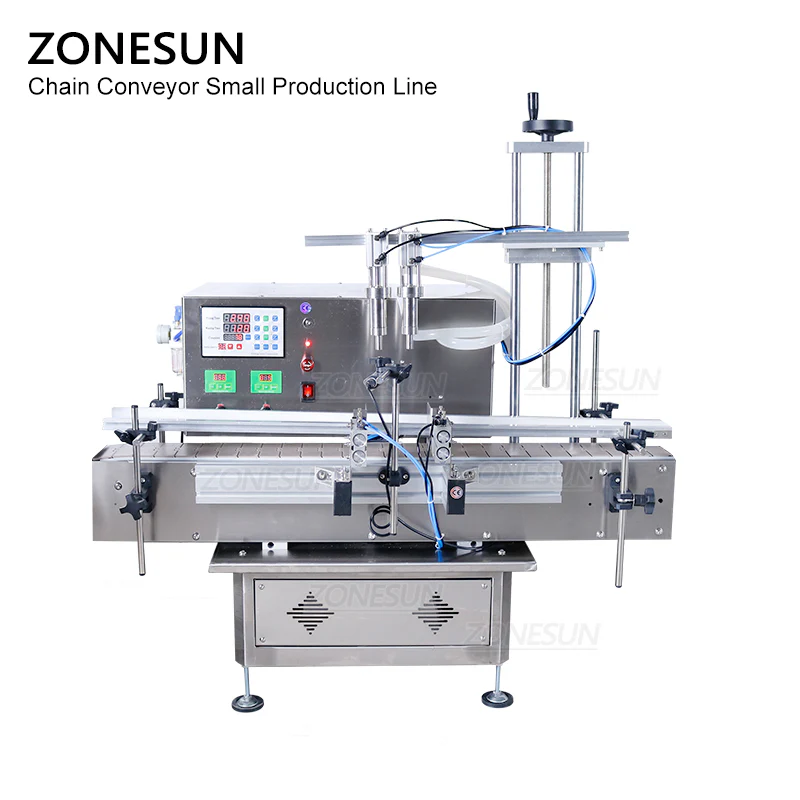

Machine Model ZS-DTDP20-2 Filling Machine
Voltage 110V / 220V, 50–60Hz
Power 500W × 2
Filling Nozzle 2 Nozzles
Max Flow Velocity 20L/min (per nozzle, based on water)
Working Speed 20–25 bottles/min
Air Pressure 0.3–0.4 MPa
Filling Accuracy ±1%
Bottle Height ≤220mm (customizable)
Inner Diameter of Filling Nozzle OD 8mm
Conveyor Size (W×L) 115mm × 1090mm
Air Compressor Connection OD 8mm
Customization Available

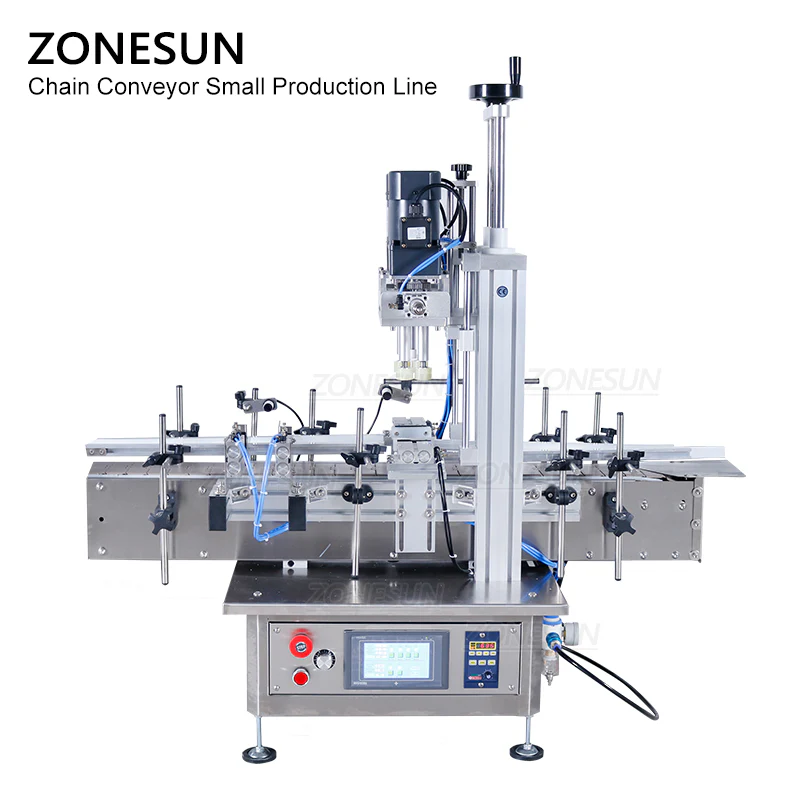

Product Specification – Capping Machine
Parameter Specification
Voltage AC 220V / 110V, 50–60Hz
Air Pressure 0.4–0.6 MPa
Bottle Height 60–270mm
Bottle Cap Diameter 18–70mm
Working Speed 20–40 bottles/min (depending on bottle and cap)
Conveyor Size (W×L) 115mm × 1140mm
Size of Air Compressor Connector OD 8mm
Customization Available

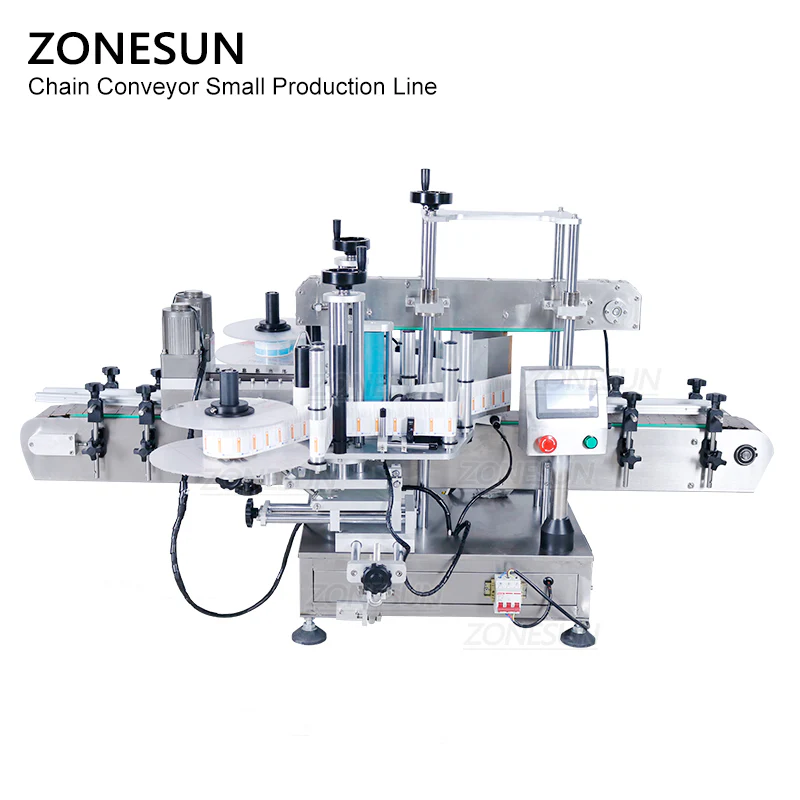

Product Specification – ZS-TB300M Labeling Machine
Parameter Specification
Machine Model ZS-TB300M
Voltage 110V / 60Hz, 220V / 50Hz
Power 3100W
Working Speed 30–100 bottles/min
Labeling Accuracy ±0.5mm
Suitable Label Size ≤200mm (W) – customizable
Roll Inside Diameter Φ75mm
Roll Outside Diameter Φ≤300mm
Suitable Bottle Size Φ≤100mm, H≤350mm
Conveyor Size (W×L) Approx. 115mm × 1800mm
Customization Available
This compact production line integrates bottle unscrambling, filling, capping, labeling, and sorting into one streamlined system. Equipped with a chain conveyor for stable transport of heavy products, it ensures smooth operation and high efficiency. The pneumatic filling unit handles both thin and thick liquids, including gels, making it ideal for pharmaceutical, cosmetic, and beverage industries. Designed for versatility, it can be customized to meet specific production needs.
Parameter Specification
Model ZS-LP600Z
Power Supply 220V / 50–60Hz
Turntable Diameter 600mm
Suitable Bottle Diameter 30–80mm
Suitable Bottle Height ≤2500mm
Working Speed 40–60 bottles/min (depending on bottle size)
Motor Power 40W
Net Weight Approx. 27.5kg
Gross Weight Approx. 45kg
Package Size (L×W×H) Approx. 790×690×670mm
Machine Model ZS-DTDP20-2 Filling Machine
Voltage 110V / 220V, 50–60Hz
Power 500W × 2
Filling Nozzle 2 Nozzles
Max Flow Velocity 20L/min (per nozzle, based on water)
Working Speed 20–25 bottles/min
Air Pressure 0.3–0.4 MPa
Filling Accuracy ±1%
Bottle Height ≤220mm (customizable)
Inner Diameter of Filling Nozzle OD 8mm
Conveyor Size (W×L) 115mm × 1090mm
Air Compressor Connection OD 8mm
Customization Available
Product Specification – Capping Machine
Parameter Specification
Voltage AC 220V / 110V, 50–60Hz
Air Pressure 0.4–0.6 MPa
Bottle Height 60–270mm
Bottle Cap Diameter 18–70mm
Working Speed 20–40 bottles/min (depending on bottle and cap)
Conveyor Size (W×L) 115mm × 1140mm
Size of Air Compressor Connector OD 8mm
Customization Available
Product Specification – ZS-TB300M Labeling Machine
Parameter Specification
Machine Model ZS-TB300M
Voltage 110V / 60Hz, 220V / 50Hz
Power 3100W
Working Speed 30–100 bottles/min
Labeling Accuracy ±0.5mm
Suitable Label Size ≤200mm (W) – customizable
Roll Inside Diameter Φ75mm
Roll Outside Diameter Φ≤300mm
Suitable Bottle Size Φ≤100mm, H≤350mm
Conveyor Size (W×L) Approx. 115mm × 1800mm
Customization Available
Original: $12,222.22
-70%$12,222.22
$3,666.67Description
This compact production line integrates bottle unscrambling, filling, capping, labeling, and sorting into one streamlined system. Equipped with a chain conveyor for stable transport of heavy products, it ensures smooth operation and high efficiency. The pneumatic filling unit handles both thin and thick liquids, including gels, making it ideal for pharmaceutical, cosmetic, and beverage industries. Designed for versatility, it can be customized to meet specific production needs.
Parameter Specification
Model ZS-LP600Z
Power Supply 220V / 50–60Hz
Turntable Diameter 600mm
Suitable Bottle Diameter 30–80mm
Suitable Bottle Height ≤2500mm
Working Speed 40–60 bottles/min (depending on bottle size)
Motor Power 40W
Net Weight Approx. 27.5kg
Gross Weight Approx. 45kg
Package Size (L×W×H) Approx. 790×690×670mm
Machine Model ZS-DTDP20-2 Filling Machine
Voltage 110V / 220V, 50–60Hz
Power 500W × 2
Filling Nozzle 2 Nozzles
Max Flow Velocity 20L/min (per nozzle, based on water)
Working Speed 20–25 bottles/min
Air Pressure 0.3–0.4 MPa
Filling Accuracy ±1%
Bottle Height ≤220mm (customizable)
Inner Diameter of Filling Nozzle OD 8mm
Conveyor Size (W×L) 115mm × 1090mm
Air Compressor Connection OD 8mm
Customization Available
Product Specification – Capping Machine
Parameter Specification
Voltage AC 220V / 110V, 50–60Hz
Air Pressure 0.4–0.6 MPa
Bottle Height 60–270mm
Bottle Cap Diameter 18–70mm
Working Speed 20–40 bottles/min (depending on bottle and cap)
Conveyor Size (W×L) 115mm × 1140mm
Size of Air Compressor Connector OD 8mm
Customization Available
Product Specification – ZS-TB300M Labeling Machine
Parameter Specification
Machine Model ZS-TB300M
Voltage 110V / 60Hz, 220V / 50Hz
Power 3100W
Working Speed 30–100 bottles/min
Labeling Accuracy ±0.5mm
Suitable Label Size ≤200mm (W) – customizable
Roll Inside Diameter Φ75mm
Roll Outside Diameter Φ≤300mm
Suitable Bottle Size Φ≤100mm, H≤350mm
Conveyor Size (W×L) Approx. 115mm × 1800mm
Customization Available
