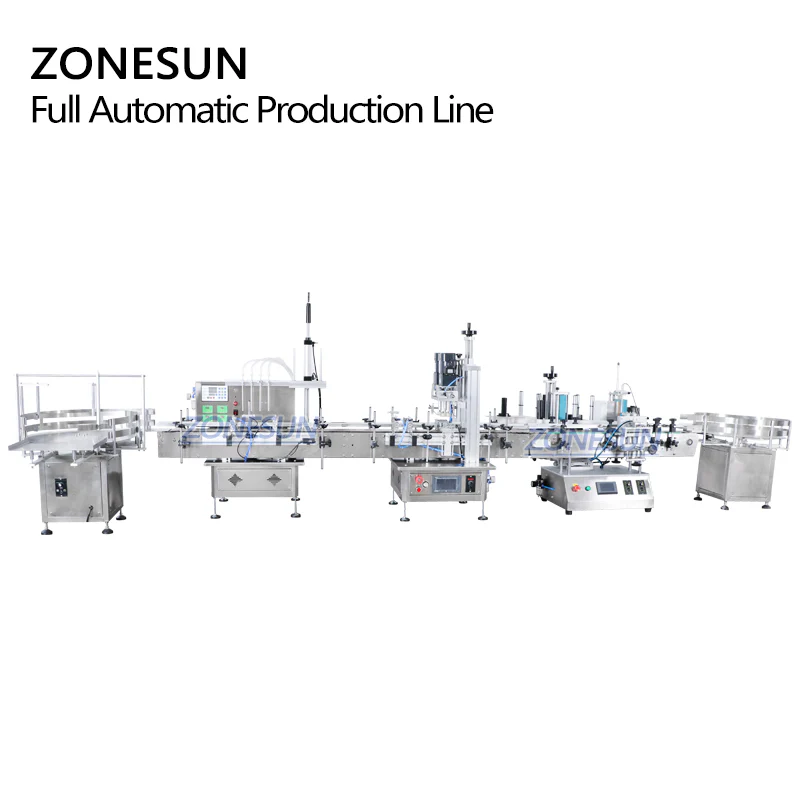

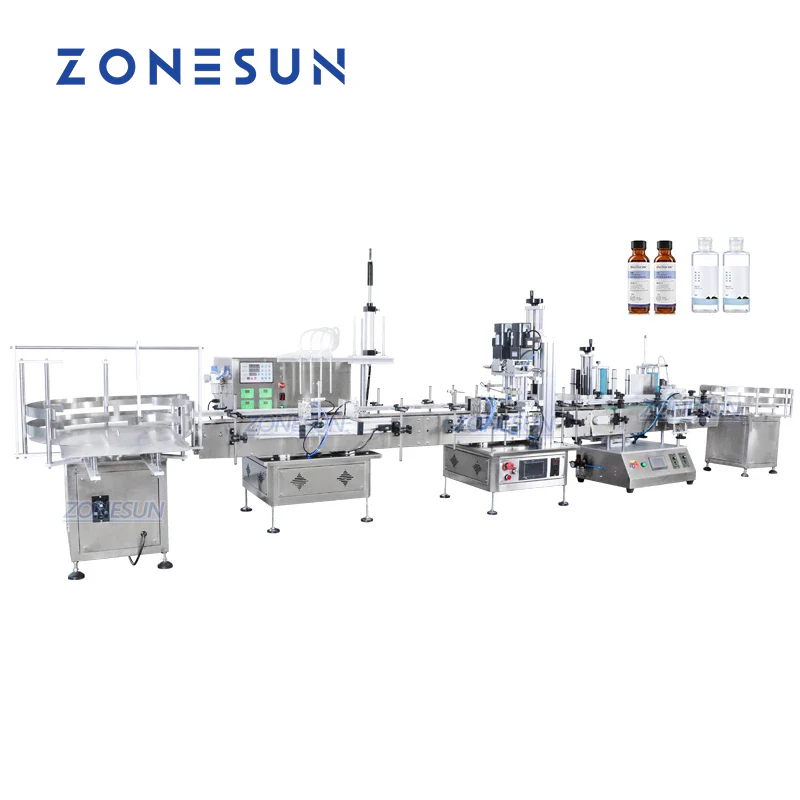

The ZONESUN ZS-FAL180C3 tabletop production line integrates bottle unscrambling, peristaltic pump filling, capping, labeling, and bottle sorting into one compact system. Designed for small to medium-scale operations, it features four independently controlled filling nozzles for precise liquid dispensing and a versatile capping machine compatible with various cap shapes. Ideal for pharmaceutical, cosmetic, and food industries, this modular line enhances productivity while saving workspace. Customization options are available to meet specific packaging needs.

Machine Specifications – Model ZS-LP600Z
Specification Details
Model ZS-LP600Z
Turntable Diameter 600 mm
Suitable Bottle Diameter 30–80 mm
Suitable Bottle Height ≤2500 mm
Working Speed 40–60 bottles/min (depends on bottle size)
Motor Power 40 W
Power Supply 220V / 50–60Hz
Net Weight Approx. 27.5 kg
Package Size Approx. 790 × 690 × 670 mm
Gross Weight Approx. 45 kg

Filling Machine Specifications
Specification Details
Voltage AC 110V / 220V, 50Hz–60Hz
Power 60W (per pump)
Filling Range 250 ml (based on water)
Max Flow Rate 2500 ml/min per nozzle (based on water)
Filling Nozzles 4 (customizable based on user requirements)
Working Speed 30–50 bottles/min (depends on bottles and liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤±1% (for water)
Nozzle Size Standard 8 mm and 6 mm
Filling Time Range 0.1s – 999.9s
Belt Length 1.0 m

Bottle Capping Machine Specifications
Specification Details
Bottle Height 60–270 mm
Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle and cap size)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Size Approx. 1120 × 580 × 1110 mm
Conveyor Length 1110 mm
Net/Gross Weight Approx. 65.5 kg / 75 kg
Package Size Approx. 1160 × 610 × 1140 mm
Air Compressor Connector Outer Diameter 8 mm
