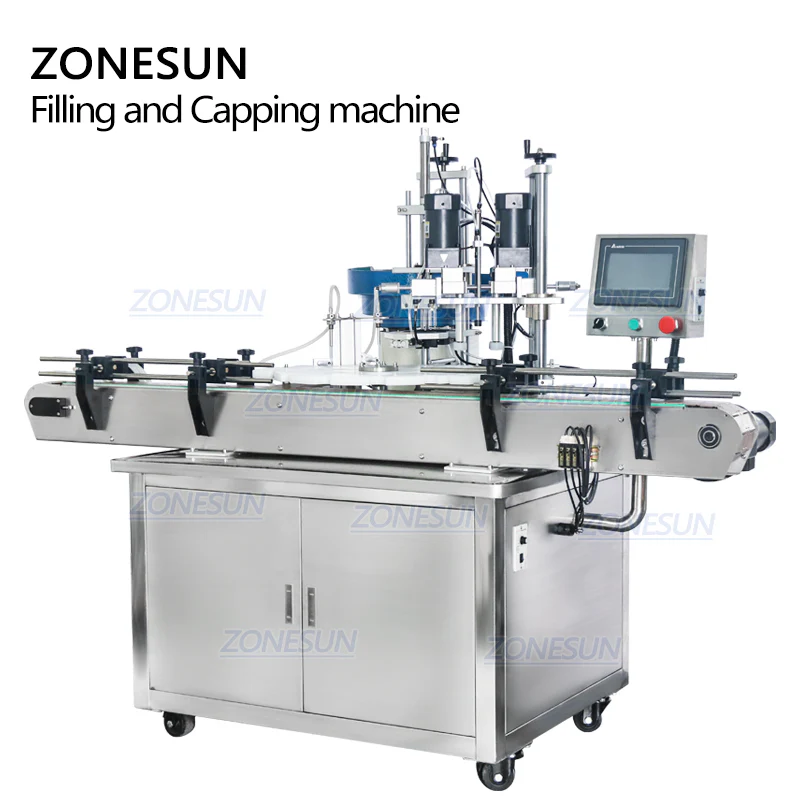

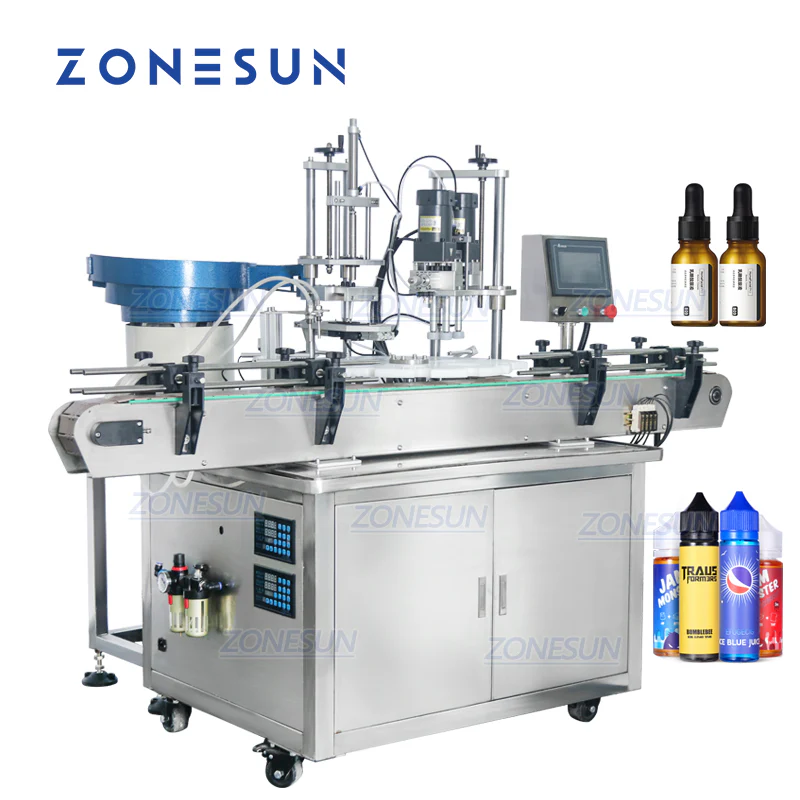

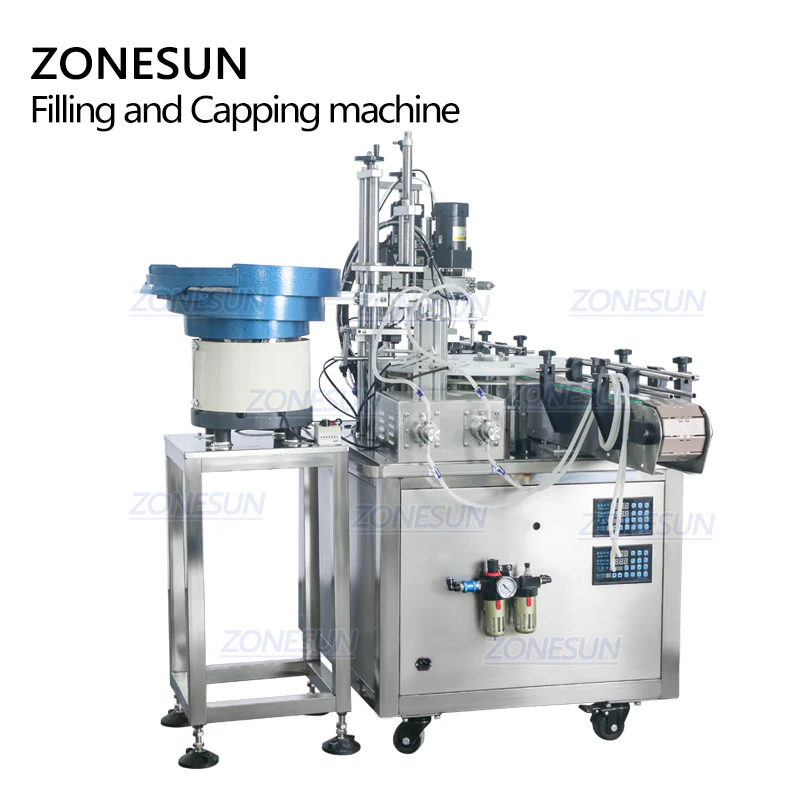

ZONESUN ZS-AFC1 Rotary Liquid Filling and Capping Machine with Cap Feeder
The ZONESUN ZS-AFC1 is a fully automatic rotary filling and capping machine designed for efficient liquid packaging. Equipped with two magnetic pump filling heads, it delivers precise dosing for low-viscosity liquids such as perfume, toner, juice, and disinfectant. The integrated cap feeder arranges and delivers caps automatically, reducing labor and improving speed. Its rotary capping system provides stable torque control, suitable for various cap shapes and sizes. With a PLC control panel and stainless steel construction, this machine is ideal for pharmaceutical, cosmetic, and daily chemical industries seeking high-efficiency, compact automation.
ZS-AFC1 Filling and Capping Machine – Technical Specifications
Specification Details
Machine Model ZS-AFC1
Voltage AC220V / 110V, 50–60Hz
Max Power 300W
Bottle Diameter 25–50 mm (customizable)
Bottle Height 50–350 mm
Working Speed 0–40 bottles/min (depends on liquid, bottle & cap)
Air Pressure Required 0.4–0.6 MPa
Capping Torsion 4–9 kgf·cm
Conveyor Size Approx. 2000 × 100 mm (L × W)
Machine Dimensions Approx. 1015 × 800 × 1560 mm
Machine Weight Approx. 341 kg
Package Dimensions Approx. 2210 × 980 × 1740 mm
Package Weight Approx. 411 kg
