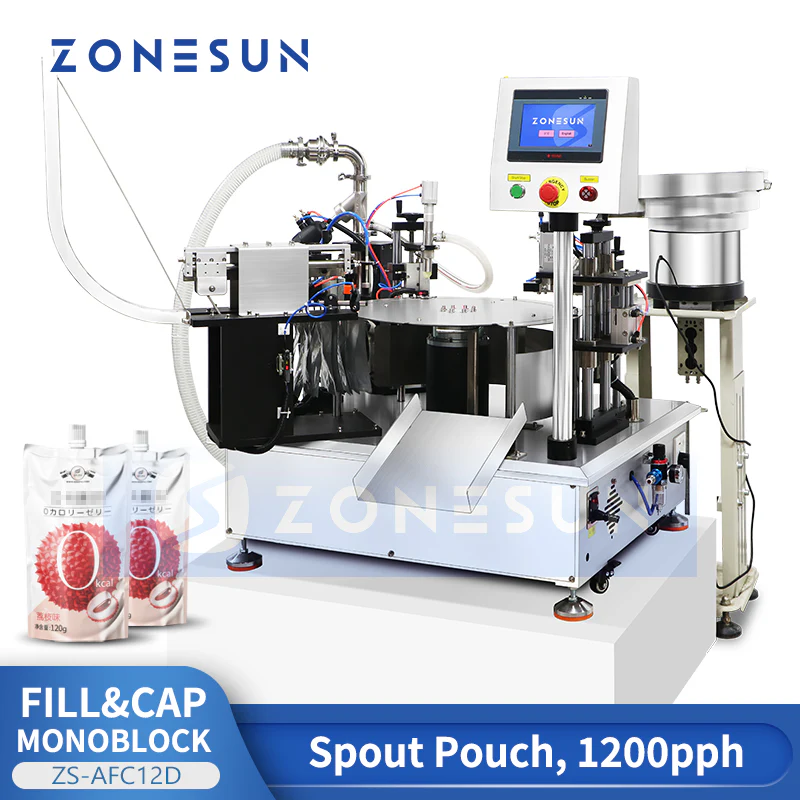

The ZONESUN ZS-AFC12D is a compact tabletop spout pouch filling and capping machine designed for small to medium-sized production lines. Equipped with a precision piston pump, it delivers accurate filling from 10–300ml, while the integrated vibratory bowl feeder automates cap feeding. A star wheel mechanism ensures smooth pouch handling and consistent cap screwing. With a working speed of 900–1200 pcs/hour, this machine boosts productivity and reduces manual labor. Its space-saving design and customizable settings make it ideal for cosmetics, beverages, cleaning products, and other liquid pouch packaging applications.

TECHNICAL SPECIFICATIONS – ZS-AFC12D
Voltage: 220V/110V 50-60Hz
Filling Pump: Piston Pump
Working Speed: About 900-1200pcs/h (depending on filling materials and pouch size)
Filling Range: 10-300ml (Customizable)
Applicable Cap Size: Customizable
Air Pressure: 0.4-0.7Mpa
Machine Size: About 1500×1200×1200mm
Net Weight: About 300kg
Package Size:
Monoblock: About 1150×1120×1230mm
Bowl Feeder: About 1280×470×520mm
Gross Weight:
Monoblock: About 230kg
Bowl Feeder: About 75kg
