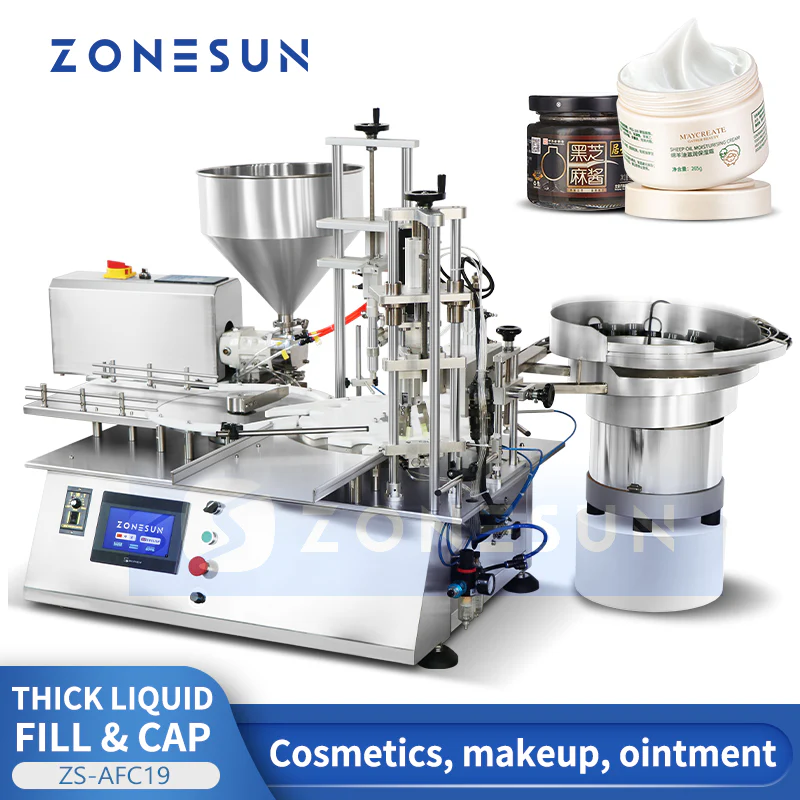

ZONESUN ZS-AFC19 Automatic Thick Liquid Filling Capping Machine

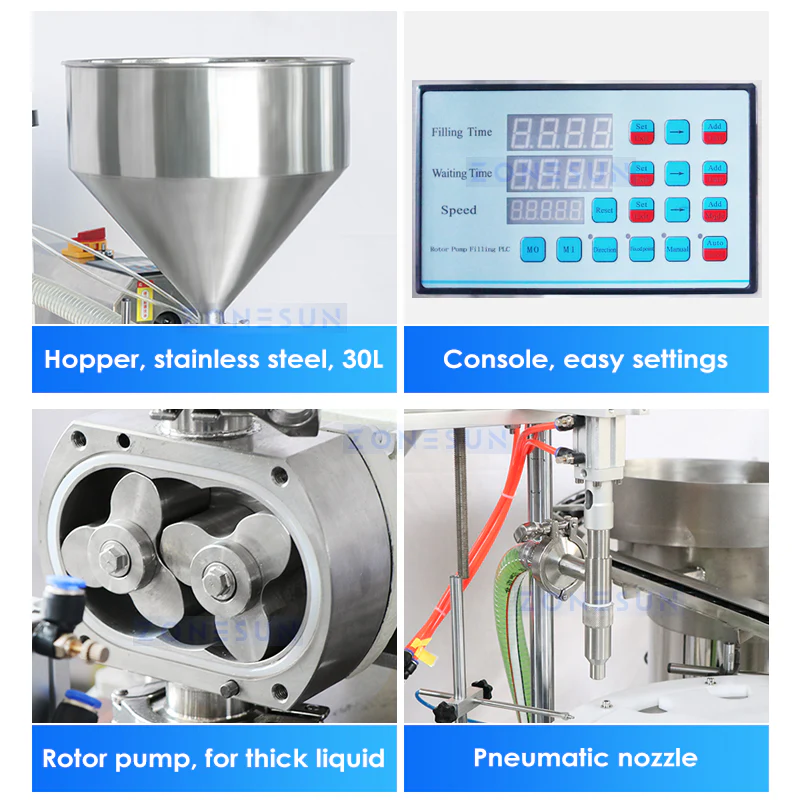

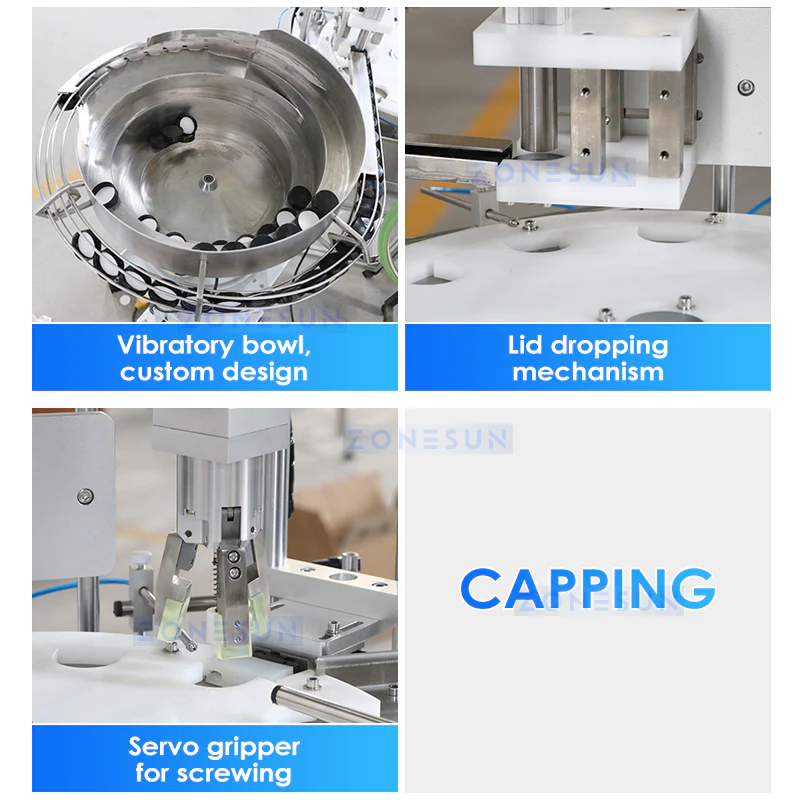

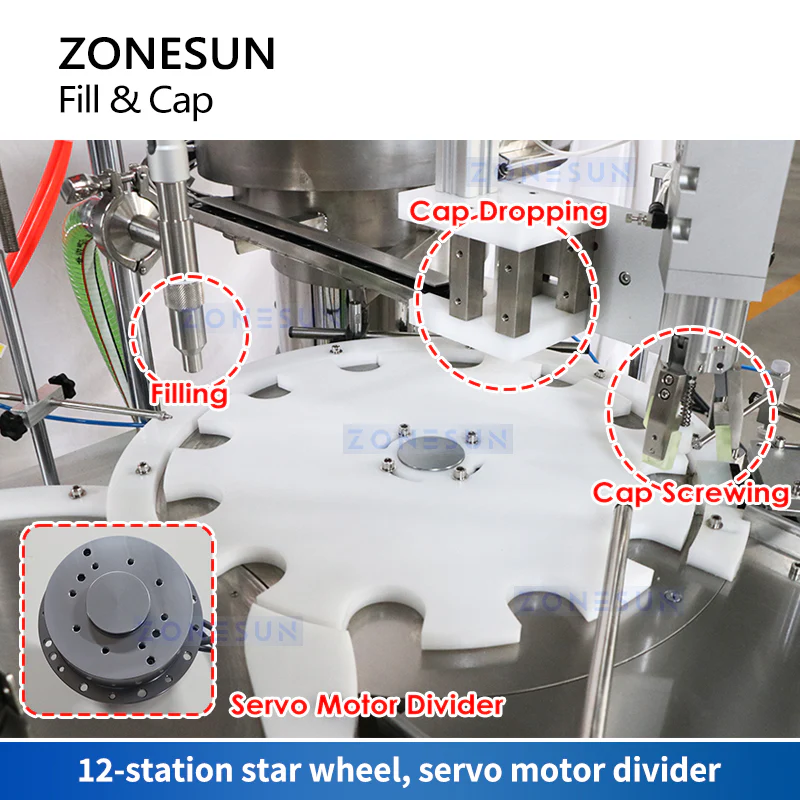

The ZS-AFC19 is a fully integrated monoblock system designed for precise filling and capping of thick liquids. It features a bottle unscrambling turntable, servo-driven star wheel, and high-accuracy rotor pump for consistent filling. Caps are fed via a vibratory bowl and tightened using a servo gripper. With advanced PLC controls and a touchscreen interface, this machine ensures smooth operation, minimal downtime, and professional packaging results.
ZONESUN ZS-AFC19 Rotor Pump Filling Machine – Specification Table
Category Specification
Machine Model ZS-AFC19
Voltage 220V / 110V, 50–60Hz
Power 170W
Filling Pump Type Rotor Pump
Working Capacity Approx. 15 bottles/min
Filling Range 20–200ml
Bottle Diameter 30–90mm
Bottle Height 30–200mm
Bottle Mouth Diameter 10–35mm
Cap Size Customizable
The ZS-AFC19 is a fully integrated monoblock system designed for precise filling and capping of thick liquids. It features a bottle unscrambling turntable, servo-driven star wheel, and high-accuracy rotor pump for consistent filling. Caps are fed via a vibratory bowl and tightened using a servo gripper. With advanced PLC controls and a touchscreen interface, this machine ensures smooth operation, minimal downtime, and professional packaging results.
ZONESUN ZS-AFC19 Rotor Pump Filling Machine – Specification Table
Category Specification
Machine Model ZS-AFC19
Voltage 220V / 110V, 50–60Hz
Power 170W
Filling Pump Type Rotor Pump
Working Capacity Approx. 15 bottles/min
Filling Range 20–200ml
Bottle Diameter 30–90mm
Bottle Height 30–200mm
Bottle Mouth Diameter 10–35mm
Cap Size Customizable
Original: $10,299.00
-70%$10,299.00
$3,089.70Description
The ZS-AFC19 is a fully integrated monoblock system designed for precise filling and capping of thick liquids. It features a bottle unscrambling turntable, servo-driven star wheel, and high-accuracy rotor pump for consistent filling. Caps are fed via a vibratory bowl and tightened using a servo gripper. With advanced PLC controls and a touchscreen interface, this machine ensures smooth operation, minimal downtime, and professional packaging results.
ZONESUN ZS-AFC19 Rotor Pump Filling Machine – Specification Table
Category Specification
Machine Model ZS-AFC19
Voltage 220V / 110V, 50–60Hz
Power 170W
Filling Pump Type Rotor Pump
Working Capacity Approx. 15 bottles/min
Filling Range 20–200ml
Bottle Diameter 30–90mm
Bottle Height 30–200mm
Bottle Mouth Diameter 10–35mm
Cap Size Customizable
