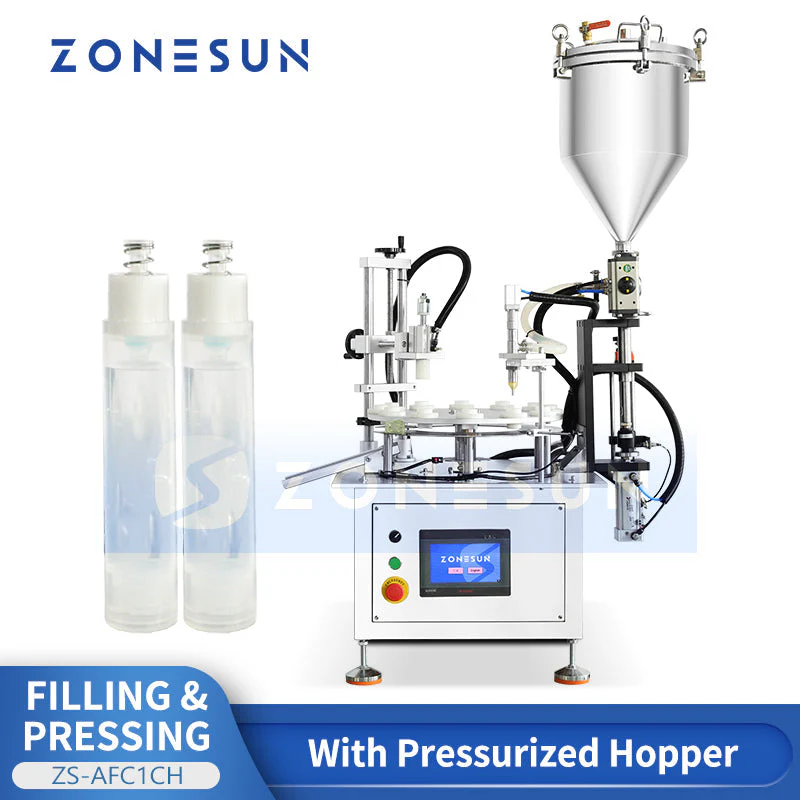

ZONESUN ZS-AFC1CH Automatic Paste Filling and Cap Pressing Monoblock Machine with Pressurized Hopper
Description
The ZONESUN ZS-AFC1CH is a compact automatic filling and cap pressing machine equipped with a pressurized hopper and piston pump. Designed for viscous or hard-to-flow liquids such as pastes, honey, and shampoo, it ensures smooth and even material feeding under pressure. Running at 20–50 bottles per minute, it integrates filling, capping, and bottle discharge in one rotary turntable design. With its space-saving structure, customizable parameters, and compatibility with desktop labelers, it provides efficient, reliable, and cost-effective performance for small to medium-scale production lines in the daily chemical and cosmetics industries.
Parameter
- Model: ZS-AFC1CH
- Power Supply: 110V / 220V
- Power Consumption: 500 W
- Bottle Diameter: 10–40 mm
- Filling Range: ≤100 ml
- Bottle Height: ≤120 mm (customizable)
- Cap Diameter: Customizable
- Filling Nozzle Size: OD 6 mm
- Working Speed: 20–50 bottles/min (depends on liquid and bottle size)
- Air Pressure: 0.4–0.6 MPa
- Air Tube Size: OD 8 mm
- Conveyor Belt Size: About 670 × 80 mm
- Machine Size (L×W×H): About 580 × 580 × 900 mm
- Machine Weight: About 77 kg
Description
The ZONESUN ZS-AFC1CH is a compact automatic filling and cap pressing machine equipped with a pressurized hopper and piston pump. Designed for viscous or hard-to-flow liquids such as pastes, honey, and shampoo, it ensures smooth and even material feeding under pressure. Running at 20–50 bottles per minute, it integrates filling, capping, and bottle discharge in one rotary turntable design. With its space-saving structure, customizable parameters, and compatibility with desktop labelers, it provides efficient, reliable, and cost-effective performance for small to medium-scale production lines in the daily chemical and cosmetics industries.
Parameter
- Model: ZS-AFC1CH
- Power Supply: 110V / 220V
- Power Consumption: 500 W
- Bottle Diameter: 10–40 mm
- Filling Range: ≤100 ml
- Bottle Height: ≤120 mm (customizable)
- Cap Diameter: Customizable
- Filling Nozzle Size: OD 6 mm
- Working Speed: 20–50 bottles/min (depends on liquid and bottle size)
- Air Pressure: 0.4–0.6 MPa
- Air Tube Size: OD 8 mm
- Conveyor Belt Size: About 670 × 80 mm
- Machine Size (L×W×H): About 580 × 580 × 900 mm
- Machine Weight: About 77 kg
