ZONESUN ZS-AFC24 Automatic Piston Pump Liquid Filling Capping Machine
DESCRIPTION

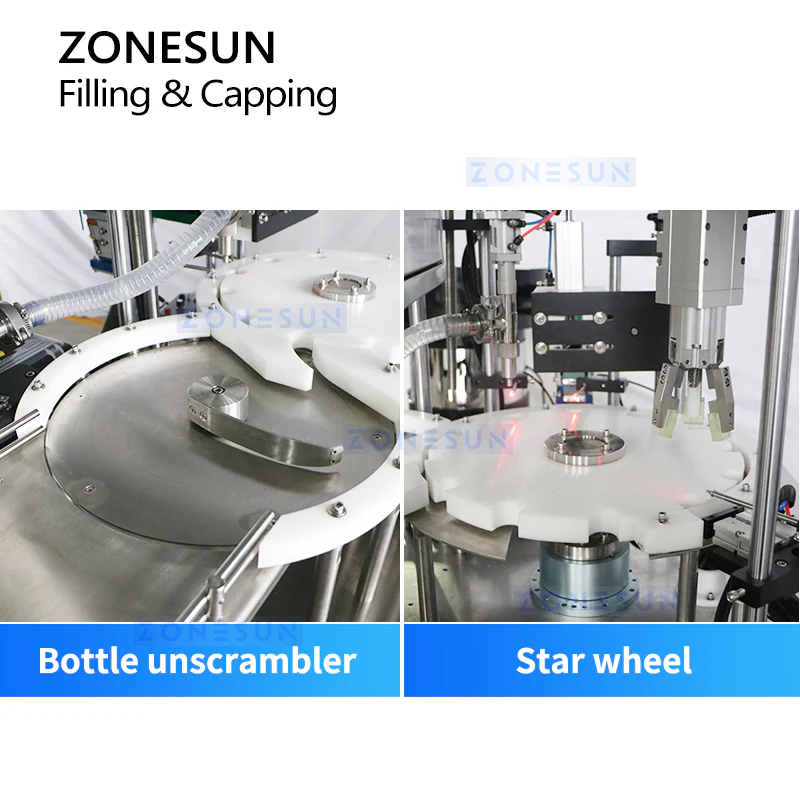

This all-in-one machine revolutionizes the bottling process, streamlining production and ensuring precision in every step. Designed to meet the needs of various industries, this machine combines the functions of bottle alignment, filling, capping, and torque adjustment. With its user-friendly interface and advanced features, it's the perfect solution for enhancing your production efficiency.
Whatever your packaging needs are, you can rely on ZONESUN.
Parameter
- Model: ZS-AFC24
- Voltage: 220V / 110V 50/60Hz
- Power: 1.5kW

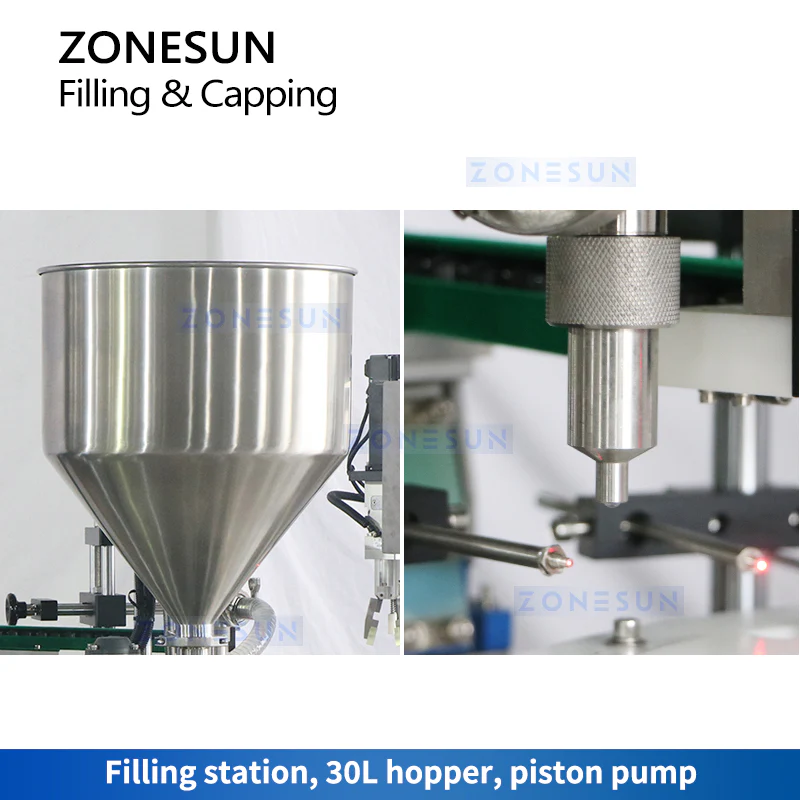

- Filling Pump: Piston Pump
- Working Speed: Approx. 20 bottles/min (depends on bottle size and filling materials)
- Filling Range: 20–100ml (Customizable)
- Filling Error: ±1%
- Suitable Bottle Height: 35–150mm (Customizable)
- Suitable Bottle Diameter: 14–42mm (Customizable)

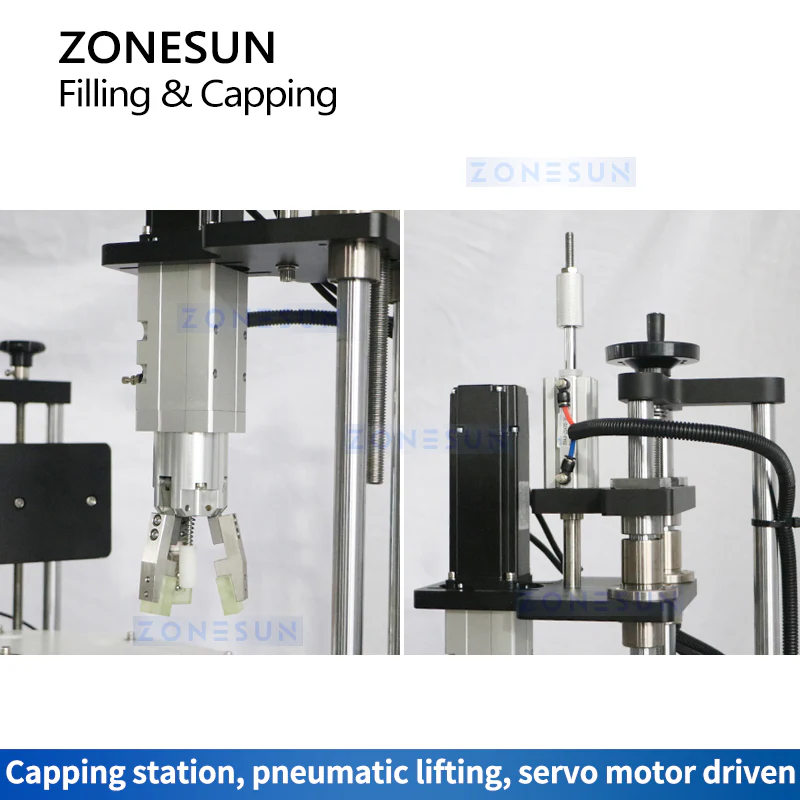

- Capping Mechanism: Servo Motor Driven
- Suitable Cap Size: Customizable
- Hopper Capacity: 30L
- Air Pressure: 0.6–0.8MPa
- Machine Size: 1453 × 1230 × 1551mm
- Machine Weight: Approx. 300kg
DESCRIPTION
This all-in-one machine revolutionizes the bottling process, streamlining production and ensuring precision in every step. Designed to meet the needs of various industries, this machine combines the functions of bottle alignment, filling, capping, and torque adjustment. With its user-friendly interface and advanced features, it's the perfect solution for enhancing your production efficiency.
Whatever your packaging needs are, you can rely on ZONESUN.
Parameter
- Model: ZS-AFC24
- Voltage: 220V / 110V 50/60Hz
- Power: 1.5kW
- Filling Pump: Piston Pump
- Working Speed: Approx. 20 bottles/min (depends on bottle size and filling materials)
- Filling Range: 20–100ml (Customizable)
- Filling Error: ±1%
- Suitable Bottle Height: 35–150mm (Customizable)
- Suitable Bottle Diameter: 14–42mm (Customizable)
- Capping Mechanism: Servo Motor Driven
- Suitable Cap Size: Customizable
- Hopper Capacity: 30L
- Air Pressure: 0.6–0.8MPa
- Machine Size: 1453 × 1230 × 1551mm
- Machine Weight: Approx. 300kg
