ZONESUN ZS-AFC24VT Automatic Tracking Filling and Capping Machine For Household & Cosmetic Product
Description

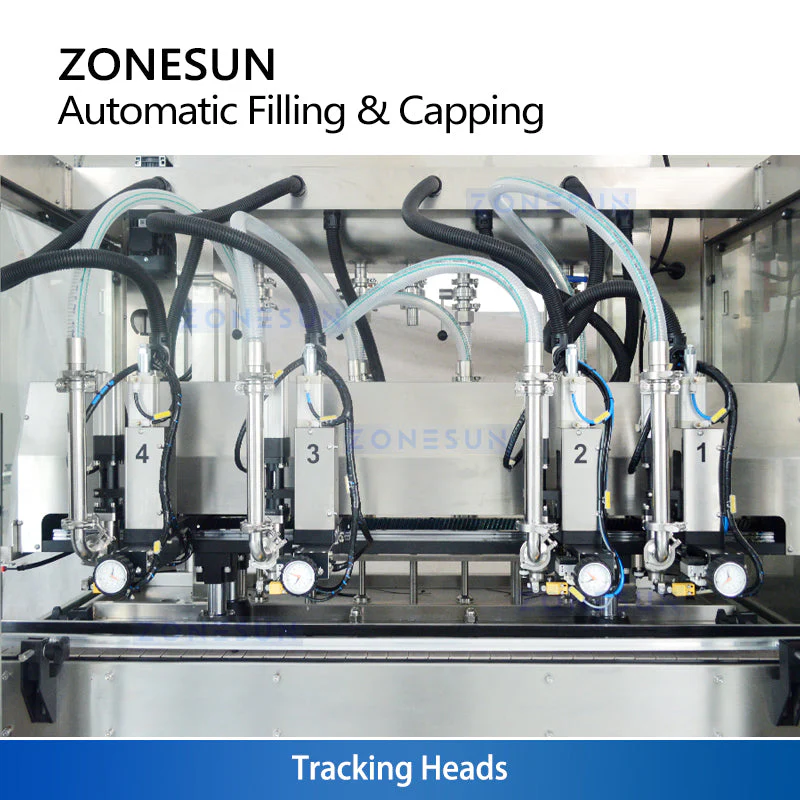

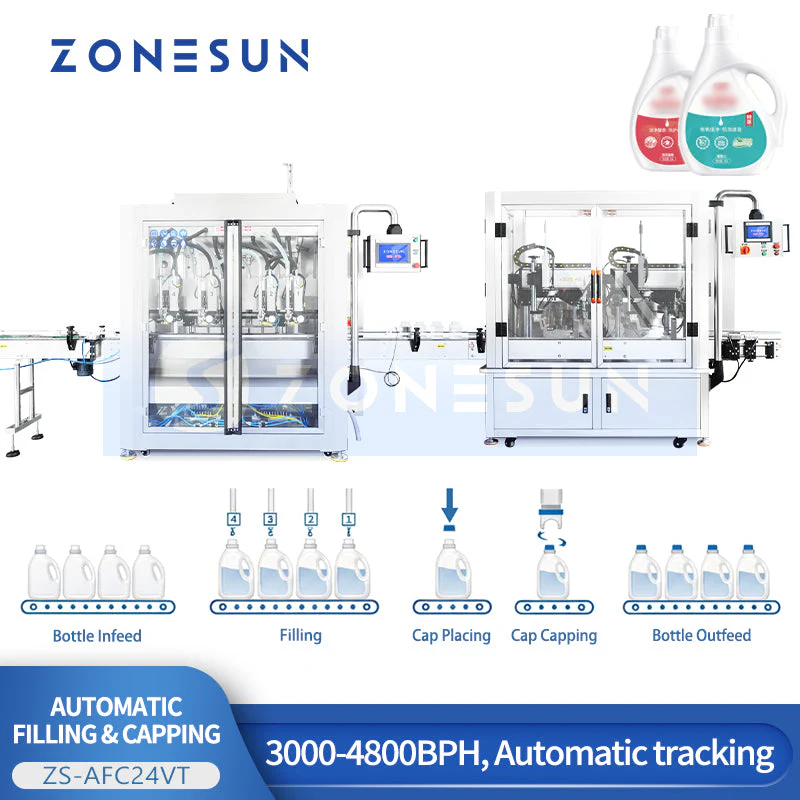

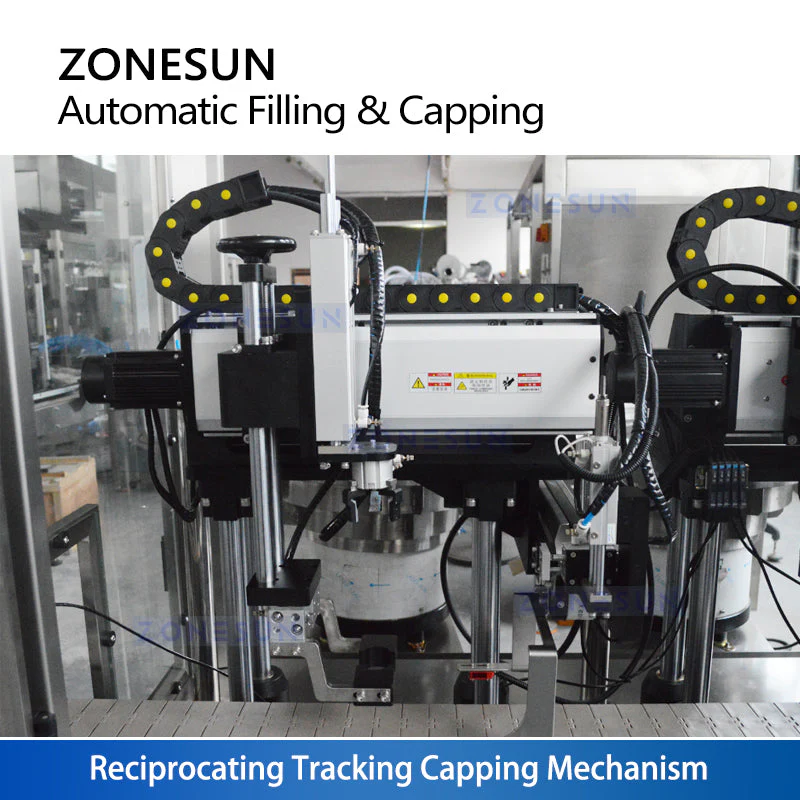

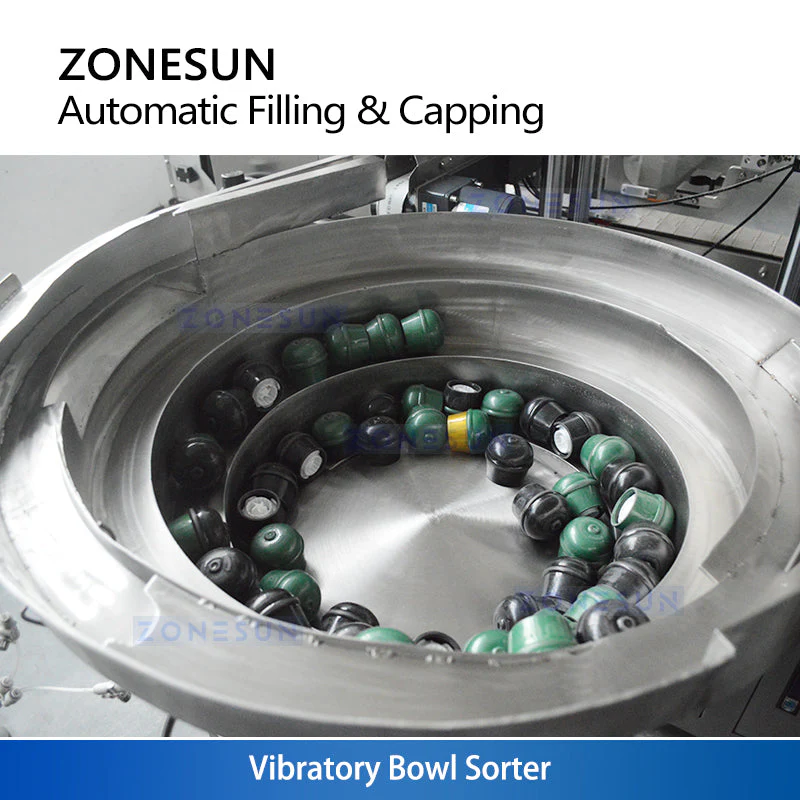

The ZONESUN ZS-AFC24VT integrates the 4‑head tracking paste filler and the dual‑head servo tracking capper, delivering 3000–4800 bottles/hour with automatic tracking for precise filling and continuous capping. Stainless steel construction, neat wiring, and advanced servo control ensure reliable, efficient, long‑lasting performance. Designed for medium to large lines, it supports cap feeding and conveyor integration for a complete liquid packaging solution, applied in cosmetics (creams, lotions, serums), food and beverage (sauces, honey, oils), and household chemicals (detergents, disinfectants).
ZS-VTPF4
- Filling Heads: 4
- Filling Range: 500–5000 ml (customizable)
- Filling Speed: 2000–5000 bottles/hour (depends on volume and material)
- Metering Accuracy: ±1%
- Power Supply: 380V
- Power Consumption: 6 kW
- Working Air Pressure: 0.6–0.8 MPa
- Air Consumption: 6–7 m³/min
- Machine Dimensions (L×W×H): 3000 × 1500 × 2700 mm
- Machine Net Weight: 900 kg
ZS-VTXG2
- Power Supply: 380V, 50Hz
- Working Capacity: 50–80 bottles per minute
-
Compatible Bottle Size:
- Height: <250 mm
- Diameter: <110 mm
- Compatible Cap Size: Diameter: 20–80 mm
- Machine Dimensions (L×W×H): 3000* 1100*1900mm(118.11*43.31*74.8 inch)
- Machine Weight: About 450 kg
Description
The ZONESUN ZS-AFC24VT integrates the 4‑head tracking paste filler and the dual‑head servo tracking capper, delivering 3000–4800 bottles/hour with automatic tracking for precise filling and continuous capping. Stainless steel construction, neat wiring, and advanced servo control ensure reliable, efficient, long‑lasting performance. Designed for medium to large lines, it supports cap feeding and conveyor integration for a complete liquid packaging solution, applied in cosmetics (creams, lotions, serums), food and beverage (sauces, honey, oils), and household chemicals (detergents, disinfectants).
ZS-VTPF4
- Filling Heads: 4
- Filling Range: 500–5000 ml (customizable)
- Filling Speed: 2000–5000 bottles/hour (depends on volume and material)
- Metering Accuracy: ±1%
- Power Supply: 380V
- Power Consumption: 6 kW
- Working Air Pressure: 0.6–0.8 MPa
- Air Consumption: 6–7 m³/min
- Machine Dimensions (L×W×H): 3000 × 1500 × 2700 mm
- Machine Net Weight: 900 kg
ZS-VTXG2
- Power Supply: 380V, 50Hz
- Working Capacity: 50–80 bottles per minute
-
Compatible Bottle Size:
- Height: <250 mm
- Diameter: <110 mm
- Compatible Cap Size: Diameter: 20–80 mm
- Machine Dimensions (L×W×H): 3000* 1100*1900mm(118.11*43.31*74.8 inch)
- Machine Weight: About 450 kg
Original: $65,300.00
-70%$65,300.00
$19,590.00Description
Description
The ZONESUN ZS-AFC24VT integrates the 4‑head tracking paste filler and the dual‑head servo tracking capper, delivering 3000–4800 bottles/hour with automatic tracking for precise filling and continuous capping. Stainless steel construction, neat wiring, and advanced servo control ensure reliable, efficient, long‑lasting performance. Designed for medium to large lines, it supports cap feeding and conveyor integration for a complete liquid packaging solution, applied in cosmetics (creams, lotions, serums), food and beverage (sauces, honey, oils), and household chemicals (detergents, disinfectants).
ZS-VTPF4
- Filling Heads: 4
- Filling Range: 500–5000 ml (customizable)
- Filling Speed: 2000–5000 bottles/hour (depends on volume and material)
- Metering Accuracy: ±1%
- Power Supply: 380V
- Power Consumption: 6 kW
- Working Air Pressure: 0.6–0.8 MPa
- Air Consumption: 6–7 m³/min
- Machine Dimensions (L×W×H): 3000 × 1500 × 2700 mm
- Machine Net Weight: 900 kg
ZS-VTXG2
- Power Supply: 380V, 50Hz
- Working Capacity: 50–80 bottles per minute
-
Compatible Bottle Size:
- Height: <250 mm
- Diameter: <110 mm
- Compatible Cap Size: Diameter: 20–80 mm
- Machine Dimensions (L×W×H): 3000* 1100*1900mm(118.11*43.31*74.8 inch)
- Machine Weight: About 450 kg
