DESCRIPTION

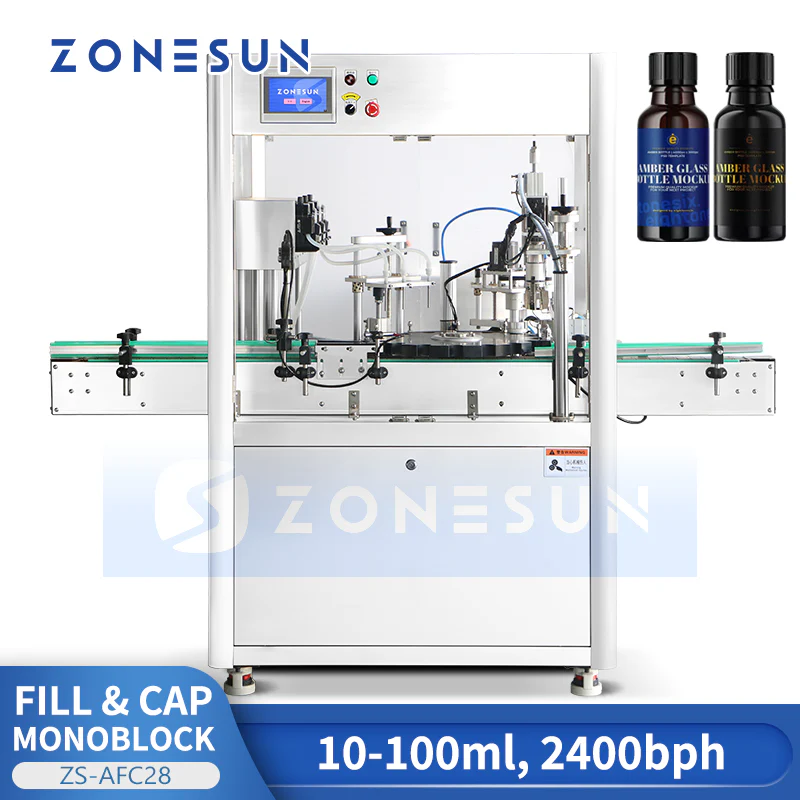

Introducing our latest addition, the High-Speed Filling and Capping Monoblock. Designed with precision and efficiency in mind, this innovative machine combines the capabilities of filling and capping into a single unit. Featuring a star wheel bottle indexing system, it ensures smooth and seamless operation throughout the packaging process. With its high-speed capabilities, advanced design, and the innovative use of a vacuum-based gripping system, our High-Speed Filling and Capping Monoblock offers a streamlined solution for your packaging needs. Experience enhanced productivity, precise filling, and reliable capping with this cutting-edge machine.

Whatever your packaging needs are, you can rely on Zonesun.

Parameter

• Model: ZS-AFC28
• Voltage: 220V/110V 50–60Hz
• Power: Approx. 3kW
• Production Speed: Approx. 40 bottles/min (varies by bottle size and material)
• Filling Range: 10–100ml (Customizable)
• Filling Pump: Peristaltic Pump ×3
• Max Flow Rate: 6L/min (based on water)
• Suitable Bottle Size: Customizable
• Bottle Cap Size: Customizable
• Air Pressure: 0.5–0.7MPa
• Machine Size: Approx. 2050×1800×1500mm
• Package Size:
  • Filling Machine: Approx. 2080×1000×1960mm
  • Vibratory Bowl: Approx. 1020×610×580mm
• Gross Weight:
  • Filling Machine: Approx. 725kg
  • Vibratory Bowl: Approx. 78kg
