ZONESUN ZS-AFC36 Test Tube Liquid Filling and Capping Machine Cam System Monoblock for Solvents Labs
DESCRIPTION
This monoblock machine utilizes a cam-driven system to achieve speeds of up to 30 bottles per minute, delivering high-precision filling for small-volume liquids such as solvents. Its compact design allows seamless integration with a bottle labeling system, enabling streamlined and automated production. Ideal for laboratories and small-scale operations, it combines reliability, efficiency, and space-saving versatility.
Parameter
- Machine Model: ZS-AFC36
- Voltage: 110/220 V 50-60HZ 2 KW
- Filling Range: 0.2-200 ml
- Filling Pump: Ceramic Pump
- Working Capacity: 20-35 BPM(Based On Filling Range)
- Suitable Bottle Size: φ=10 mm*H=45 mm (Customizable)
- Suitable Cap Size: 12-30 mm(Customizable)
- Filling Accuracy: ±0.5 %
- Air Pressure: 0.5-0.7 Mpa/cm²
- Machine Material: SUS304
- Machine Size: 1750*1400*1800 mm / 68.9*55.12*70.87 inch(L*W*H)

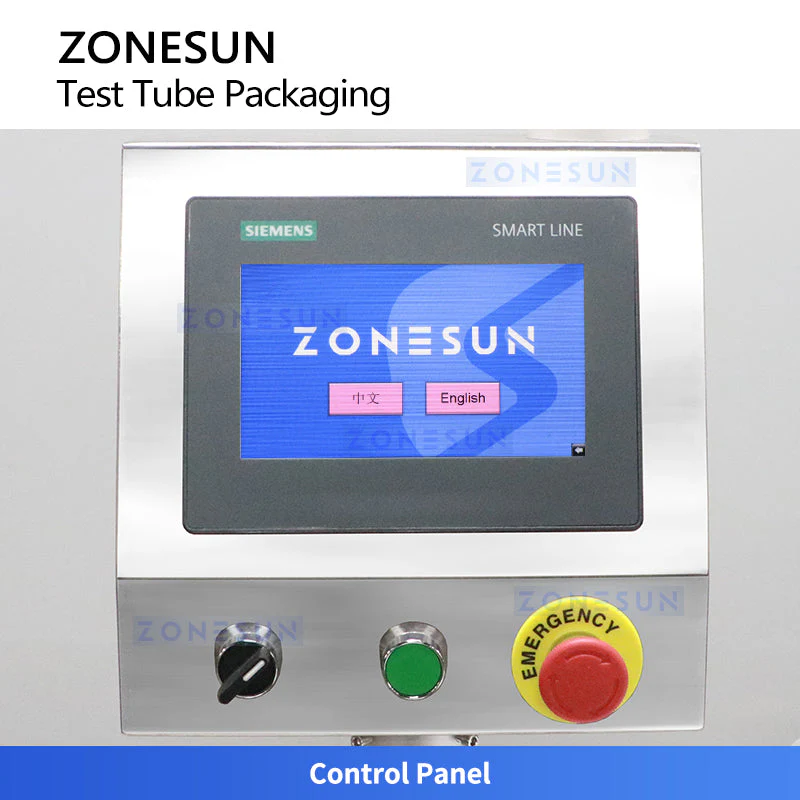

Control Panel

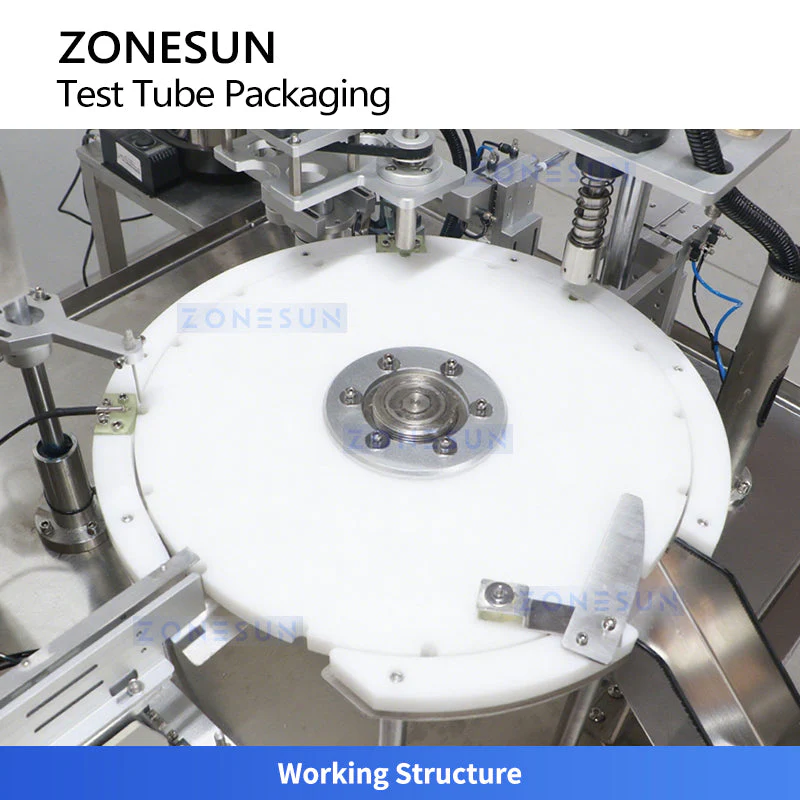

Working Structure
Ceramic Pump
Filling Nozzle
Electric Eye
Capping Structure
Vibratory Bowl Sorter
DESCRIPTION
This monoblock machine utilizes a cam-driven system to achieve speeds of up to 30 bottles per minute, delivering high-precision filling for small-volume liquids such as solvents. Its compact design allows seamless integration with a bottle labeling system, enabling streamlined and automated production. Ideal for laboratories and small-scale operations, it combines reliability, efficiency, and space-saving versatility.
Parameter
- Machine Model: ZS-AFC36
- Voltage: 110/220 V 50-60HZ 2 KW
- Filling Range: 0.2-200 ml
- Filling Pump: Ceramic Pump
- Working Capacity: 20-35 BPM(Based On Filling Range)
- Suitable Bottle Size: φ=10 mm*H=45 mm (Customizable)
- Suitable Cap Size: 12-30 mm(Customizable)
- Filling Accuracy: ±0.5 %
- Air Pressure: 0.5-0.7 Mpa/cm²
- Machine Material: SUS304
- Machine Size: 1750*1400*1800 mm / 68.9*55.12*70.87 inch(L*W*H)
Control Panel
Working Structure
Ceramic Pump
Filling Nozzle
Electric Eye
Capping Structure
Vibratory Bowl Sorter
Original: $14,899.00
-70%$14,899.00
$4,469.70Description
