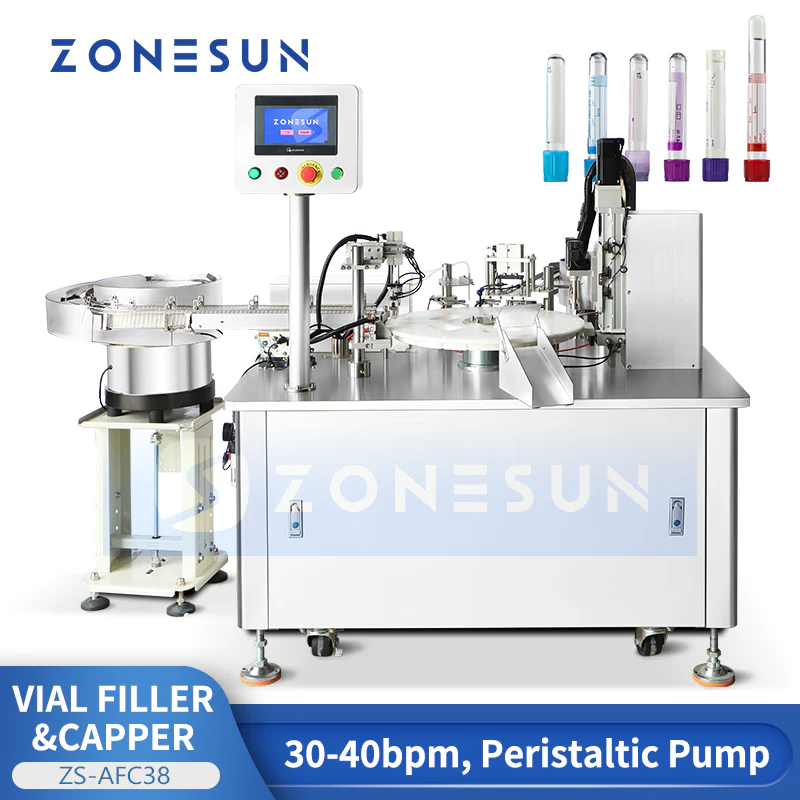

ZONESUN ZS-AFC38 Automated Test Tube Filler & Capper for Pharma and Lab Production

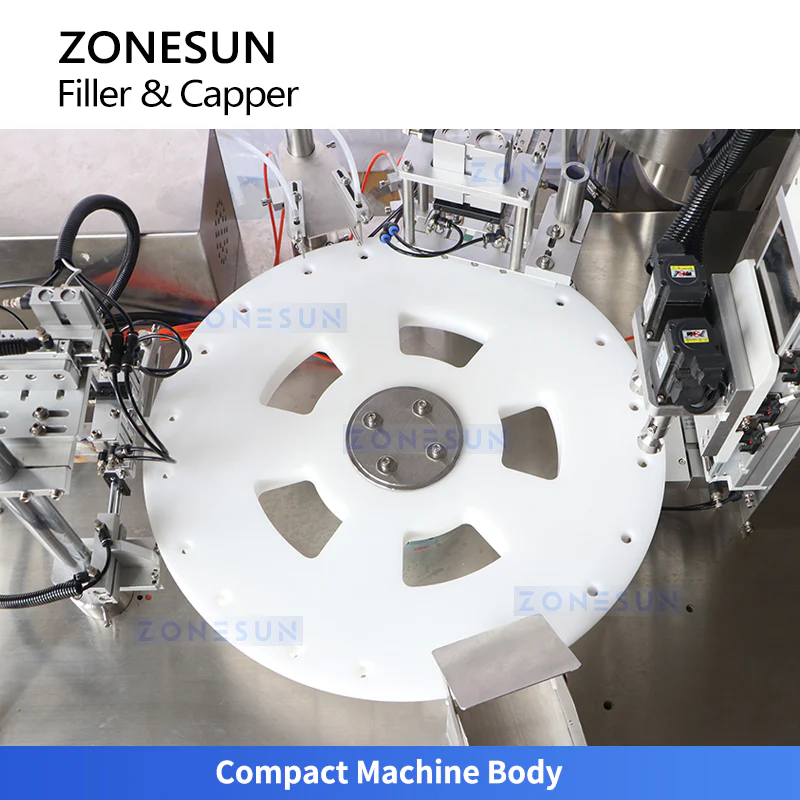

The ZONESUN ZS-AFC38 is a high-speed, dual-station test tube filling and capping machine designed to streamline laboratory workflows. Featuring a star wheel rotary system, it automates tube feeding, filling, and capping with precision and consistency. Vibration feeders guide tubes and caps into position, while peristaltic pumps and servo motors ensure accurate dosing and torque control. With a working speed of 30–40 tubes per minute and ±0.04ml filling accuracy, this machine minimizes manual labor and human error. Ideal for pharmaceutical, biotech, and diagnostic labs requiring reliable, scalable automation.
PARAMETER
- Machine Model: ZS-AFC38
- Voltage: 110/220V 50-60HZ
- Power: 3KW
- Filling range: 2ml (can be customized according to need)

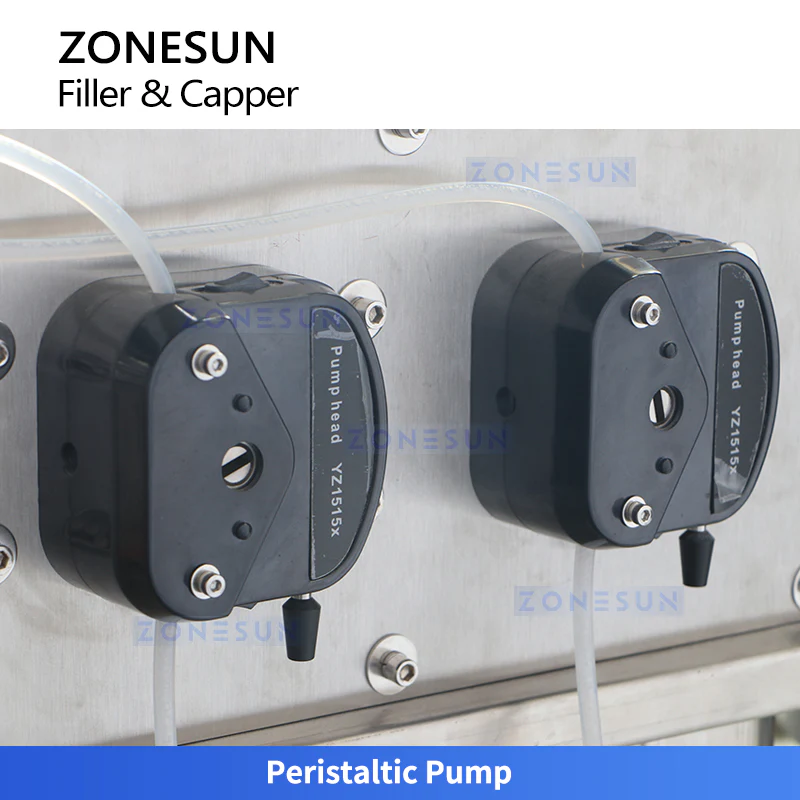

- Filling pump: Peristaltic pump

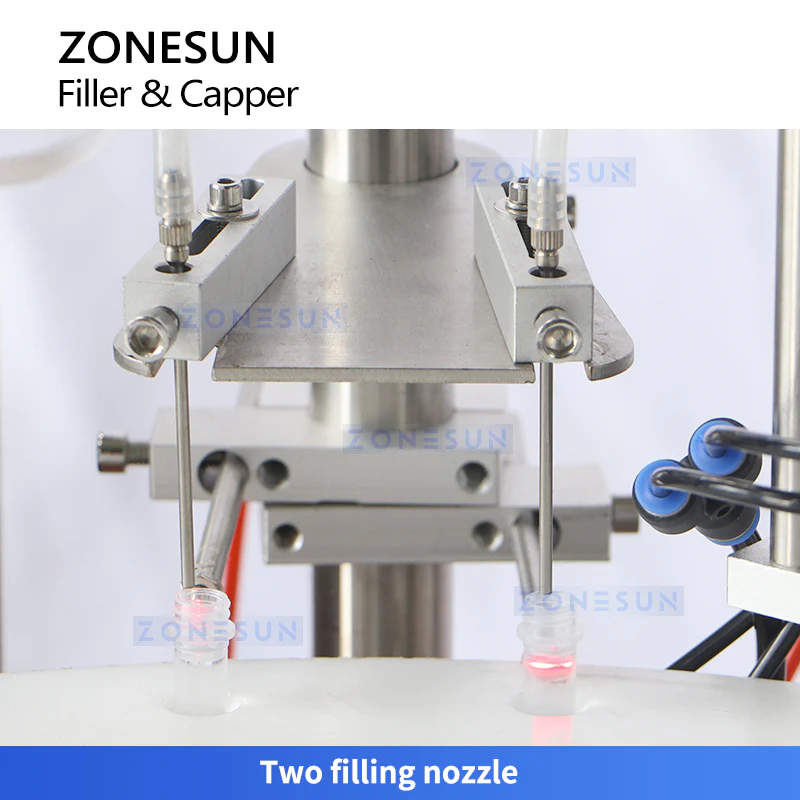

- Filling nozzle quantity: 2
- Suitable tube size: Customized
- Suitable cap size: Customized
- Working speed: About 30-40 bottles/min (based on filling volume)
- Filling accuracy: ±0.04ml (based on filling volume and material)
- Air pressure: 0.8Mpa
- Machine size: About 1920*1250*1480mm
- Packing size:
- Main Machine: About 1550*1040*1630mm
- Vibratory Bowl Sorter: About 1030*660*560mm
- Holder: About 760*430*690mm
- Packing weight: About 433+113+53=599kg
The ZONESUN ZS-AFC38 is a high-speed, dual-station test tube filling and capping machine designed to streamline laboratory workflows. Featuring a star wheel rotary system, it automates tube feeding, filling, and capping with precision and consistency. Vibration feeders guide tubes and caps into position, while peristaltic pumps and servo motors ensure accurate dosing and torque control. With a working speed of 30–40 tubes per minute and ±0.04ml filling accuracy, this machine minimizes manual labor and human error. Ideal for pharmaceutical, biotech, and diagnostic labs requiring reliable, scalable automation.
PARAMETER
- Machine Model: ZS-AFC38
- Voltage: 110/220V 50-60HZ
- Power: 3KW
- Filling range: 2ml (can be customized according to need)
- Filling pump: Peristaltic pump
- Filling nozzle quantity: 2
- Suitable tube size: Customized
- Suitable cap size: Customized
- Working speed: About 30-40 bottles/min (based on filling volume)
- Filling accuracy: ±0.04ml (based on filling volume and material)
- Air pressure: 0.8Mpa
- Machine size: About 1920*1250*1480mm
- Packing size:
- Main Machine: About 1550*1040*1630mm
- Vibratory Bowl Sorter: About 1030*660*560mm
- Holder: About 760*430*690mm
- Packing weight: About 433+113+53=599kg
Original: $17,499.00
-70%$17,499.00
$5,249.70Description
The ZONESUN ZS-AFC38 is a high-speed, dual-station test tube filling and capping machine designed to streamline laboratory workflows. Featuring a star wheel rotary system, it automates tube feeding, filling, and capping with precision and consistency. Vibration feeders guide tubes and caps into position, while peristaltic pumps and servo motors ensure accurate dosing and torque control. With a working speed of 30–40 tubes per minute and ±0.04ml filling accuracy, this machine minimizes manual labor and human error. Ideal for pharmaceutical, biotech, and diagnostic labs requiring reliable, scalable automation.
PARAMETER
- Machine Model: ZS-AFC38
- Voltage: 110/220V 50-60HZ
- Power: 3KW
- Filling range: 2ml (can be customized according to need)
- Filling pump: Peristaltic pump
- Filling nozzle quantity: 2
- Suitable tube size: Customized
- Suitable cap size: Customized
- Working speed: About 30-40 bottles/min (based on filling volume)
- Filling accuracy: ±0.04ml (based on filling volume and material)
- Air pressure: 0.8Mpa
- Machine size: About 1920*1250*1480mm
- Packing size:
- Main Machine: About 1550*1040*1630mm
- Vibratory Bowl Sorter: About 1030*660*560mm
- Holder: About 760*430*690mm
- Packing weight: About 433+113+53=599kg
