DESCRIPTION

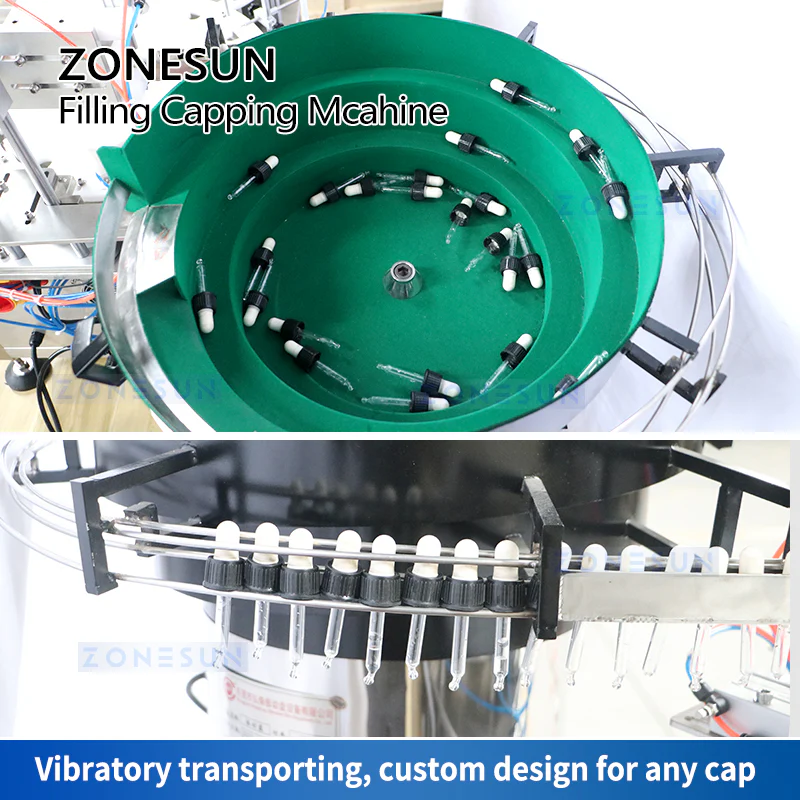

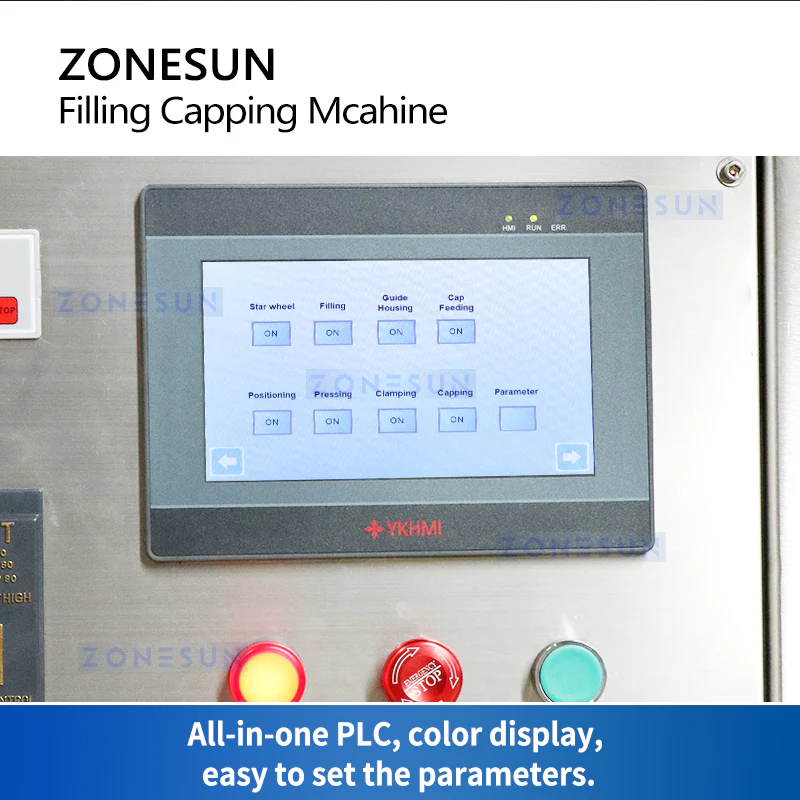

This filling capping machine is designed for mini bottles like eyedrop bottles, essential oil bottles, and perfume sample bottles. It can sort bottles, fill liquid, feed caps, and tighten bottle caps. It is also equipped with a cap vibratory bowl sorter which can fill liquid automatically. Compared with ZS-AFC7, it adopts a step motor for the star wheel and an integrated touch screen.

PARAMETER

• Machine Model：ZS-AFC7A

• Machine power：1000W

• Machine voltage：110/220V 50-60HZ

• Filling pump：Magnetic Pump

• Recommended filling range：10-100ml

• Pump maximum flow rate：4L/min

• Suitable bottle height：About 30-60mm

• Suitable bottle diameter：About 20-50mm

• Suitable cover size：H≤10-30mm φ≤20-50mm

• Working speed：About 20-30 bottles/min (based on bottle size)

• Turntable：Stepping motor

• Package size：About 1500*900*1250mm (Machine)
  About 700*600*1500mm (vibratory Bowl Sorter)

• Package weight：About 180kg (Machine)
  About 100kg (Vibratory Bowl Sorter)
