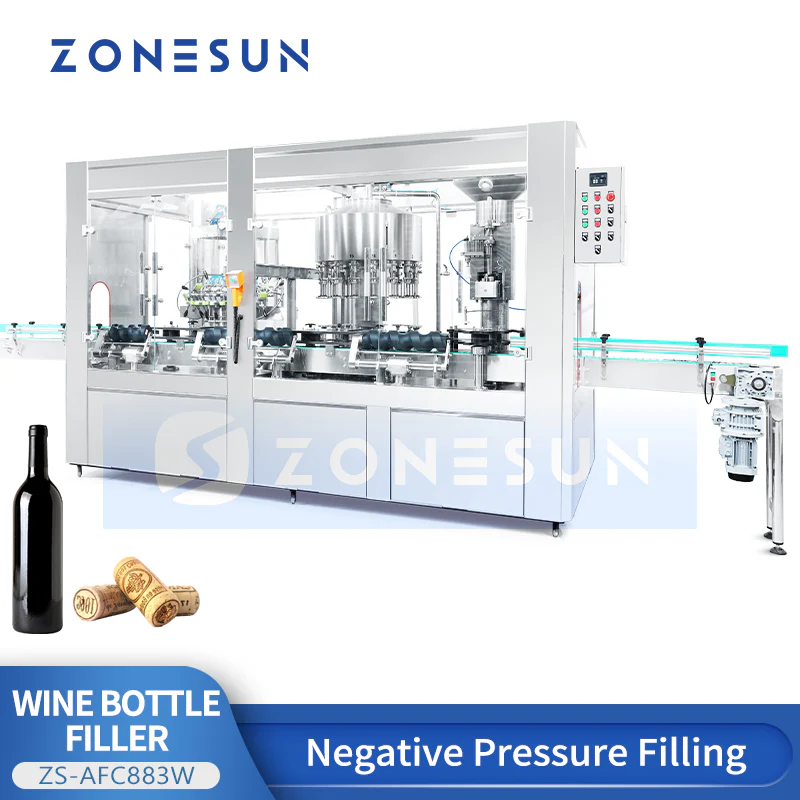

ZONESUN ZS-AFC883W Automatic Wine Bottle Rinsing Filling and Corking Machine
DESCRIPTION

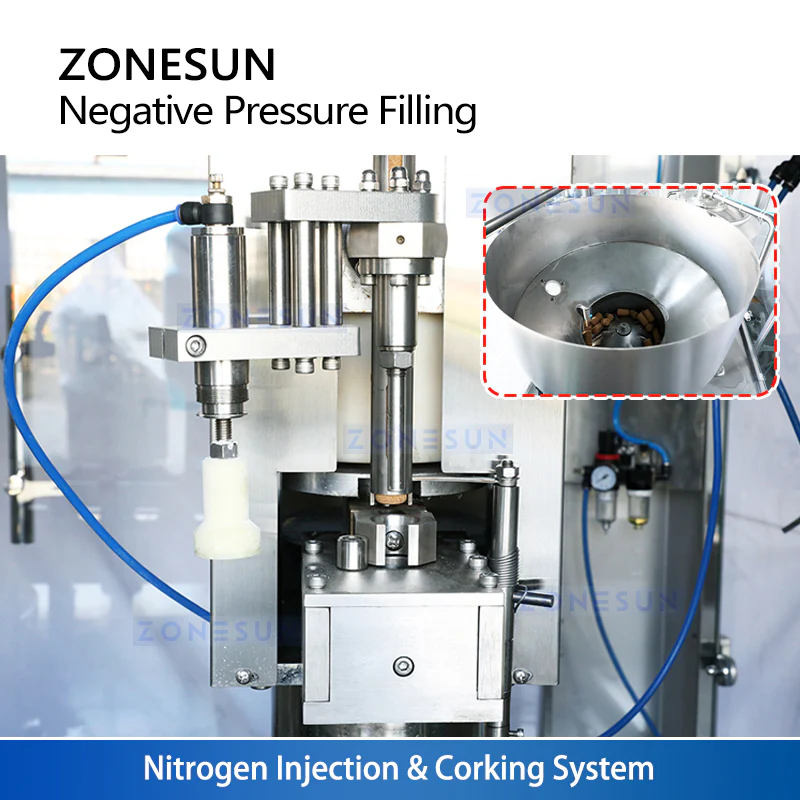

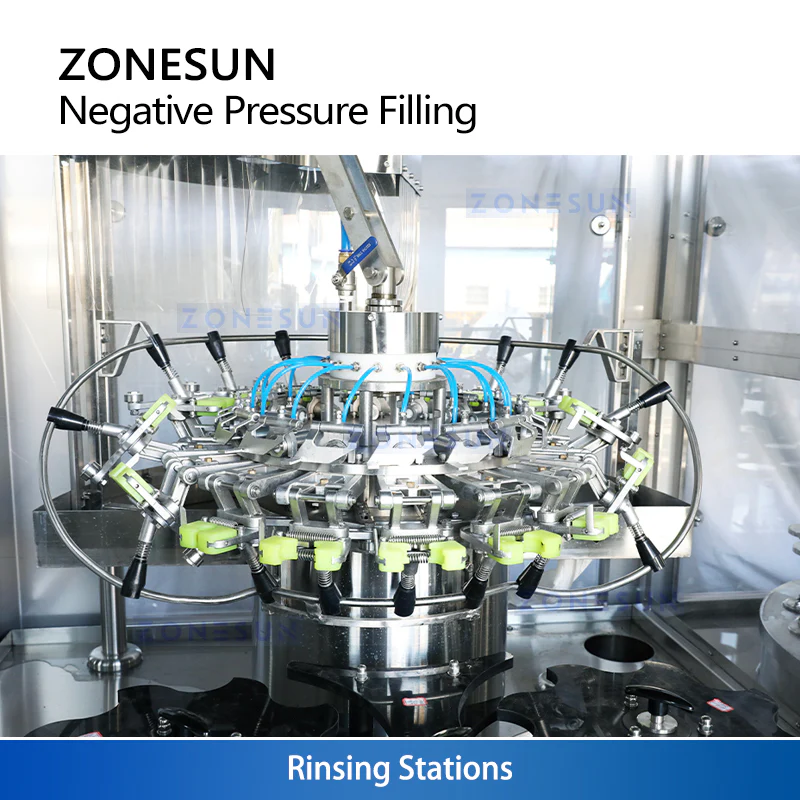

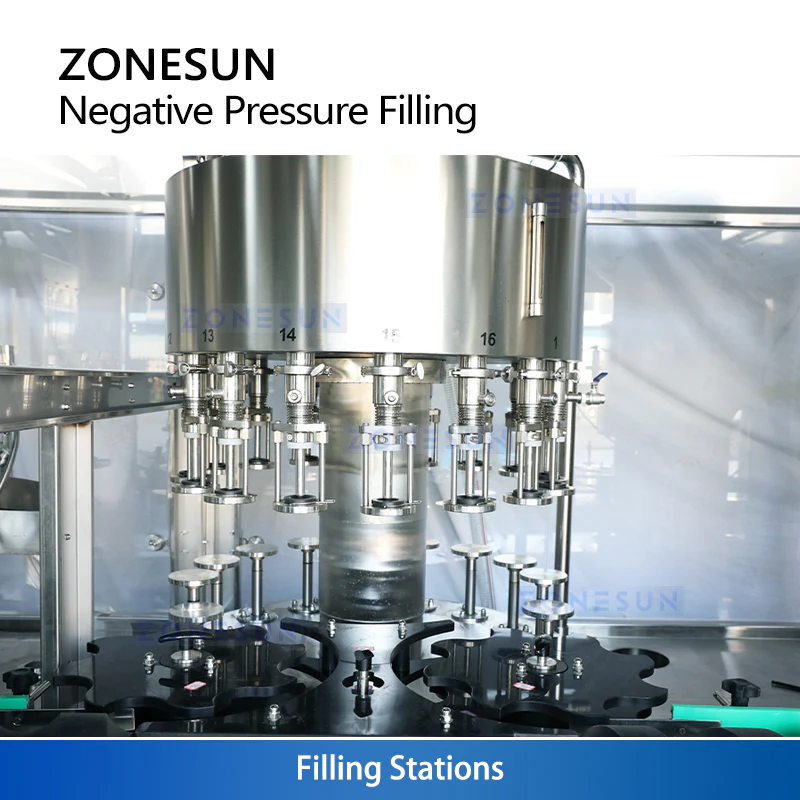

Introducing our state-of-the-art automatic wine packaging machine, engineered for high-volume production. This robust system integrates rinsing (16 heads), filling (16 heads), and corking (1 head) into a seamless process, achieving a remarkable output of up to 2200 bottles per hour. Ensure precision, efficiency, and consistent quality in your wine bottling operations with this advanced solution.
PARAMETER
- Machine Model：ZS-AFC883W
- Voltage：380V，50HZ
- Working Capacity：1500–2500 bottles/hour
- Applicable Bottle Height：150–350 mm
- Applicable Bottle Diameter：Φ50–Φ100 mm
- Applicable Bottle Mouth Diameter：Φ22–Φ32 mm
- Drive Motor Power：4 kW
- Rinsing Lift Motor Power：0.37 kW
- Pump Power：0.37 kW
- Blower Power：0.75 kW
- Filling Lift Motor Power：0.37 kW
- Machine Dimensions (L×W×H)：3500 × 1700 × 2100 mm
- Package Dimensions (L×W×H)：3900× 1750× 2300 mm
- Weight：2200kg
DESCRIPTION
Introducing our state-of-the-art automatic wine packaging machine, engineered for high-volume production. This robust system integrates rinsing (16 heads), filling (16 heads), and corking (1 head) into a seamless process, achieving a remarkable output of up to 2200 bottles per hour. Ensure precision, efficiency, and consistent quality in your wine bottling operations with this advanced solution.
PARAMETER
- Machine Model：ZS-AFC883W
- Voltage：380V，50HZ
- Working Capacity：1500–2500 bottles/hour
- Applicable Bottle Height：150–350 mm
- Applicable Bottle Diameter：Φ50–Φ100 mm
- Applicable Bottle Mouth Diameter：Φ22–Φ32 mm
- Drive Motor Power：4 kW
- Rinsing Lift Motor Power：0.37 kW
- Pump Power：0.37 kW
- Blower Power：0.75 kW
- Filling Lift Motor Power：0.37 kW
- Machine Dimensions (L×W×H)：3500 × 1700 × 2100 mm
- Package Dimensions (L×W×H)：3900× 1750× 2300 mm
- Weight：2200kg
Original: $24,499.00
-70%$24,499.00
$7,349.70Description
DESCRIPTION
Introducing our state-of-the-art automatic wine packaging machine, engineered for high-volume production. This robust system integrates rinsing (16 heads), filling (16 heads), and corking (1 head) into a seamless process, achieving a remarkable output of up to 2200 bottles per hour. Ensure precision, efficiency, and consistent quality in your wine bottling operations with this advanced solution.
PARAMETER
- Machine Model：ZS-AFC883W
- Voltage：380V，50HZ
- Working Capacity：1500–2500 bottles/hour
- Applicable Bottle Height：150–350 mm
- Applicable Bottle Diameter：Φ50–Φ100 mm
- Applicable Bottle Mouth Diameter：Φ22–Φ32 mm
- Drive Motor Power：4 kW
- Rinsing Lift Motor Power：0.37 kW
- Pump Power：0.37 kW
- Blower Power：0.75 kW
- Filling Lift Motor Power：0.37 kW
- Machine Dimensions (L×W×H)：3500 × 1700 × 2100 mm
- Package Dimensions (L×W×H)：3900× 1750× 2300 mm
- Weight：2200kg
