DESCRIPTION

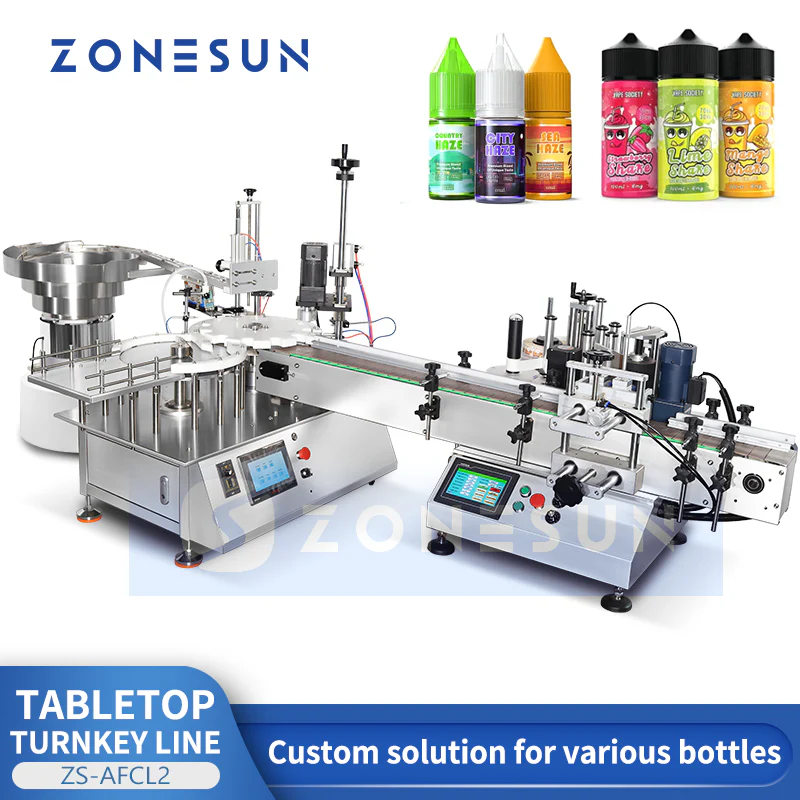

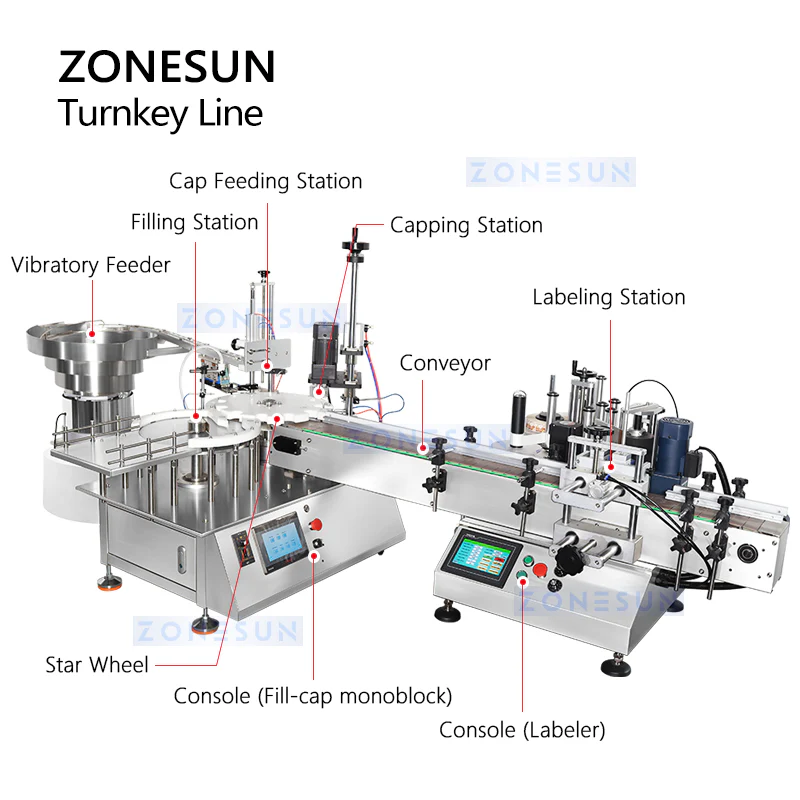

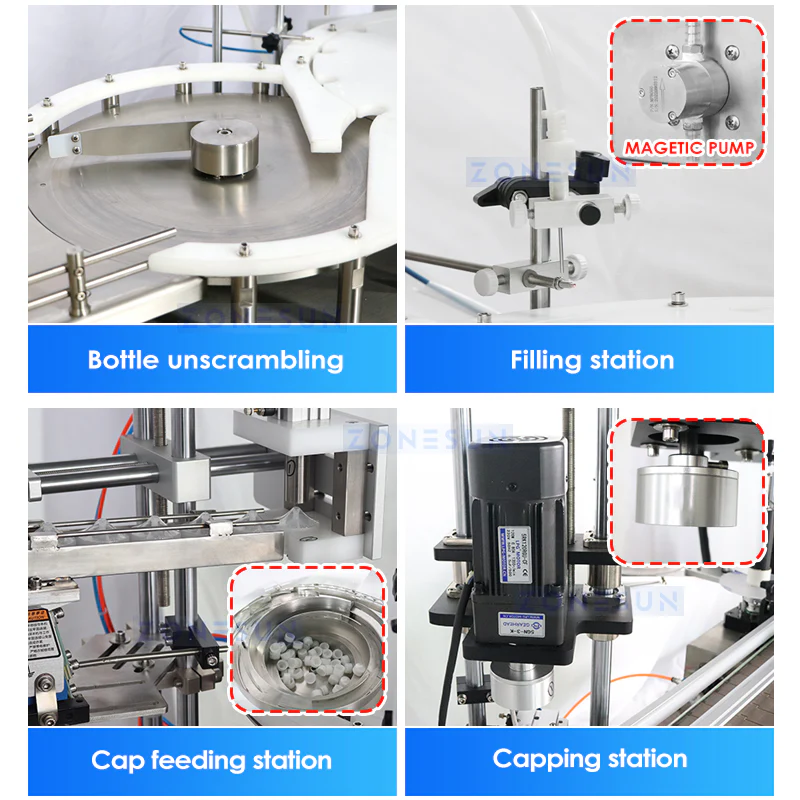

Introducing our innovative desktop turnkey line. The filling-capping machine includes a turntable for bottle unscrambling and a star wheel for conveying bottles to various stations, including filling, capping, and cap sealing. The vibratory bowl is used to transport bottle caps, ensuring continuous supply. After cap sealing, the bottles are transported to the labeling machine for accurate circular labeling. Our machine is compact, easy to operate, and ideal for enhancing production efficiency and reducing labor costs, making it the perfect choice for a wide range of bottled products. Whatever your packaging needs are, you can rely on ZONESUN.

PARAMETER

Machine Model：ZS-AFC7B

• Voltage：220V/110V 50-60Hz

• Power：1000W

• Filling Pump：Magnetic Pump

• Working Capacity：About 20-30 bottles/min (based on bottle size)

• Filling Range：10-100ml

• Suitable Bottle Height：About 30-60mm

• Suitable Bottle Diameter：About 20-50mm

• Bottle Cap Size：Customizable

• Max Flow Rate：3L/min (based on water)


Machine Model：ZS-TB500

• Voltage：110V- 60HZ / 220V-50HZ

• Working Speed：About 20-50bottles/min

• Suitable Labeling Size：15-140mm(W)*25-300mm (L)

• Roll Inside Diameter：φ76mm

• Roll Outside Diameter：φ350mm

• Suitable Bottle Diameter：≤100mm

• Package Size：About 1290*860*900mm

• Package Weight：About 130kg
