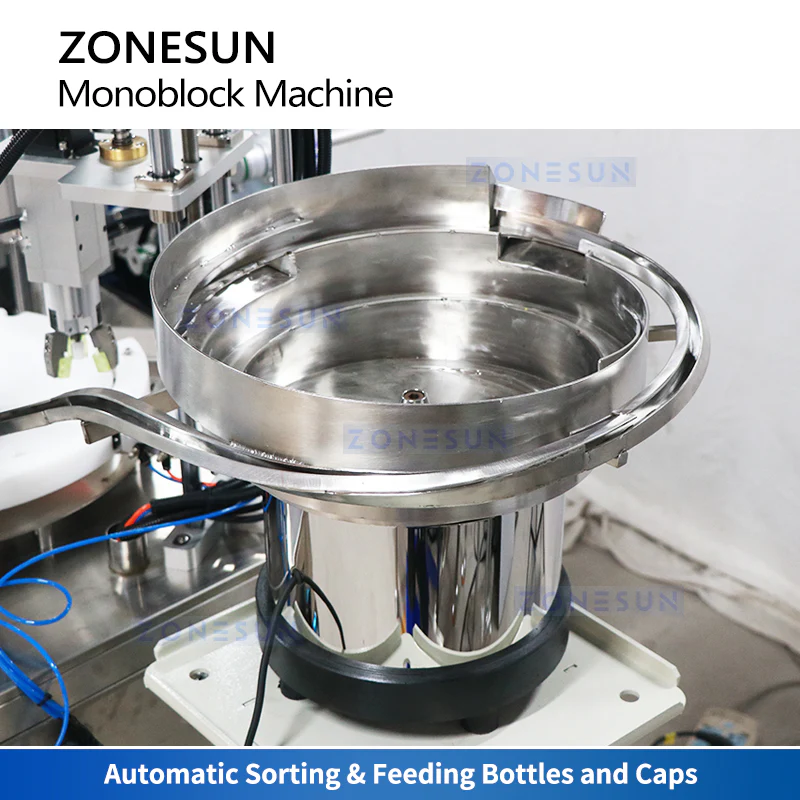

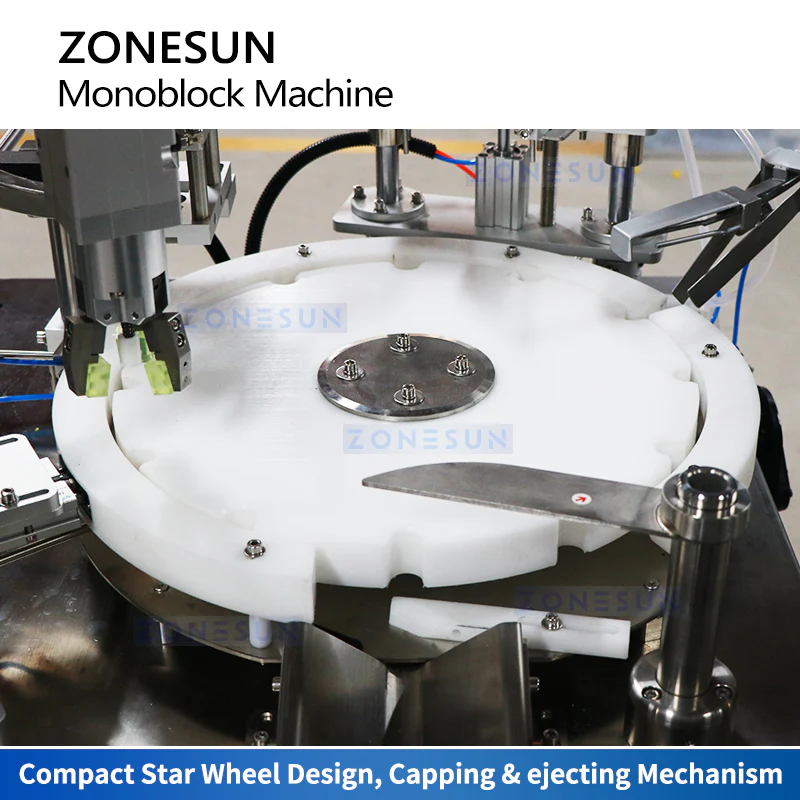

Introducing the ultimate solution for efficient and precise vial filling, capping, and labeling: the Desktop Vial Filling and Capping Machine with Integrated Labeler and Dual Vibration Bowls. This compact system seamlessly combines a desktop filling and capping machine, a desktop horizontal labeling machine, and two vibration bowls to streamline your vial packaging process.

Parameter

• Machine model: ZS-AFC35
• Machine voltage: 220V 50-60Hz
• Power: About 400W
• Filling pump: Peristaltic pump
• Production Capacity: About 10-15pcs/min (depending on liquid and bottle size)
• Filling Range: Customized
• Filling Accuracy: ± ≤1%
• Suitable Bottle Size: Customized
• Air Pressure: 0.4-0.6MPa
• Machine size: About 1800 × 750 × 1020mm
• Package size:
• About 750 × 680 × 1130mm (Vibratory Bowl Sorter)
• About 420 × 750 × 990mm (Lift table for vibratory bowl sorter)
• About 860 × 1190 × 820mm (Filling Capping Machine)
• Package weight:
• About 111kg (Vibratory Bowl Sorter)
• About 61kg (Lift table for vibratory bowl sorter)
• About 159kg (Filling Capping Machine)

Parameter

• Machine model: ZS-TB800
• Machine voltage: 110/220V 50-60HZ
• Working speed: About 30-50 bottles/min
• Label object size: H ≤ 150mm, Φ ≤ 10-30mm
• Label size: 15-150mm (H)
• Roll inside diameter (mm): Φ76mm
• Roll outside diameter (mm): Φ350mm
• Machine size: About 1500 × 600 × 940mm
• Machine weight: About 145kg
